Clock Replacement

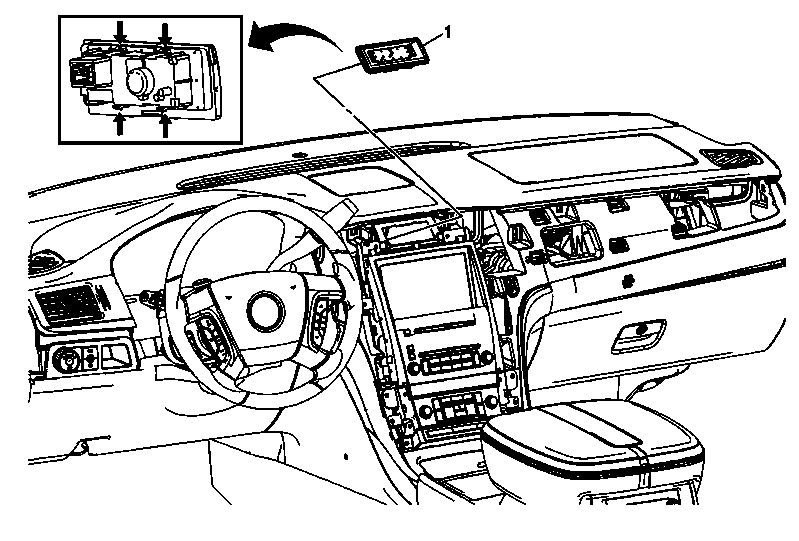

Fig 1: View Of Clock Assembly
GM1703204Courtesy of GENERAL MOTORS COMPANY
Clock Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Except Cadillac) , Instrument Panel Accessory Trim Plate Replacement (Cadillac) .
1 Clock Assembly
  1. Disconnect the electrical connection.
  2. Squeeze the tabs to release the clock from the instrument panel accessory trim plate.
