Installation Procedure

  1. Install the park brake cable guide to the park brake cable.
  2. Install the park brake cable guide.

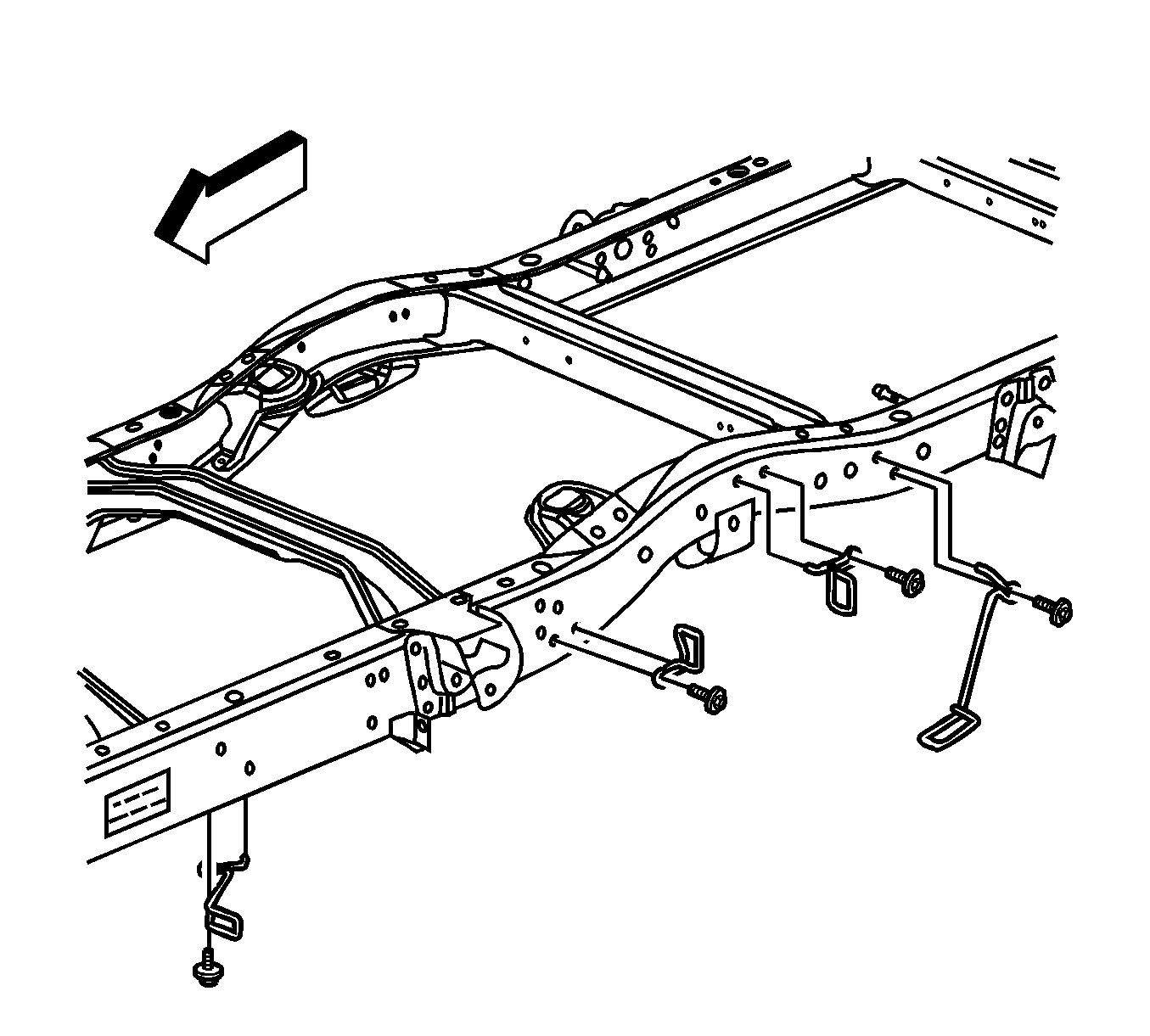

    3. Fig 1: View Of Park Brake Cable Guide Bolt (Cutaway Vehicle)
    GM1208291Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the park brake cable guide bolt to the frame and tighten to 12 N.m (106 lb in).
  4. Lower the vehicle.
