Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retaining clip (1) to the seatback (2).
  2. Ensure that the retaining clip is fully seated.
  3. Install the armrest (3) to the seatback.
  4. Press on the armrest in order to engage the armrest with the retaining clip in the seatback.
  5. Secure the bottom edge of the seatback cover. Refer to Seat Back Cover and Pad Replacement - Front .

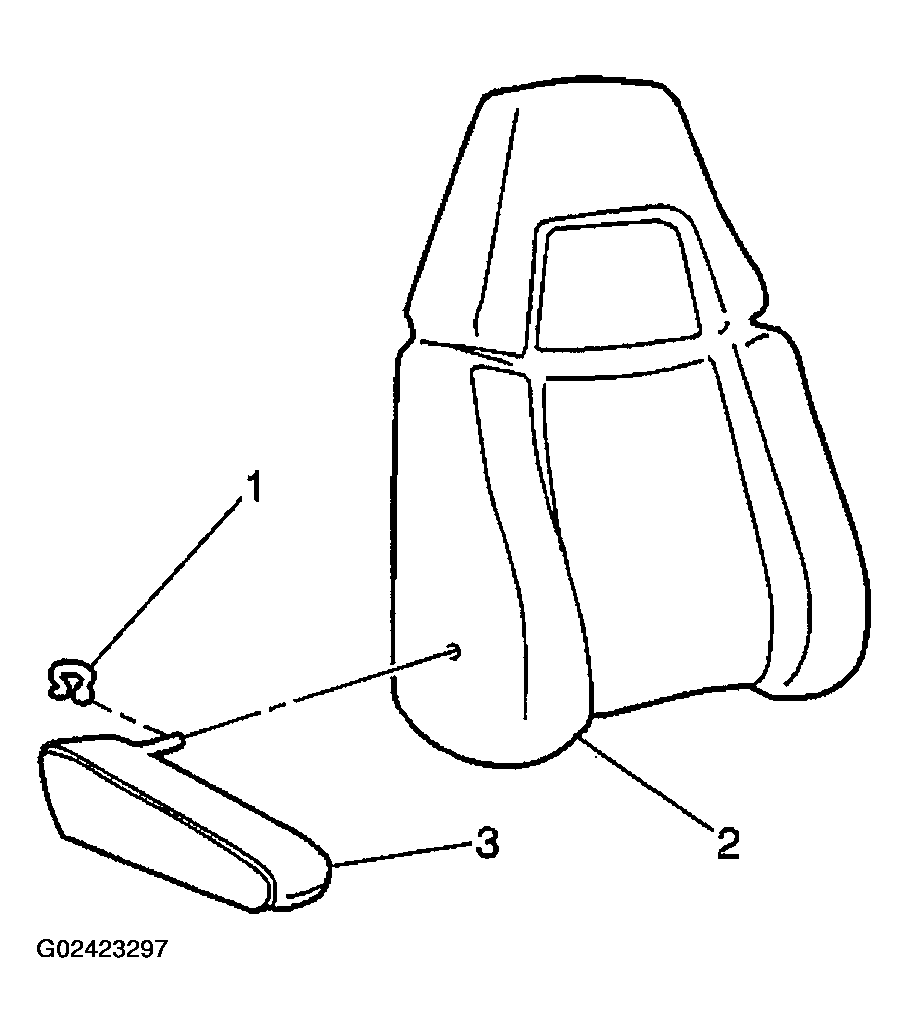

    Fig 1: Installing Front Seat Armrest
    G02423297Courtesy of GENERAL MOTORS CORP.
