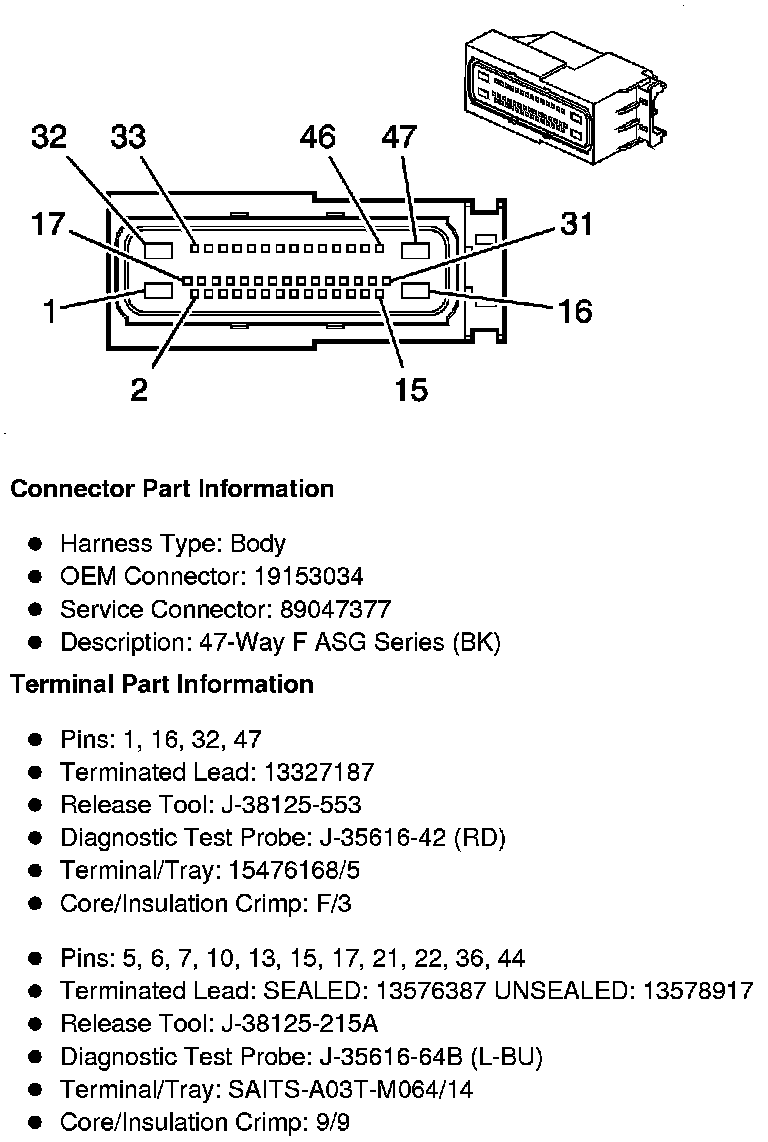

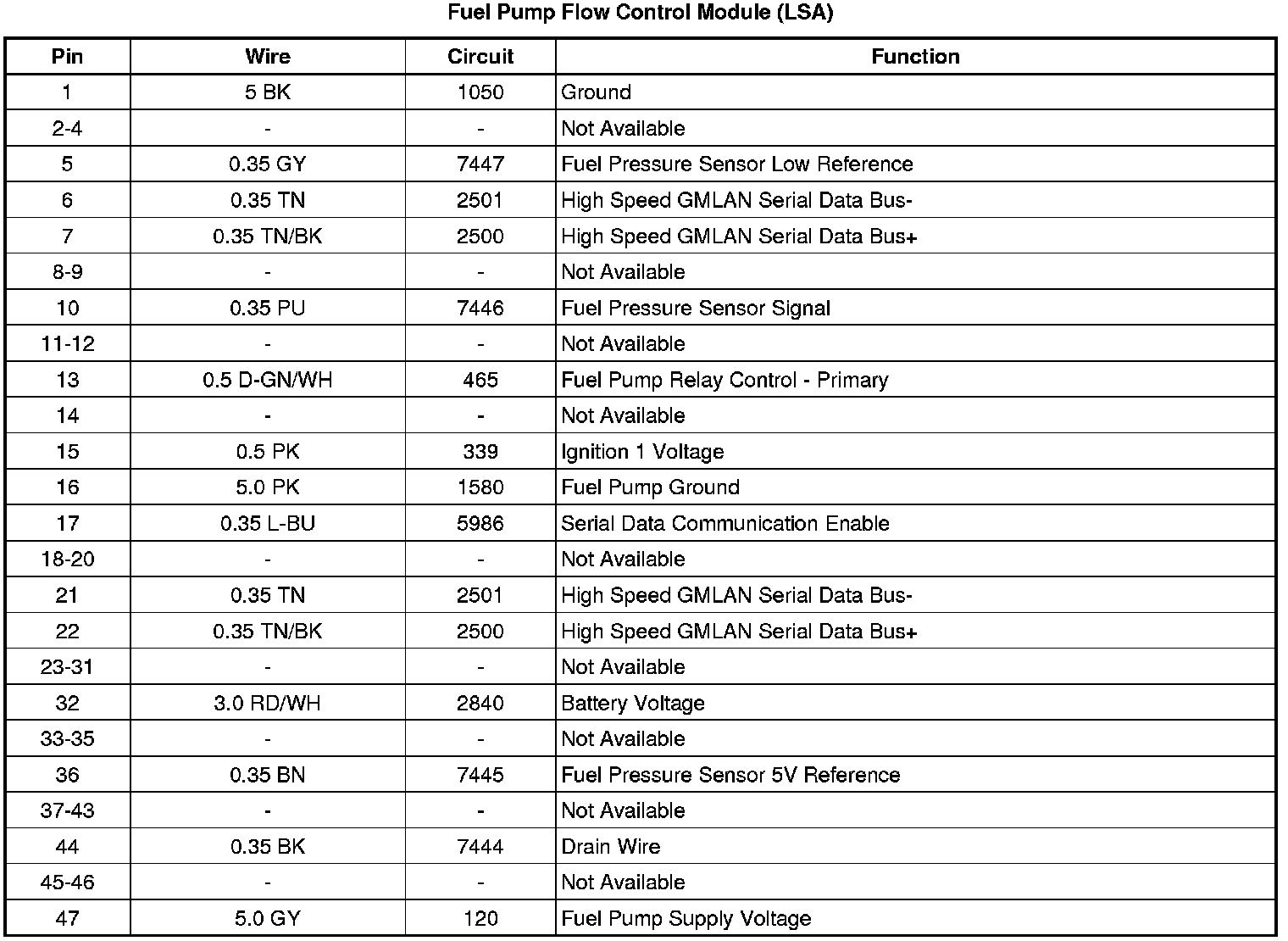

Fuel Pump Flow Control Module (LSA)
Component Connector End Views
Fuel Pump Flow
Control Module
(LSA)
