Temperature Sensor/Switch: Locations

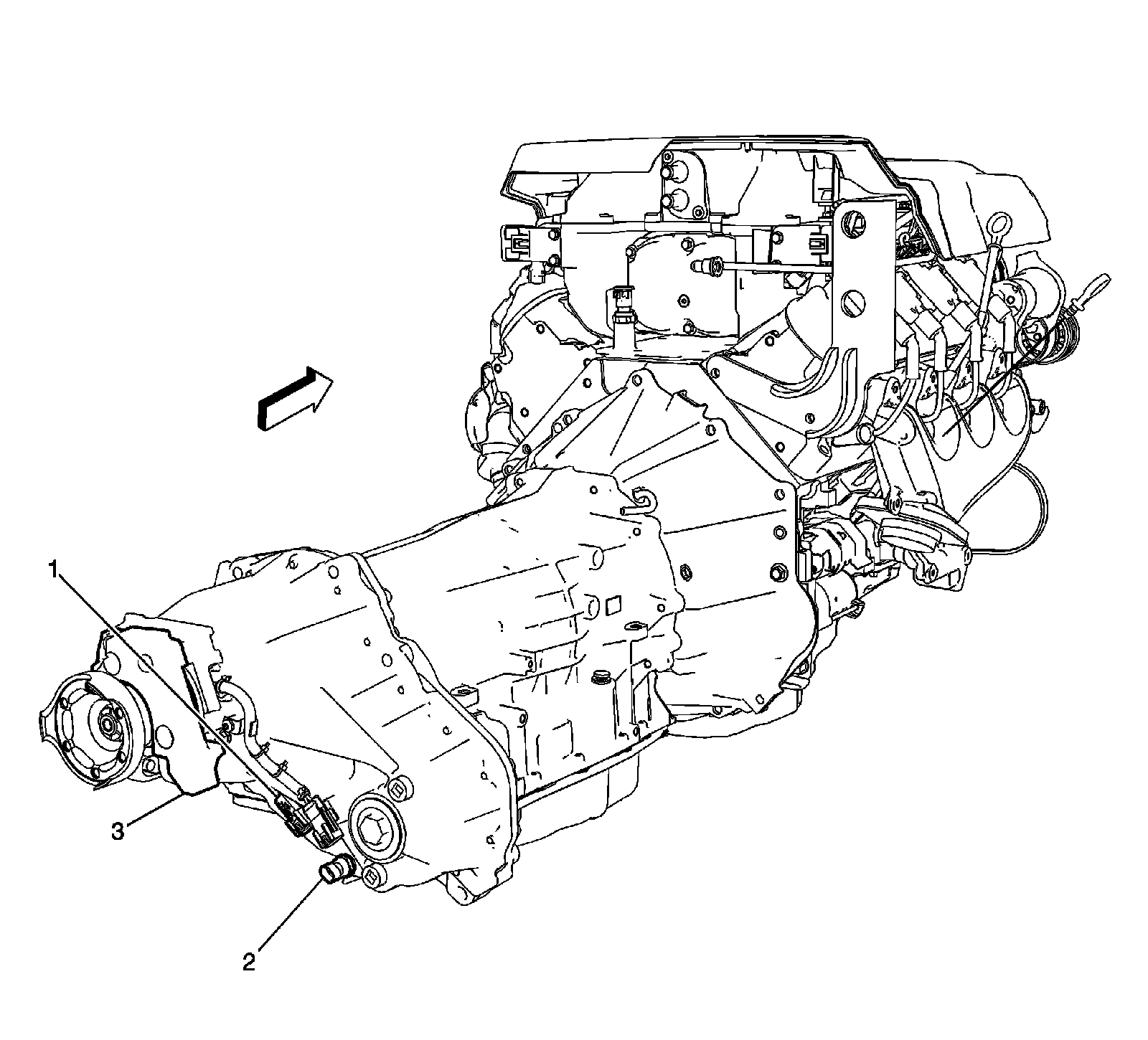

Powertrain Component Views

Transfer Case Components (MYD or MX7)




1 - Transfer Case Clutch Resistor
2 - Transfer Case Fluid Temperature Sensor
3 - Transfer Case Clutch Coil (MX7)
