Home
>>
Cadillac
>>
2012
>>
CTS Sedan AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Distance Sensor
>>
Side Object Sensor - Left (UFT)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

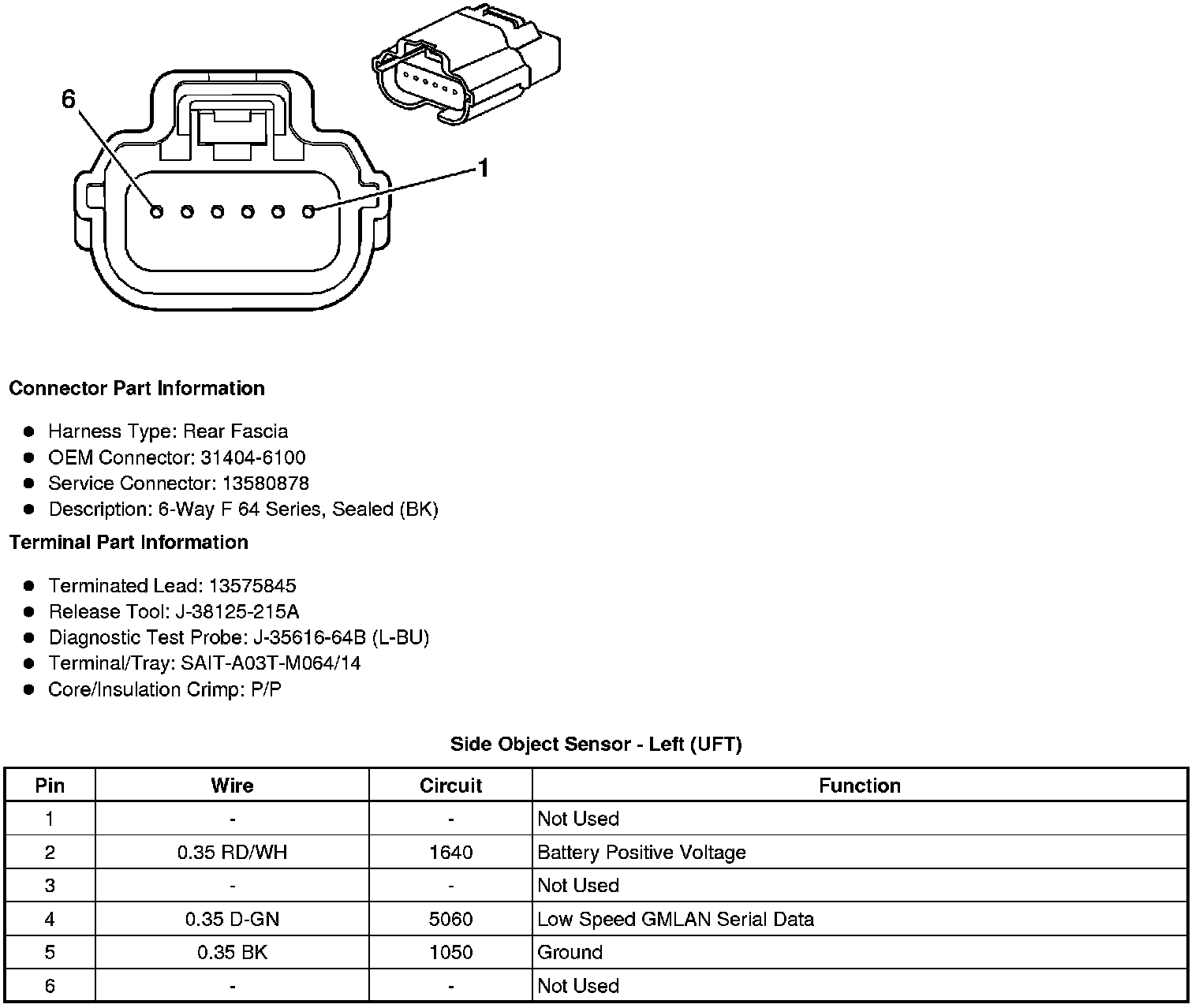

Side Object Sensor - Left (UFT)
Component Connector End Views
Side Object Sensor - Left (UFT)
