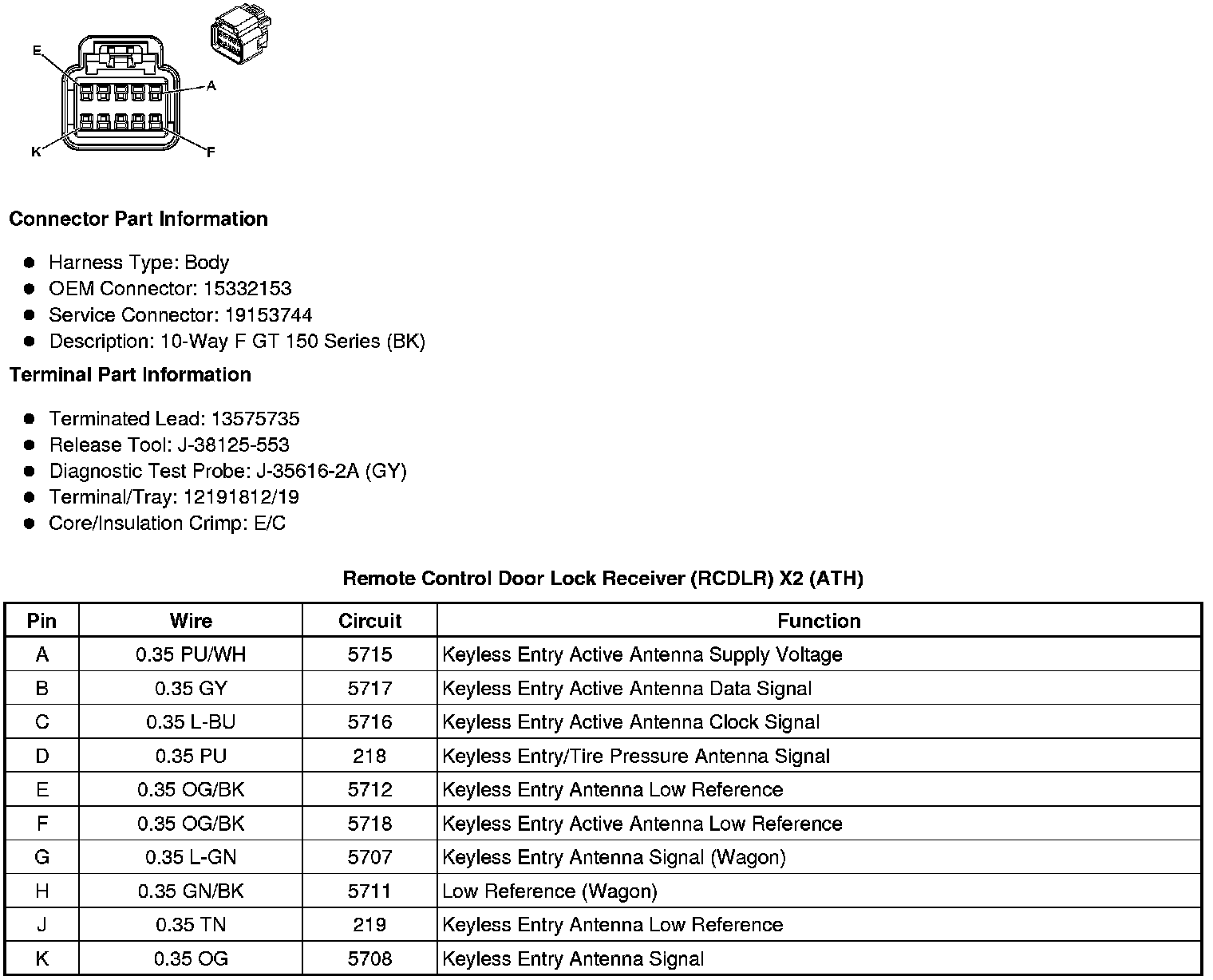

Remote Control Door Lock Receiver (RCDLR) X2 (ATH)




Component Connector End Views

Remote Control Door Lock Receiver (RCDLR) X2 (ATH)









Component Connector End Views

Remote Control Door Lock Receiver (RCDLR) X2 (ATH)
