CTS Base, 2D Coupe, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Wiring Schematics
>>
Data Communication Wiring Schematics
>>
High Speed GMLAN (LSA)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
High Speed GMLAN (LSA)

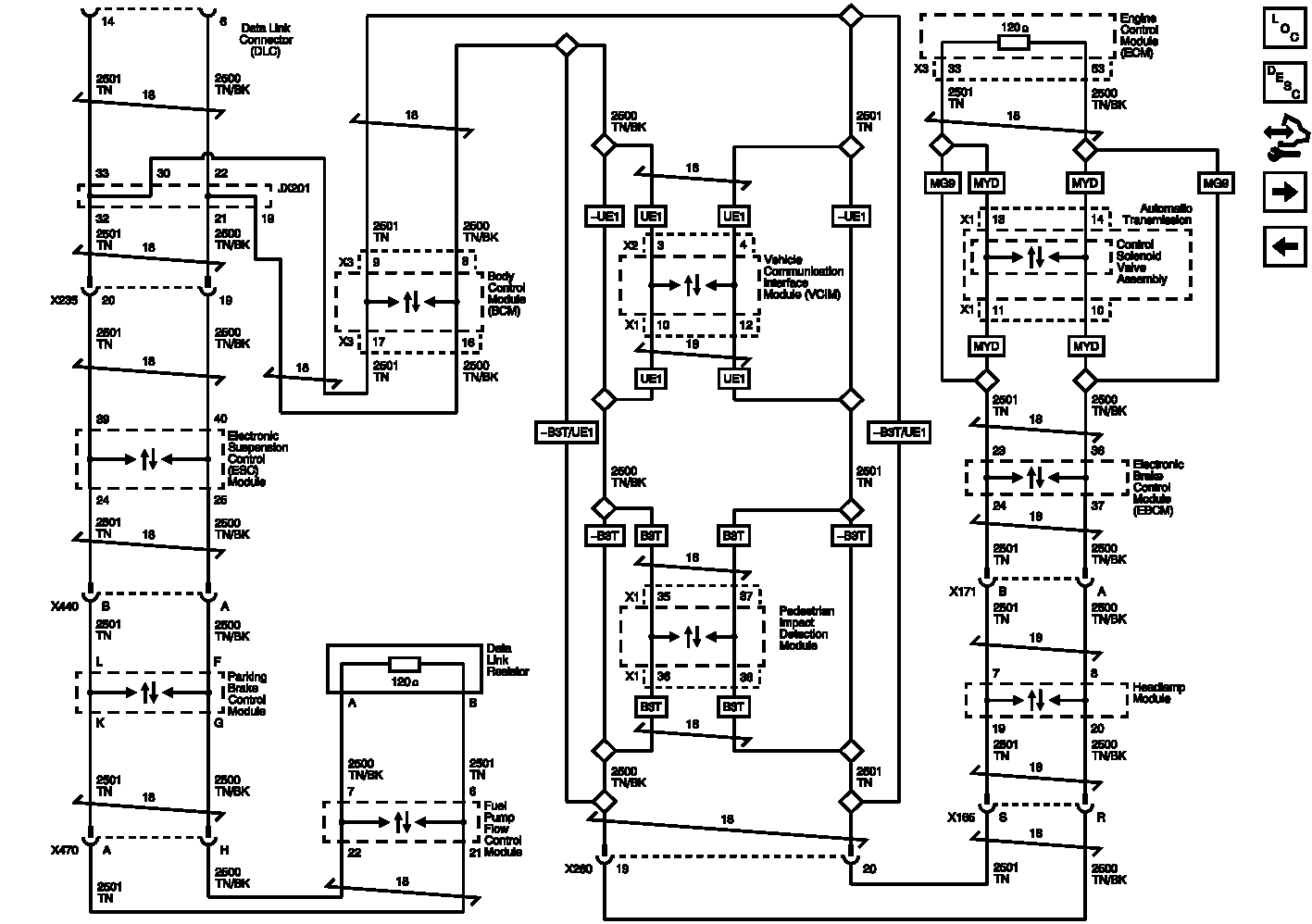

Fig 1: High Speed GMLAN Wiring Schematic (LSA)
Courtesy of GENERAL MOTORS COMPANY
