Antilock Brake System Wiring Schematics (except JL7)
>>
Stability Control System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Stability Control System

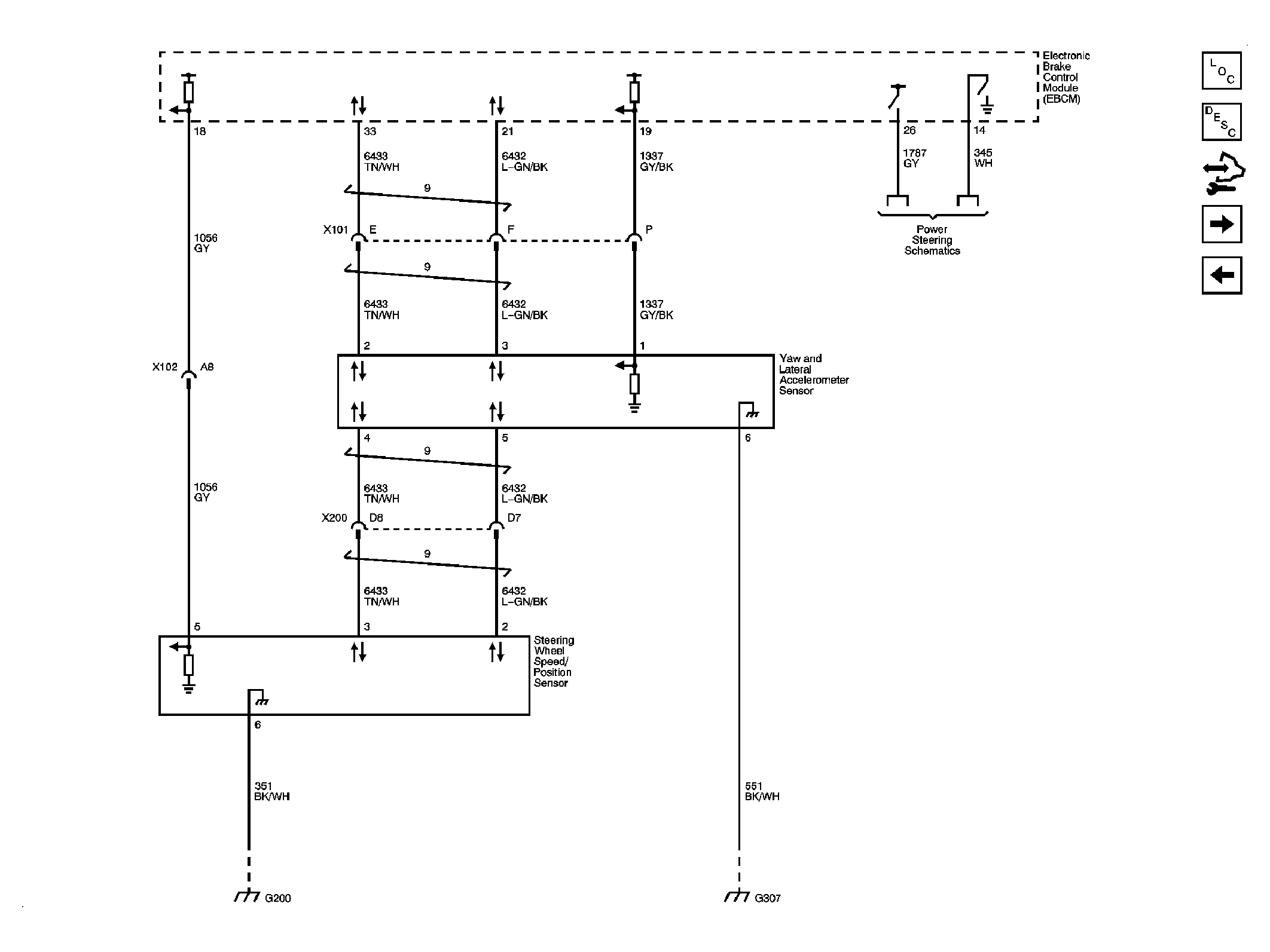

Fig 1: Stability Control System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
