Traffic Information Receiver Module (VICS)- Japan Only

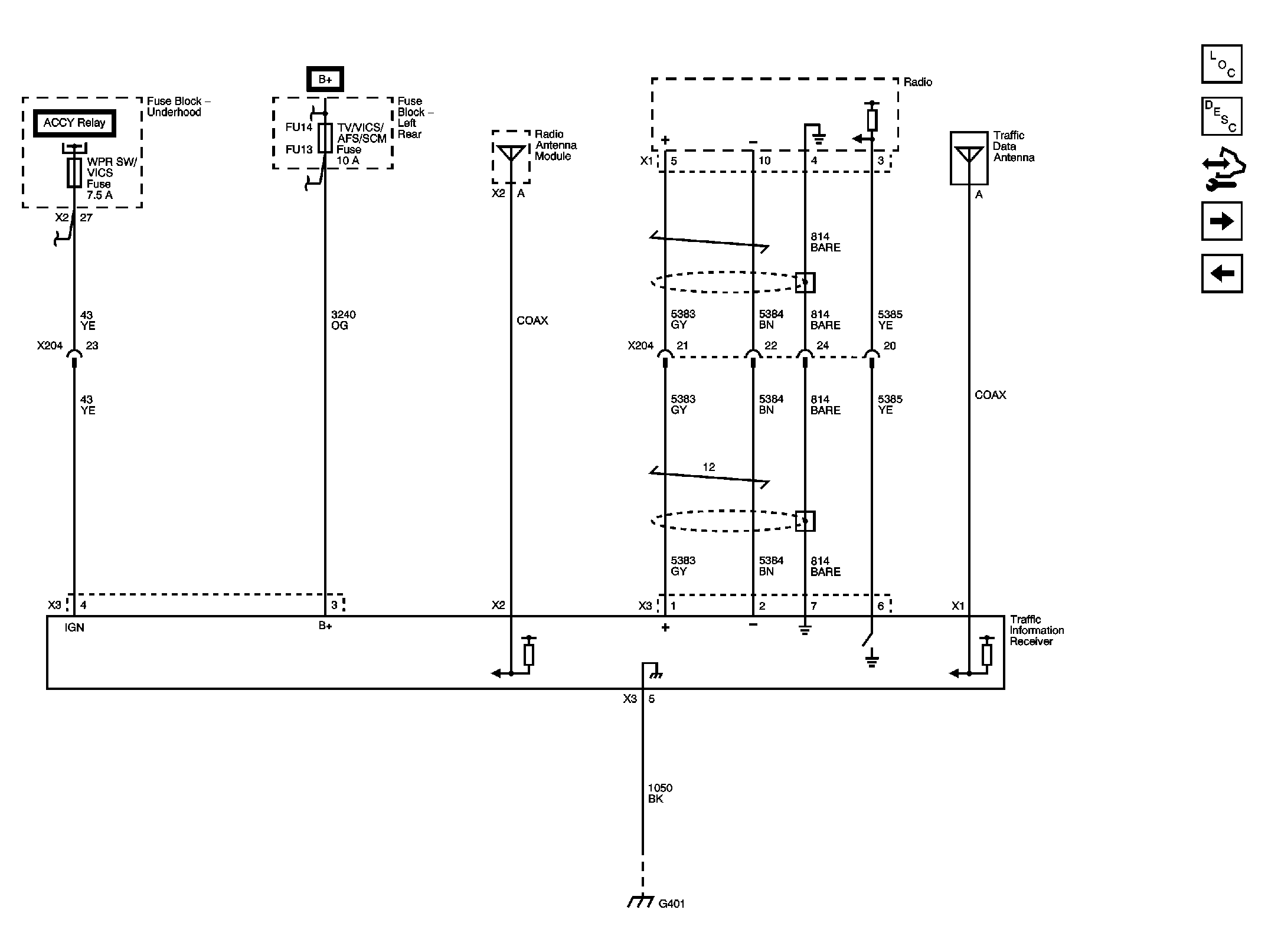

Fig 1: Traffic Information Receiver Module (VICS) - Japan Only Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
