Power Window Switch: Diagrams




Component Connector End Views

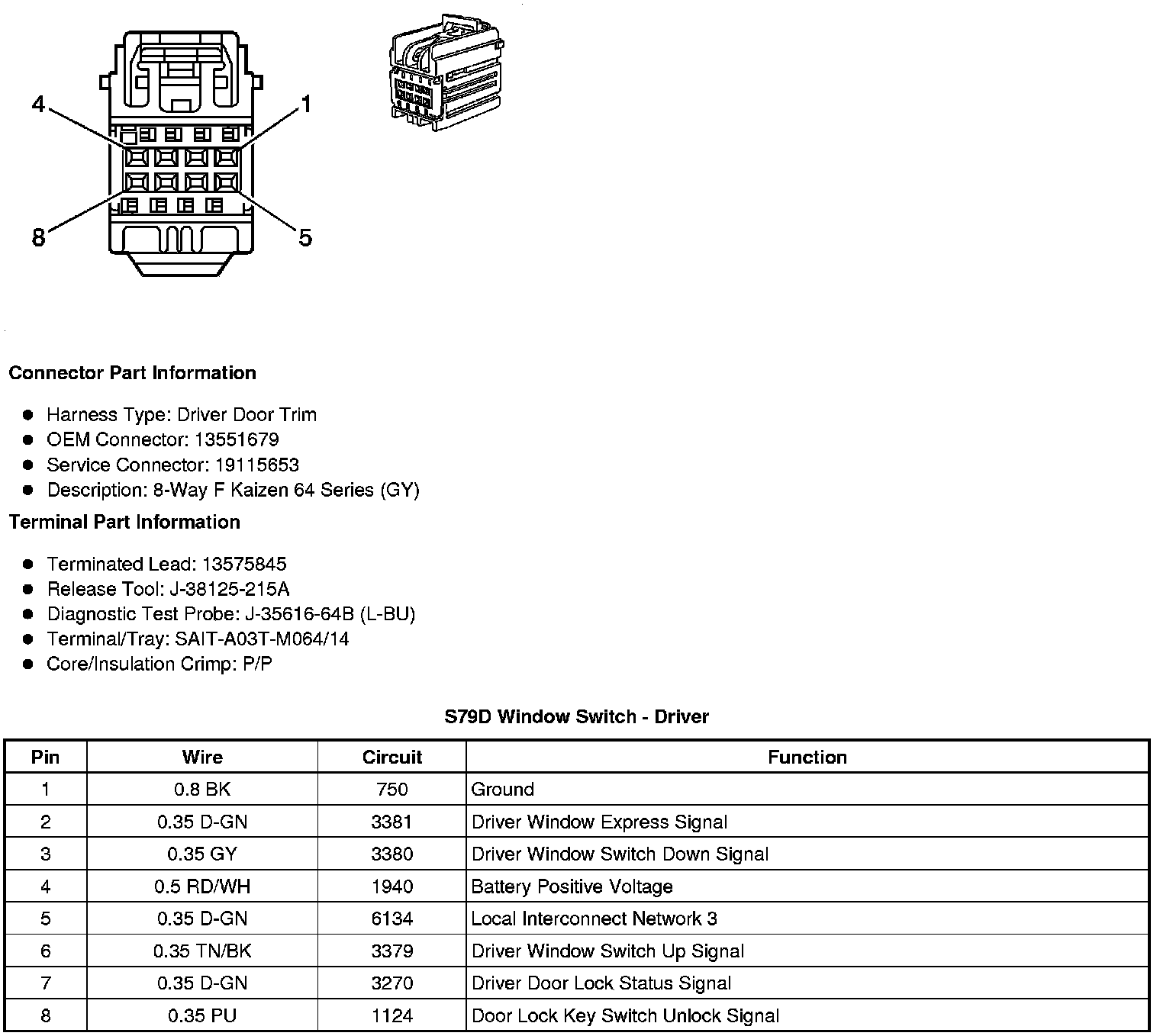

S79D Window Switch - Driver

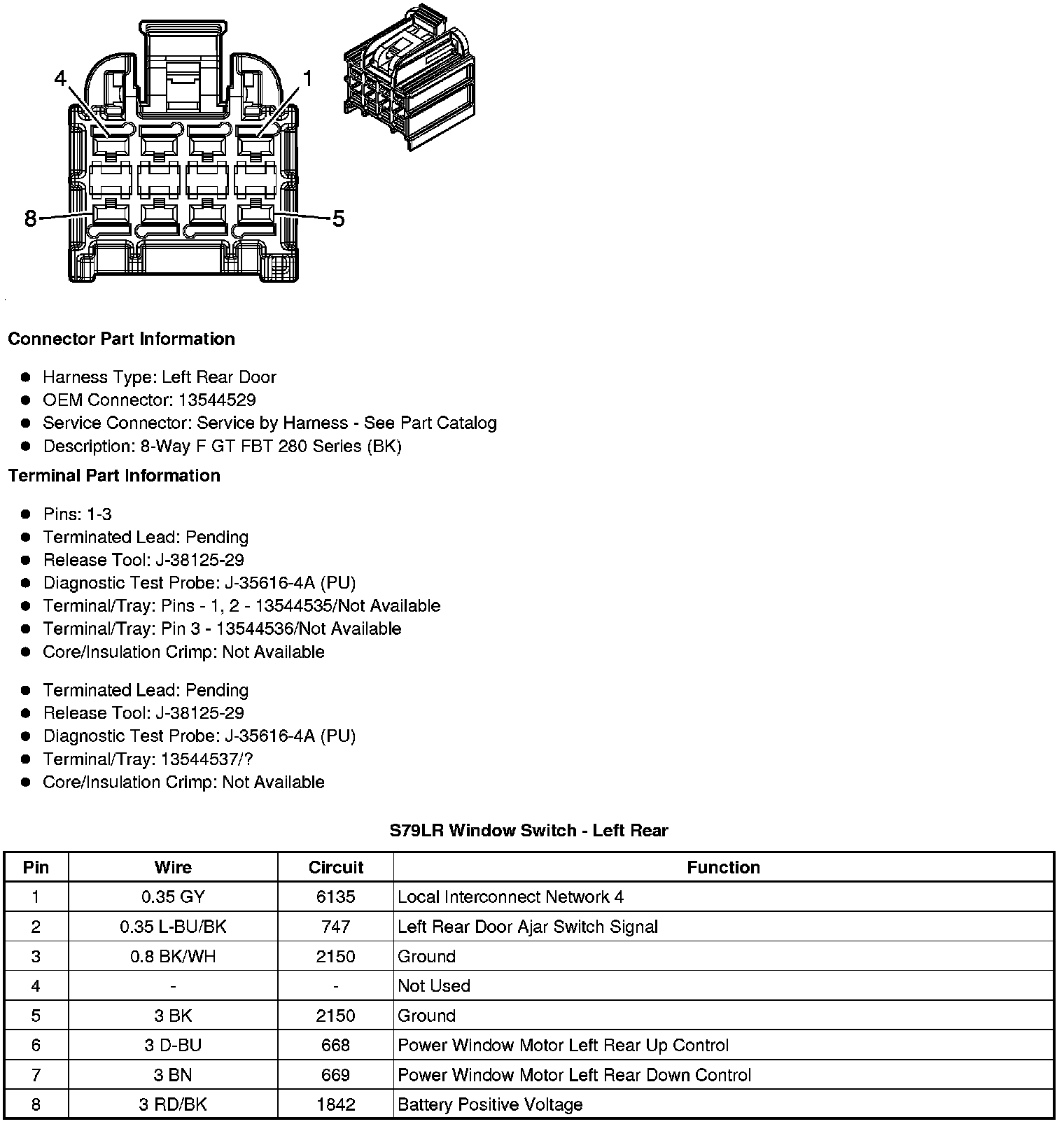

S79LR Window Switch - Left Rear

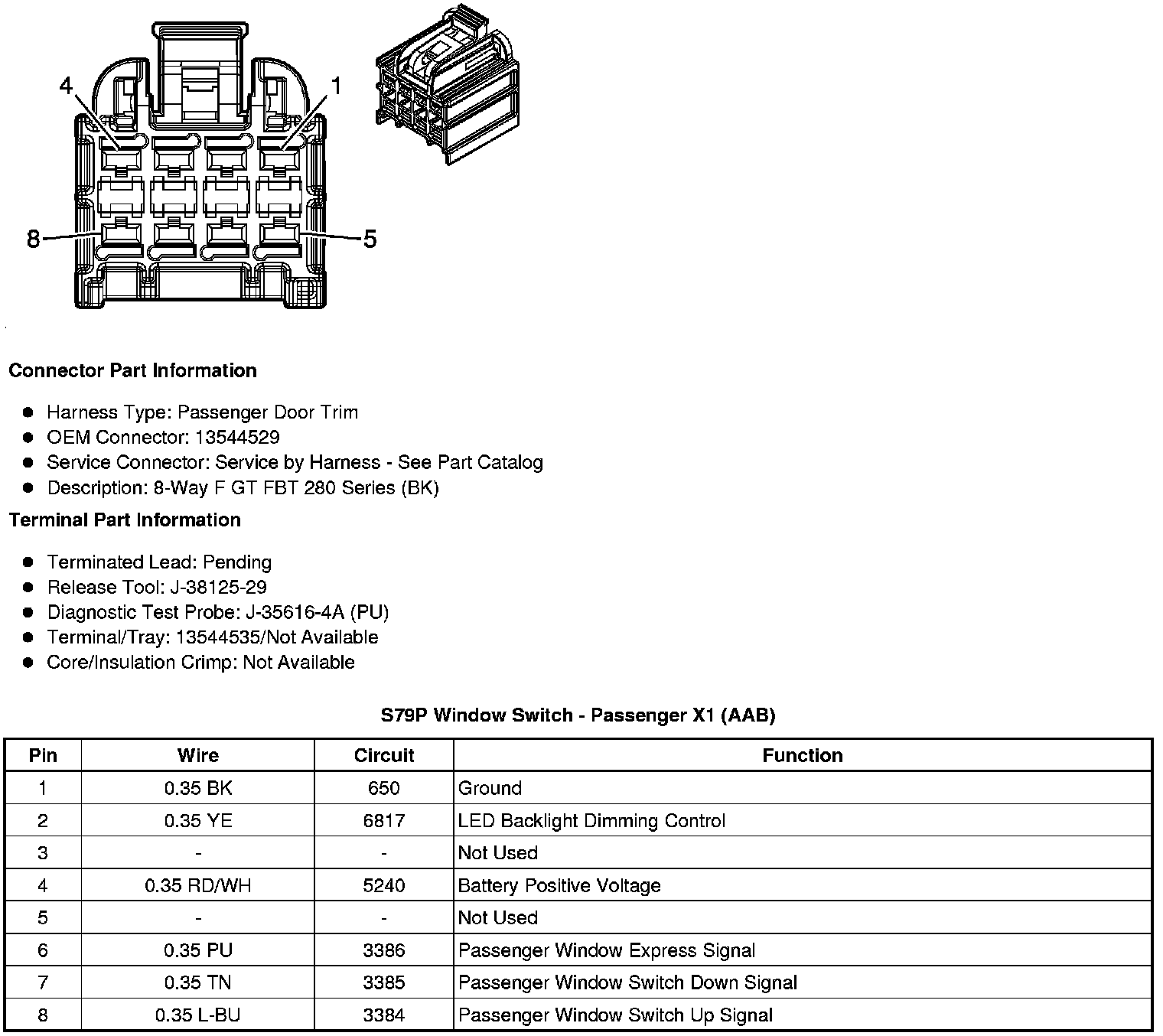

S79P Window Switch - Passenger X1 (AAB)

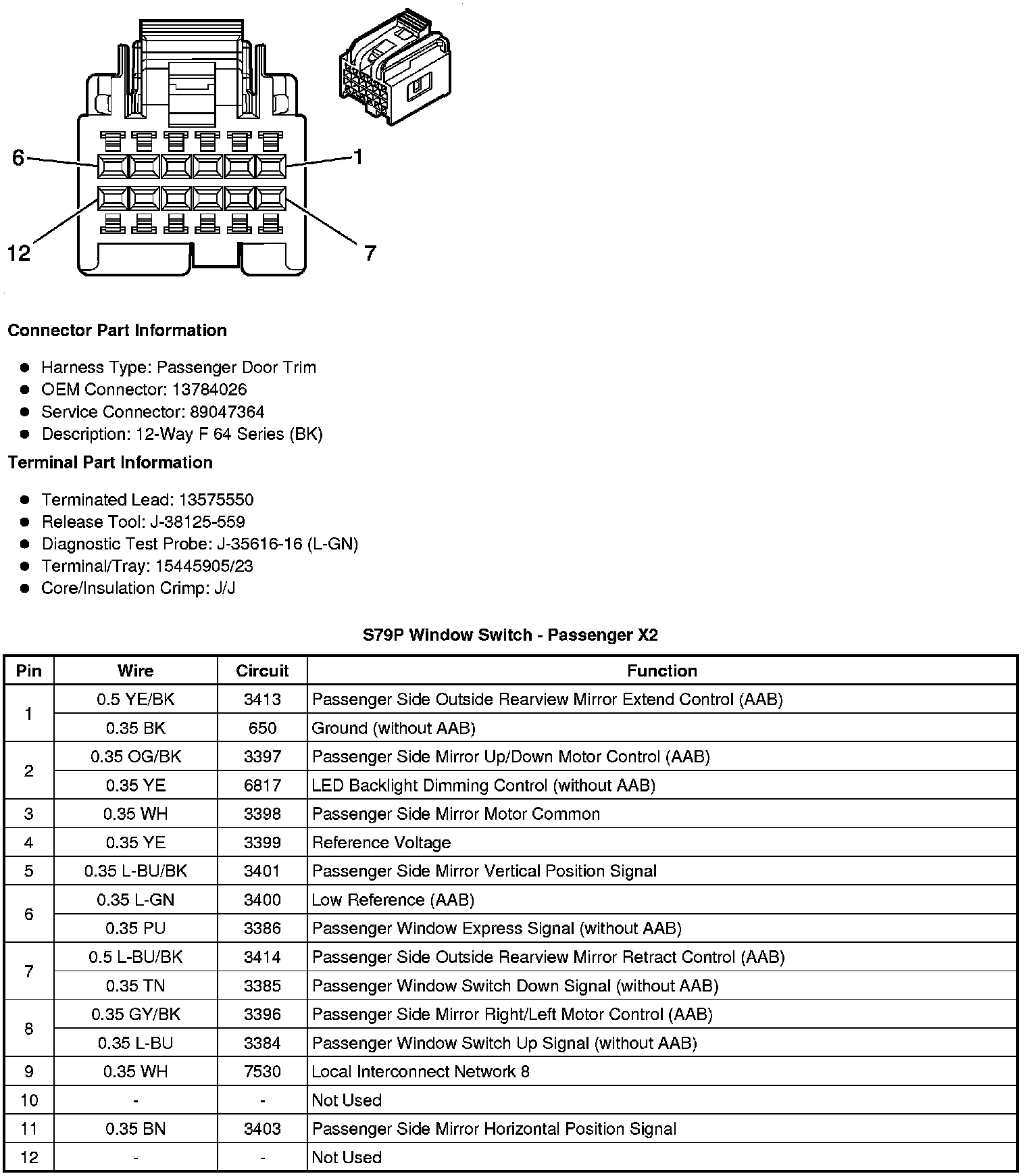

S79P Window Switch - Passenger X2

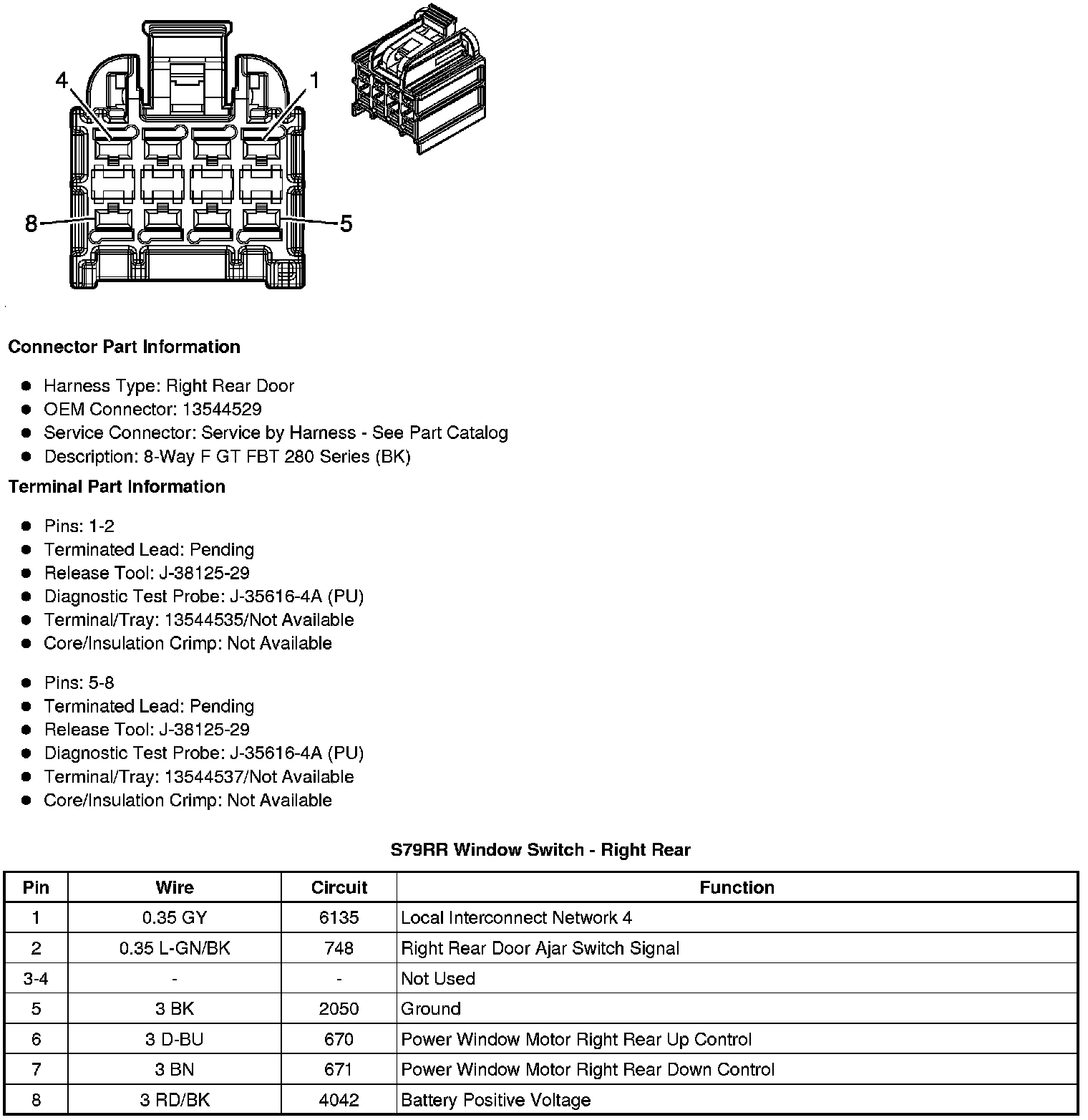

S79RR Window Switch - Right Rear
