Blower Motor Control Module




Component Connector End Views

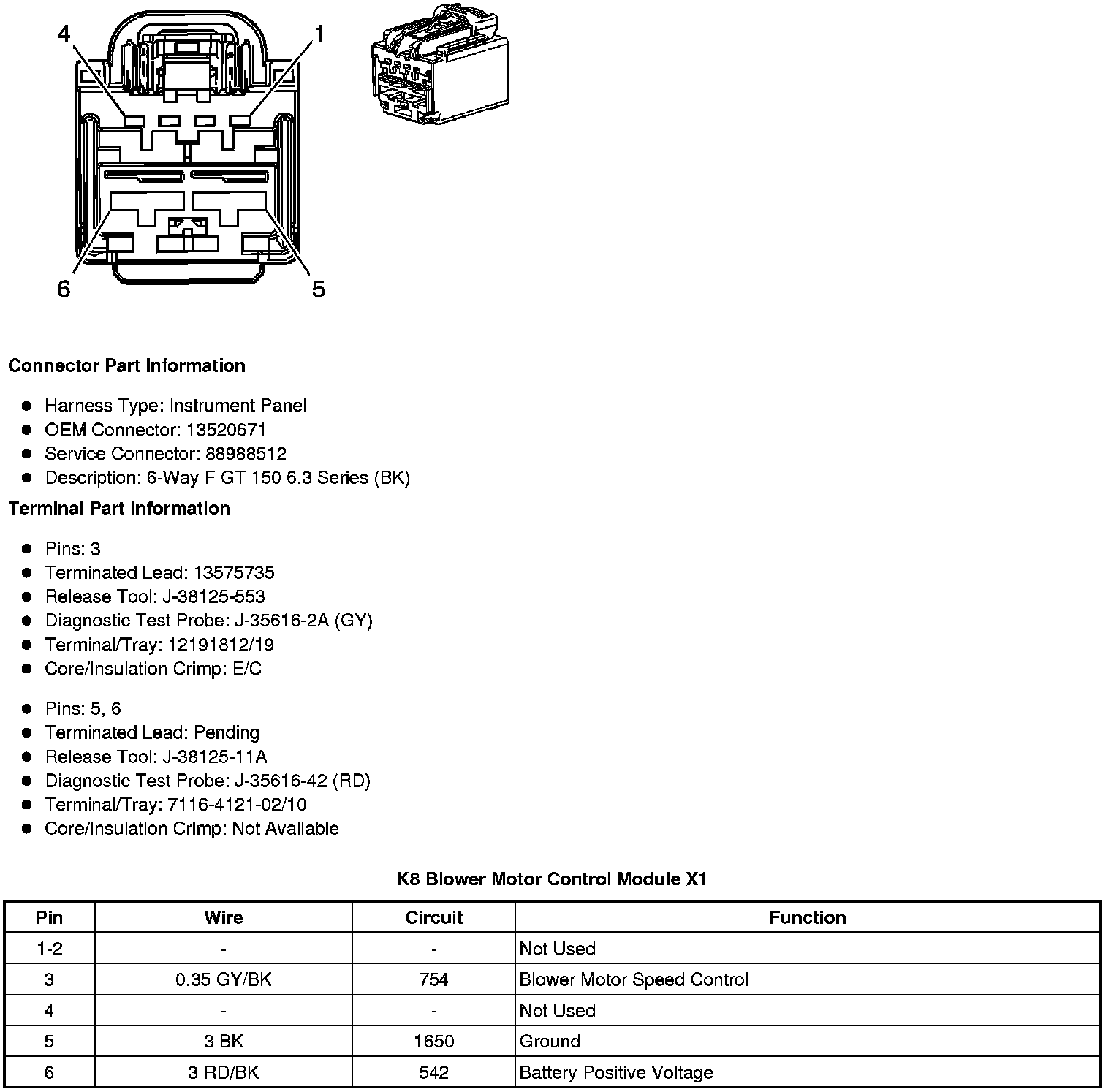

K8 Blower Motor Control Module X1





K8 Blower Motor Control Module X2

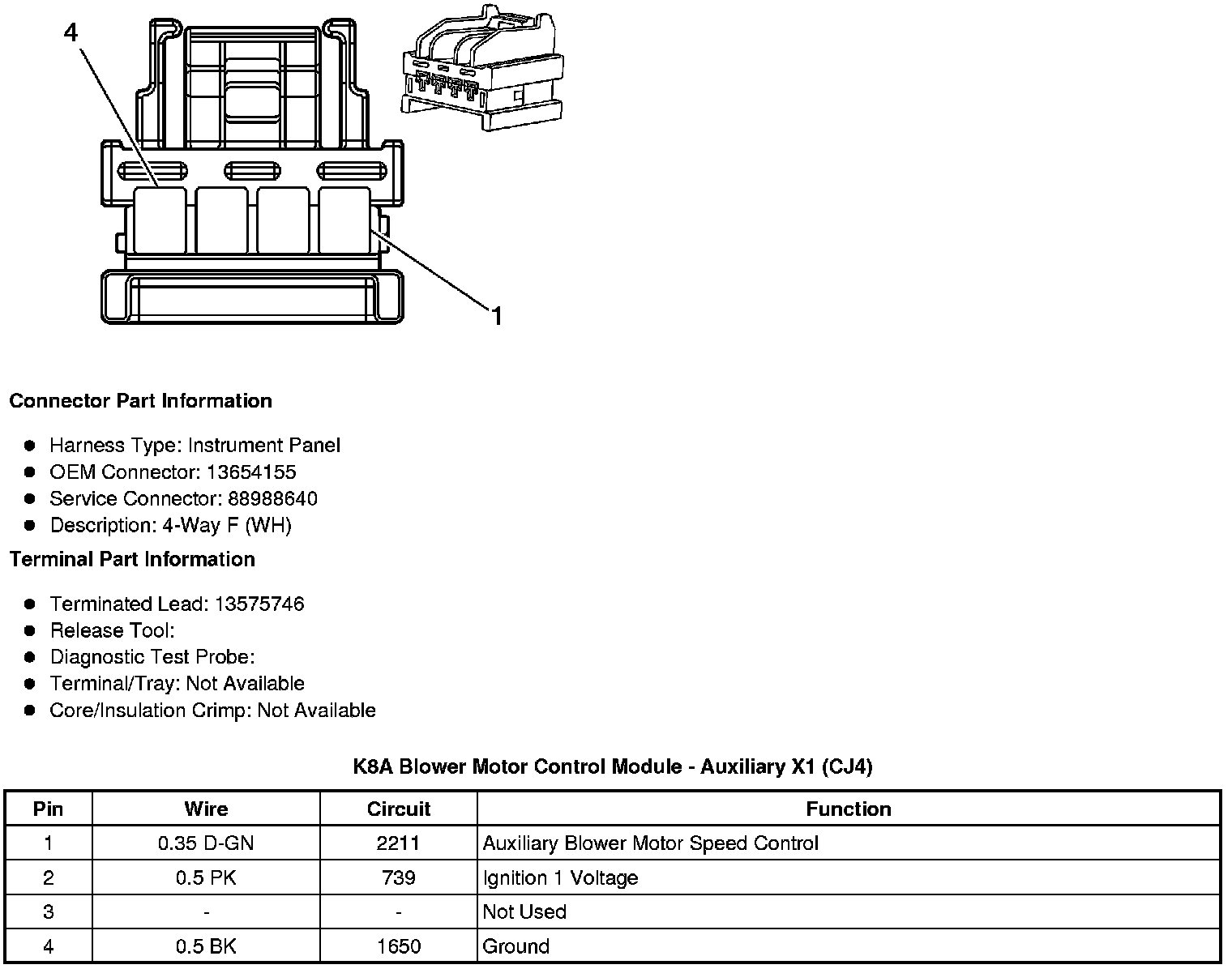

K8A Blower Motor Control Module - Auxiliary X1 (CJ4)

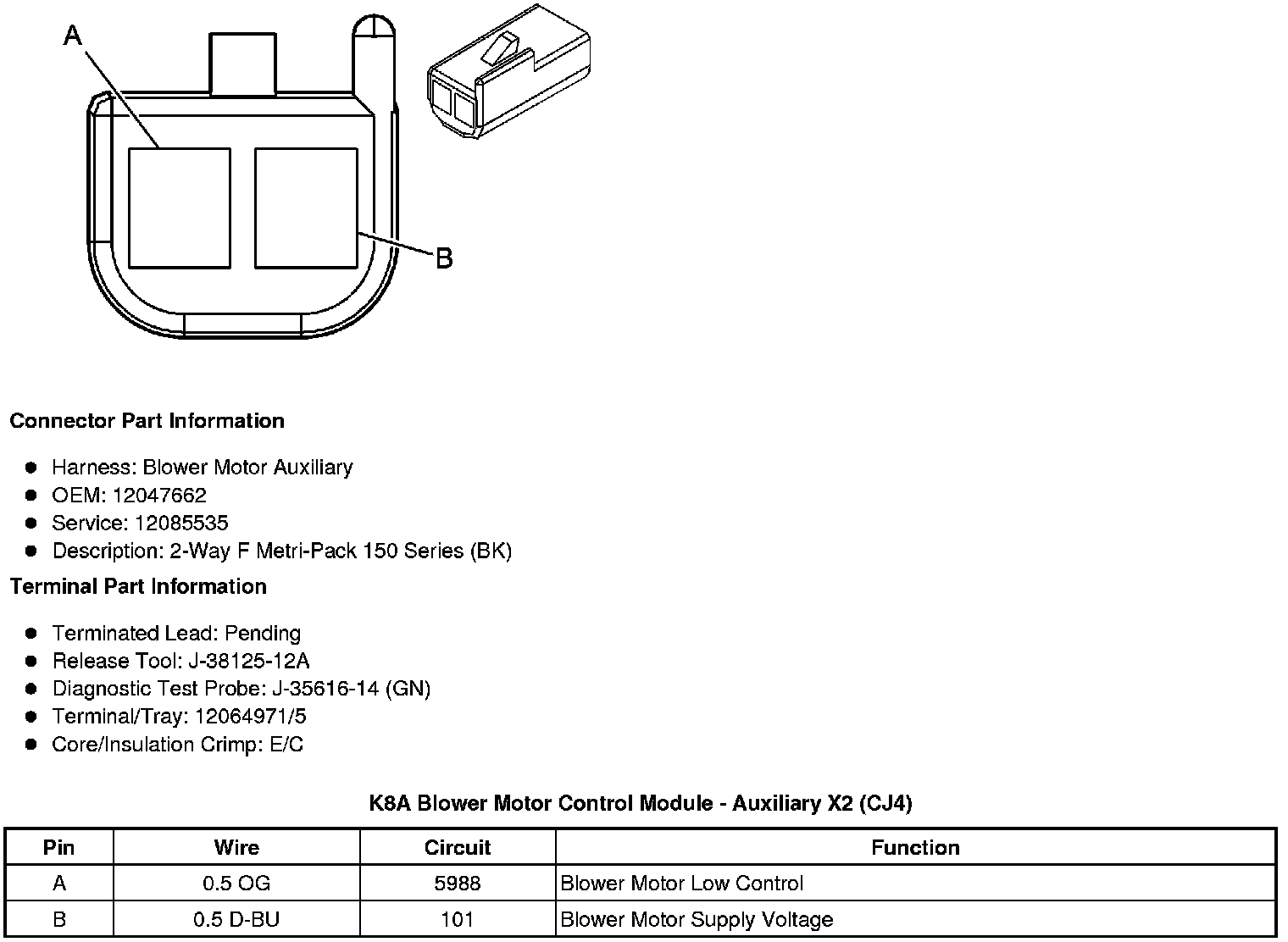

K8A Blower Motor Control Module - Auxiliary X2 (CJ4)
