Ignition Coil: Diagrams




Component Connector End Views

T8A Ignition Coil 1

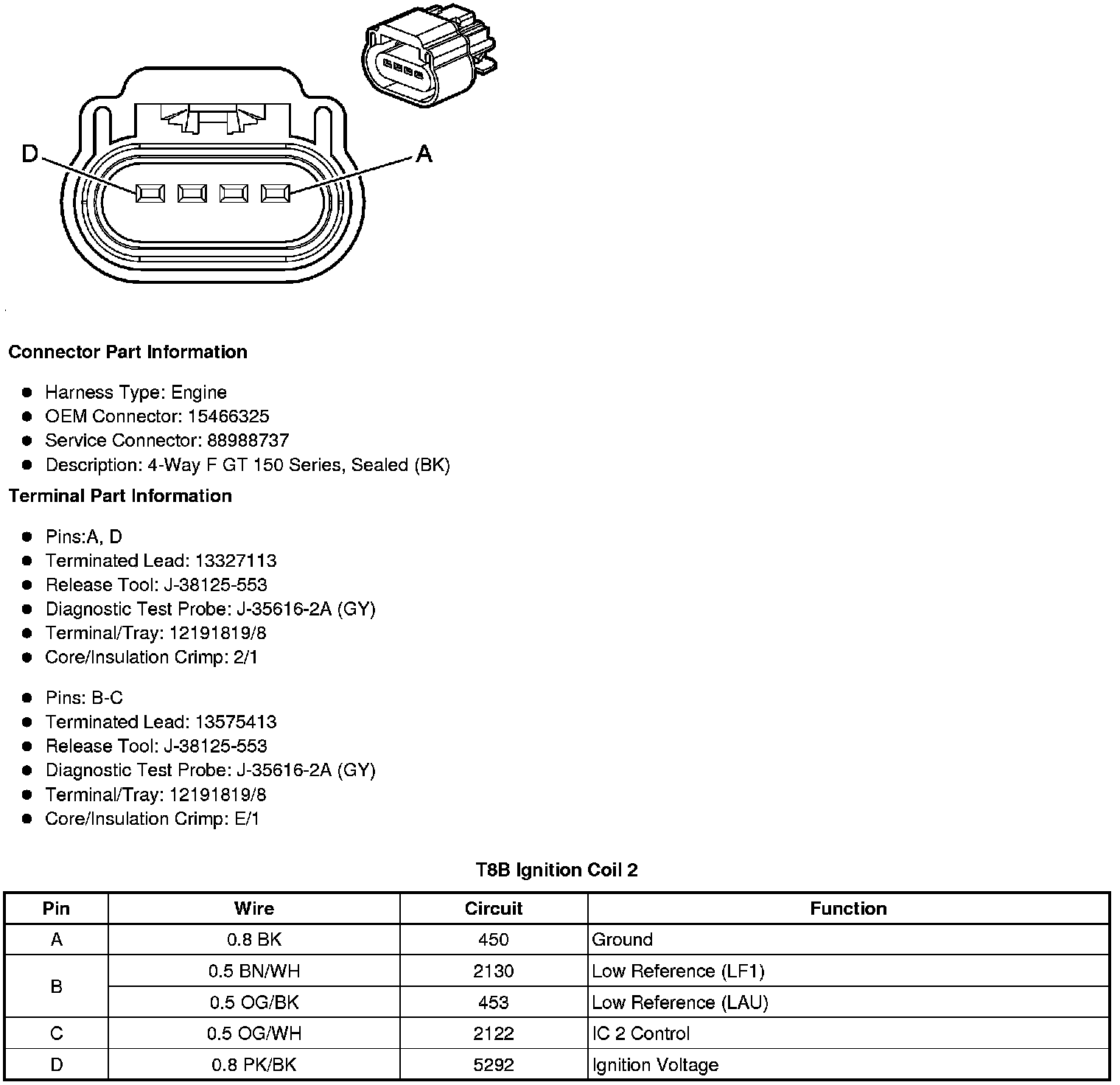

T8B Ignition Coil 2





T8C Ignition Coil 3





T8D Ignition Coil 4

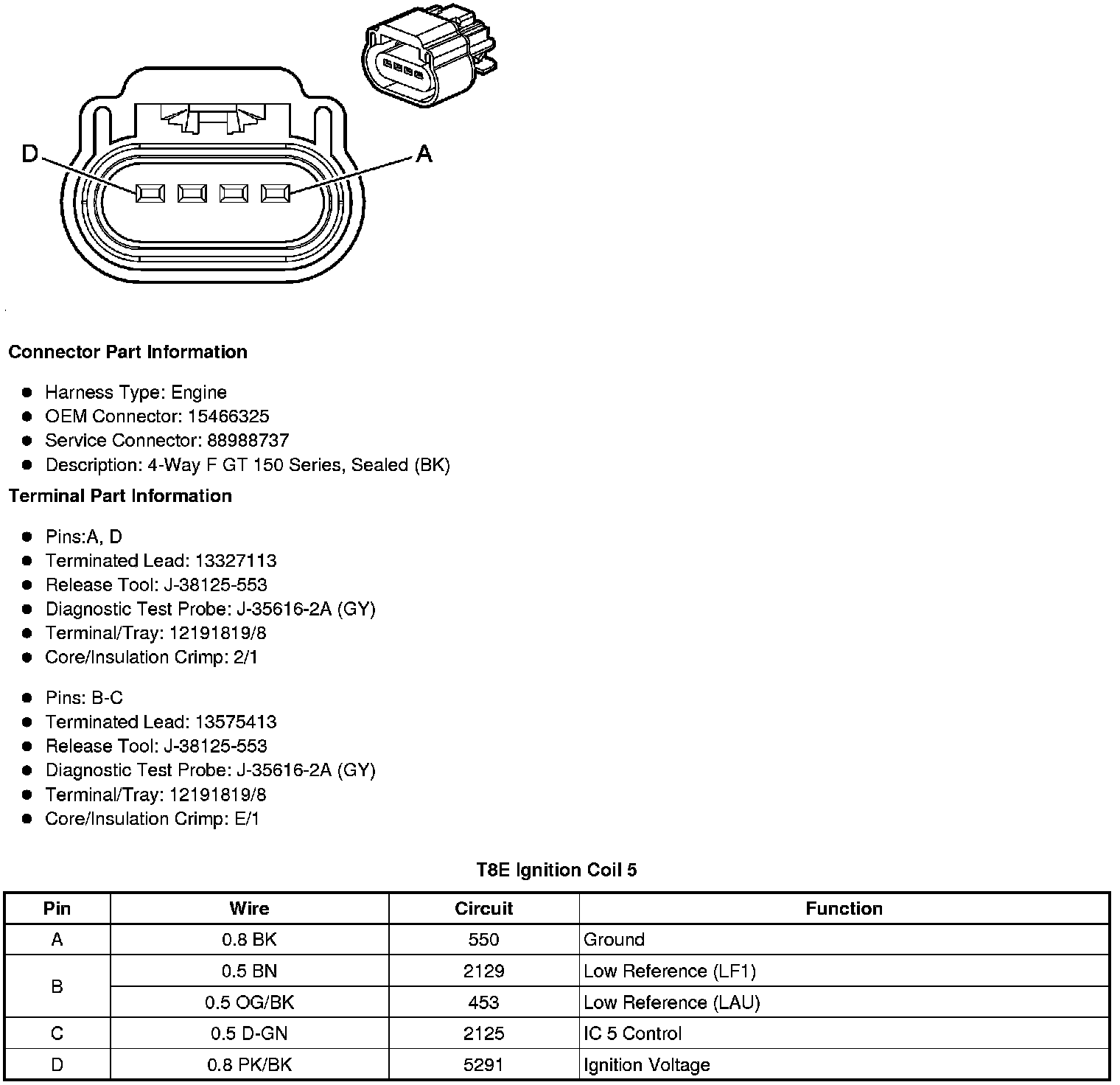

T8E Ignition Coil 5





T8F Ignition Coil 6
