Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector from the fog lamp.

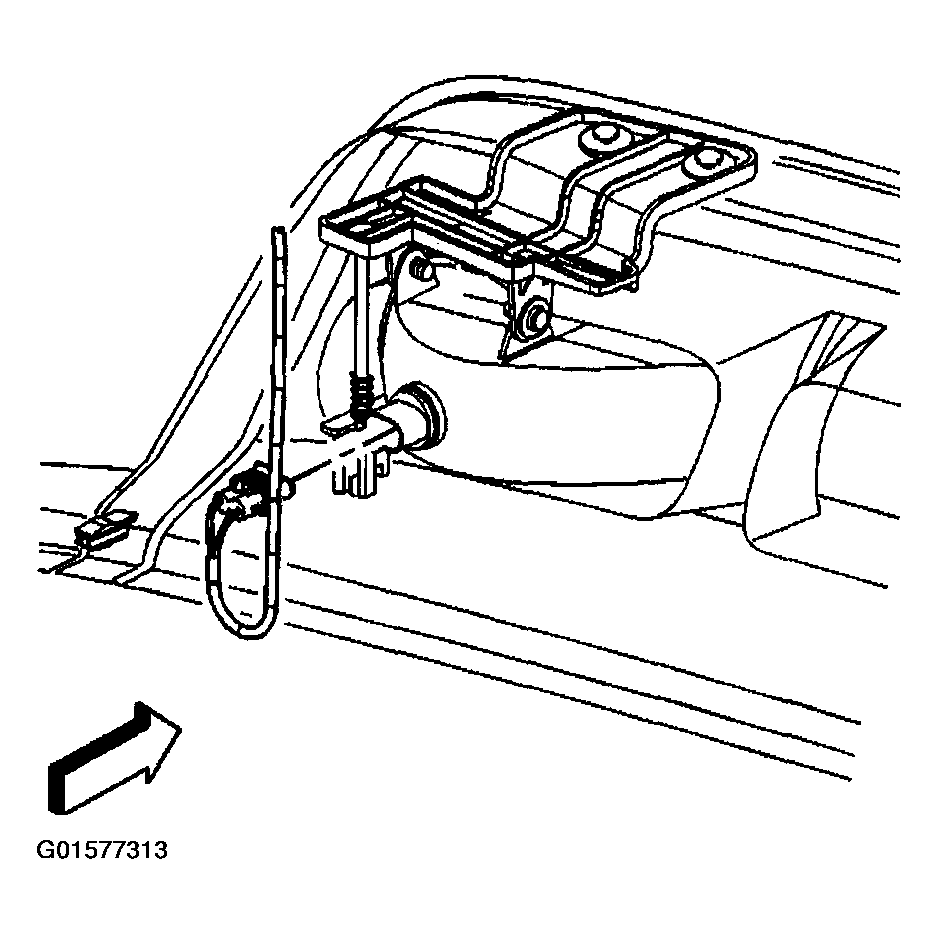

    Fig 1: Disconnecting Front Fog Lamp Electrical Connector (Old Style)
    G01577313Courtesy of GENERAL MOTORS CORP.
  2. Remove the push pin retainers that attach the fog lamp to the bracket.
  3. Remove the fog lamp adjuster bolt and spring from the adjuster nut.
  4. Remove the fog lamp from the fog lamp bracket.
  5. Remove the fog lamp bracket bolts and bracket, as needed.
