Remote Control Door Lock Receiver Antenna Replacement (Except Avalanche/Escalade EXT)

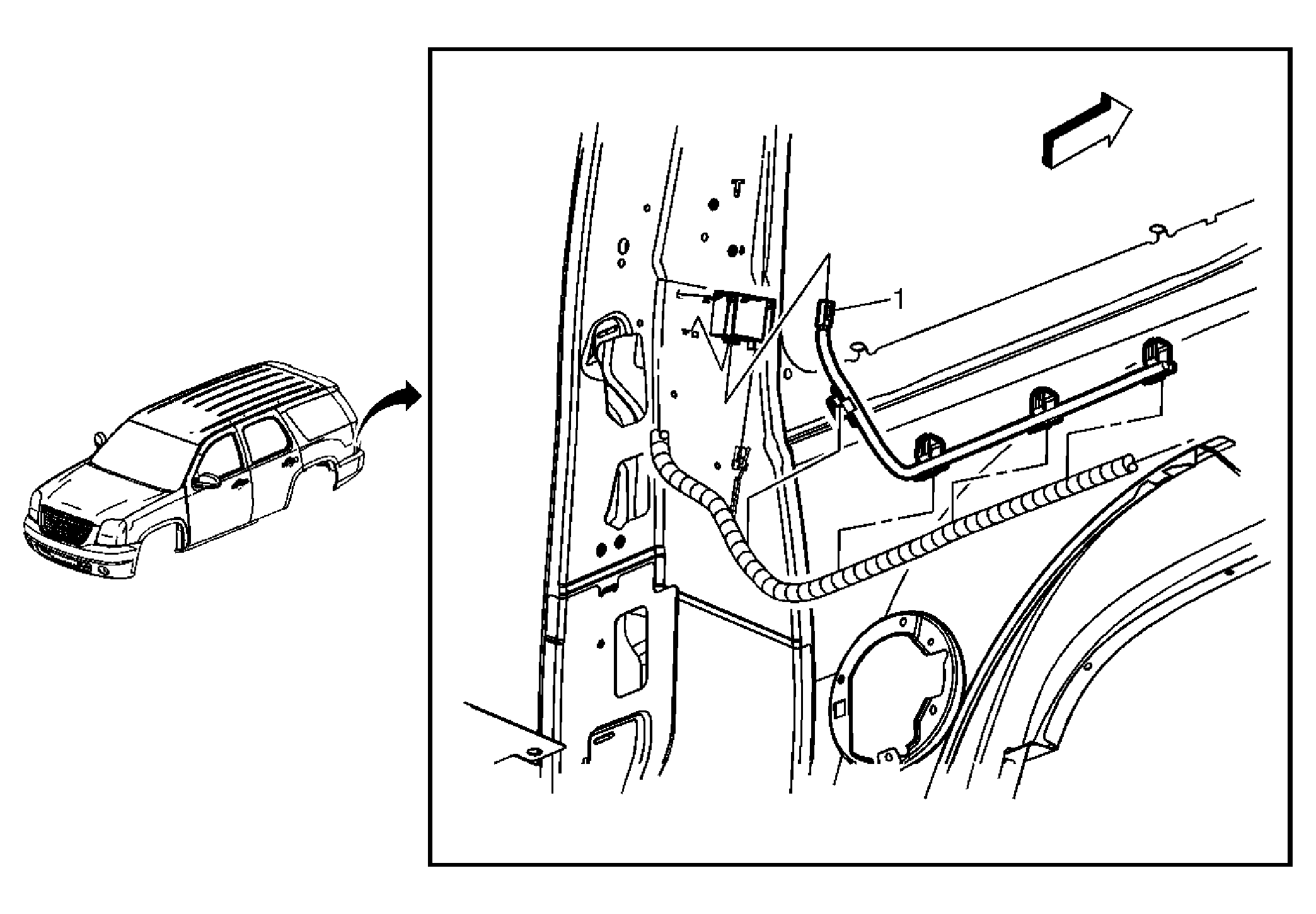

Fig 1: Remote Control Door Lock Receiver Antenna (Except Avalanche/Escalade EXT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the back rear corner upper garnish molding. Refer to Body Rear Corner Garnish Molding Replacement - Left Side (With E61) , Body Rear Corner Garnish Molding Replacement - Left Side (Without E61) .
1	Remote Control Door Lock Receiver Antenna Procedure Disconnect the antenna from the remote control door lock receiver. Note the routing of the antenna.

Callout

Component Name

Remote Control Door Lock Receiver Antenna

Procedure
