Window Shade: Diagrams




Component Connector End Views

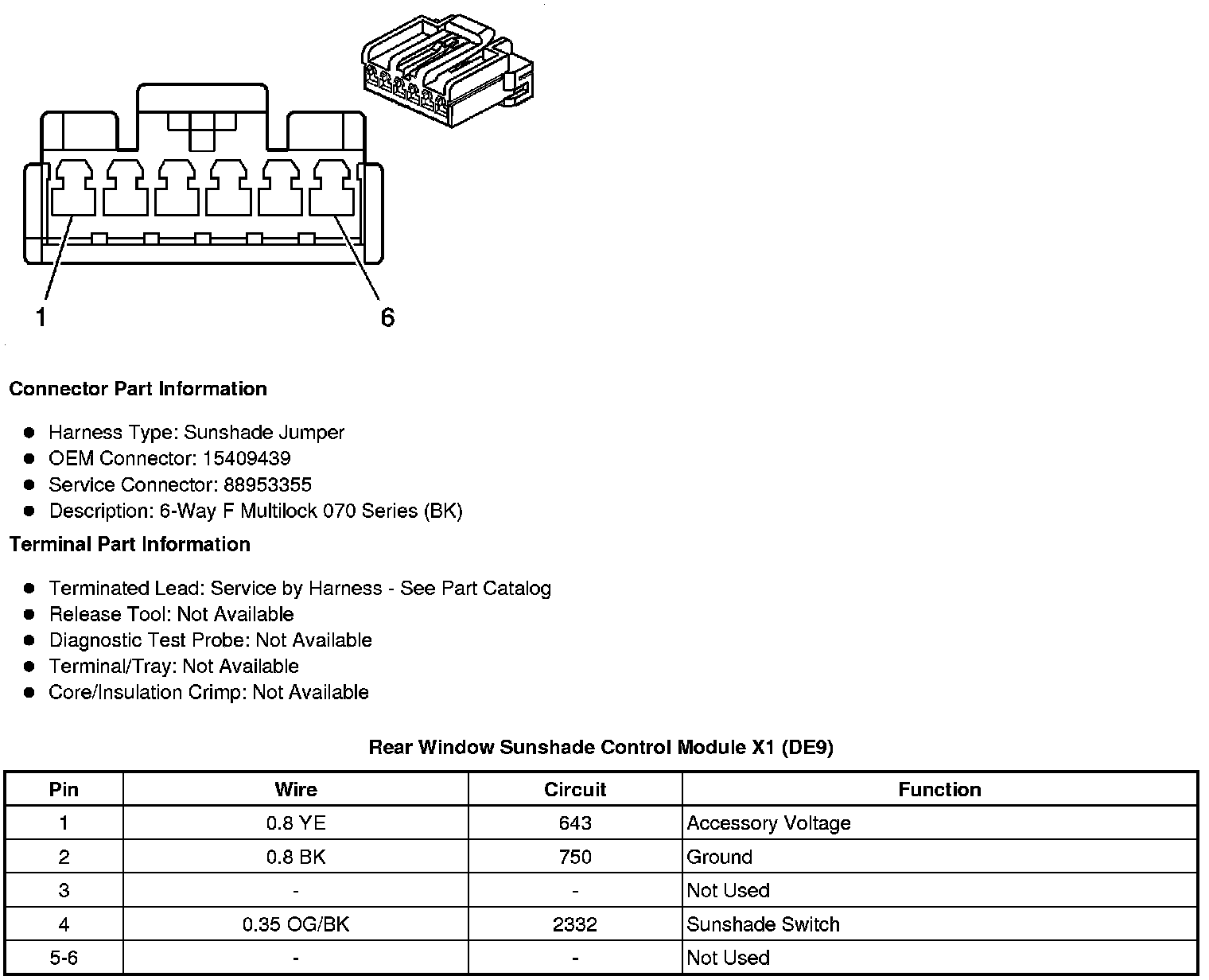

Rear Window Sunshade Control Module X1 (DE9)

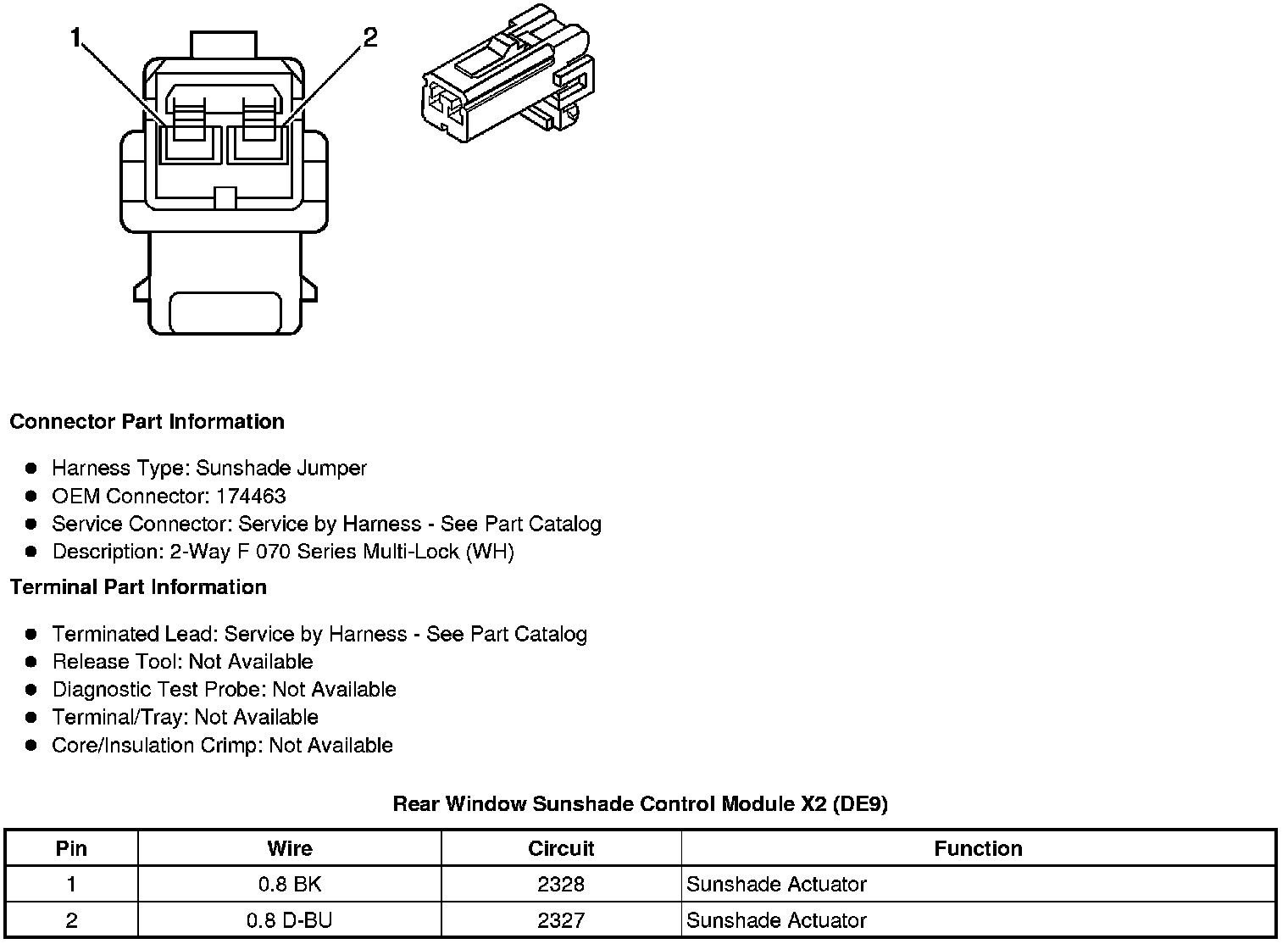

Rear Window Sunshade Control Module X2 (DE9)






Sunshade Switch (DE9)
