Left Rear Door Components

Door Component Views

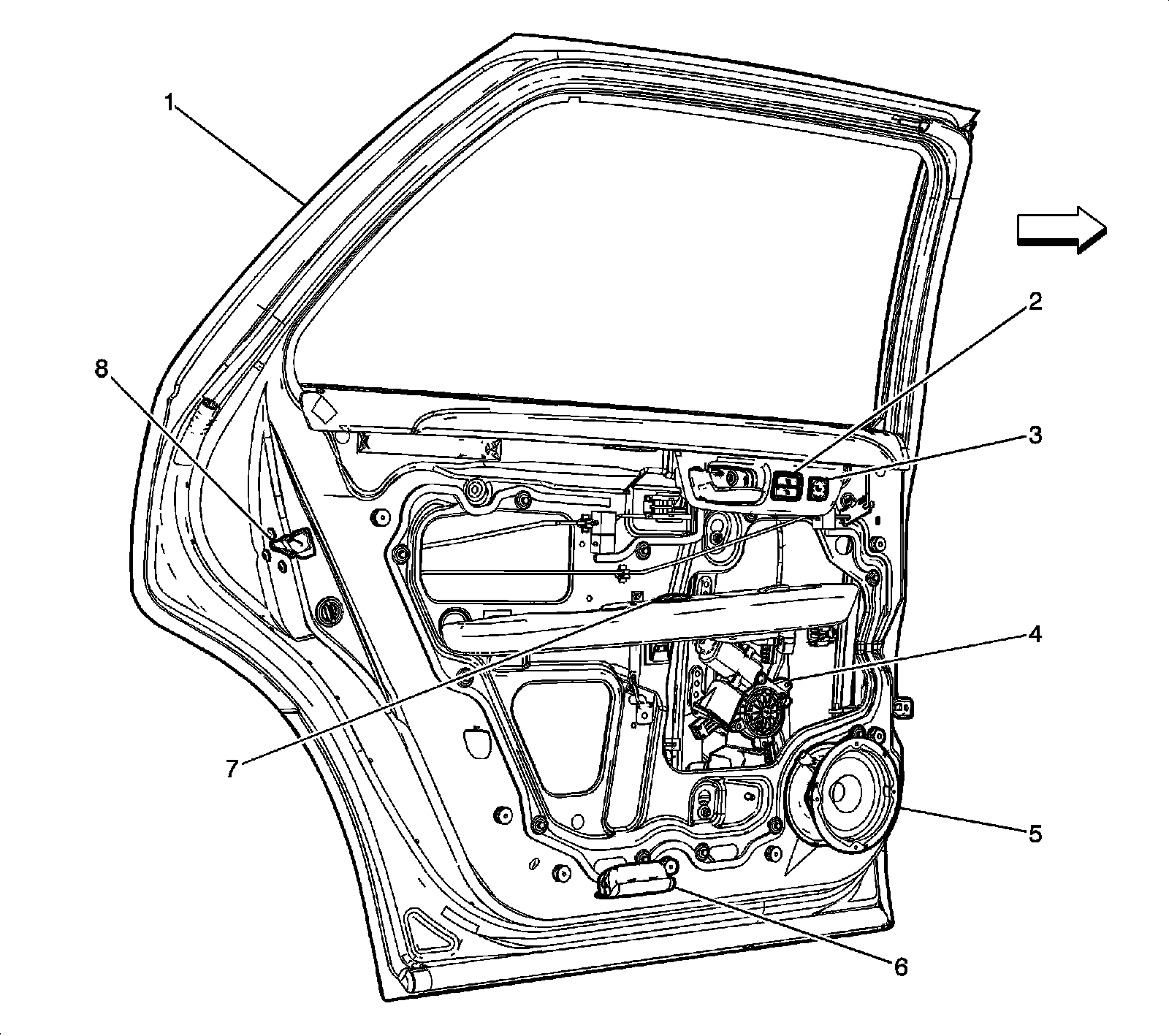

Left Rear Door Components




1 - Door Frame
2 - Heated Seat Switch - Left Rear (KB6)
3 - Seat Lumbar Switch - Left Rear (ARC)
4 - Window Motor - Left Rear
5 - Speaker - Left Rear Door
6 - Courtesy Lamp - Left Rear Door
7 - Window Switch - Left Rear
8 - Door Latch Assembly - Left Rear
