Sunroof / Moonroof Module: Locations

Passenger Compartment/Roof Component Views

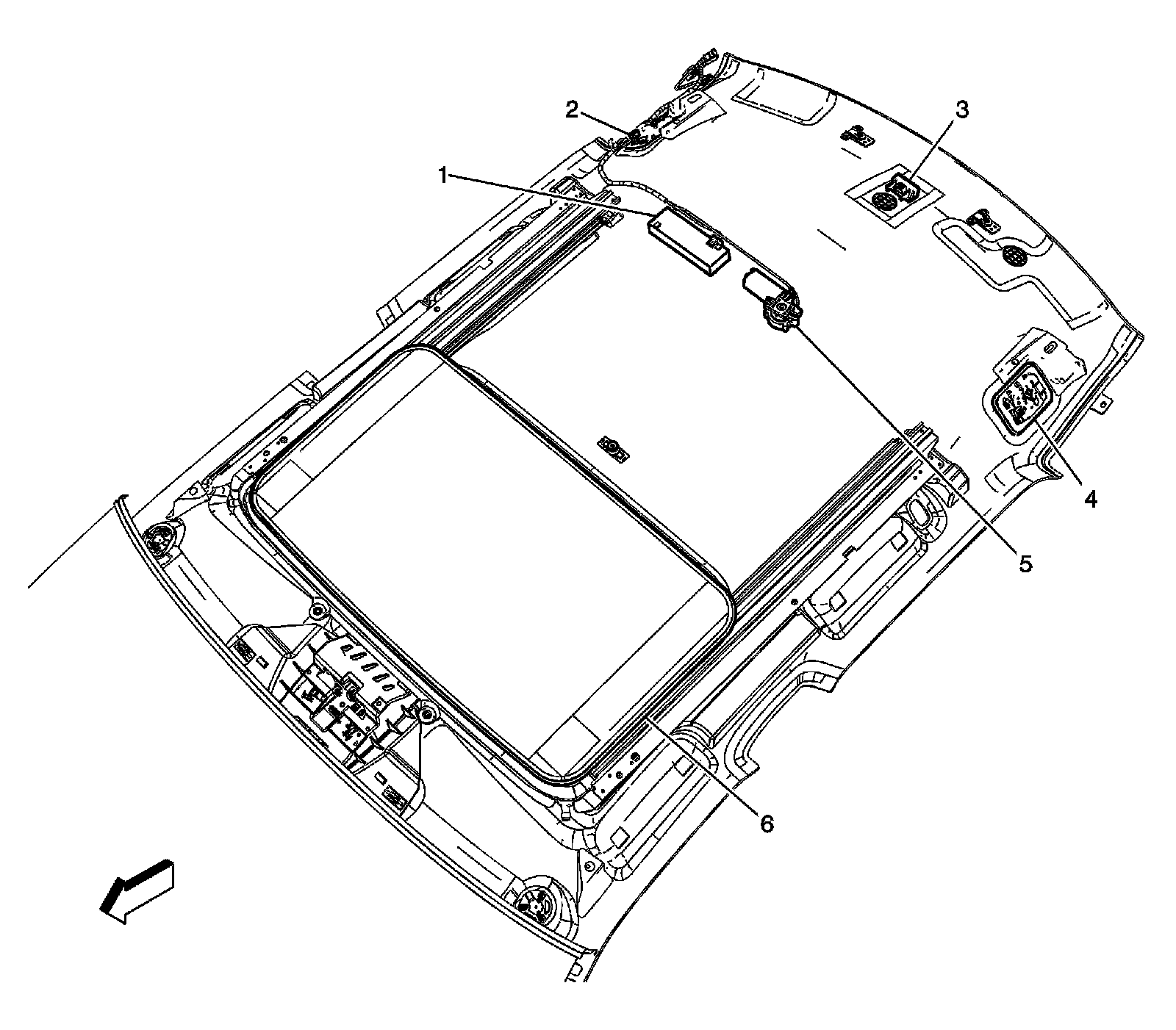

Headliner Components - Top




1 - Sunroof Control Module (CF5)
2 - Courtesy Lamp - Right Rear (V4U)
3 - Rear Park Assist Indicator
4 - Courtesy Lamp - Left Rear (V4U)
5 - Sunroof Motor (CF5)
6 - Sunroof Assembly
