Near the Rear Cylinder Head




Powertrain Component Views

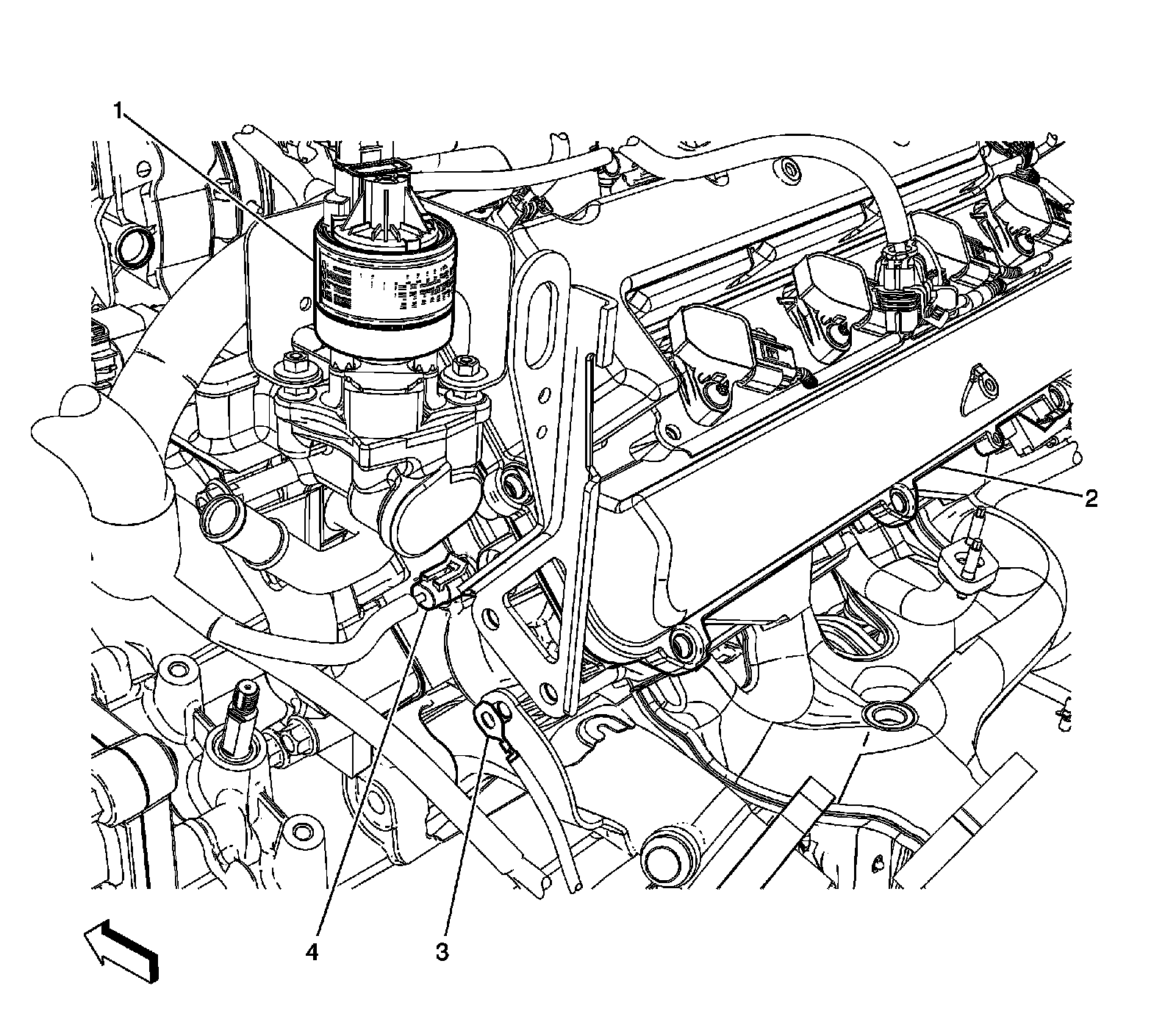

Near the Rear Cylinder Head (LD8/L37)




1 - Exhaust Gas Recirculation (EGR) Valve
2 - Valve Cover
3 - G100
4 - Engine Coolant Temperature (ECT) Sensor
