Subsystem References (1 of 4)

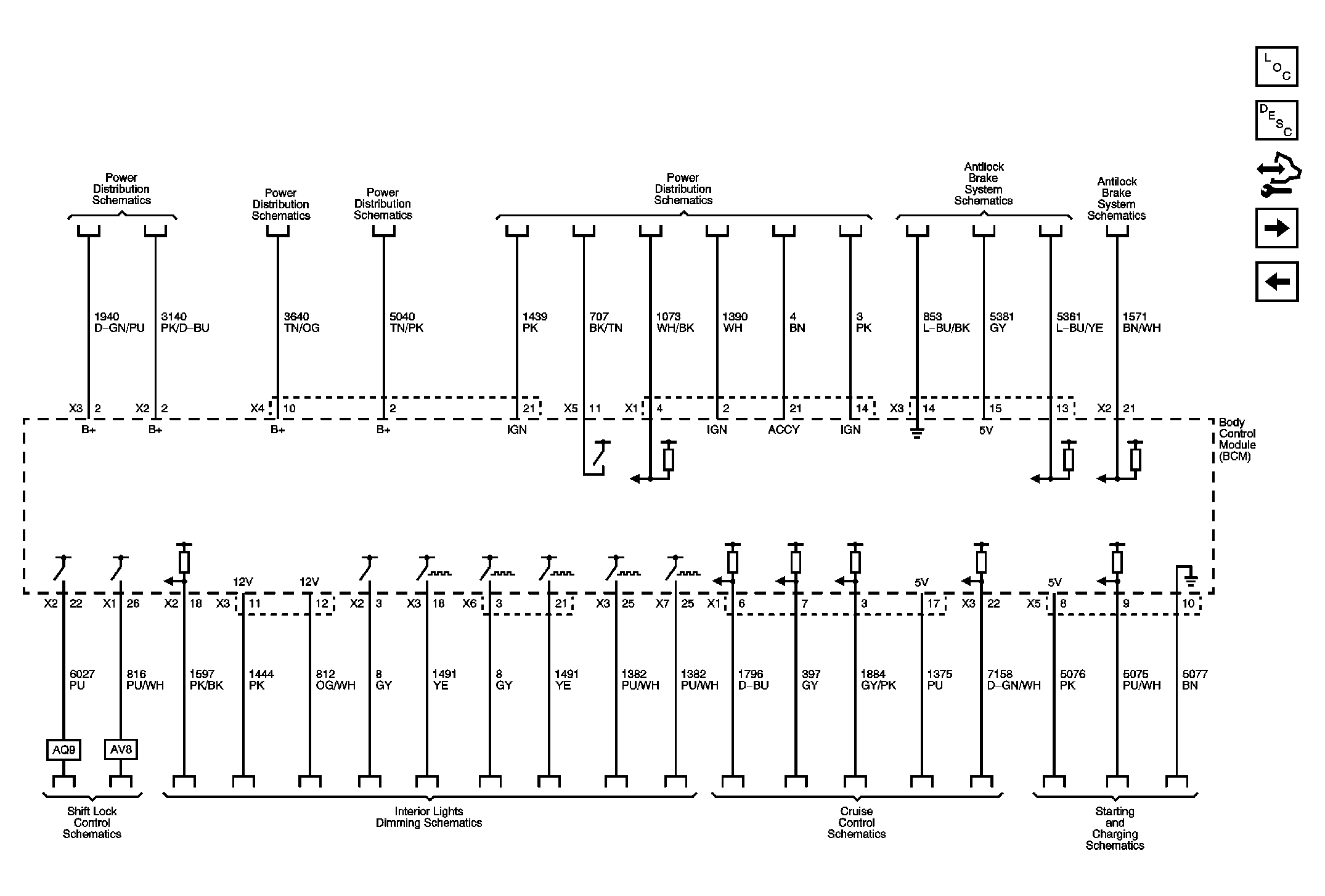

Fig 1: Subsystem References Wiring Schematic (1 of 4)

GM2398531

Courtesy of GENERAL MOTORS COMPANY
