Oil Pressure Sensor: Locations

Powertrain Component Views

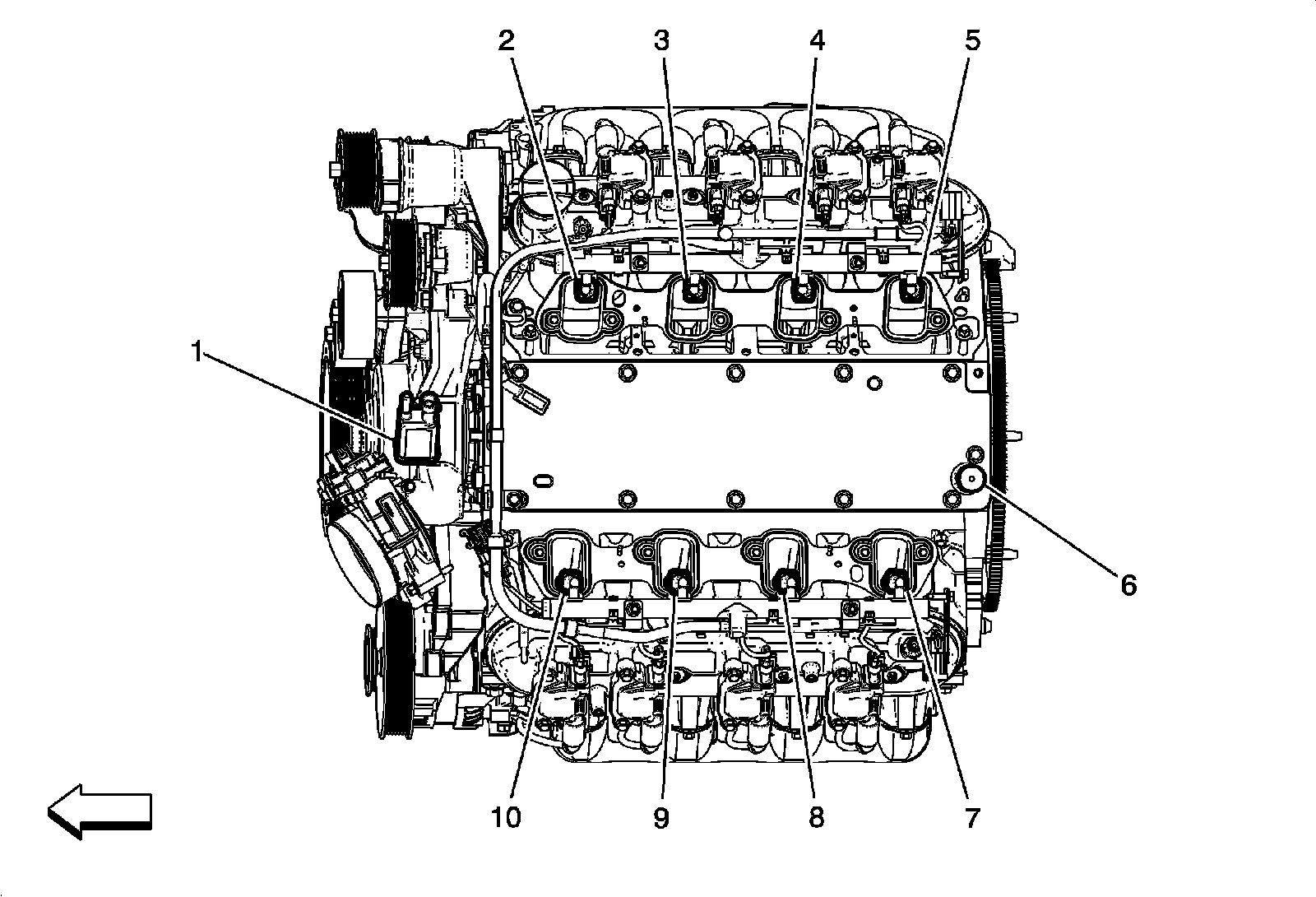

Engine Components - Top of Engine (LSA)

1 - Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
2 - Fuel Injector 2
3 - Fuel Injector 4
4 - Fuel Injector 6
5 - Fuel Injector 8
6 - Engine Oil Pressure Sensor
7 - Fuel Injector 7
8 - Fuel Injector 5
9 - Fuel Injector 3
10 - Fuel Injector 1
