Disassembled Views (Engine)

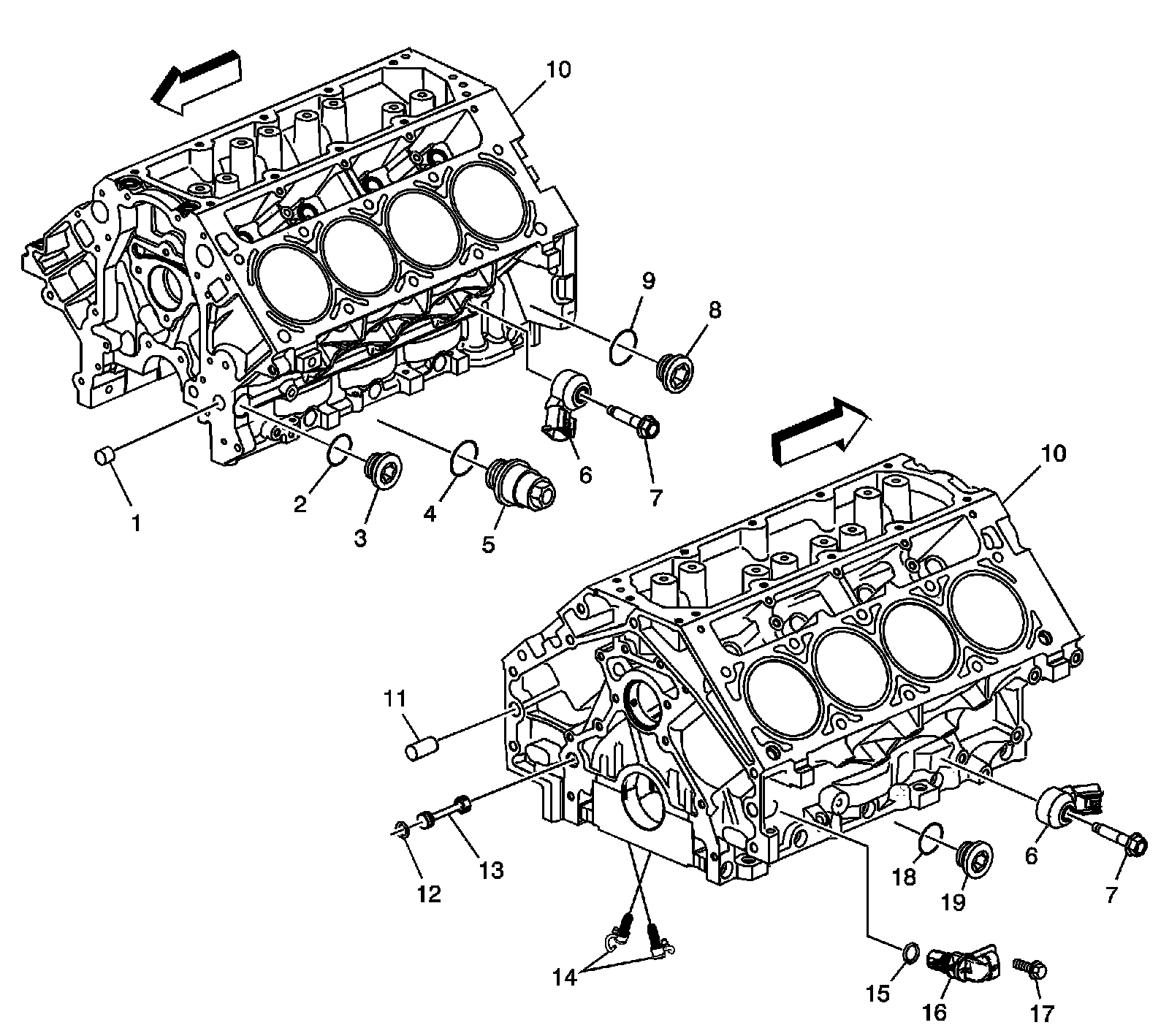

Disassembled Views

Engine Block Plugs/Sensors




1 - Engine Block Oil Gallery Plug - Front
2 - Engine Block Oil Gallery Plug Seal
3 - Engine Block Oil Gallery Plug - Side
4 - Engine Block Coolant Heater Seal
5 - Engine Block Coolant Heater
6 - Knock Sensor
7 - Bolt
8 - Engine Block Oil Gallery Plug - Side
9 - Engine Block Oil Gallery Plug Seal
10 - Engine Block
11 - Transmission Locating Pin
12 - Engine Block Oil Gallery Plug Seal
13 - Engine Block Oil Gallery Plug - Rear
14 - Piston Oil Nozzle
15 - Crankshaft Position (CKP) Sensor Seal
16 - CKP Sensor
17 - CKP Sensor Bolt
18 - Engine Block Coolant Drain Hole Plug Seal
19 - Engine Block Coolant Drain Hole Plug - Side
