Parking Brake Control Module: Locations

Wheels/Vehicle Underbody Component Views

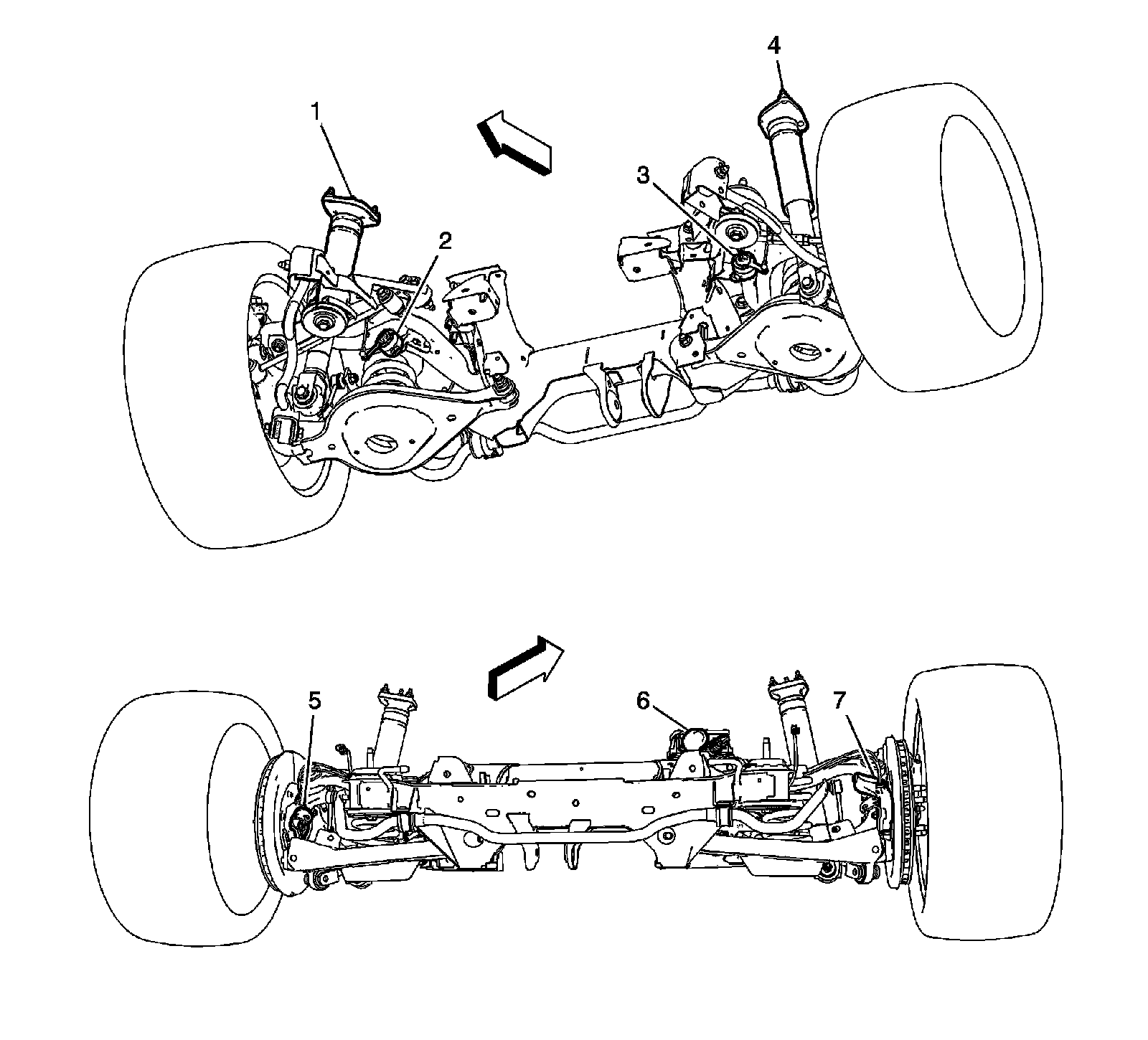

Rear Underbody Components




1 - Shock Absorber Actuator - Right Rear (F55)
2 - Suspension Position Sensor - Right Rear (F55) or Headlamp Leveling Sensor - Rear (TR7 without F55)
3 - Suspension Position Sensor - Left Rear (F55)
4 - Shock Absorber Actuator - Left Rear (F55)
5 - Wheel Speed Sensor (WSS) - Left Rear
6 - Electric Park Brake Module (J77)
7 - Wheel Speed Sensor (WSS) - Right Rear
