Fuse Block - Left Rear




Electrical Center Identification Views

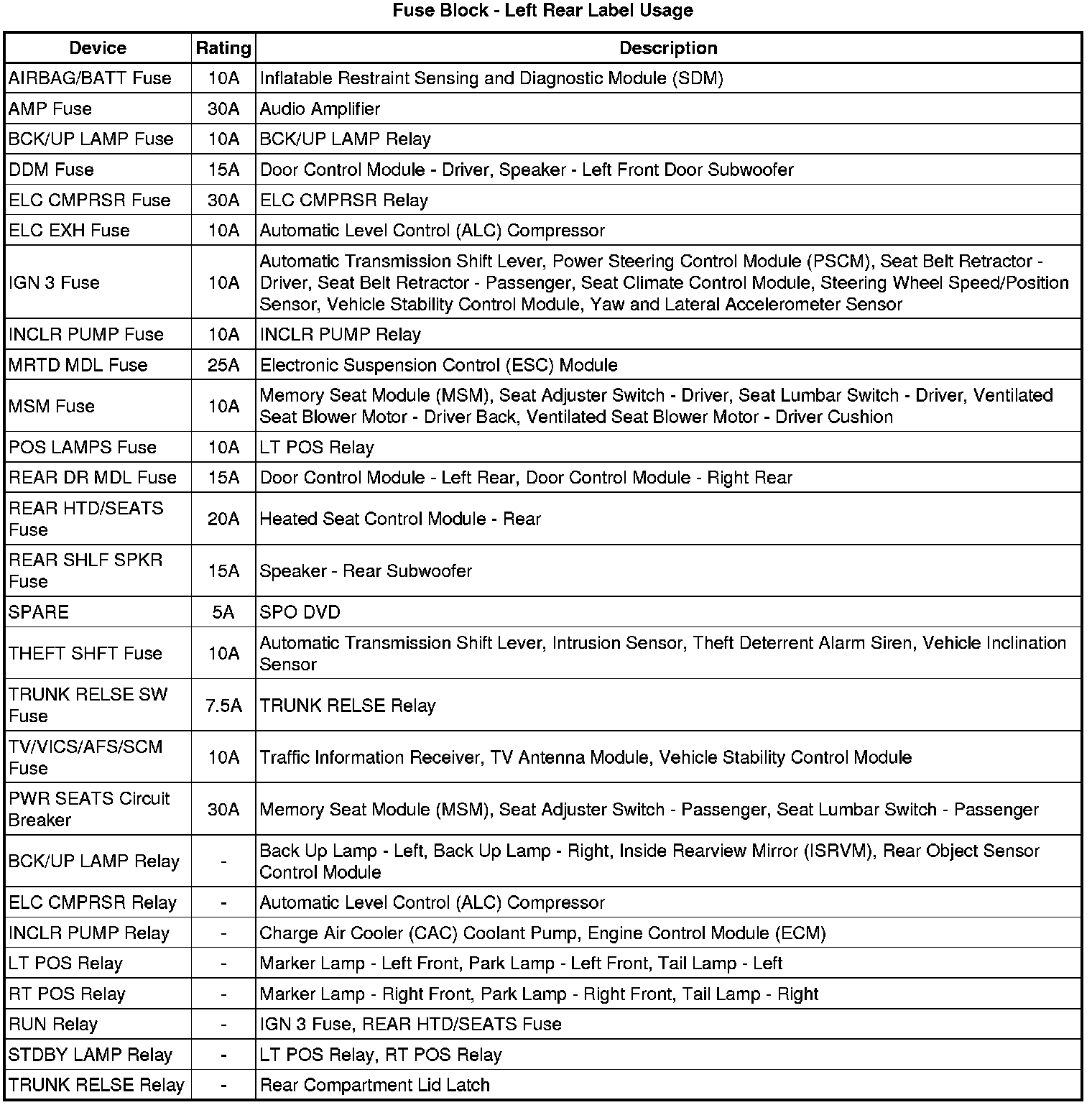

Fuse Block - Left Rear Label









Fuse Block - Left Rear Top View

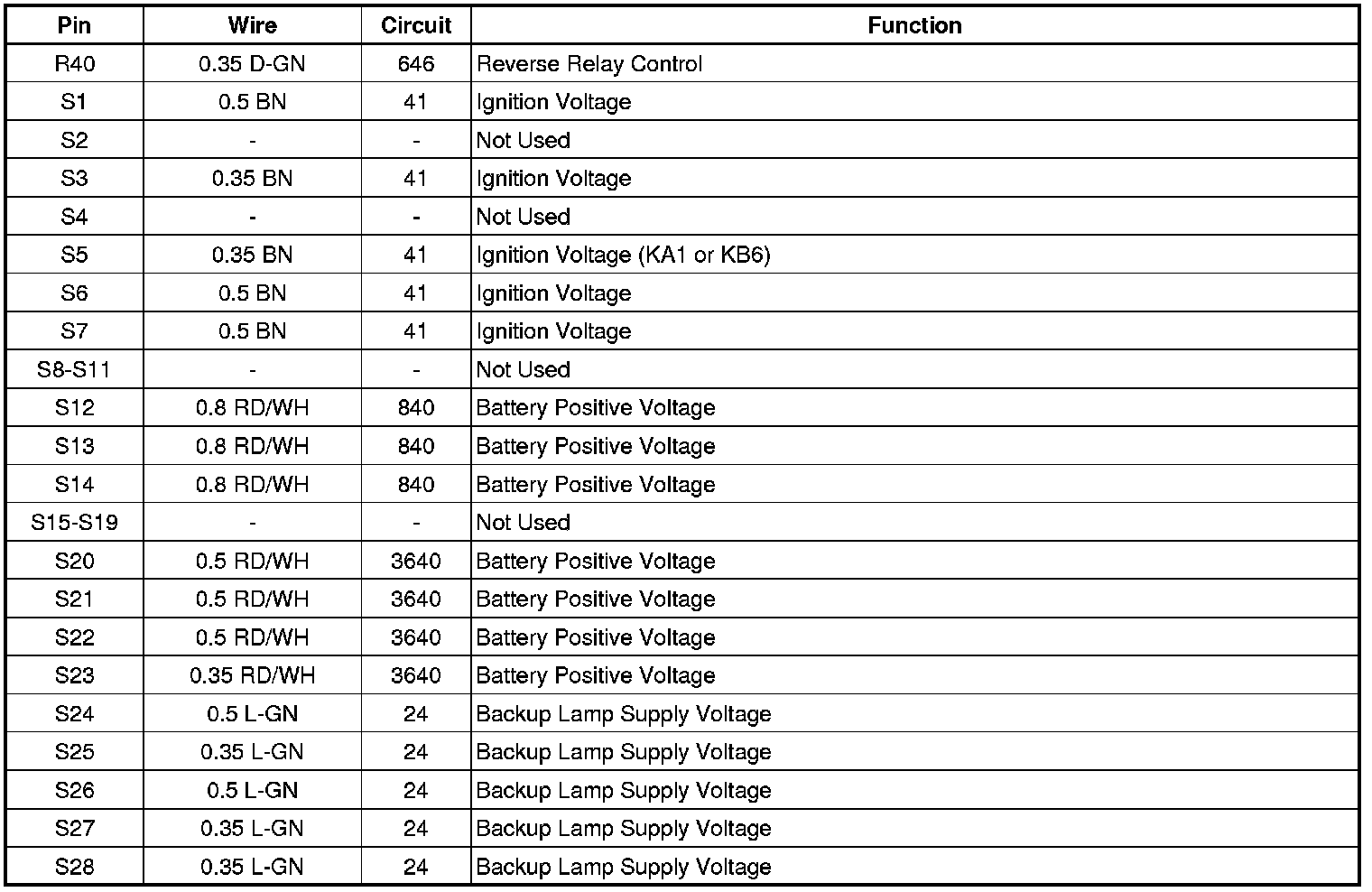

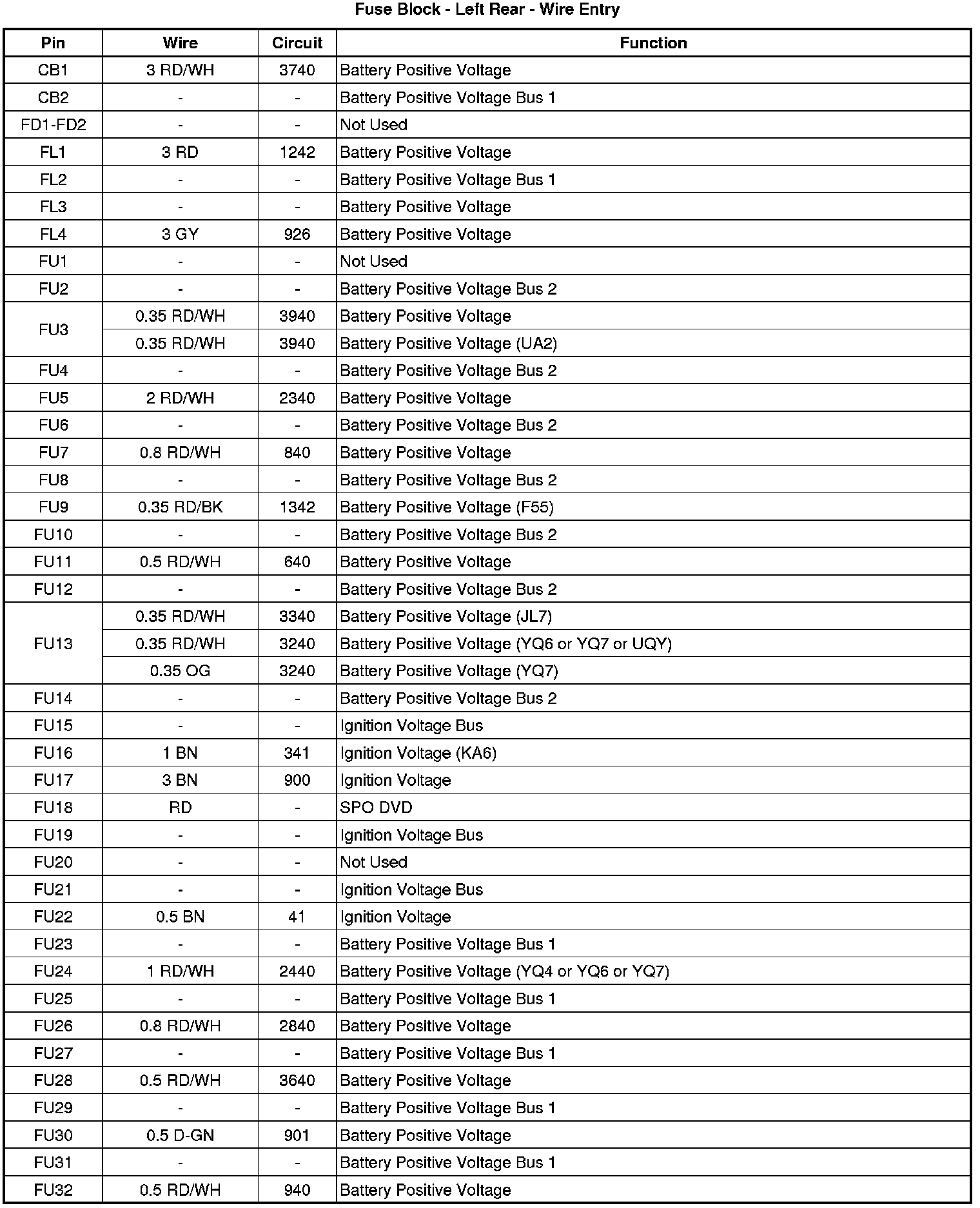

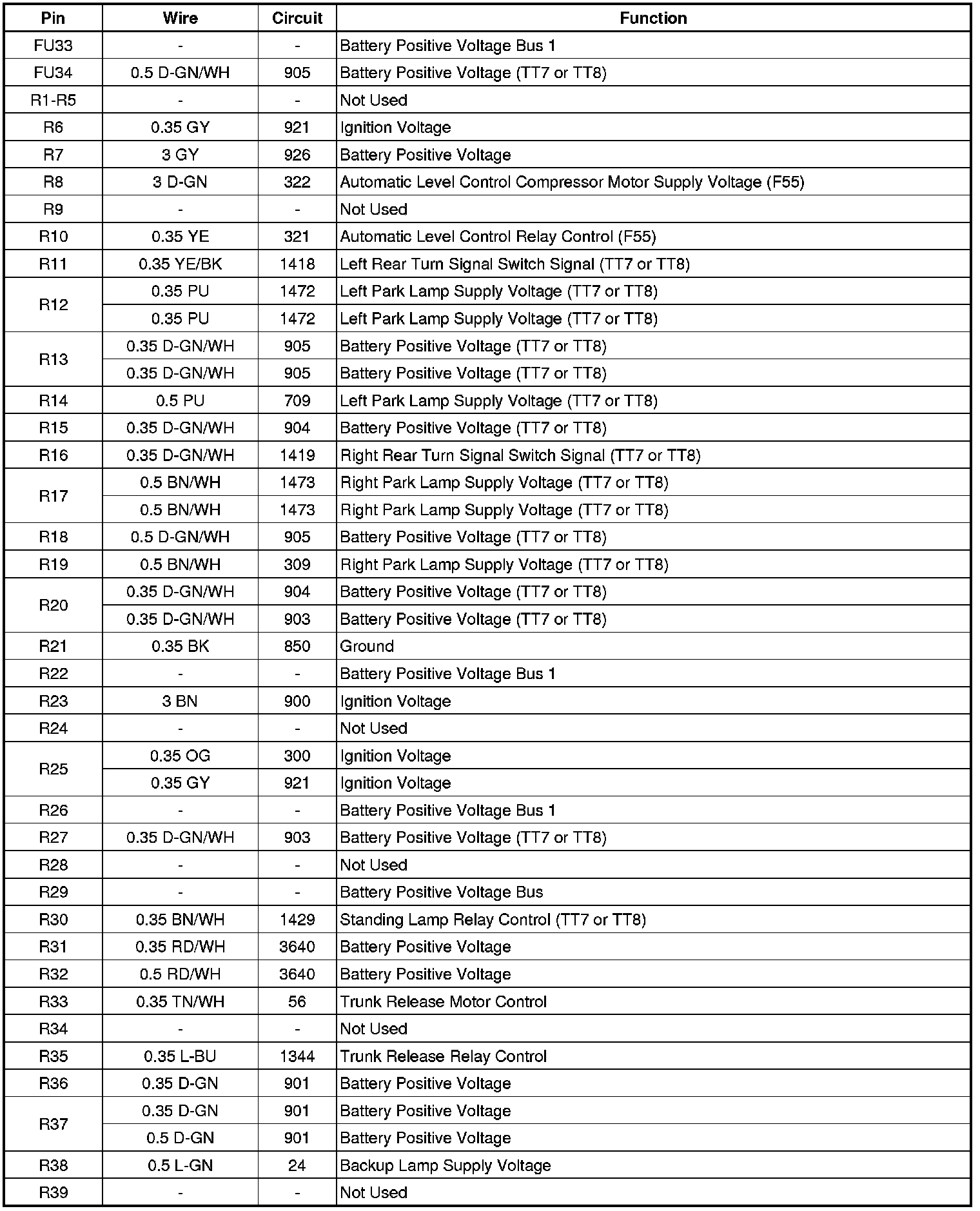

Fuse Block - Left Rear - Wire Entry





















Fuse Block - Left Rear Connector
