Power Window Motor




Component Connector End Views

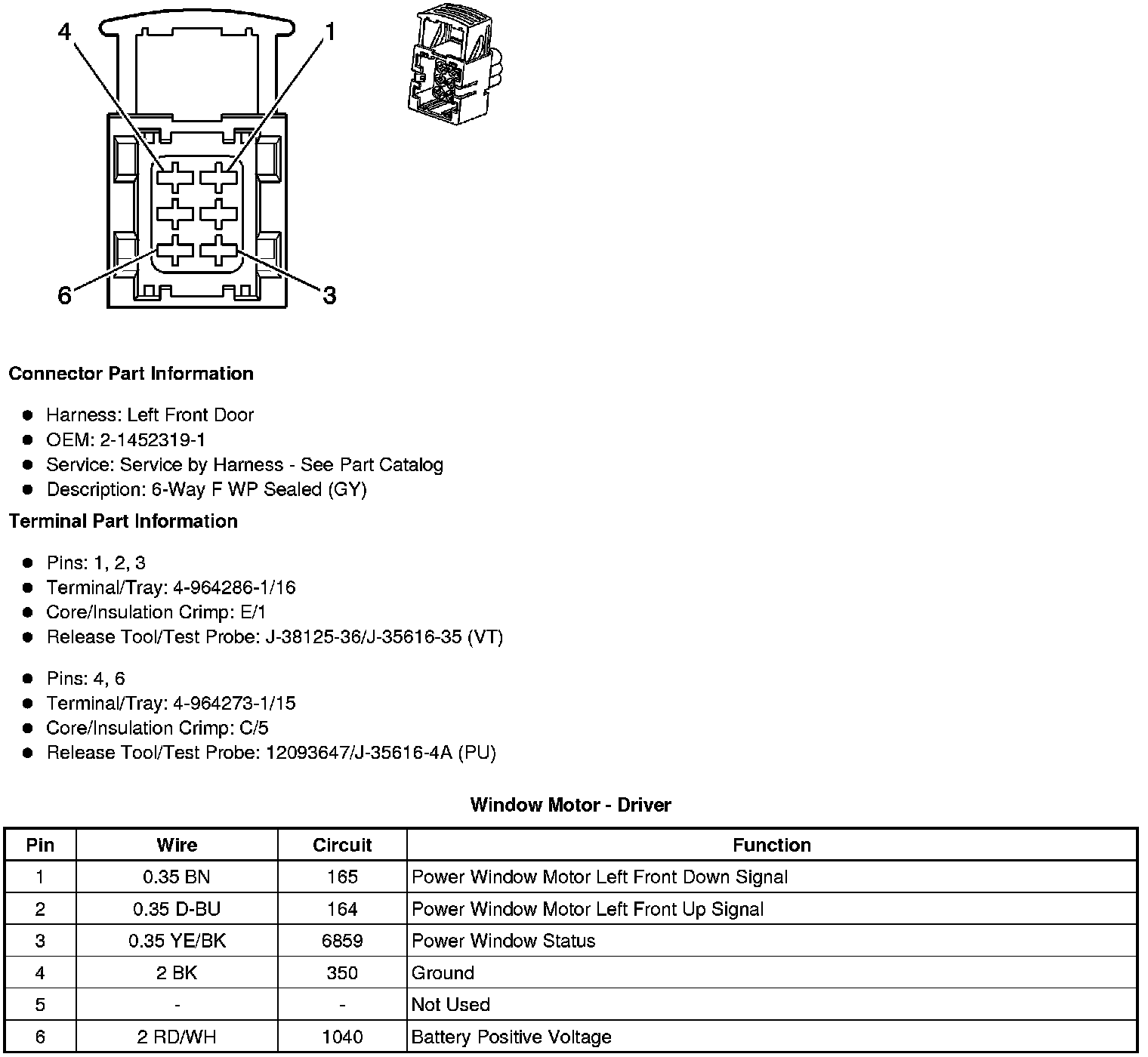

Window Motor - Driver





Window Motor - Left Rear

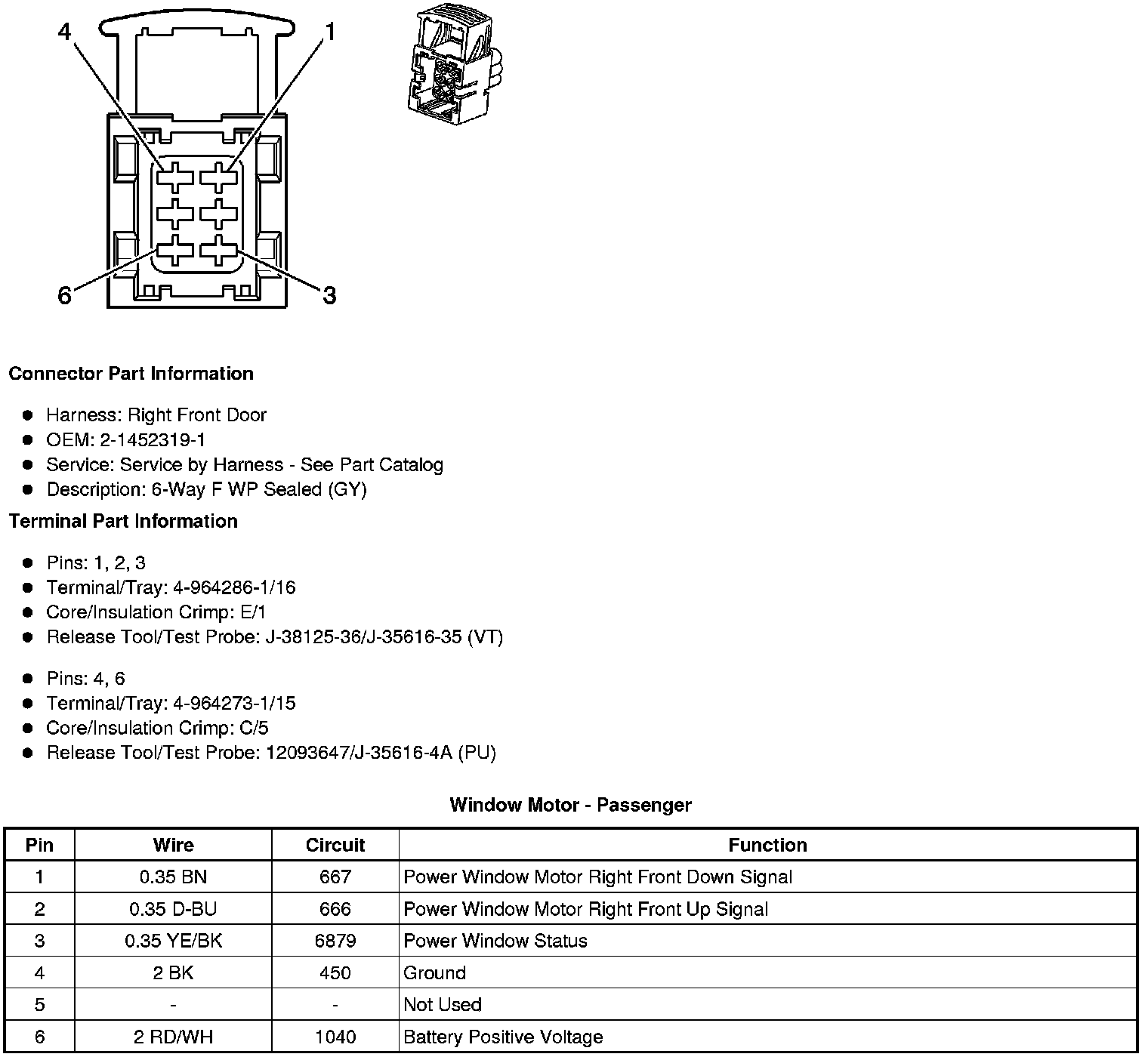

Window Motor - Passenger

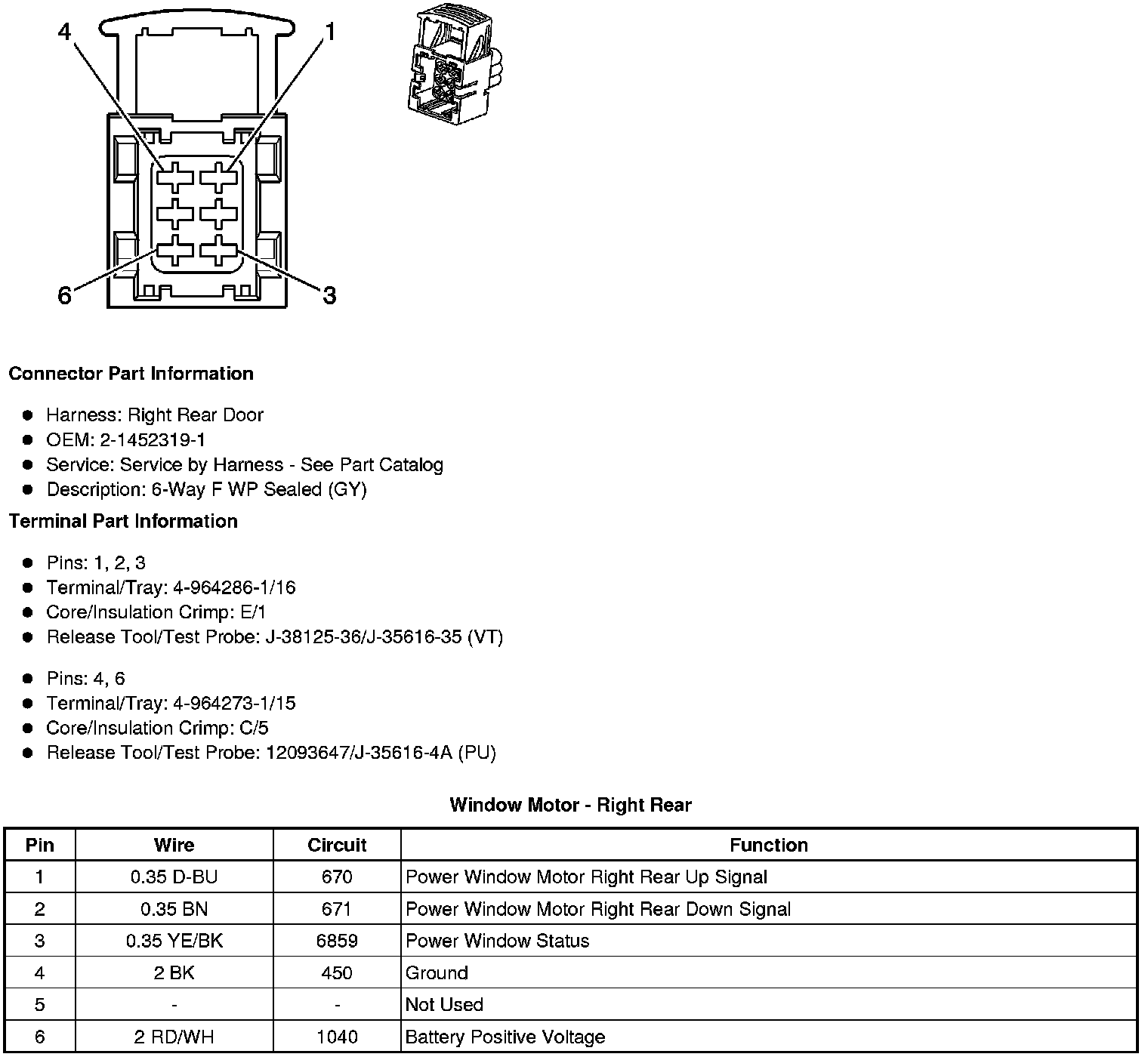

Window Motor - Right Rear
