Parking Assist Distance Sensor




Component Connector End Views

Object Alarm Sensor - Left Rear Corner





Object Alarm Sensor - Left Rear Middle





Object Alarm Sensor - Right Rear Corner





Object Alarm Sensor - Right Rear Middle

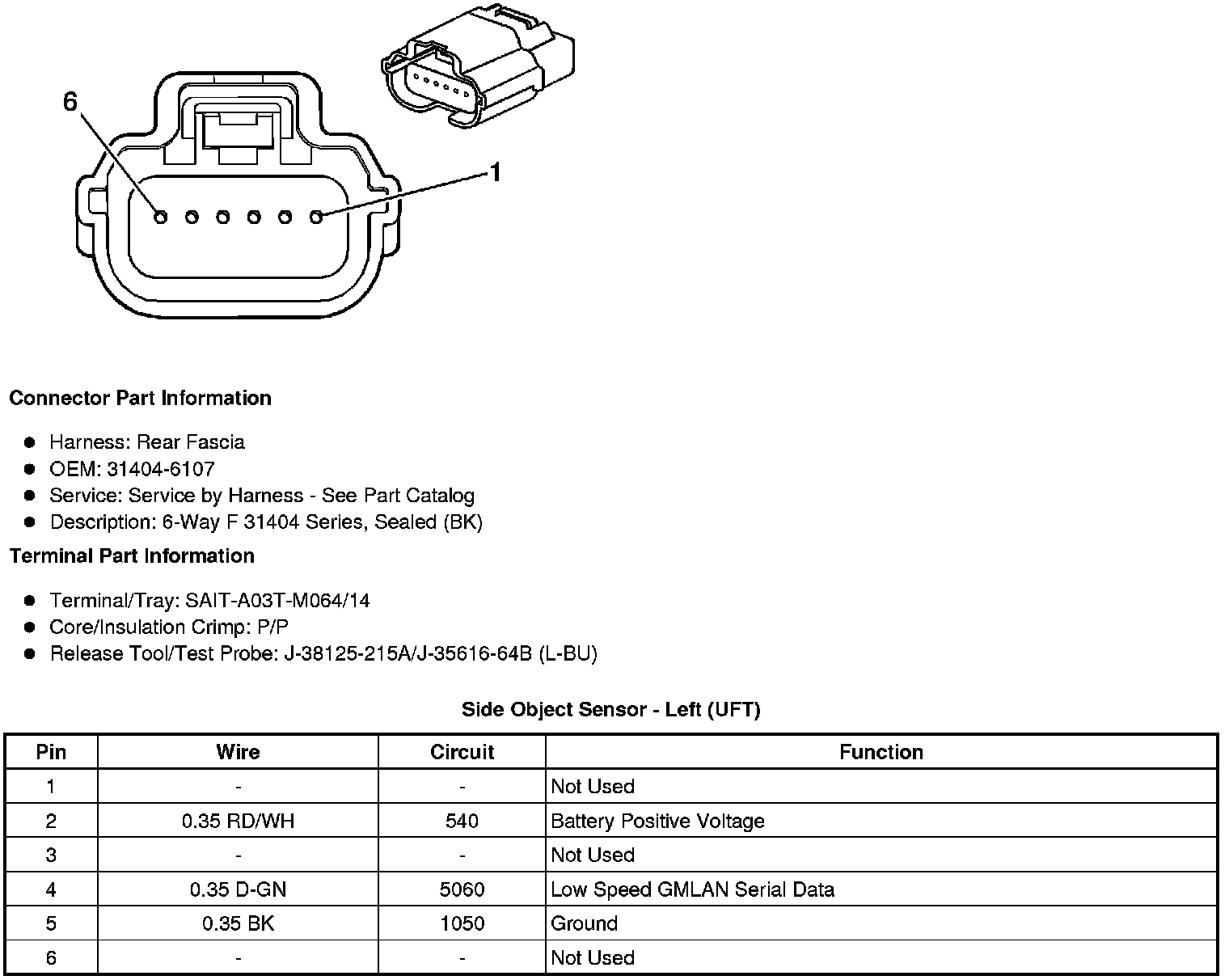

Side Object Sensor - Left (UFT)

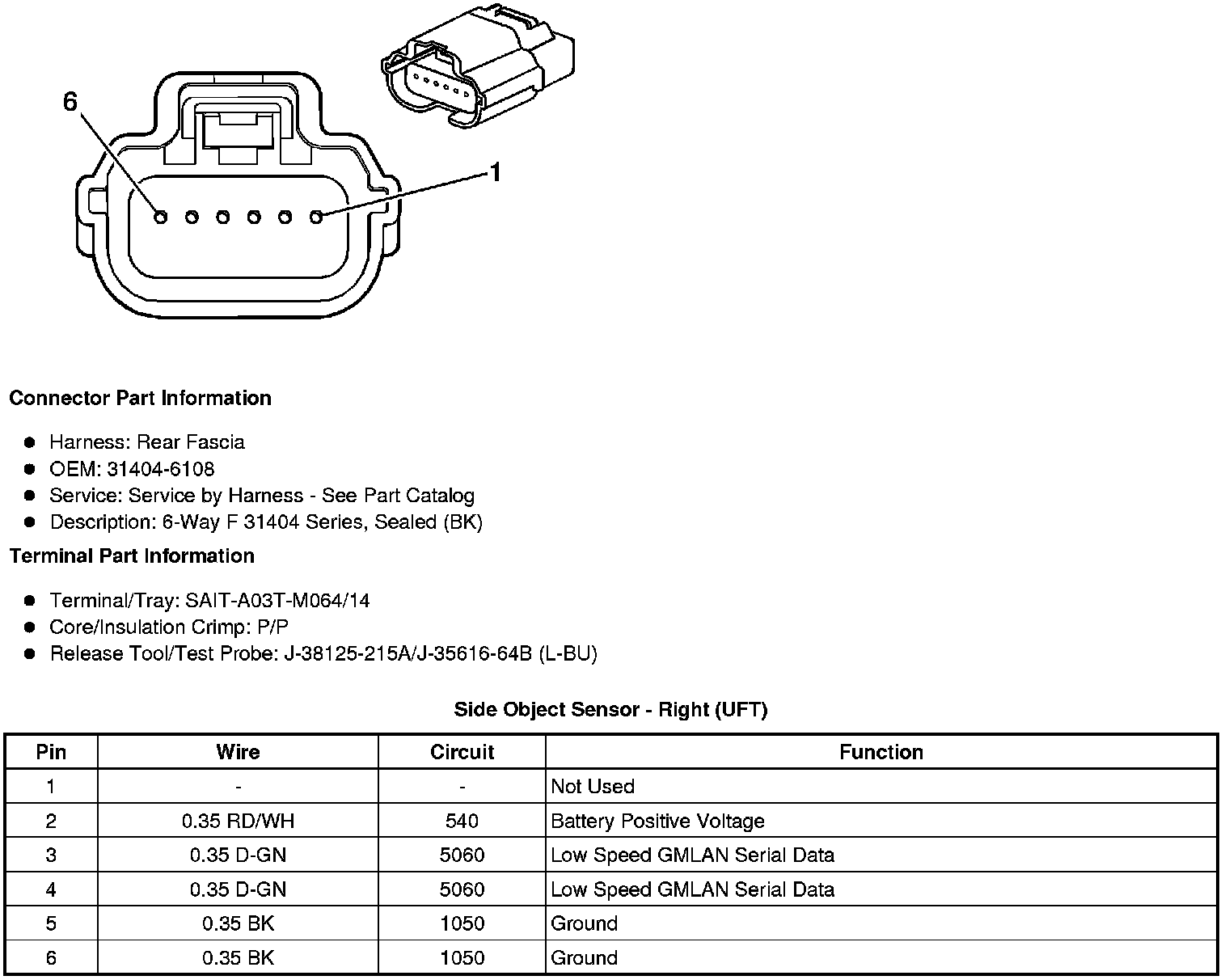

Side Object Sensor - Right (UFT)
