Seat Temperature Control Module: Diagrams

Component Connector End Views

K29 Seat Heating Control Module X1 (KA1 Except AAB)

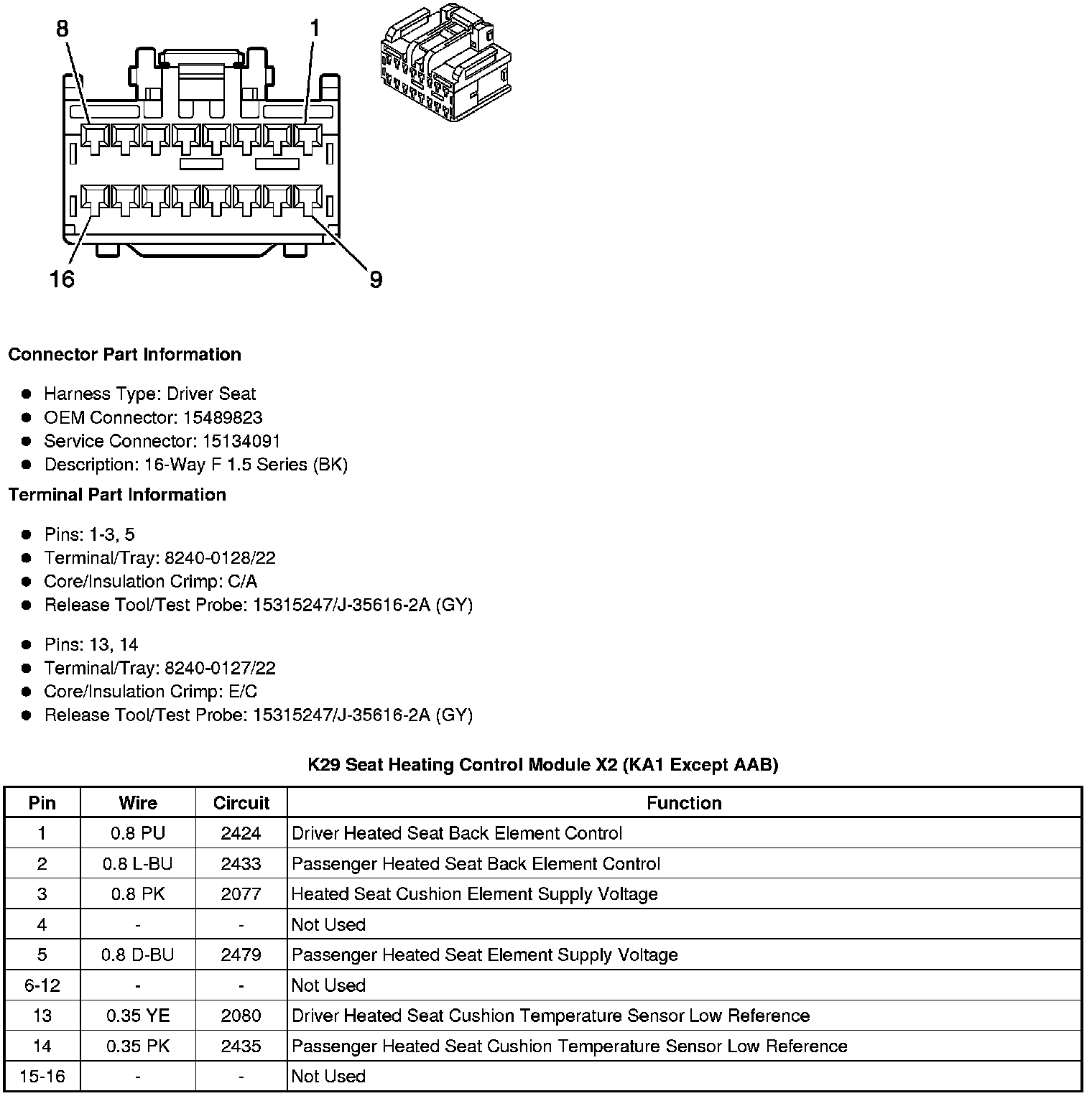

K29 Seat Heating Control Module X2 (KA1 Except AAB)

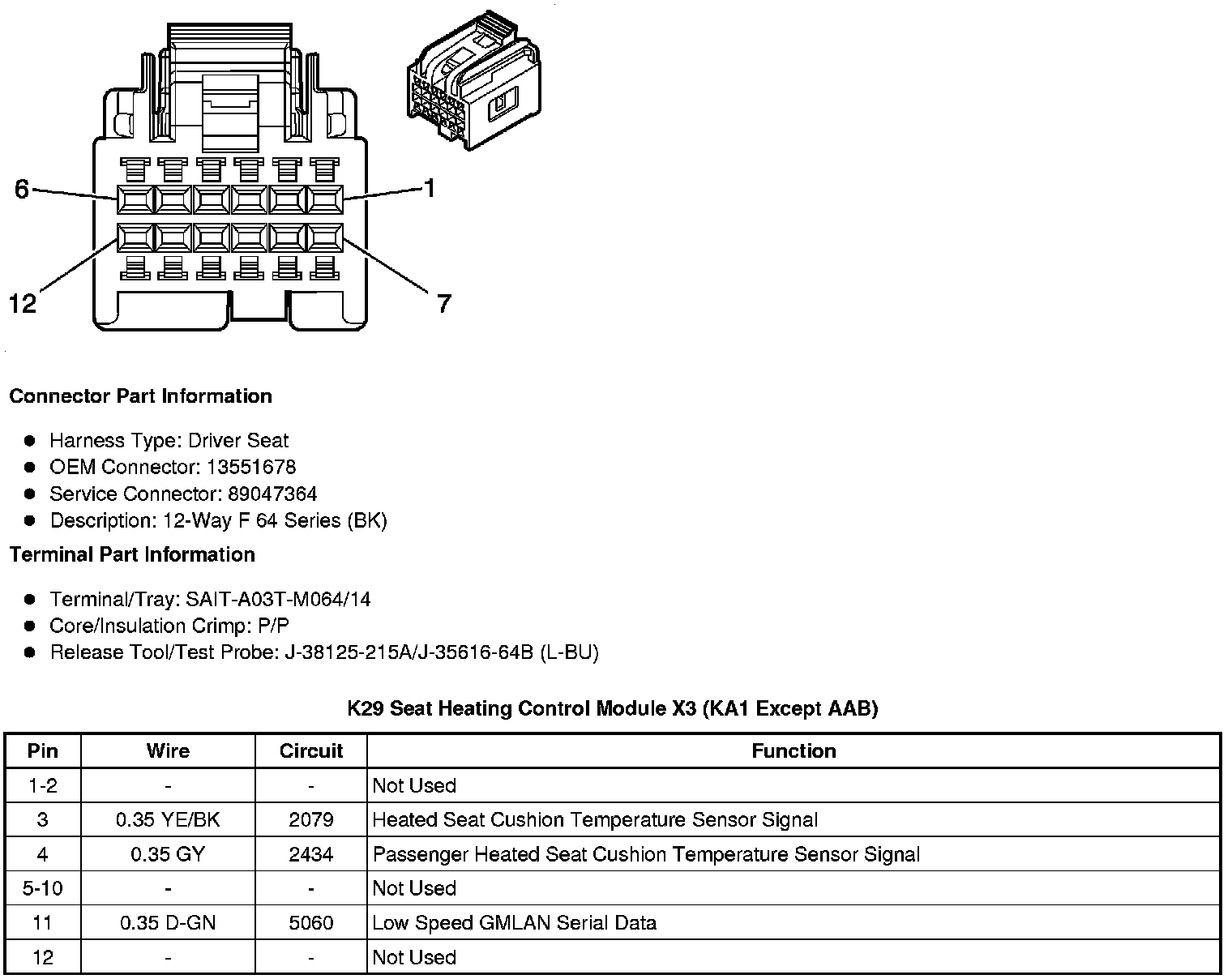

K29 Seat Heating Control Module X3 (KA1 Except AAB)
