Moveable Window Schematics

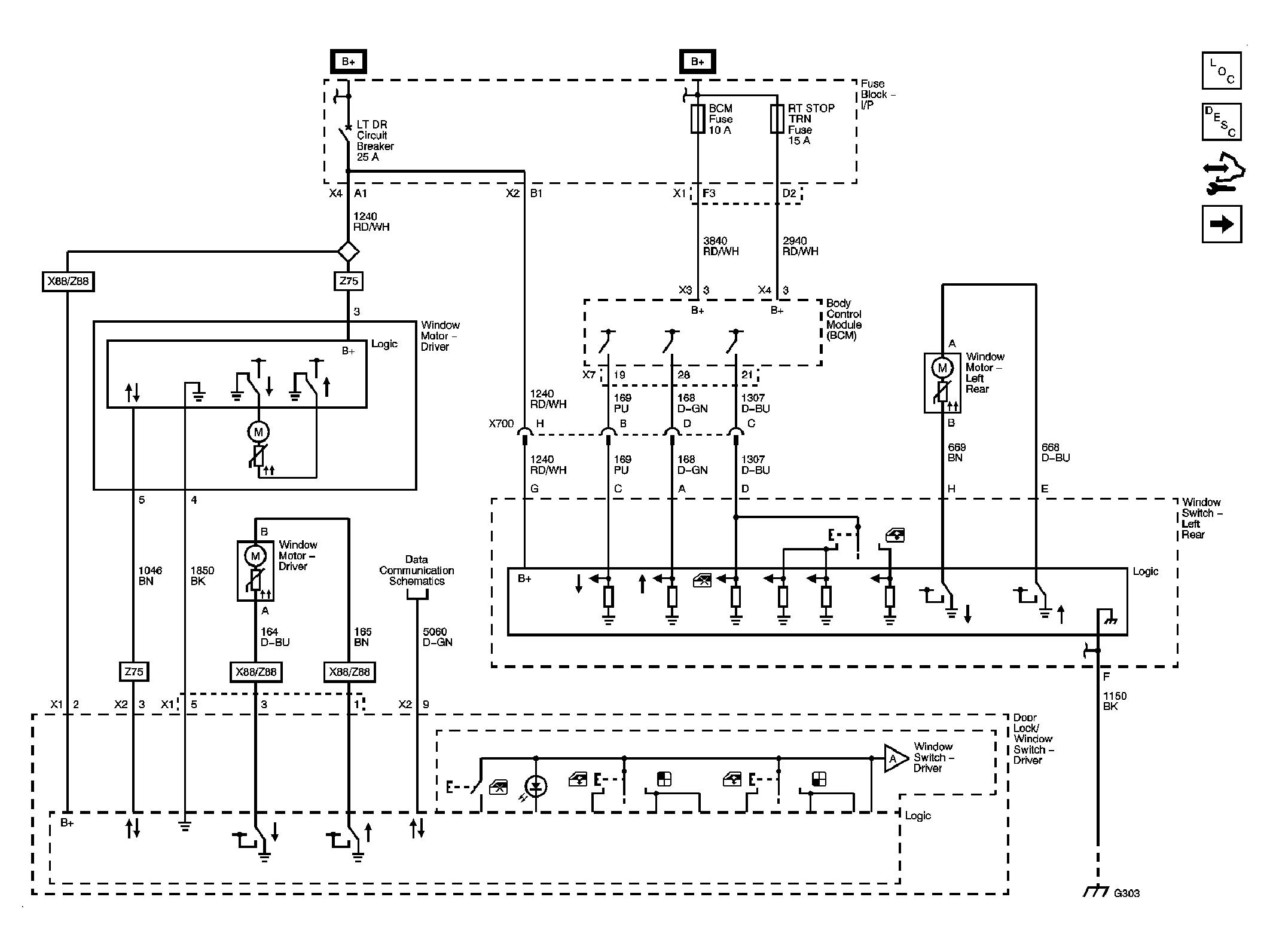

Fig 1: Left Moveable Window
GM2241526Courtesy of GENERAL MOTORS CORP.

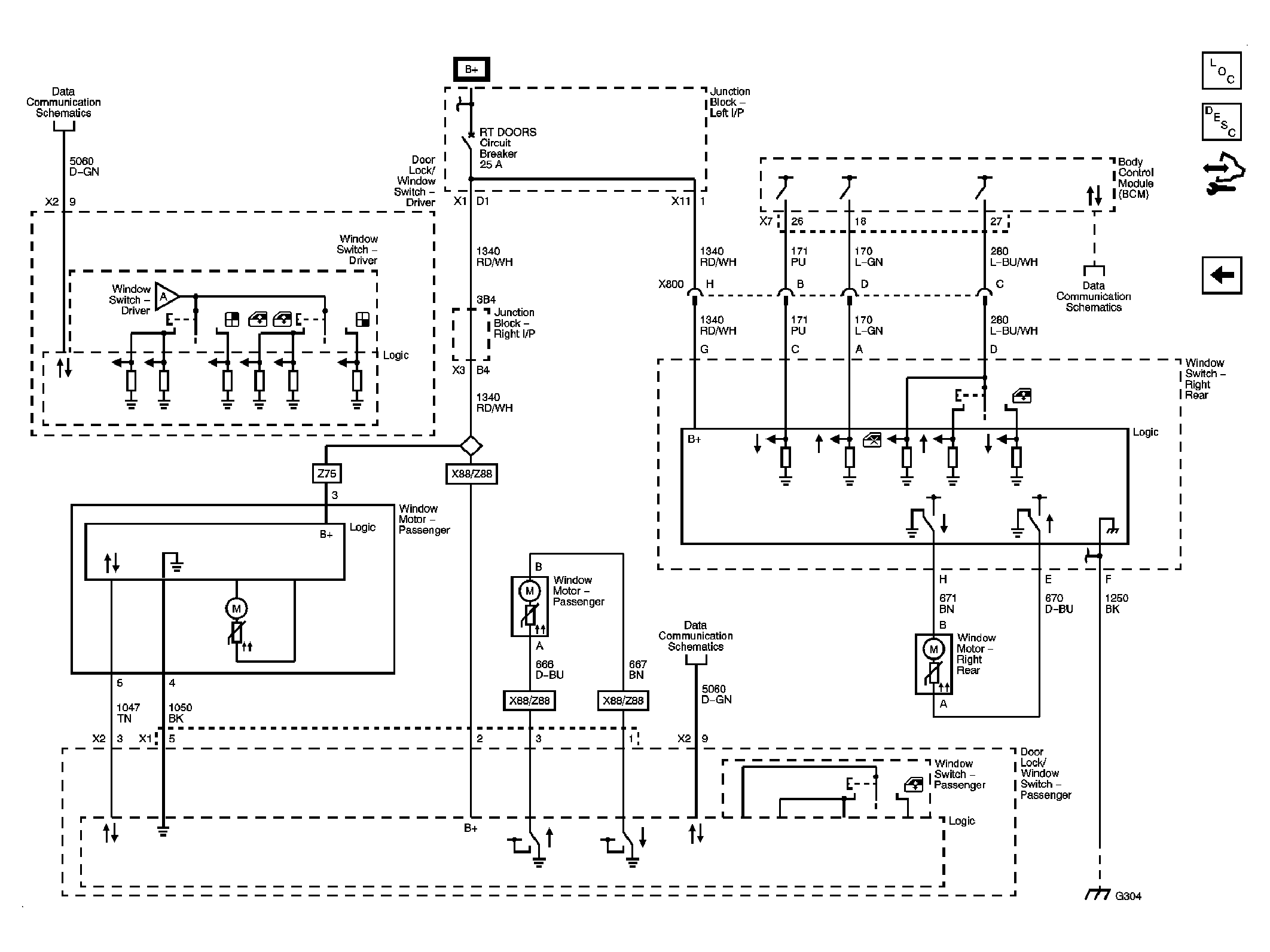

Fig 2: Right Moveable Window
GM2241528Courtesy of GENERAL MOTORS CORP.
