Connector Views




Component Connector End Views

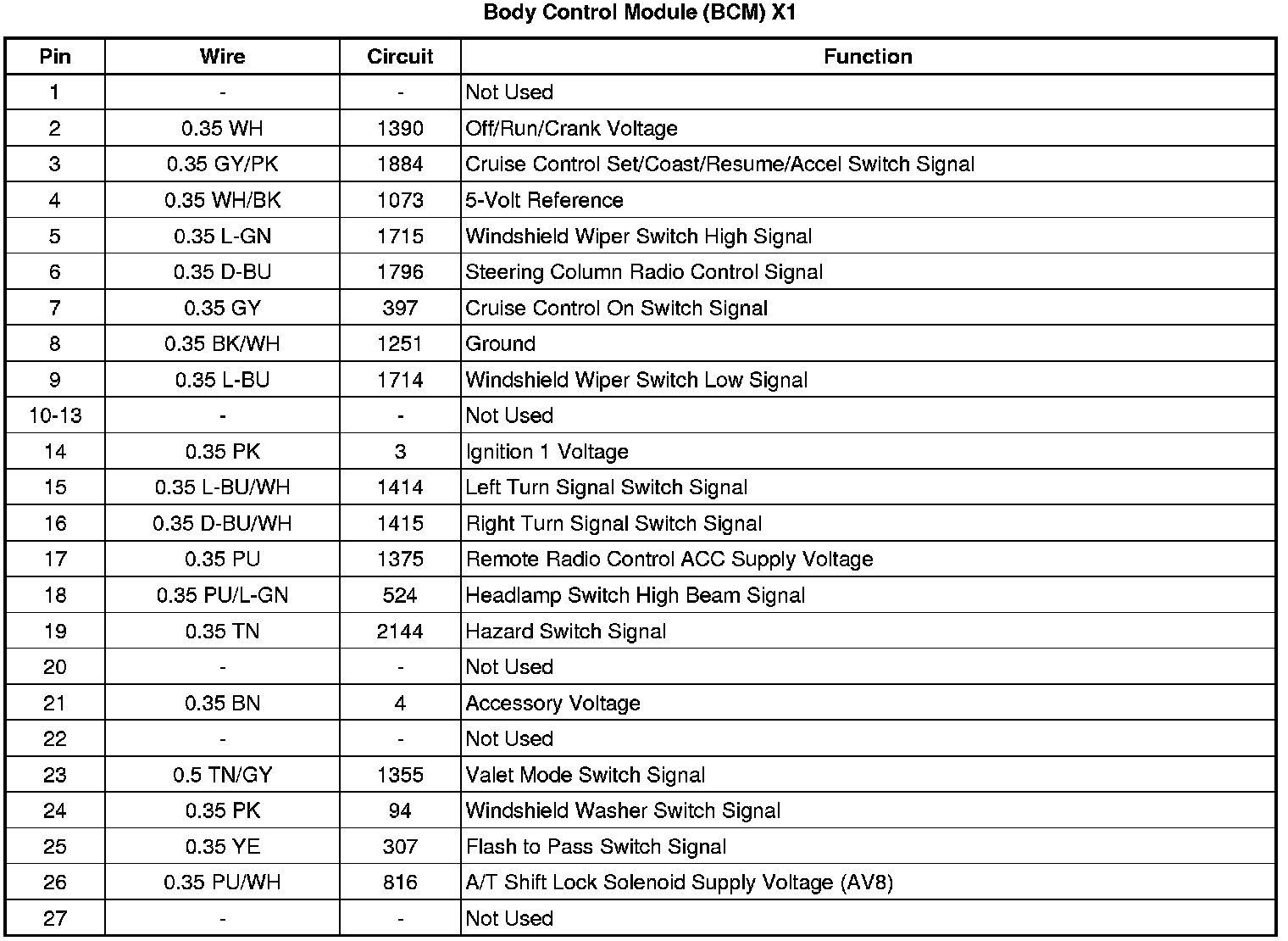

Body Control Module (BCM) X1

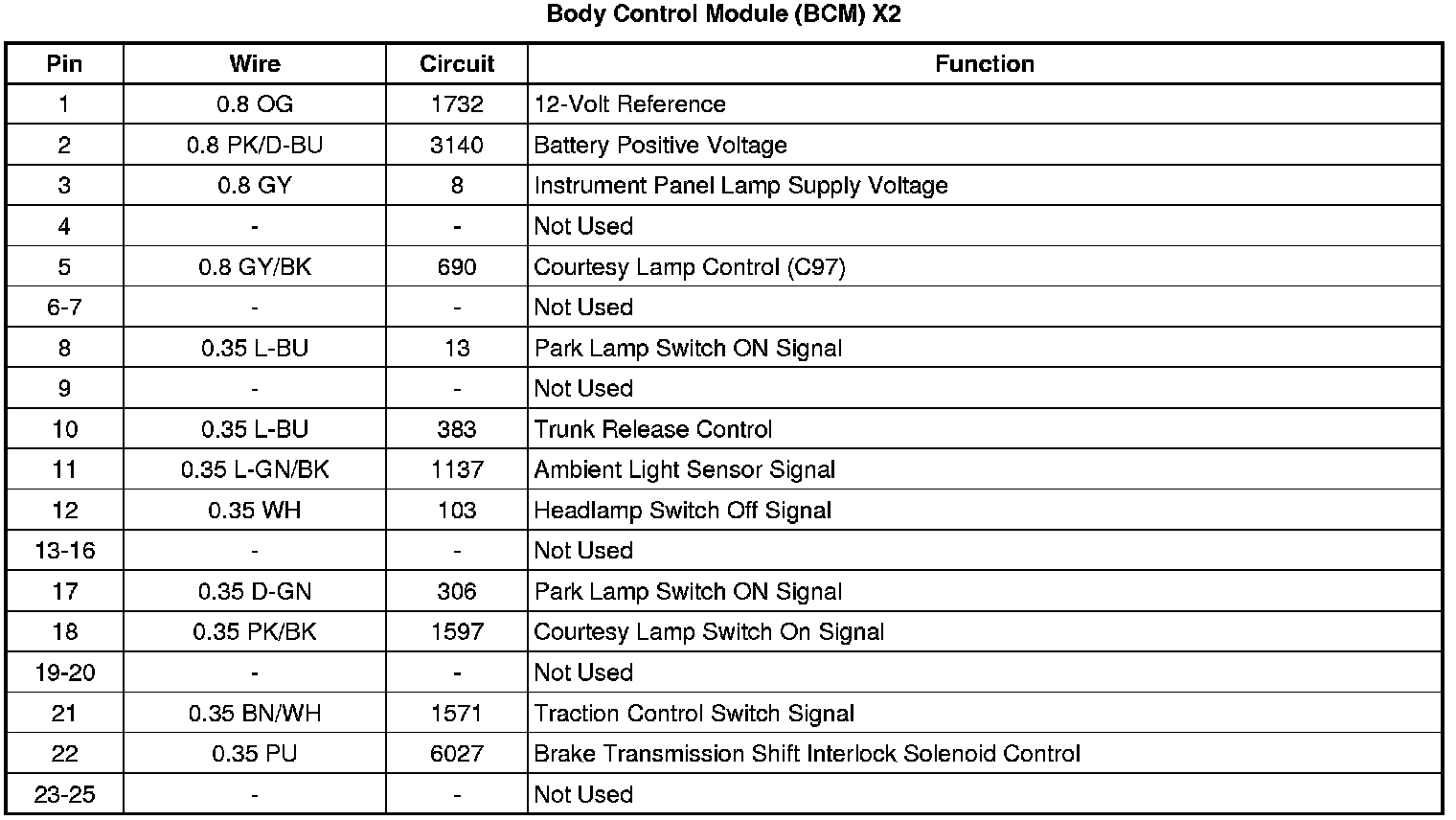

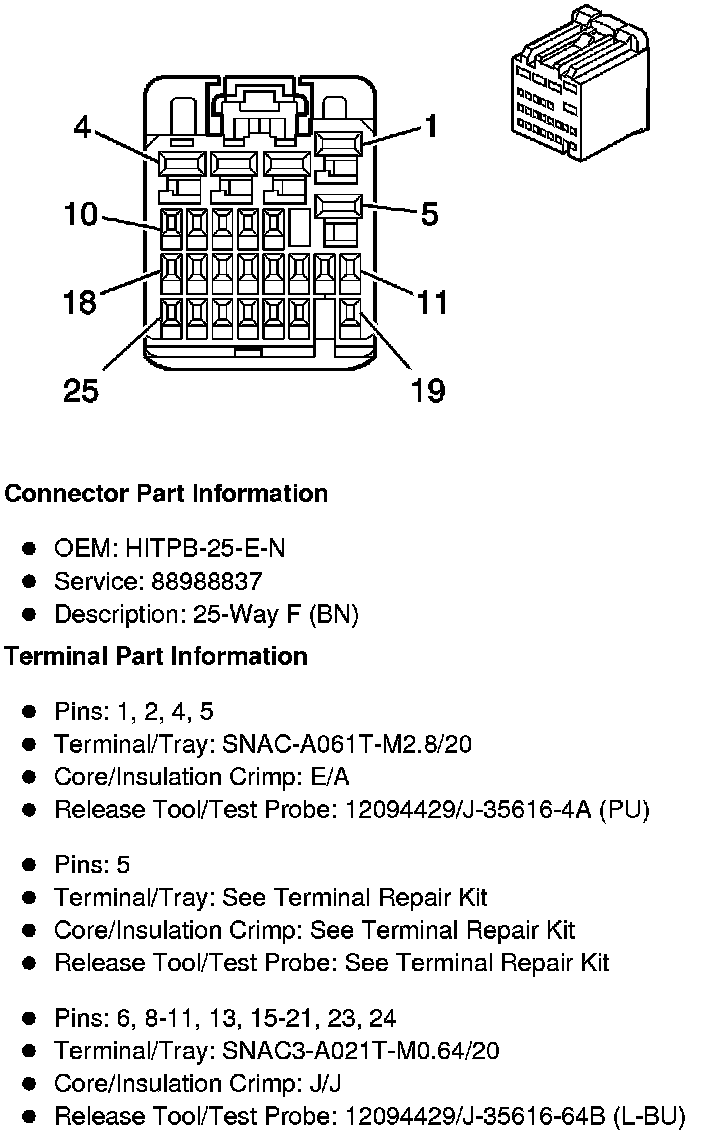

Body Control Module (BCM) X2

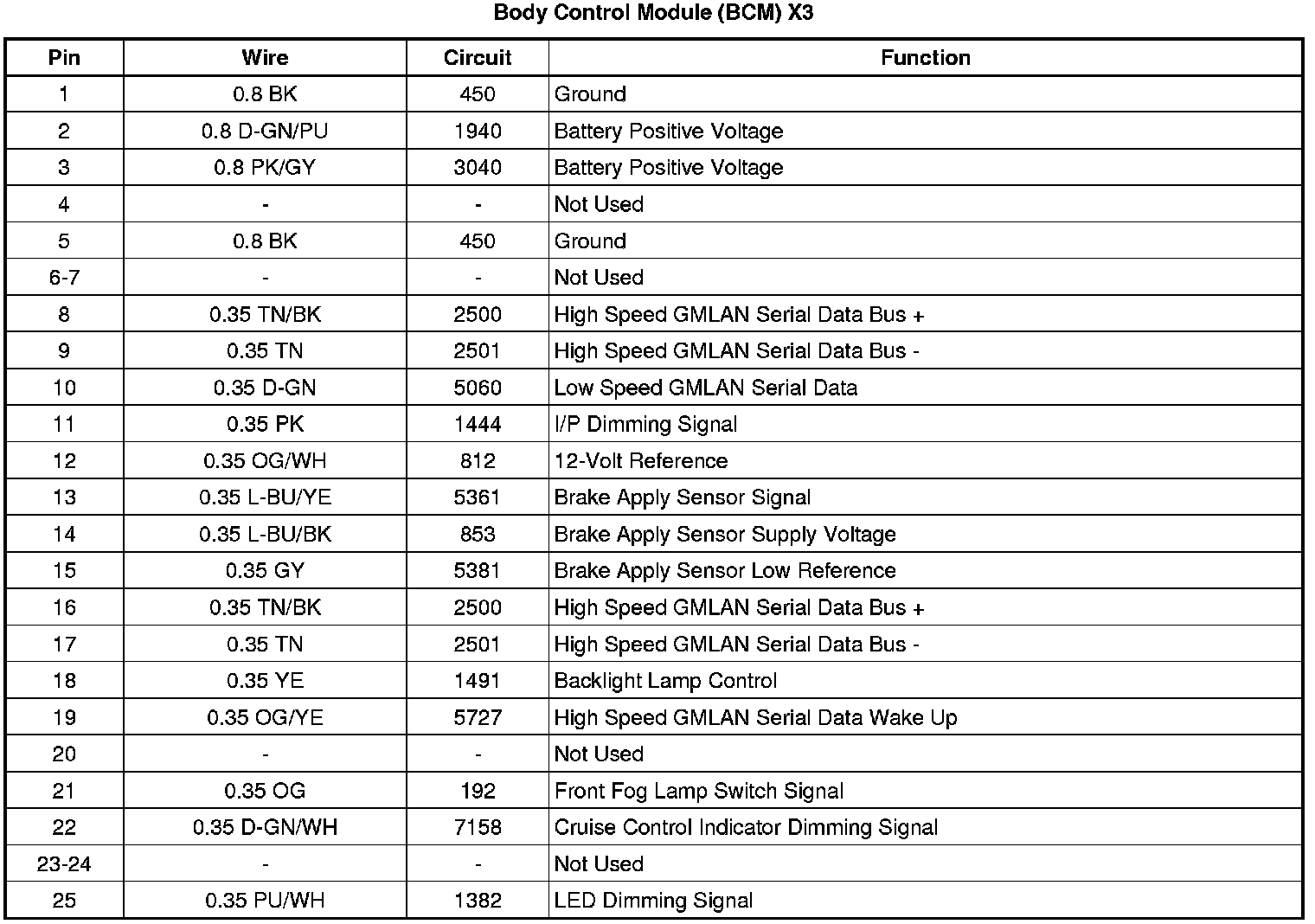

Body Control Module (BCM) X3

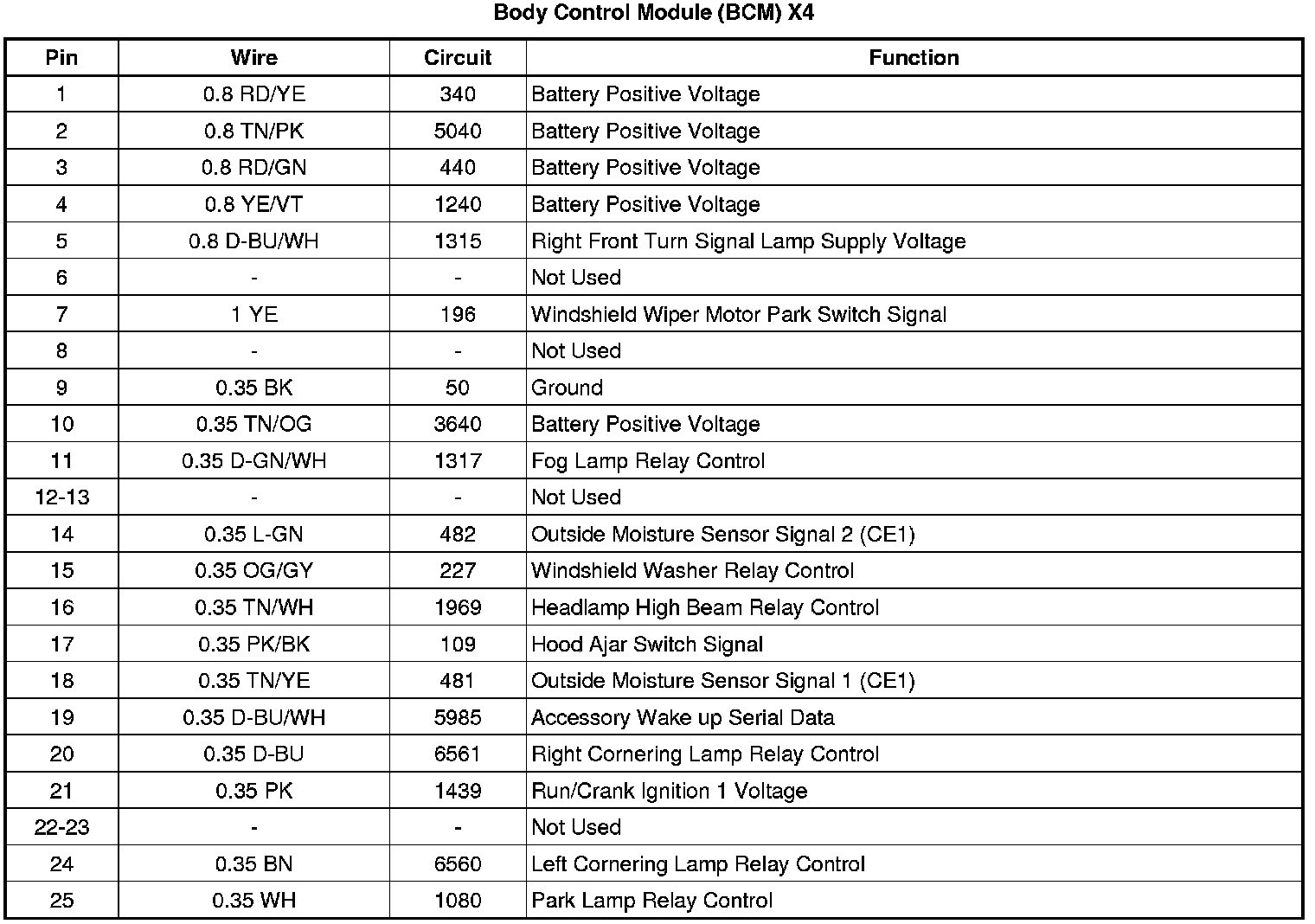

Body Control Module (BCM) X4

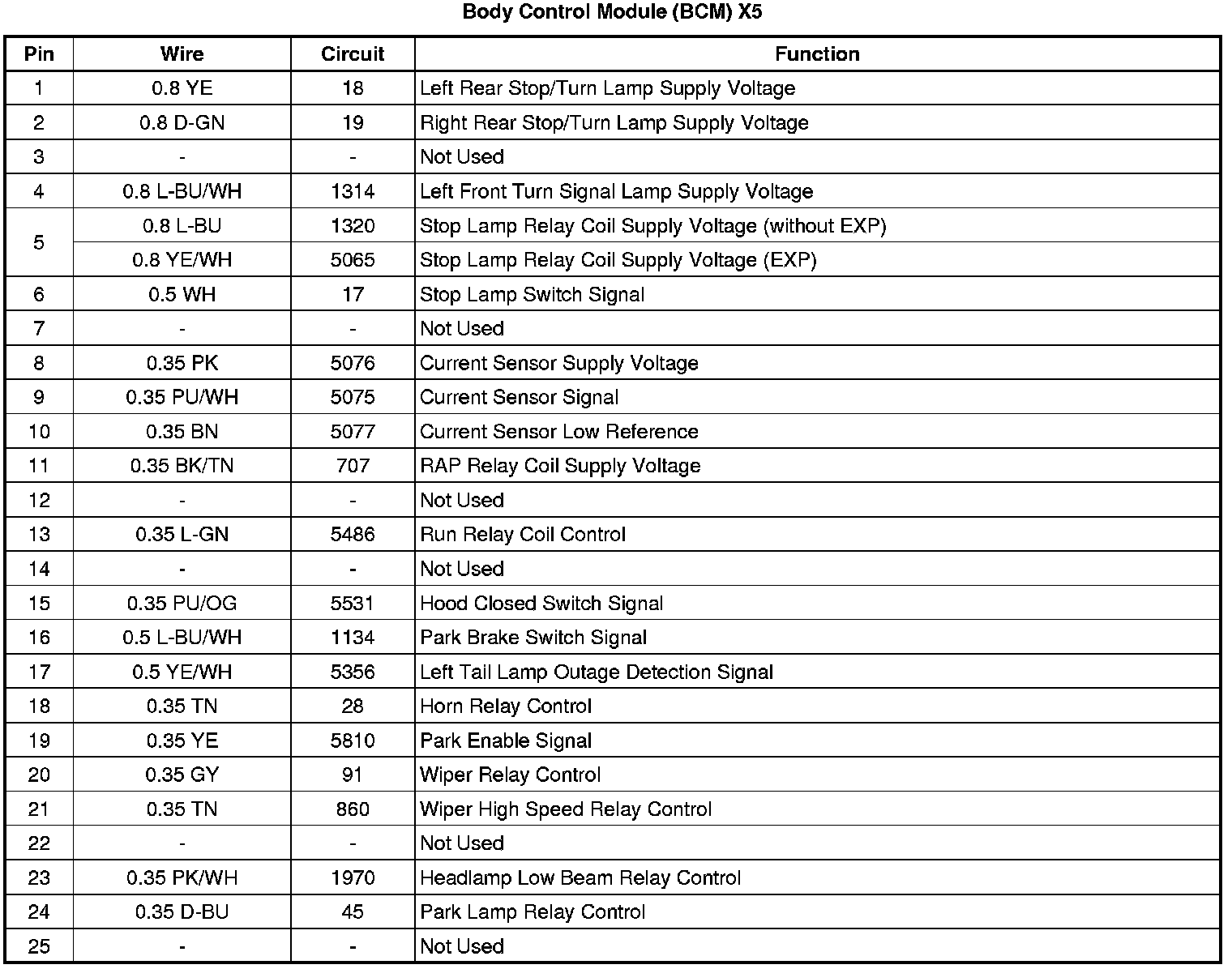

Body Control Module (BCM) X5

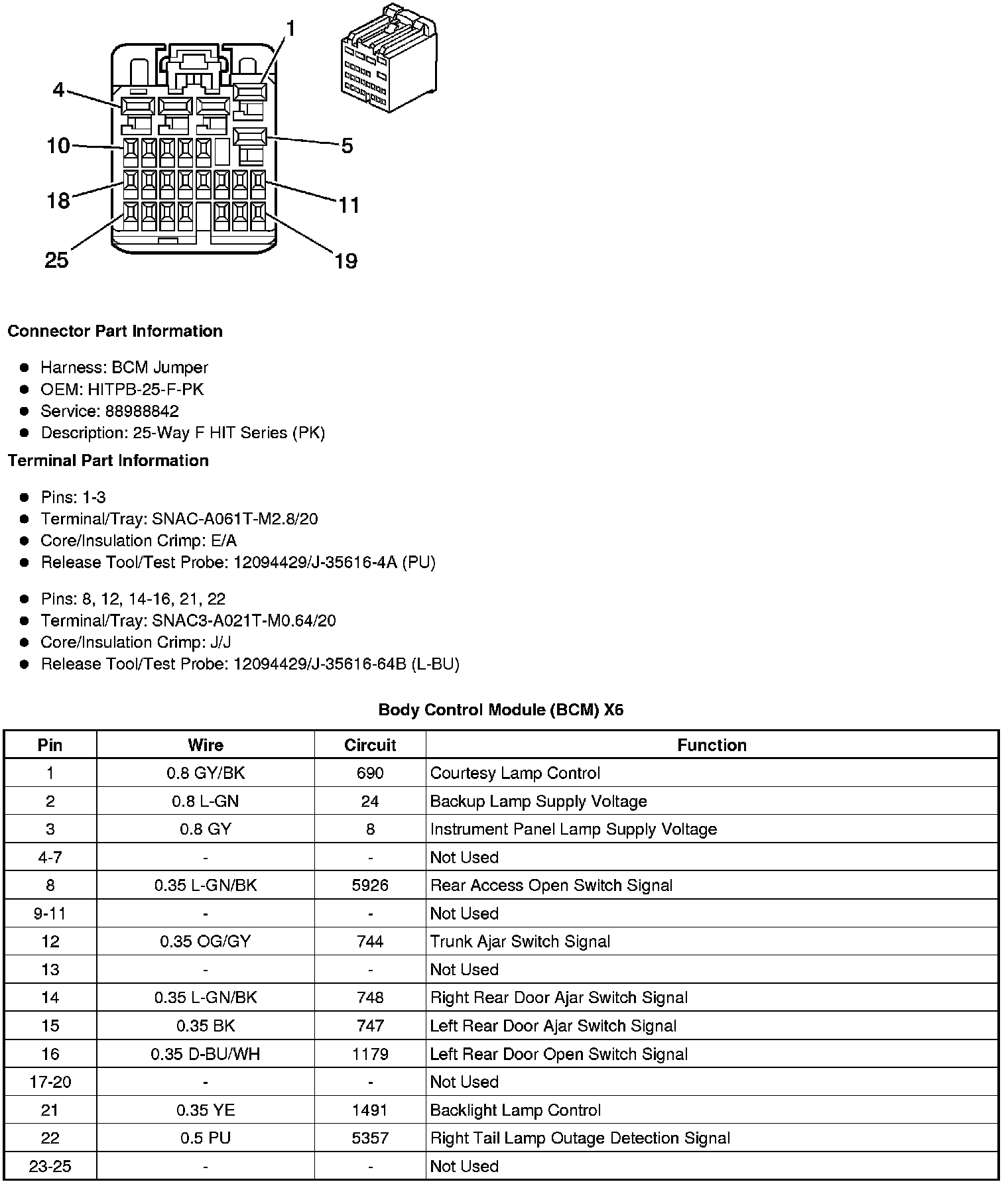

Body Control Module (BCM) X6

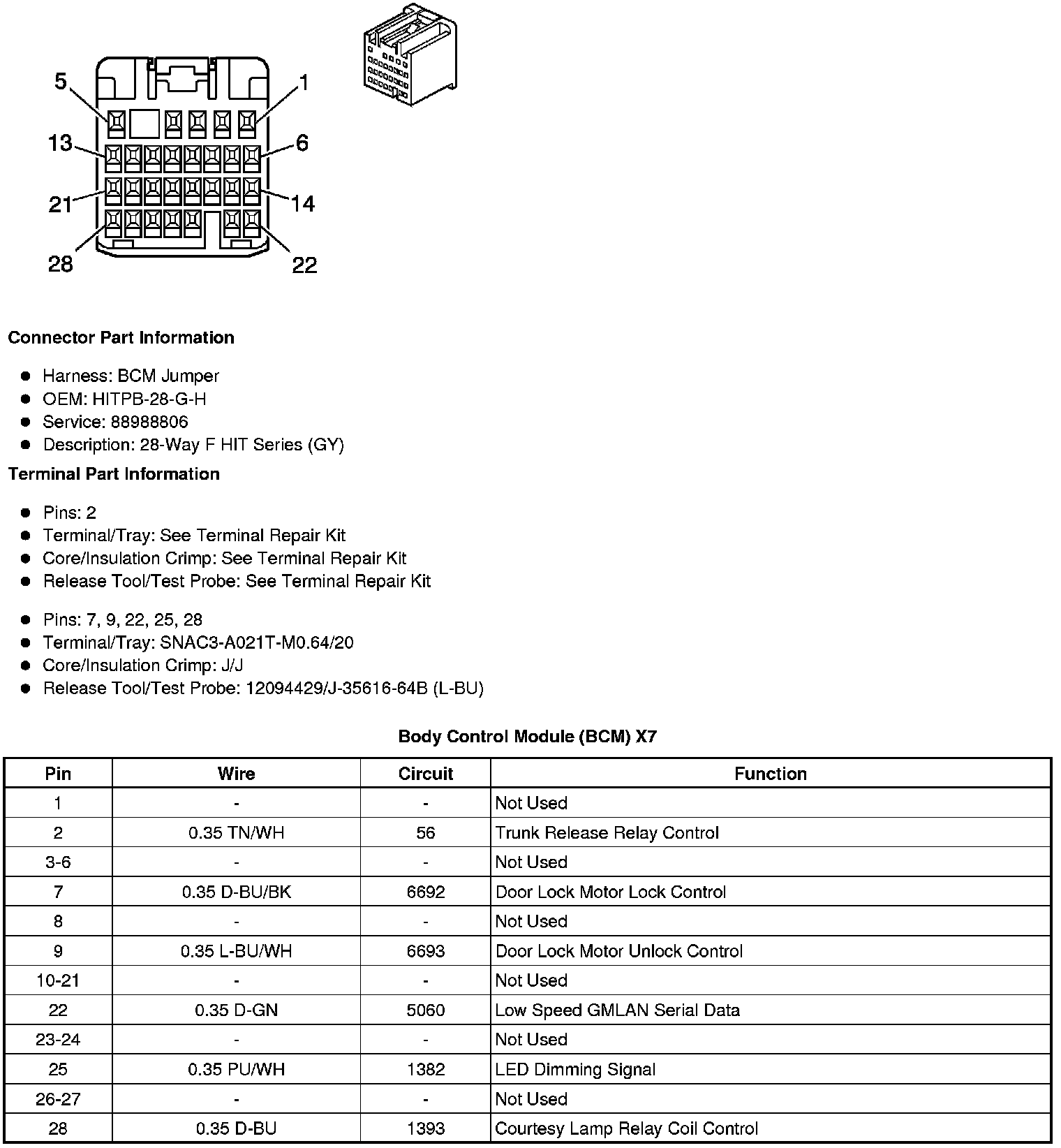

Body Control Module (BCM) X7
