Memory Positioning Module: Diagrams




Component Connector End Views

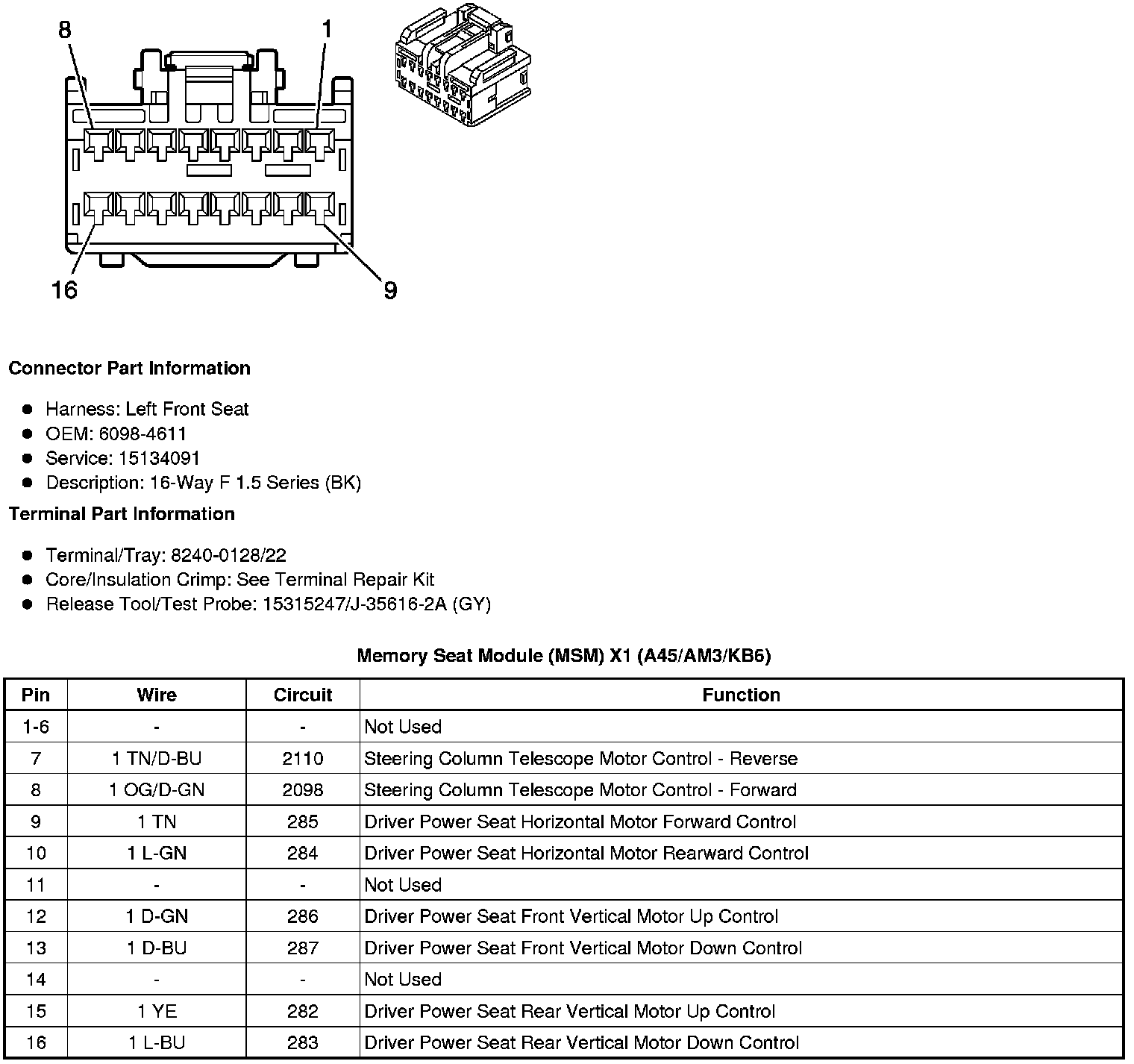

Memory Seat Module (MSM) X1 (A45/AM3/KB6)

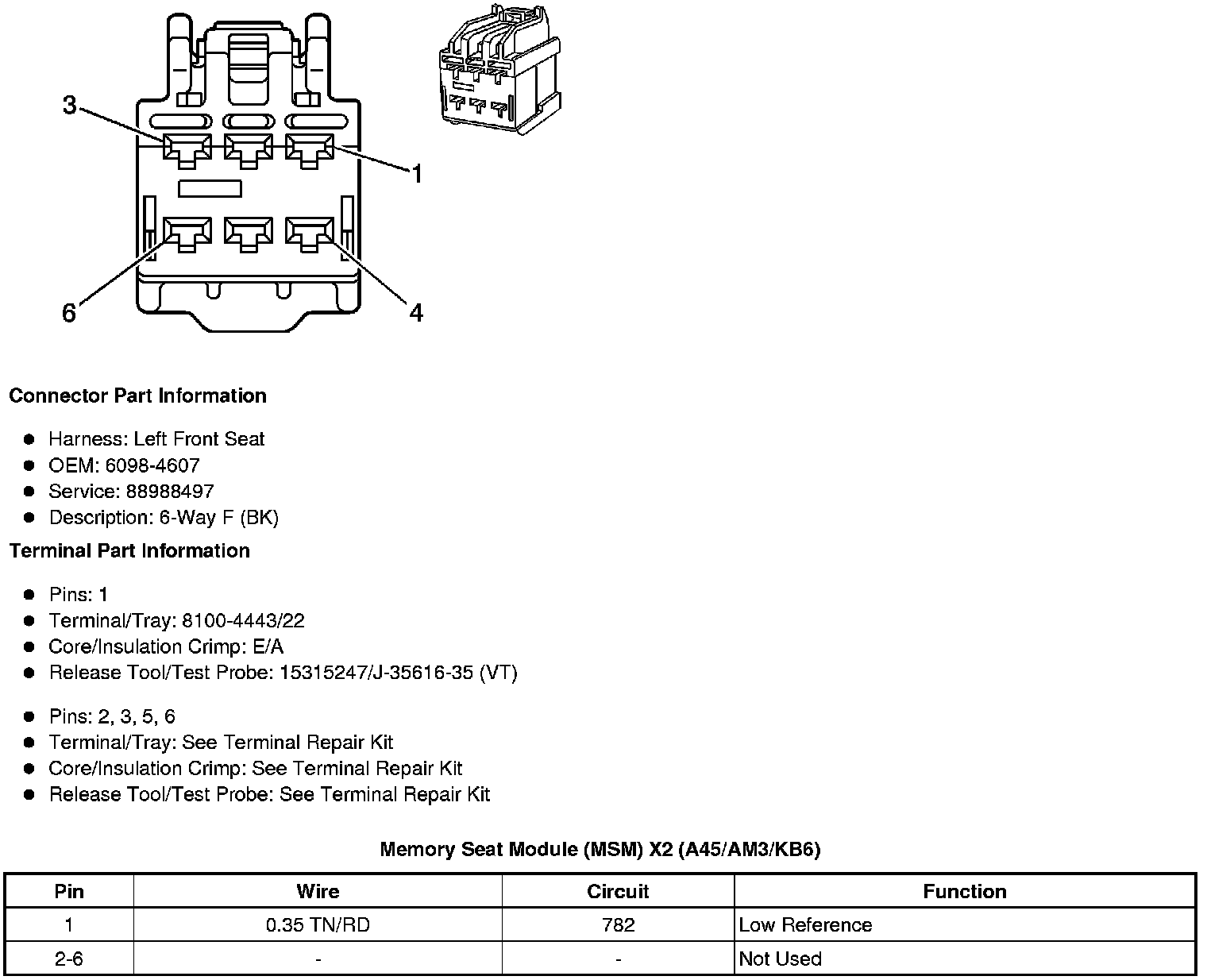

Memory Seat Module (MSM) X2 (A45/AM3/KB6)

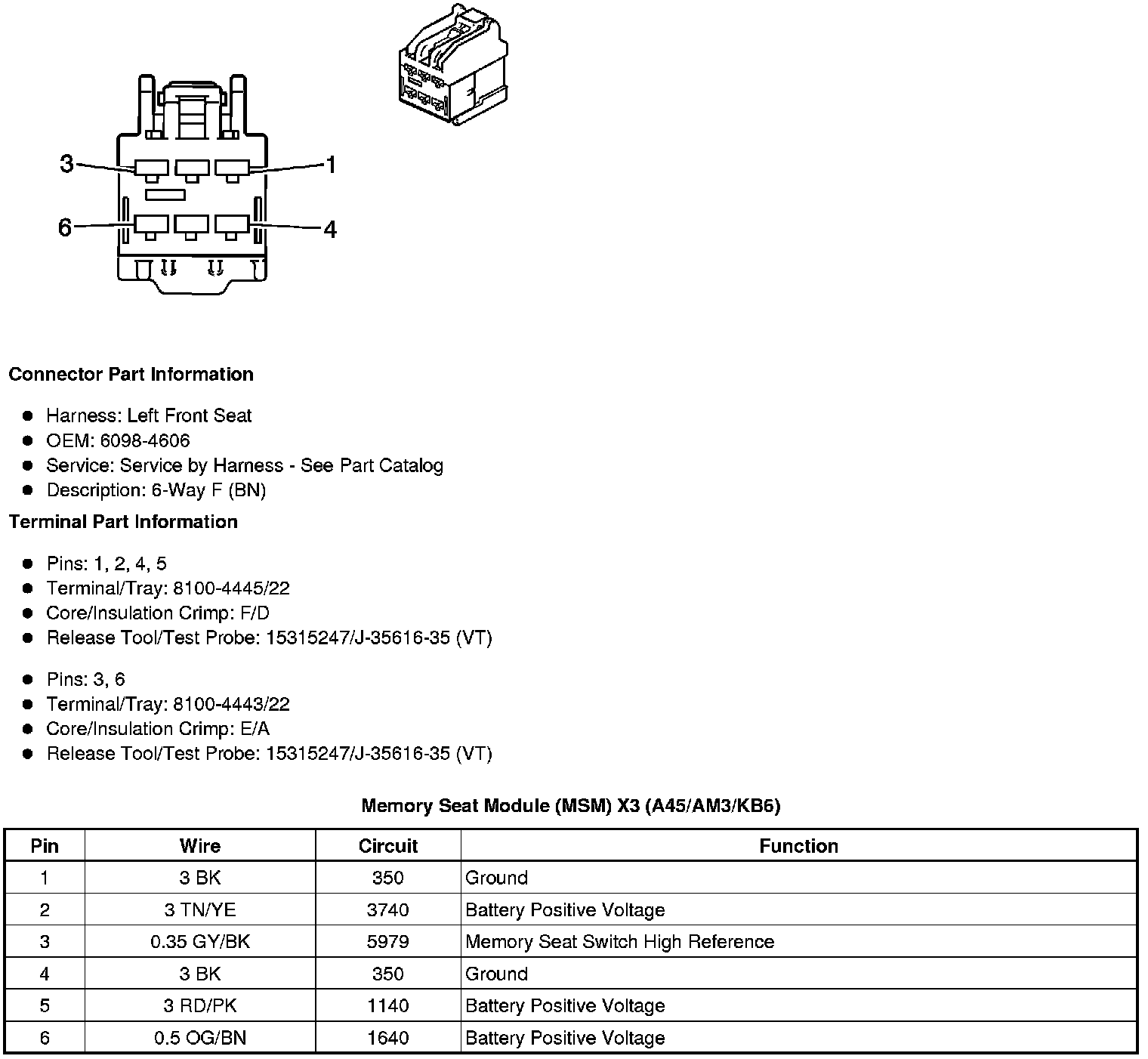

Memory Seat Module (MSM) X3 (A45/AM3/KB6)

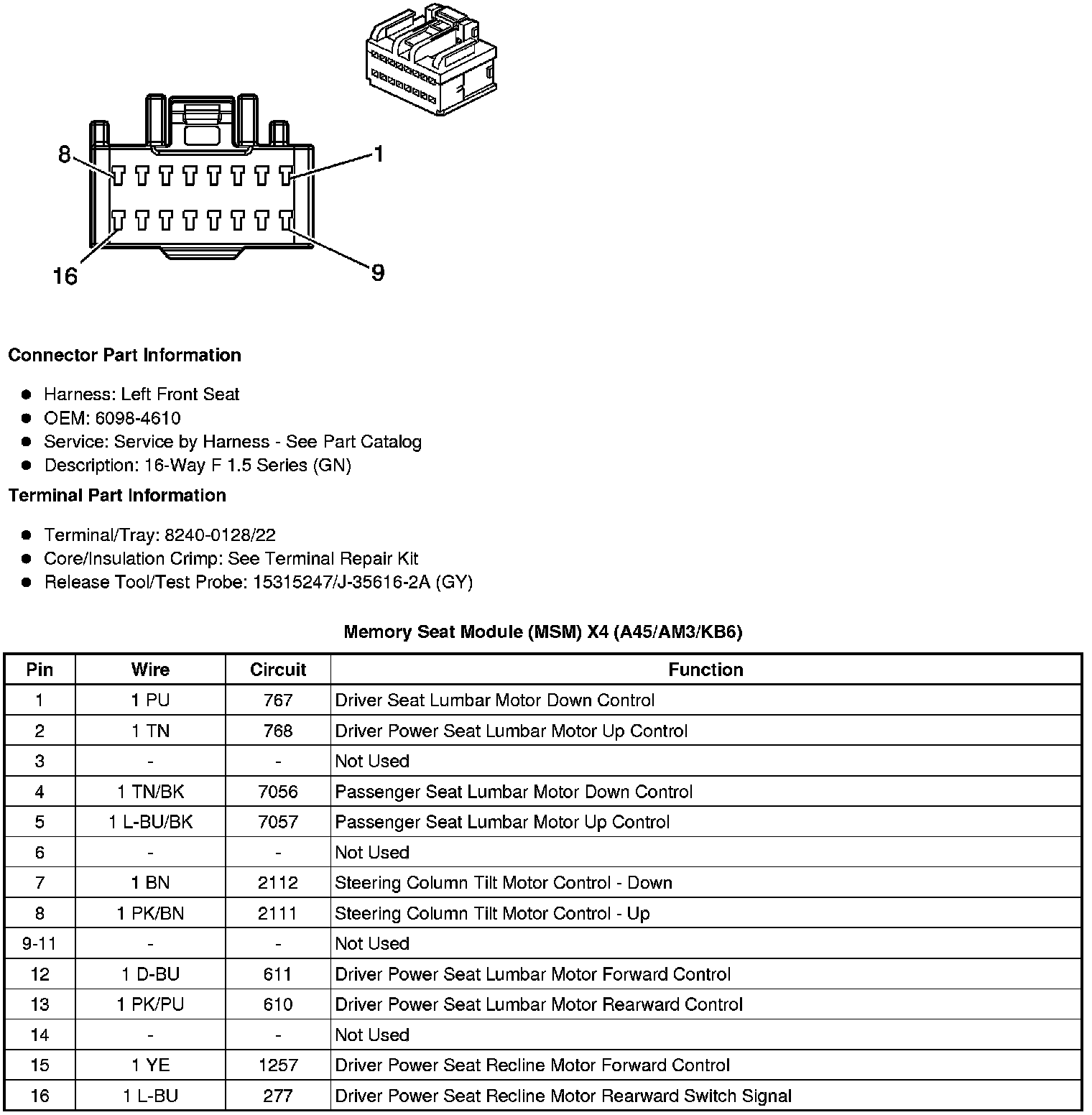

Memory Seat Module (MSM) X4 (A45/AM3/KB6)

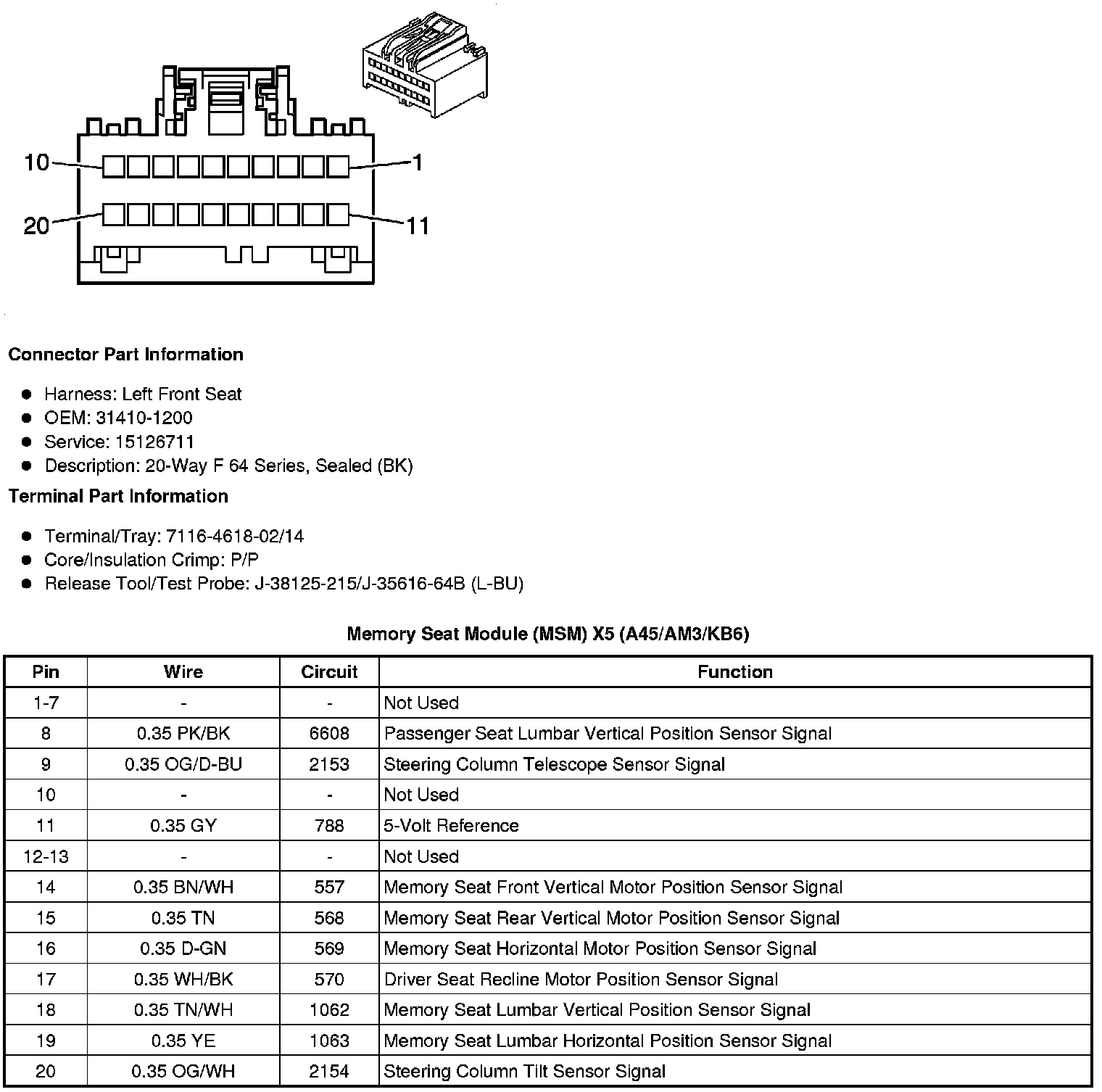

Memory Seat Module (MSM) X5 (A45/AM3/KB6)

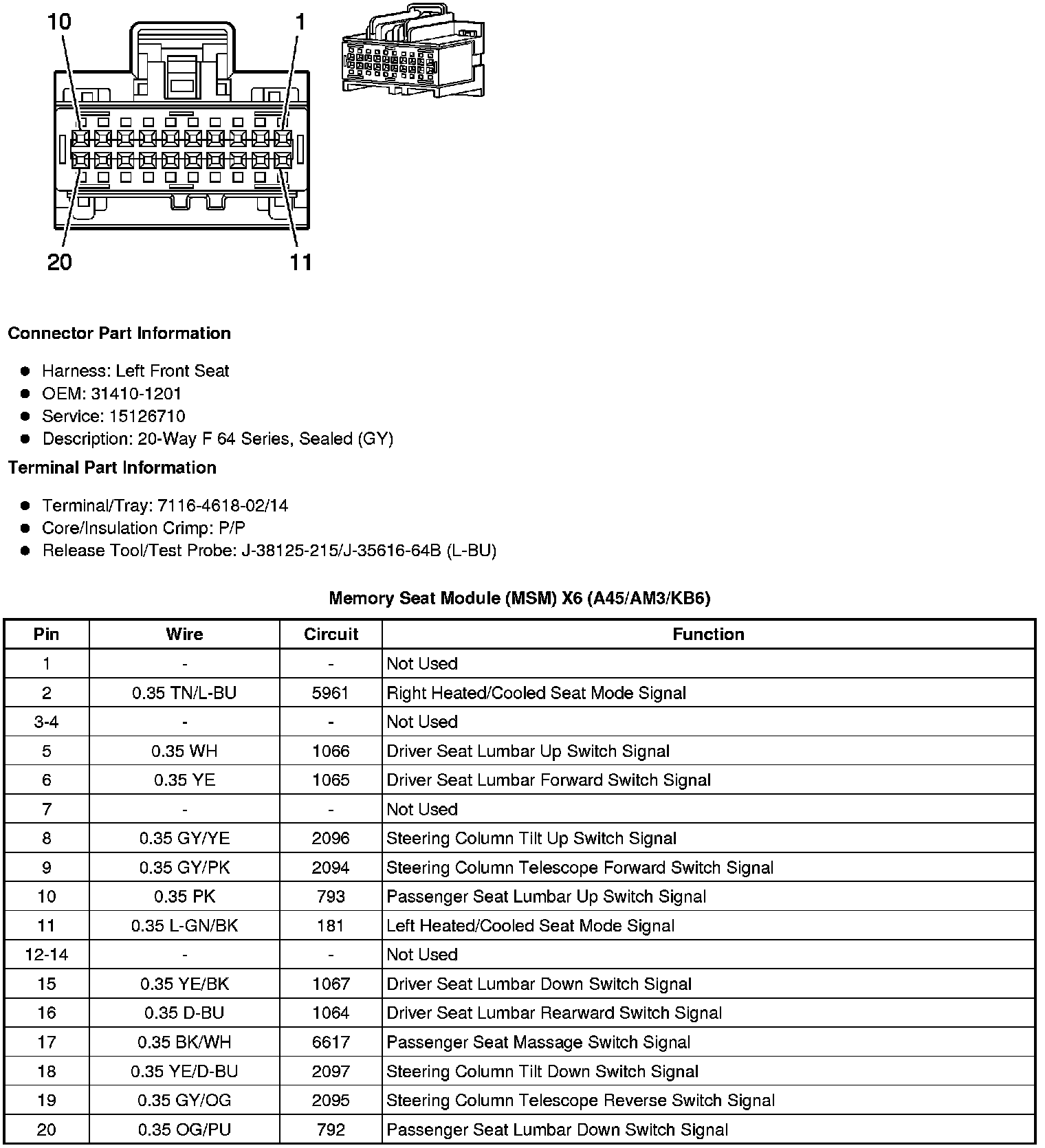

Memory Seat Module (MSM) X6 (A45/AM3/KB6)

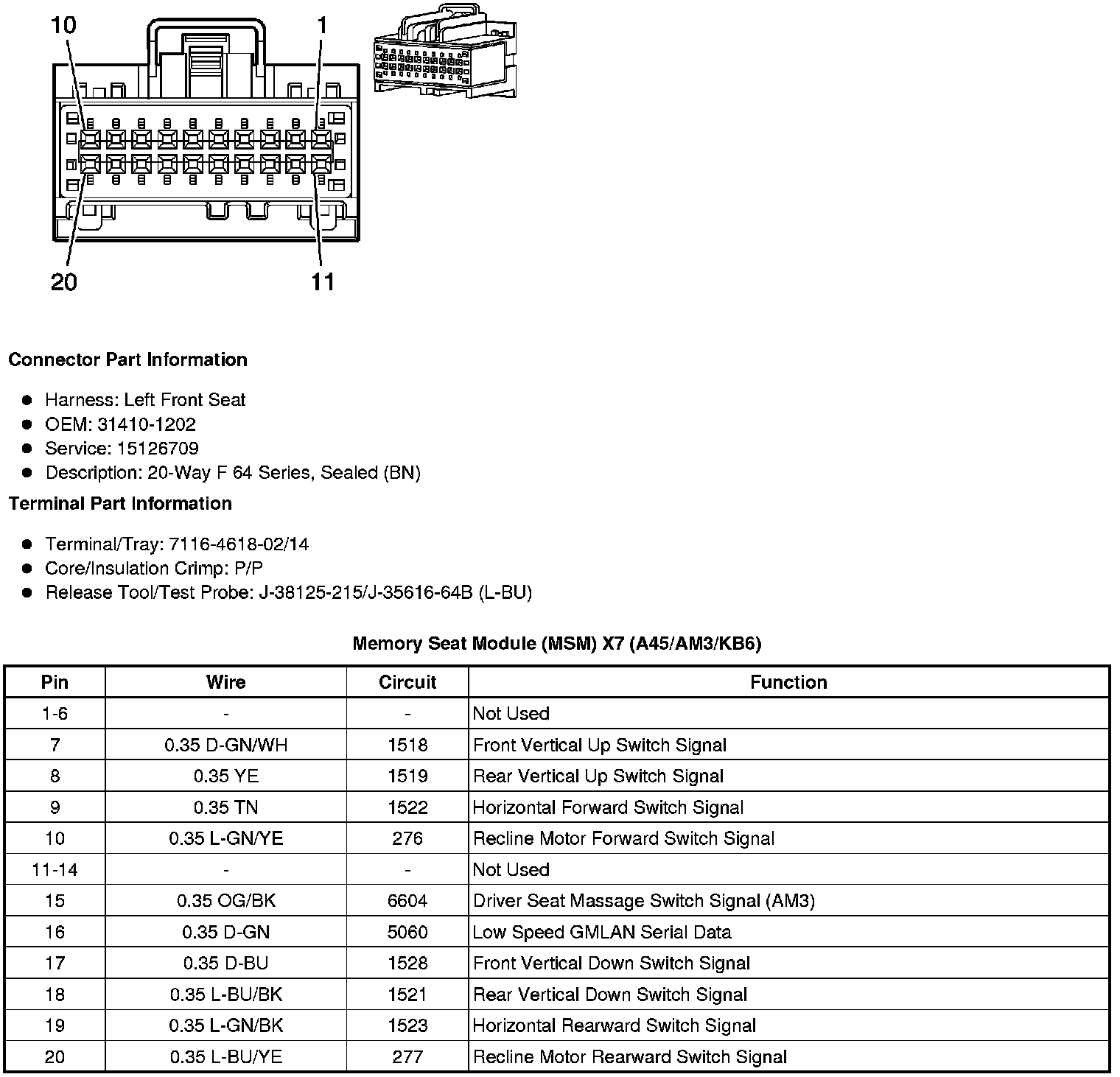

Memory Seat Module (MSM) X7 (A45/AM3/KB6)
