Main Relay (Computer/Fuel System): Application and ID




Electrical Center Identification Views

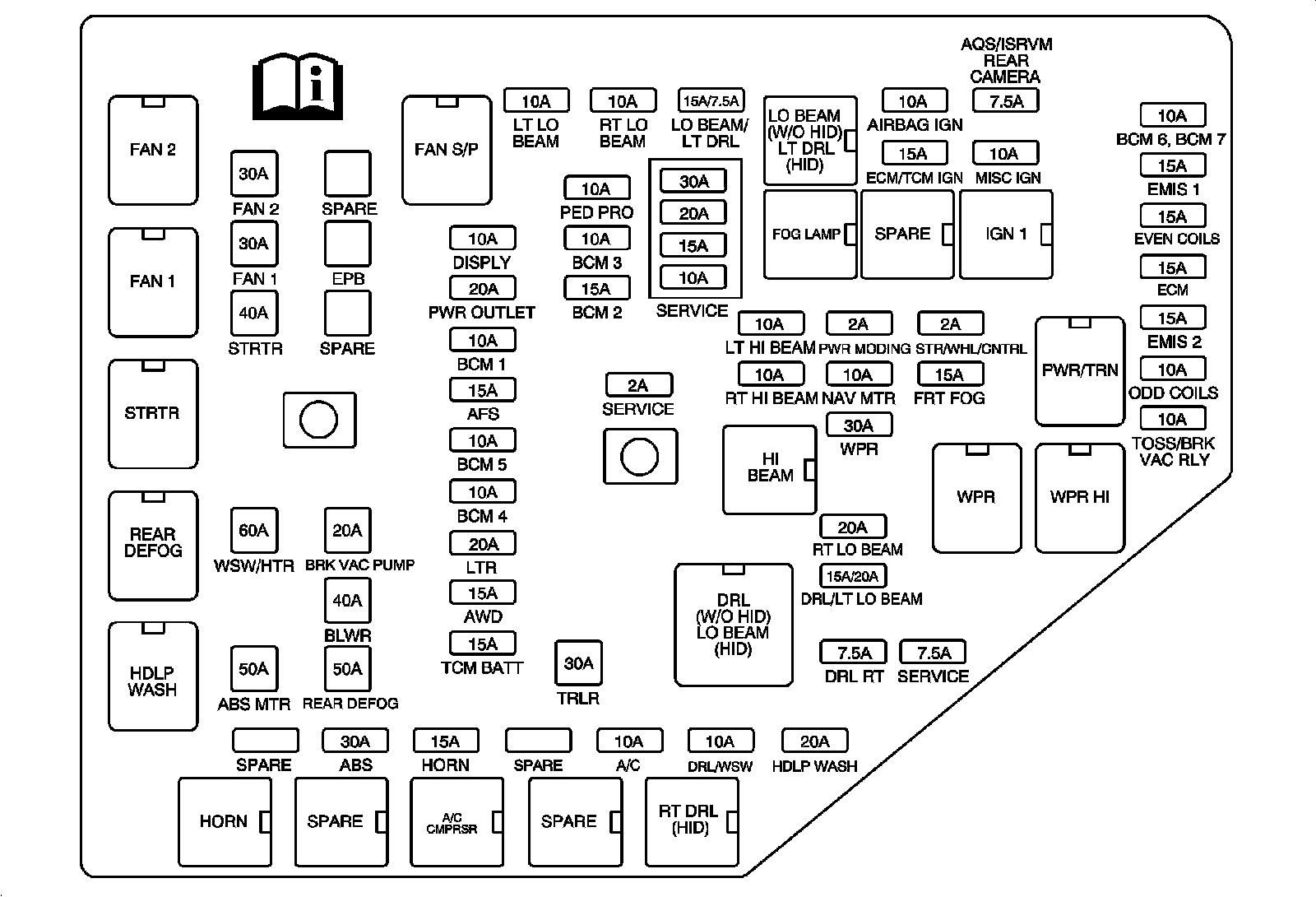

Fuse Block - Underhood Label - Sedan (without LSA)

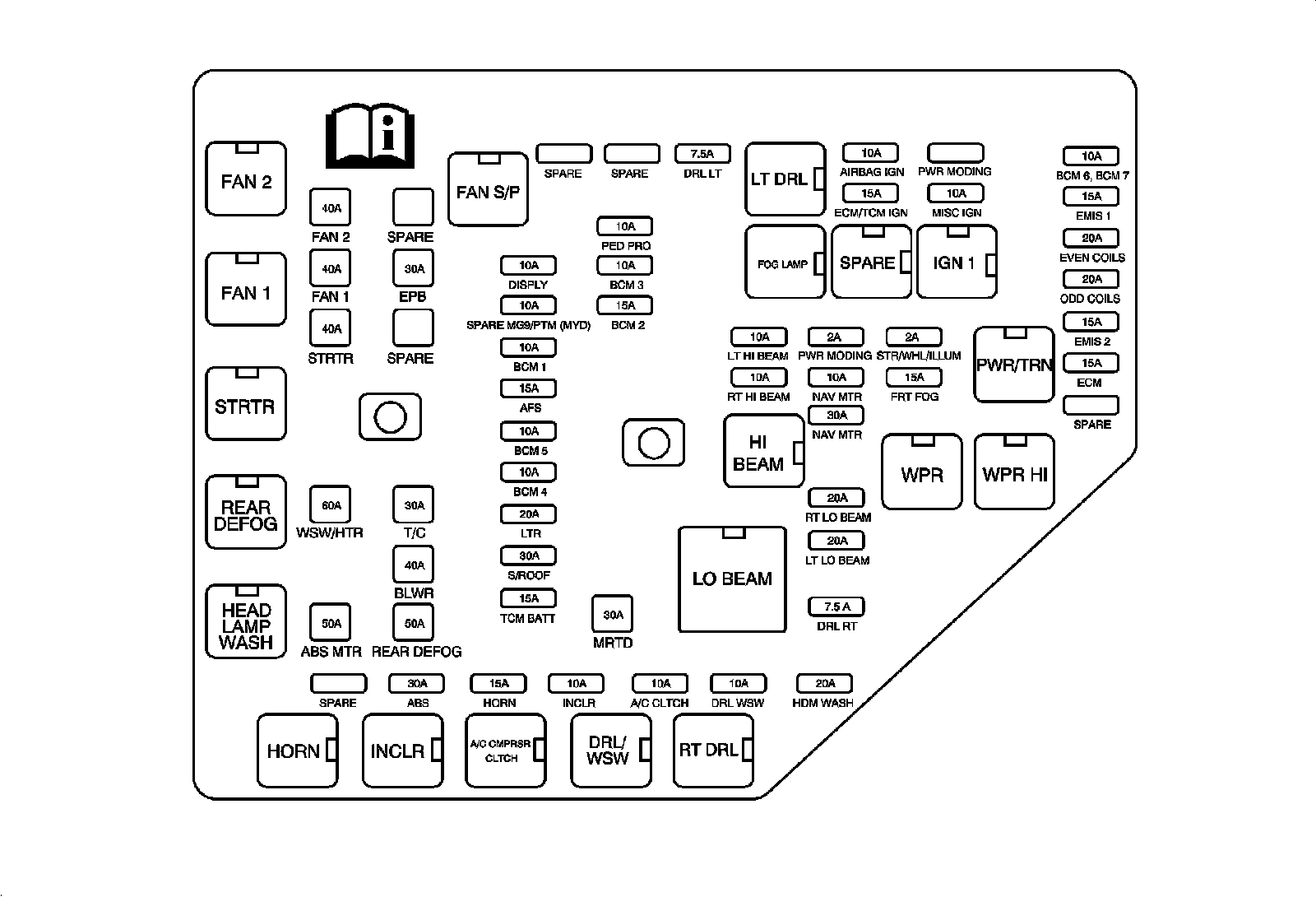

Fuse Block - Underhood Label - Sedan (with LSA)

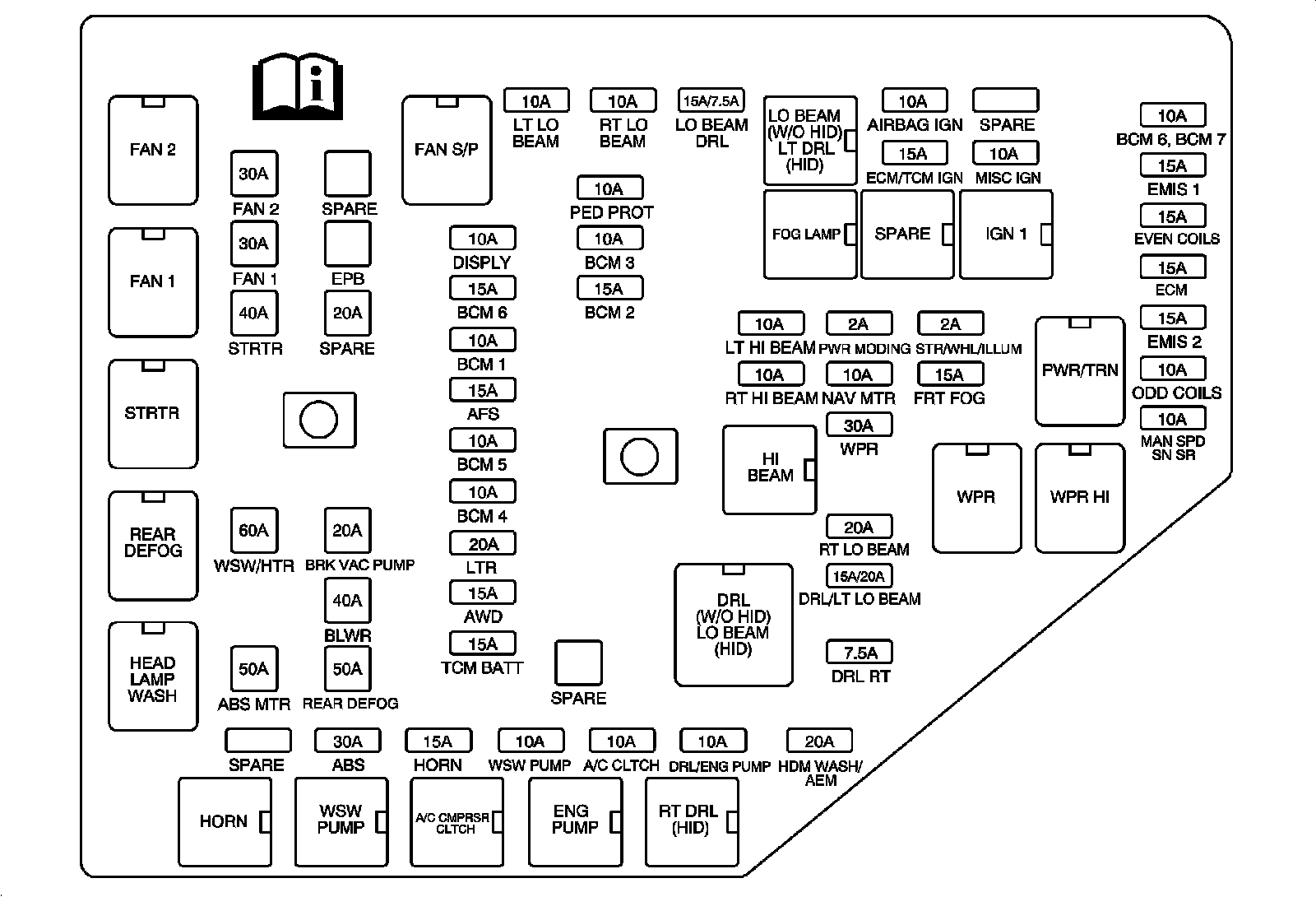

Fuse Block - Underhood Label - Wagon
