Oxygen Sensor: Diagrams




Component Connector End Views

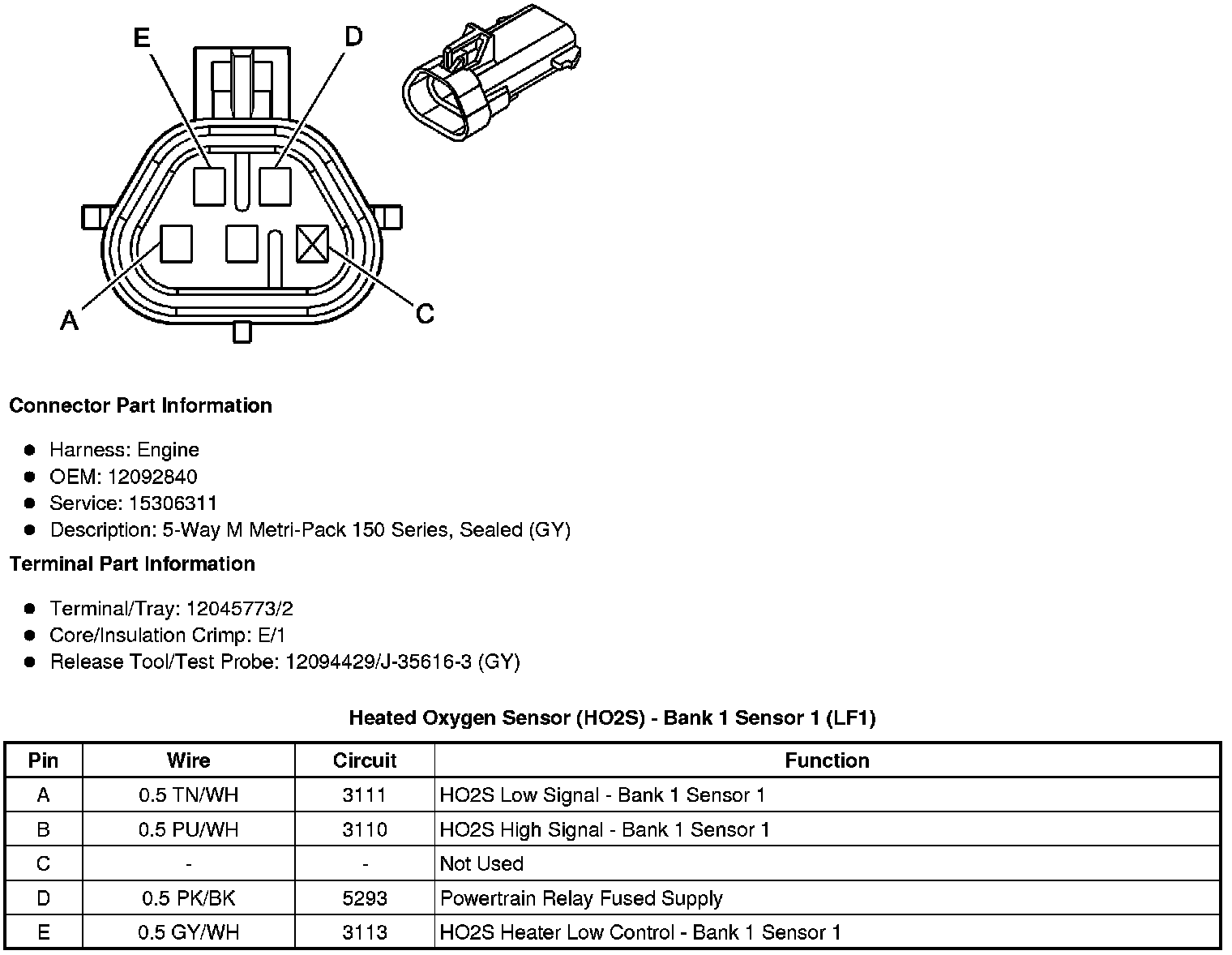

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LF1)

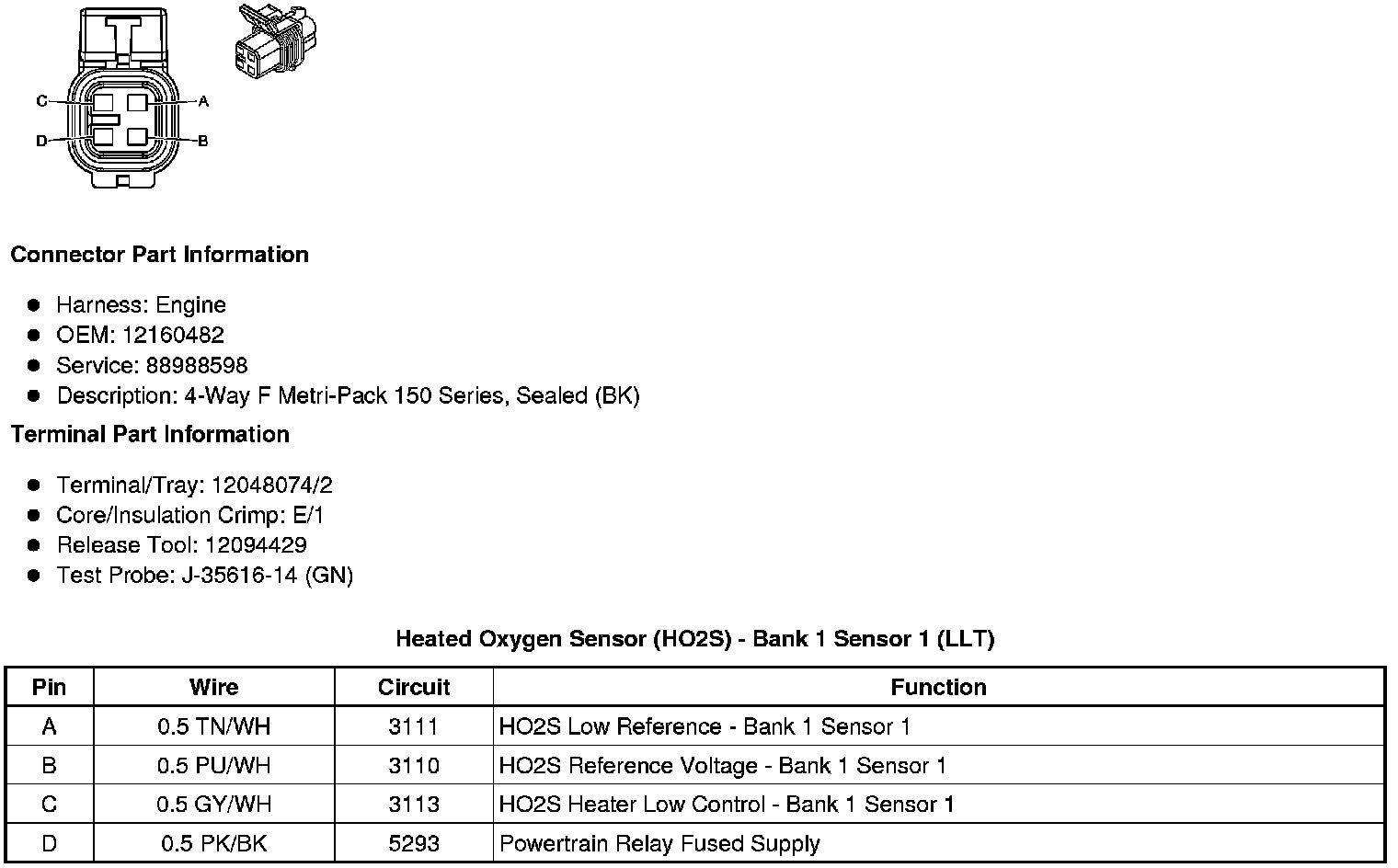

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LLT)





Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LSA)





Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LF1 or LLT)

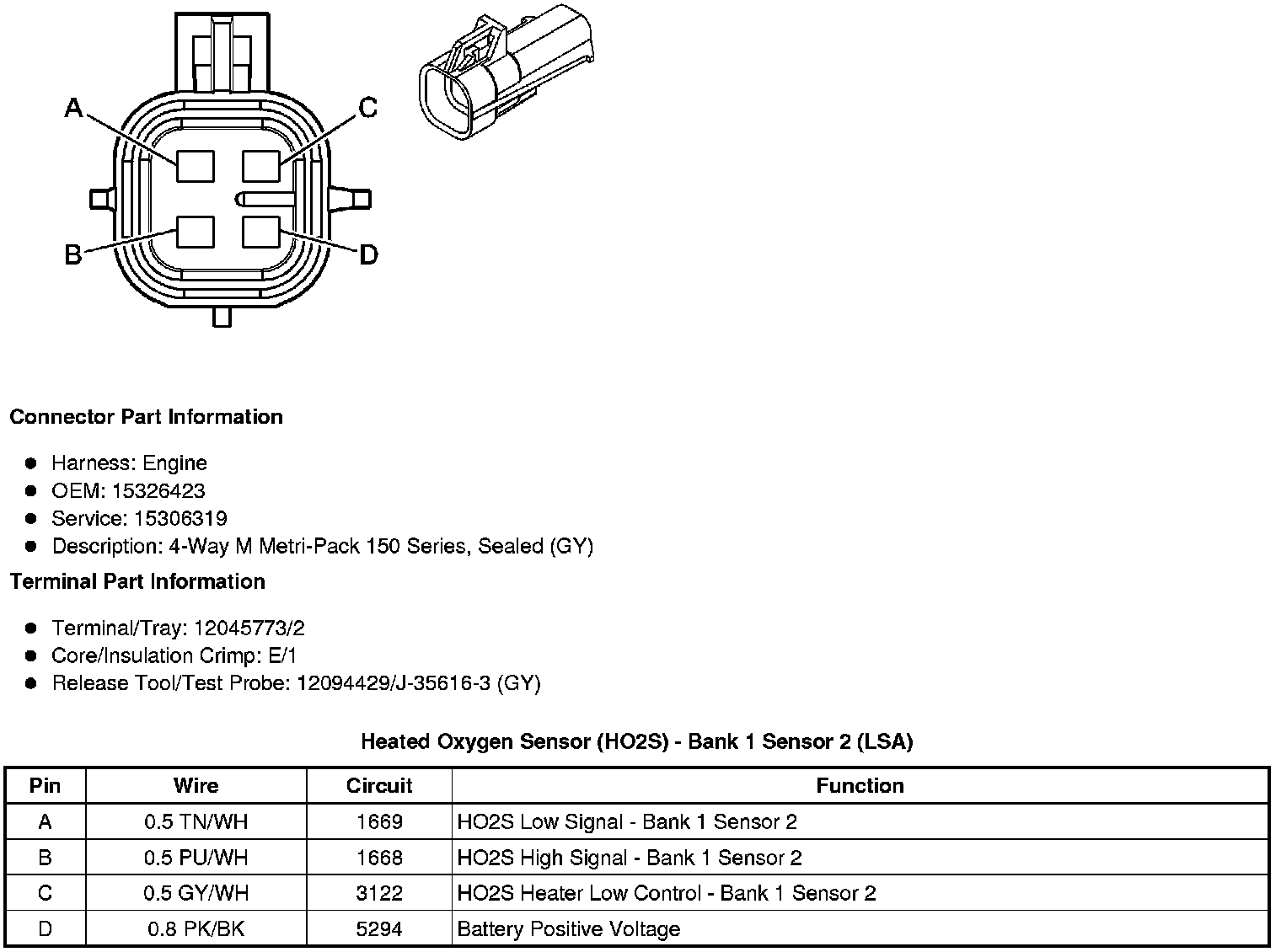

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LSA)

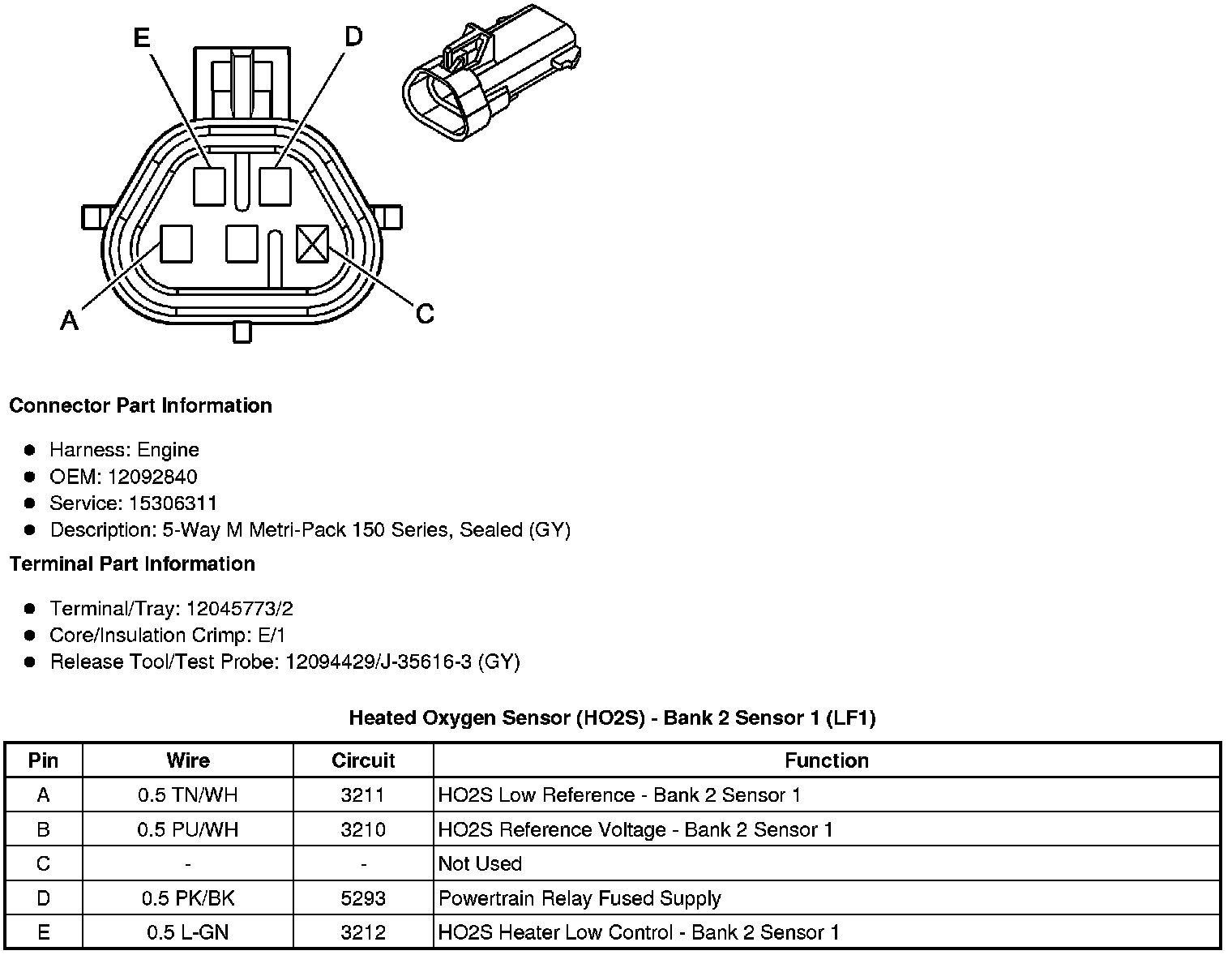

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LF1)

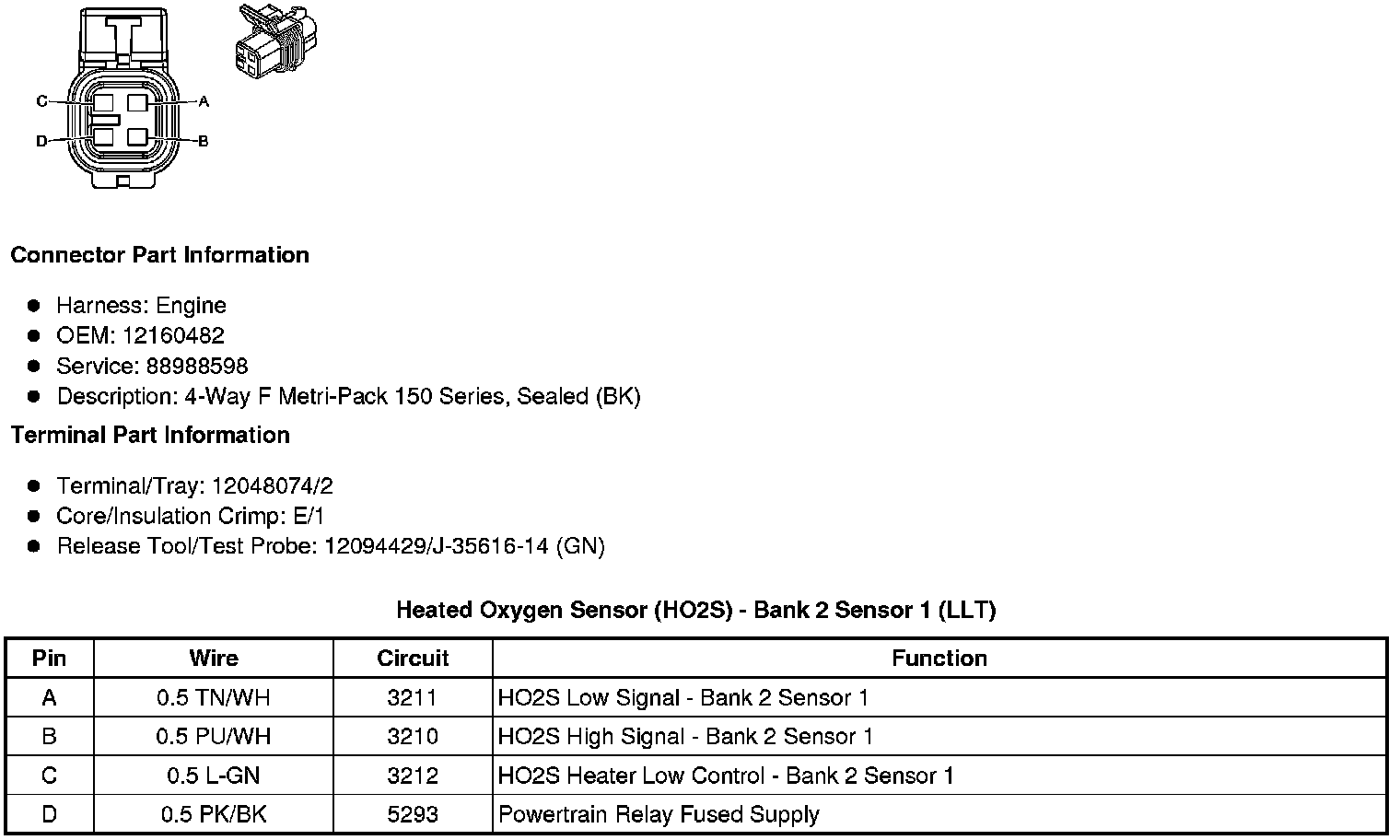

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LLT)

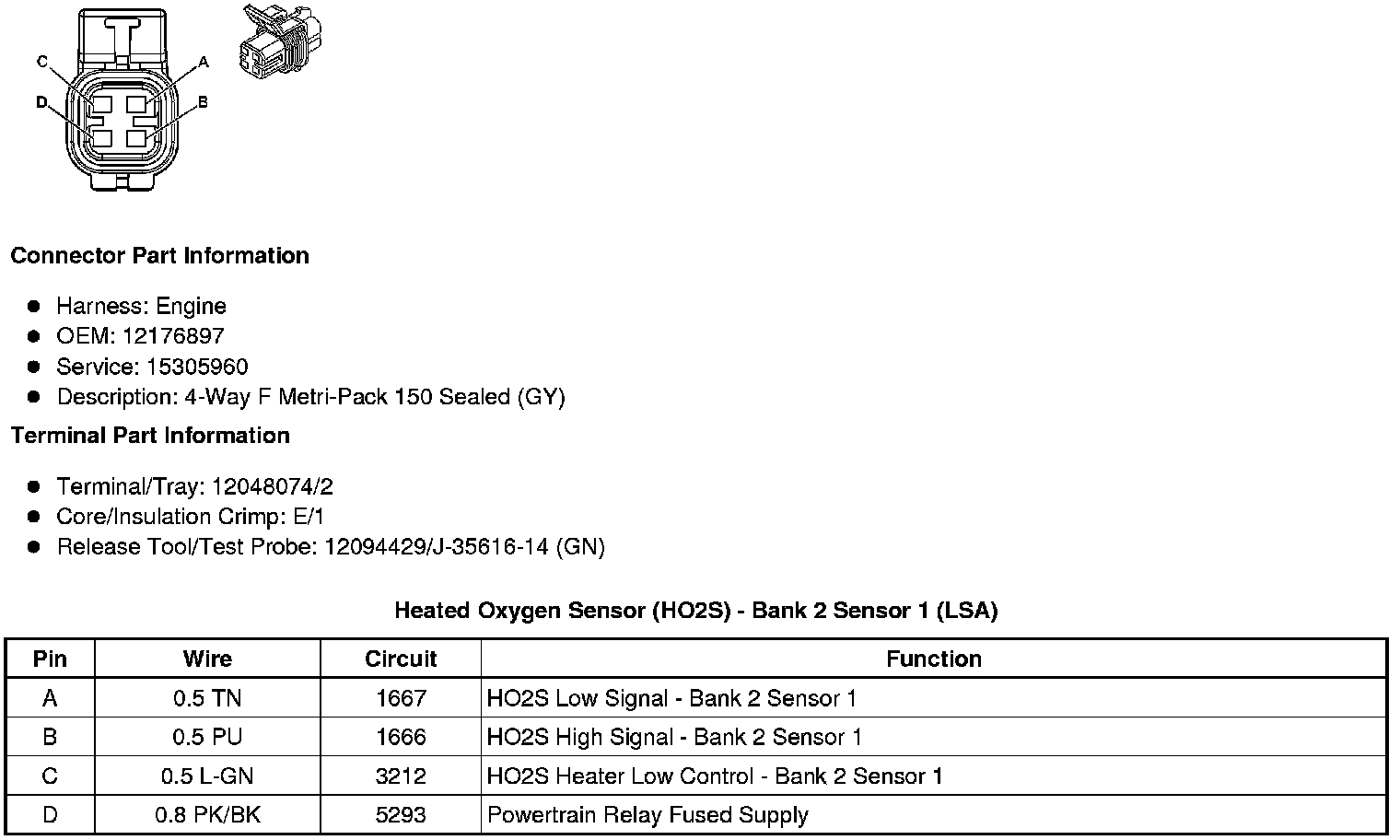

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LSA)

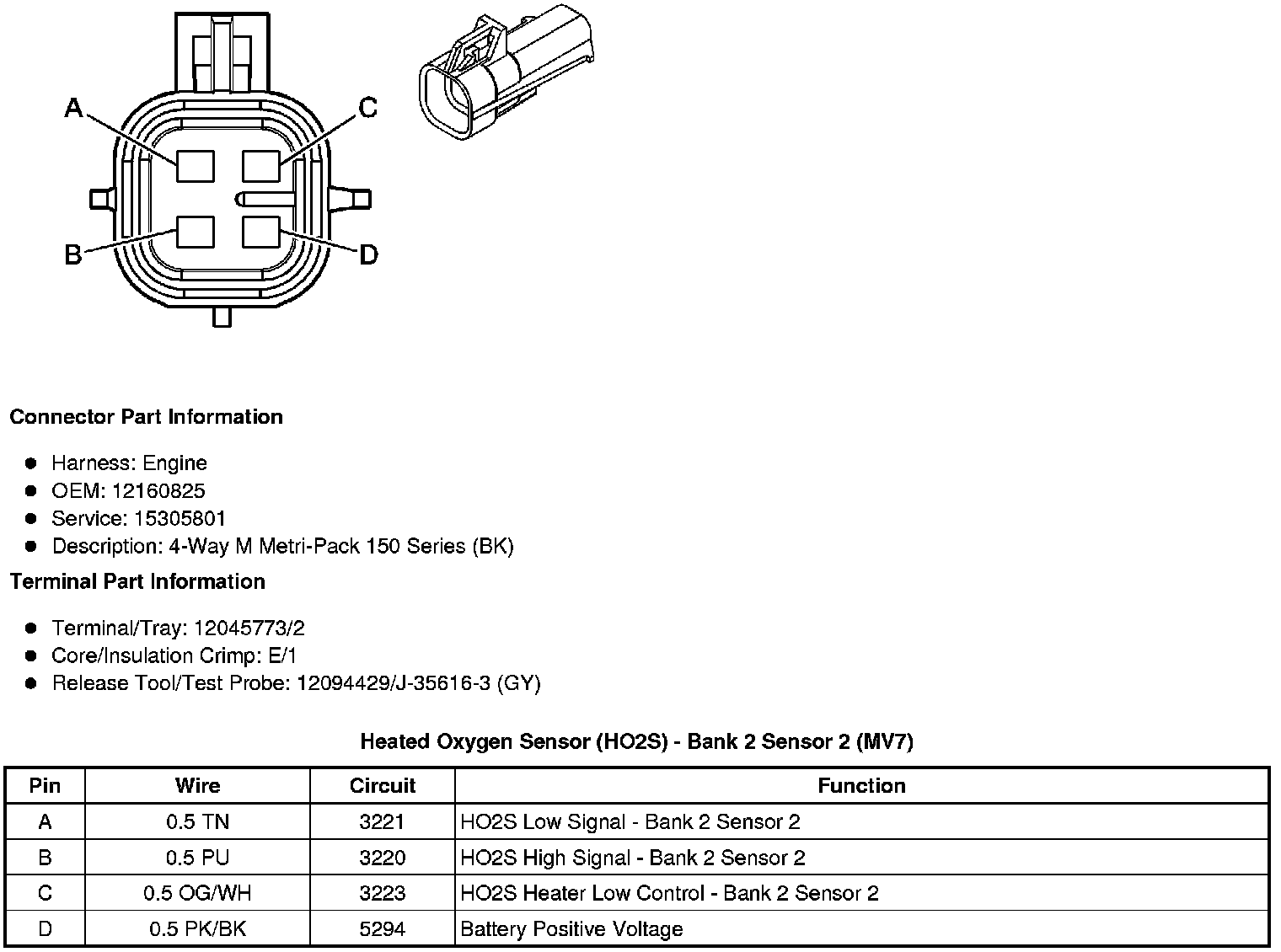

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (MV7)

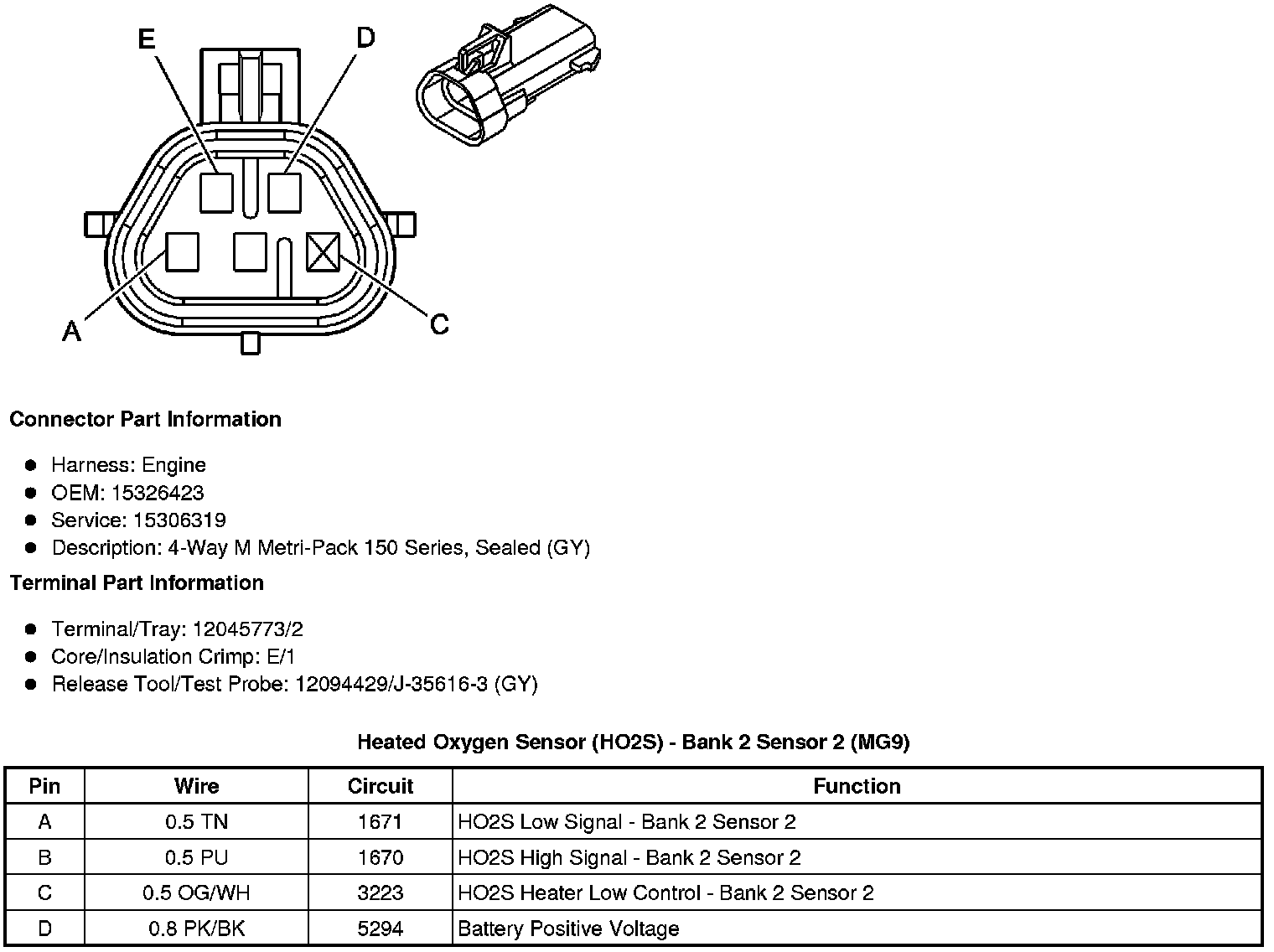

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (MG9)

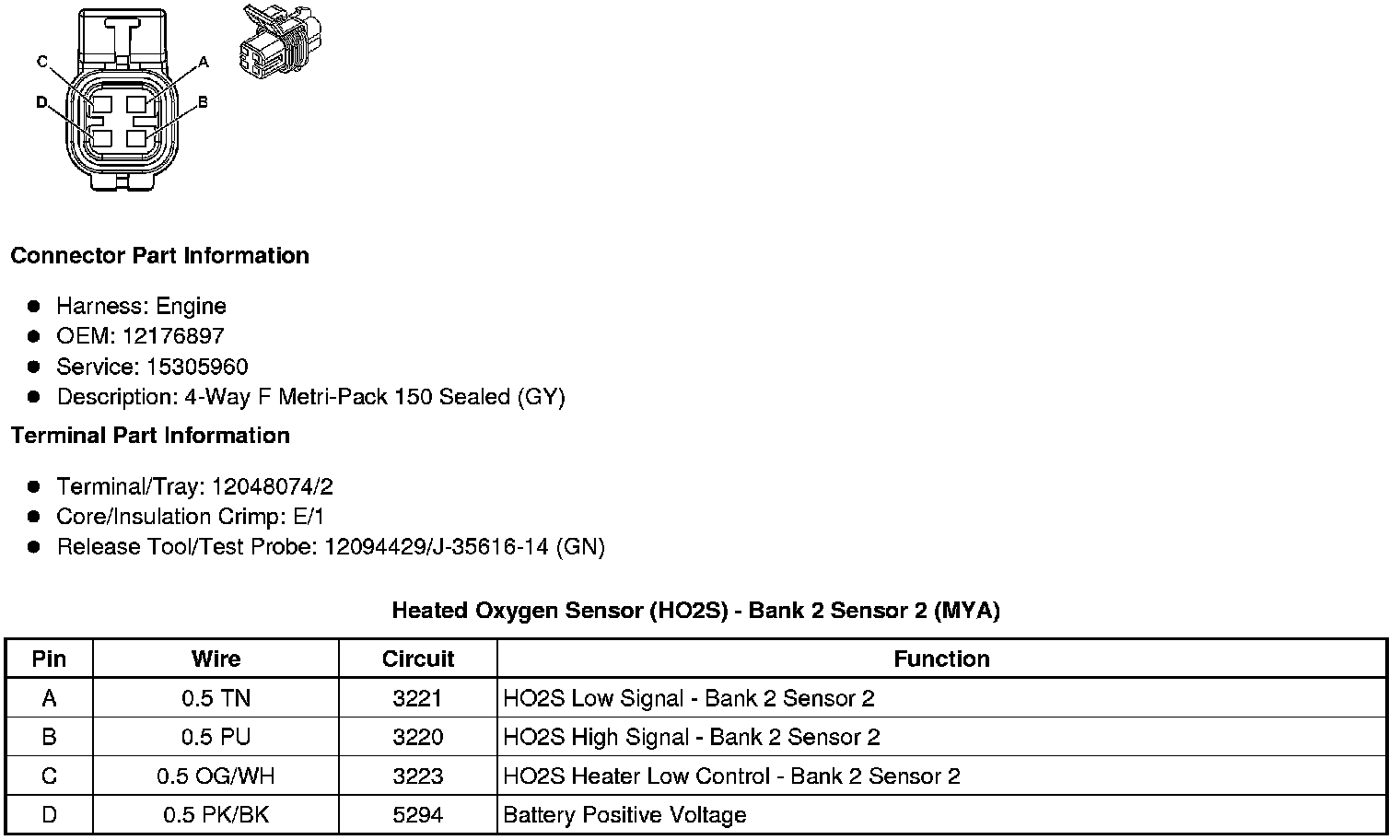

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (MYA)

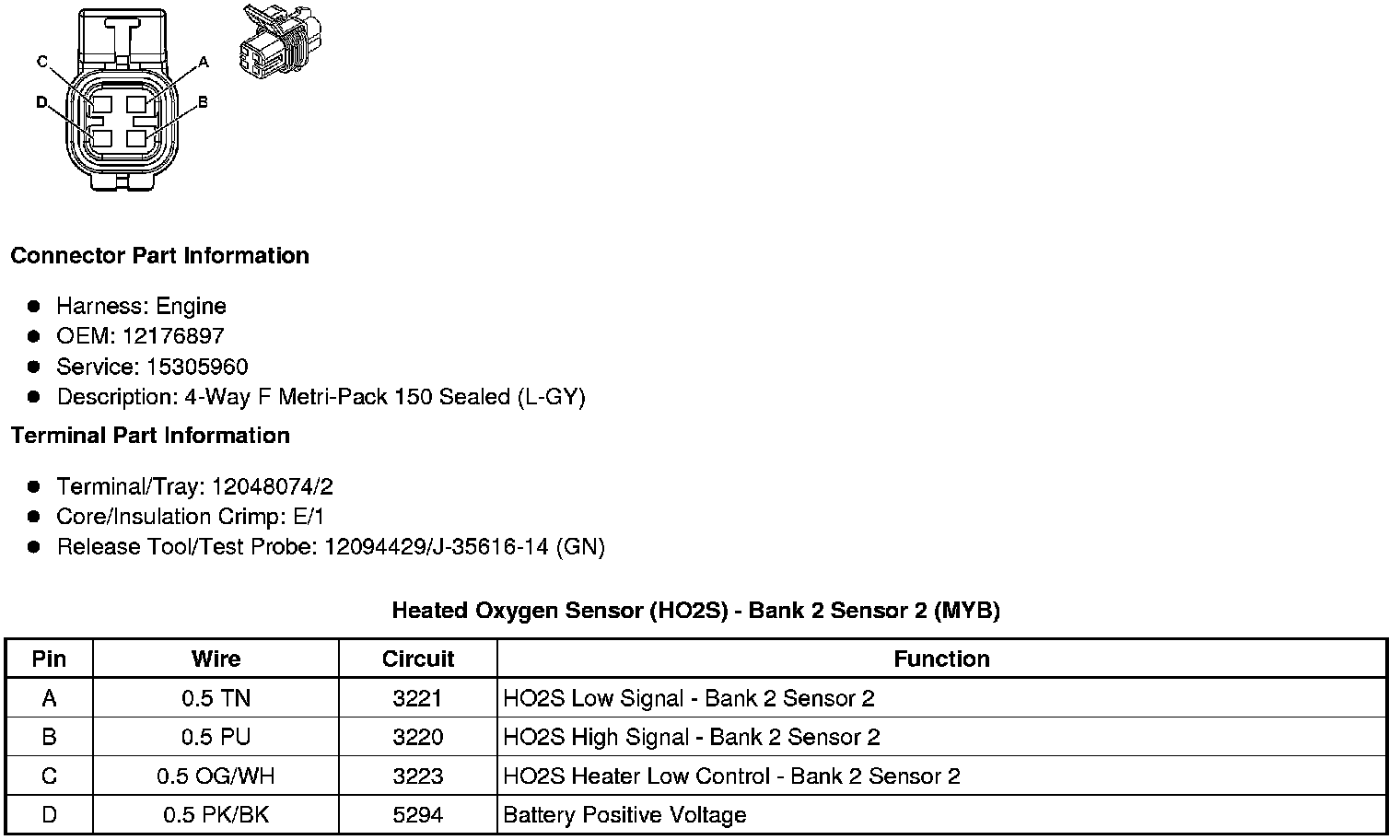

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (MYB)

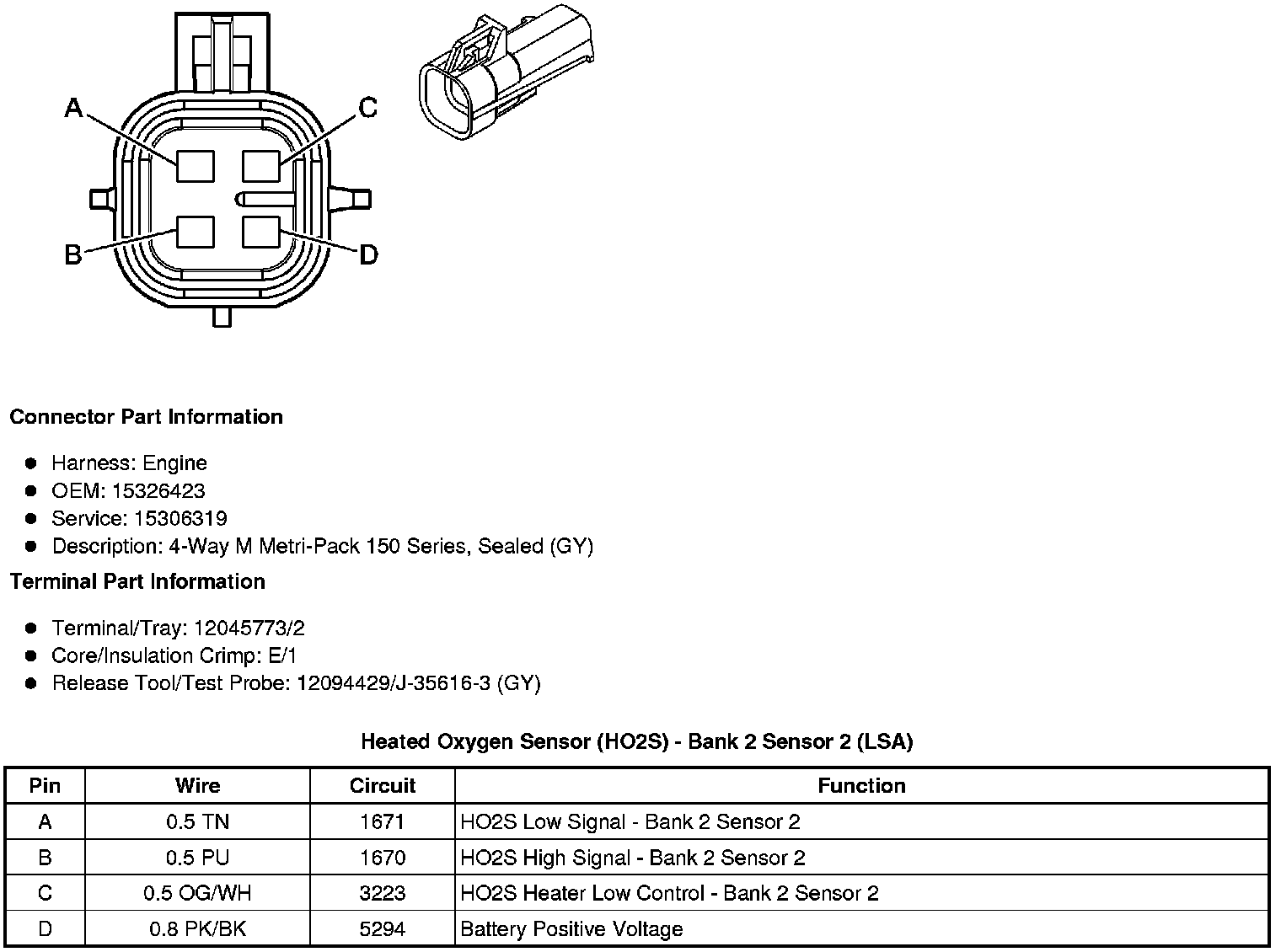

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LSA)
