Fuel Level Sensor: Diagrams




Component Connector End Views

Fuel Level Sensor Assembly - X1 (LF1 or LLT)

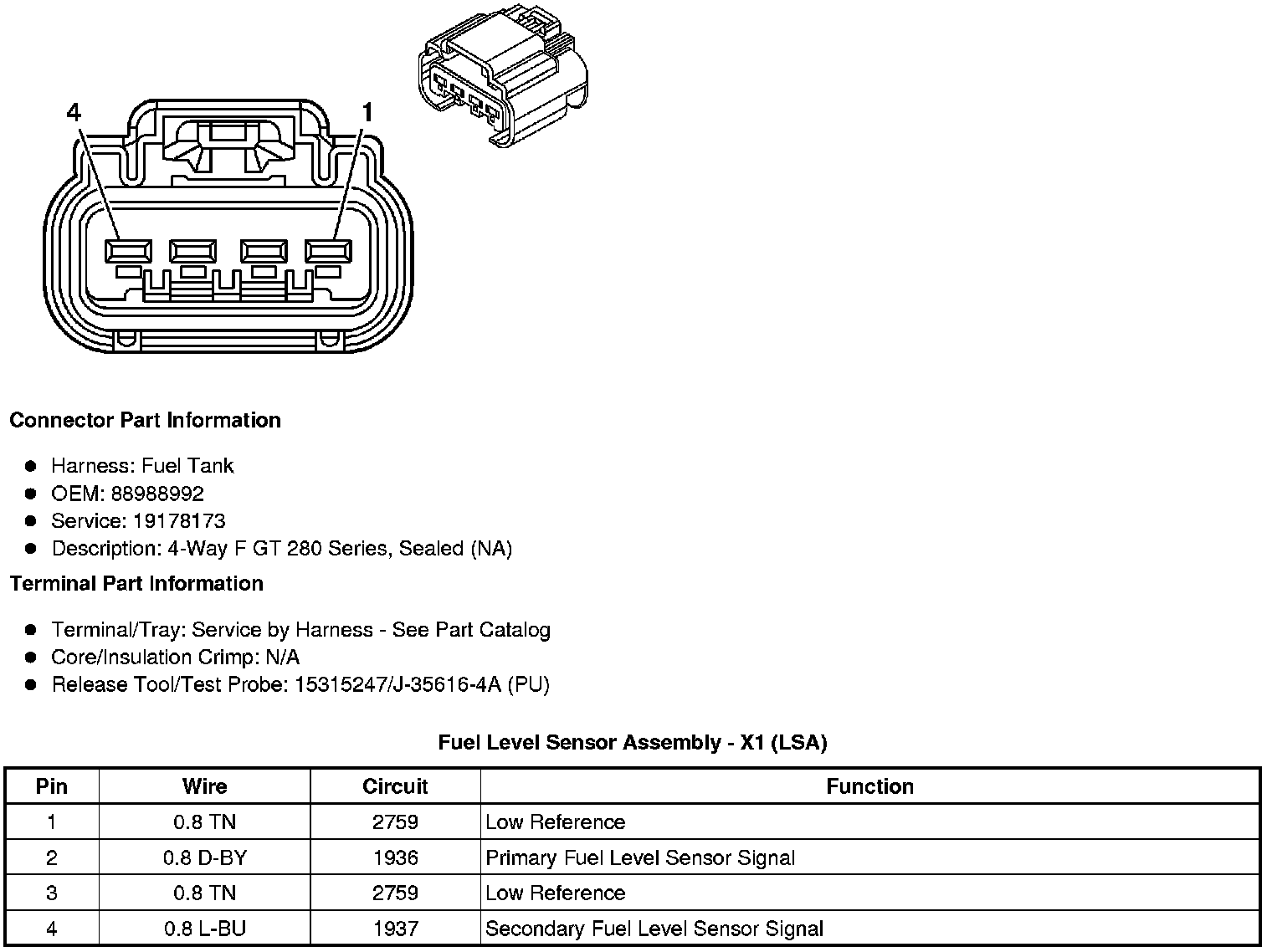

Fuel Level Sensor Assembly - X1 (LSA)





Fuel Level Sensor Assembly - X2





Fuel Level Sensor Assembly - X3 (LSA)





Fuel Level Sensor - Primary (LSA)
