Power Seat Control Module: Diagrams
Component Connector End Views

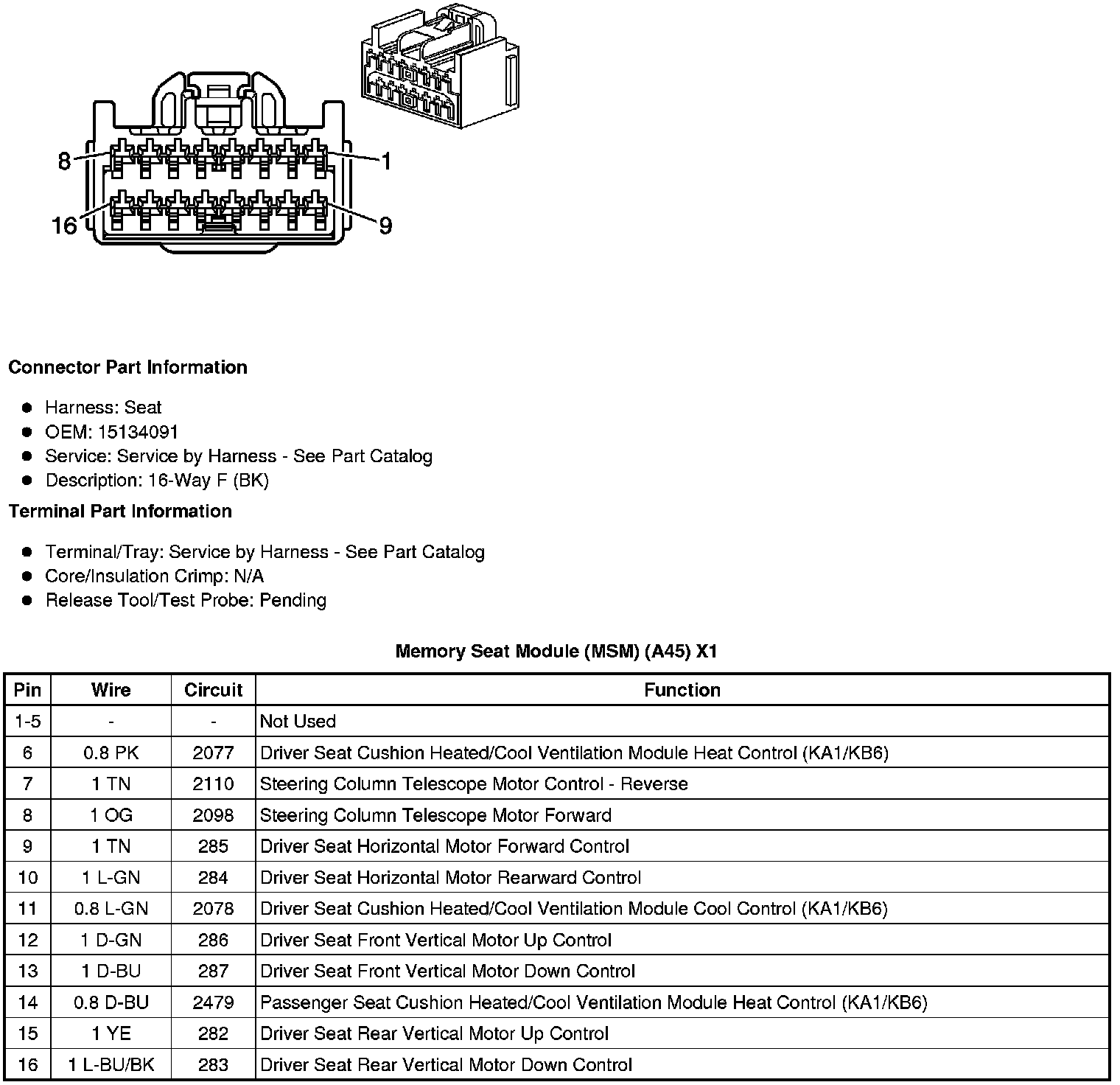

Memory Seat Module (MSM) (A45) X1

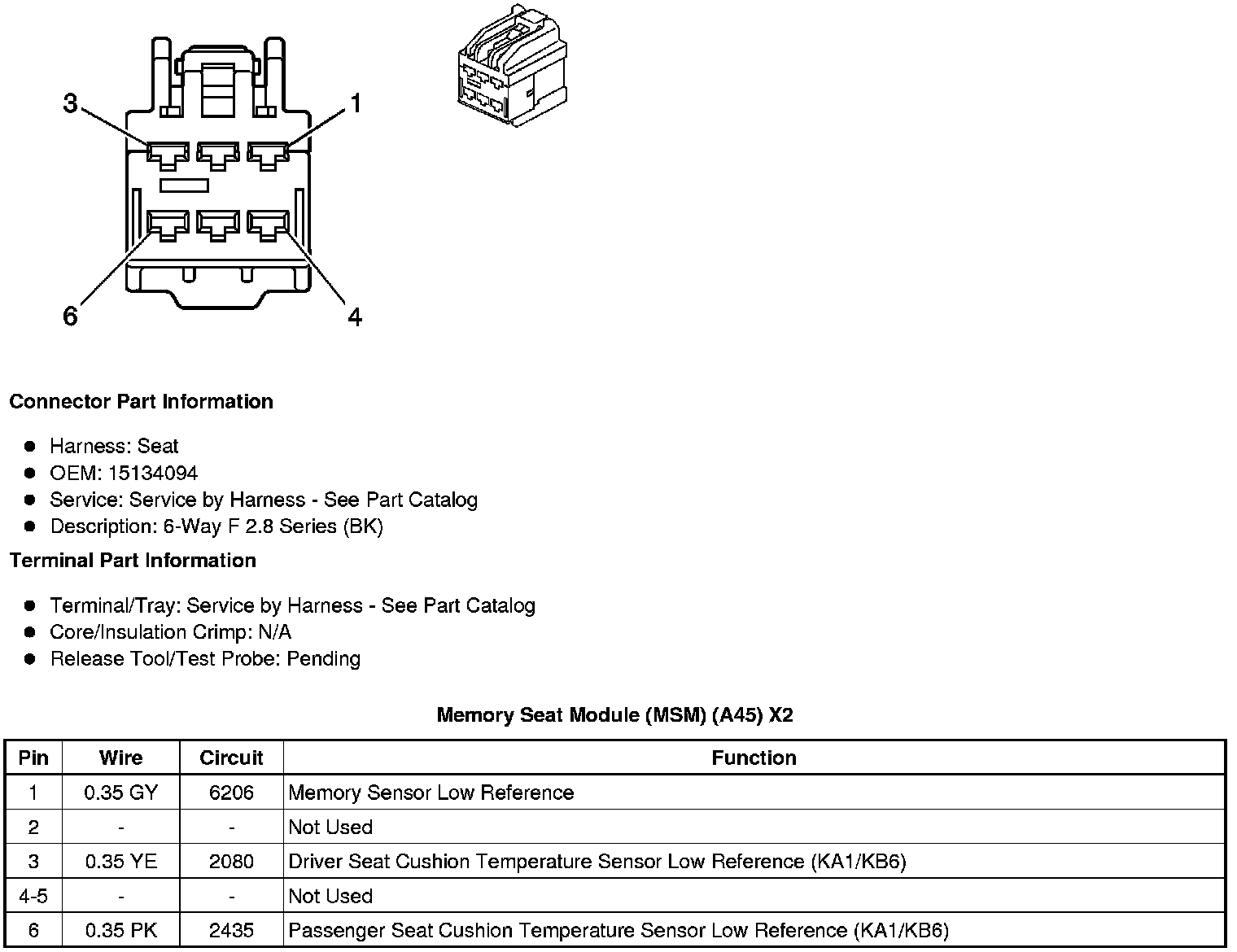

Memory Seat Module (MSM) (A45) X2

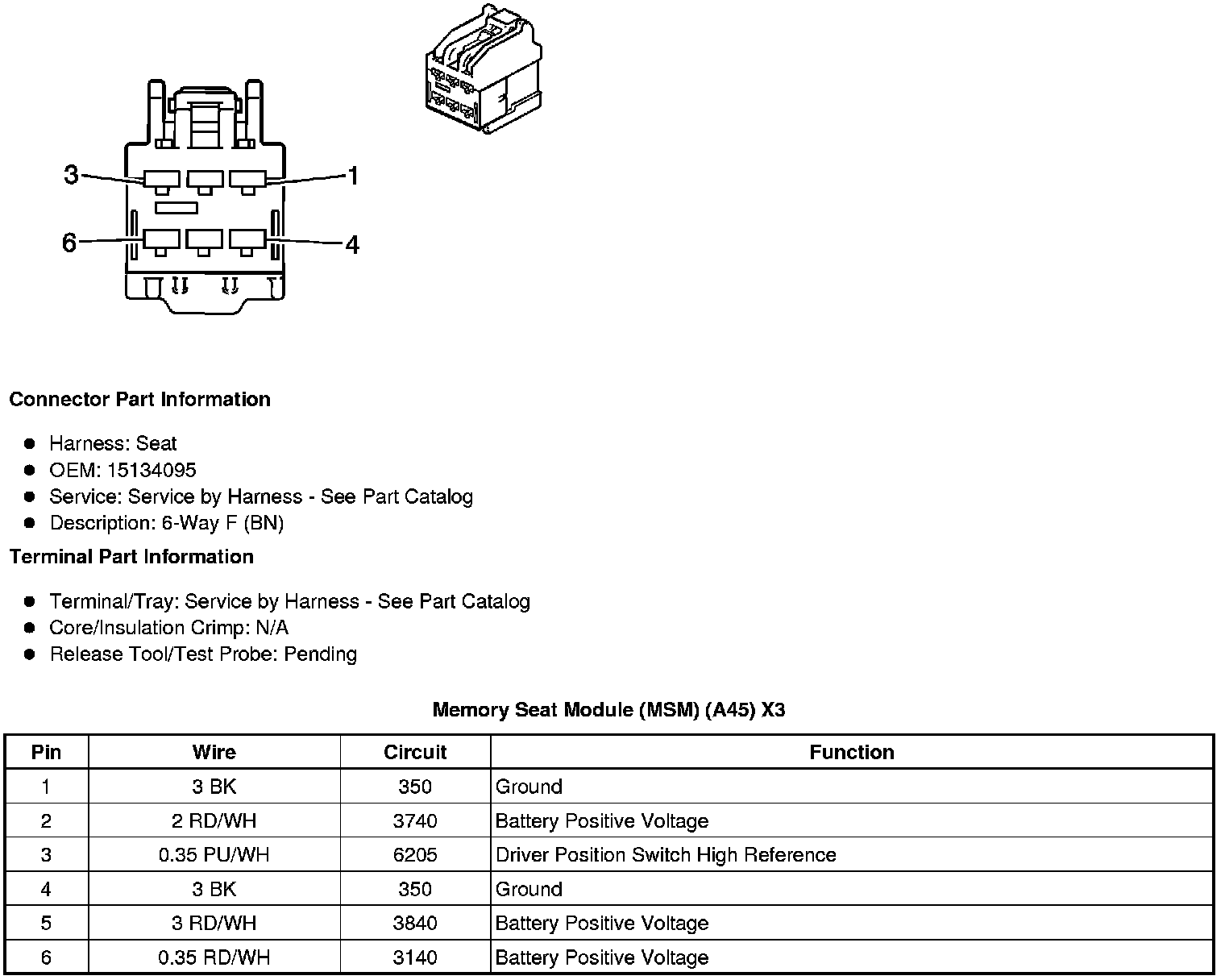

Memory Seat Module (MSM) (A45) X3

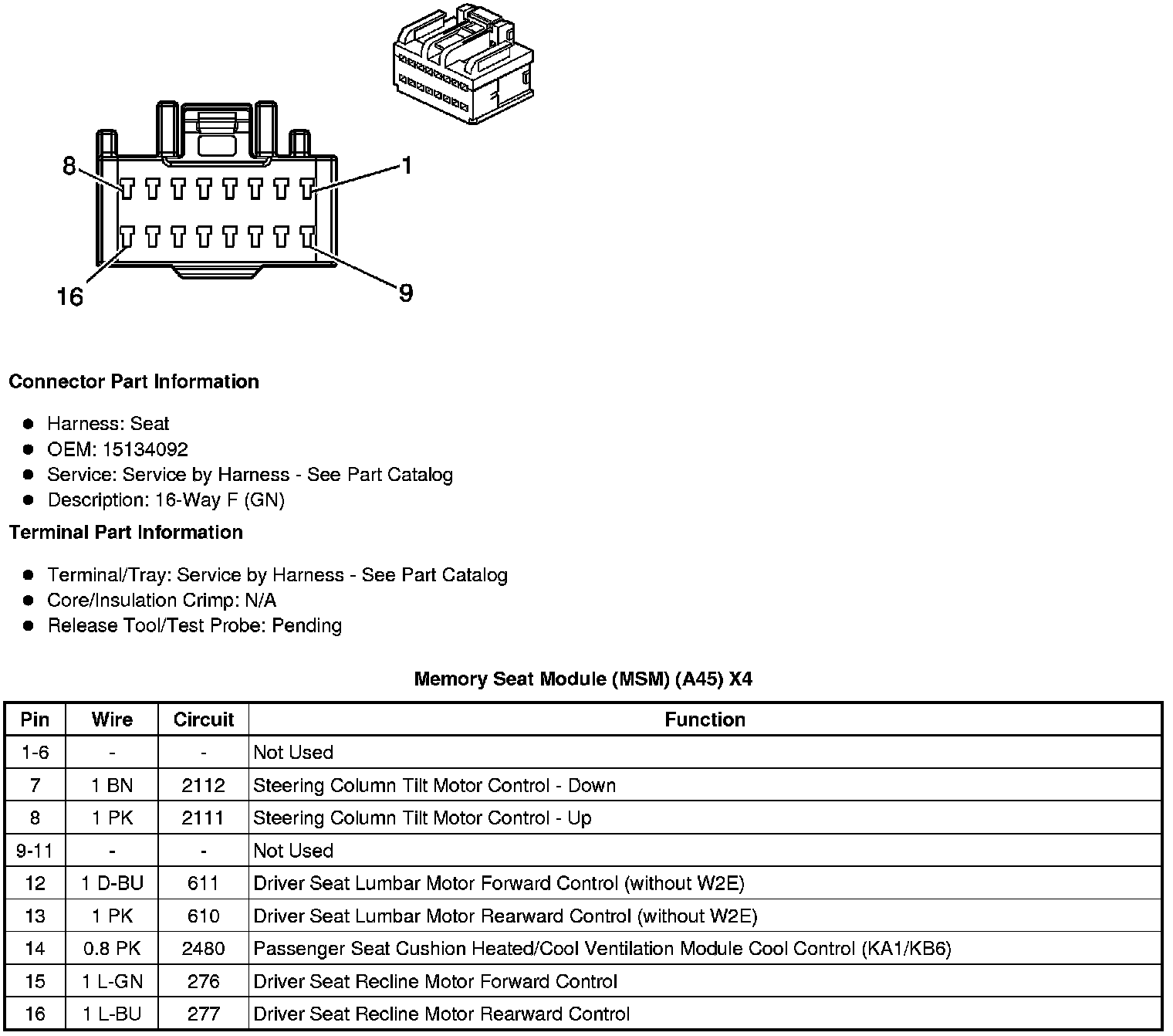

Memory Seat Module (MSM) (A45) X4

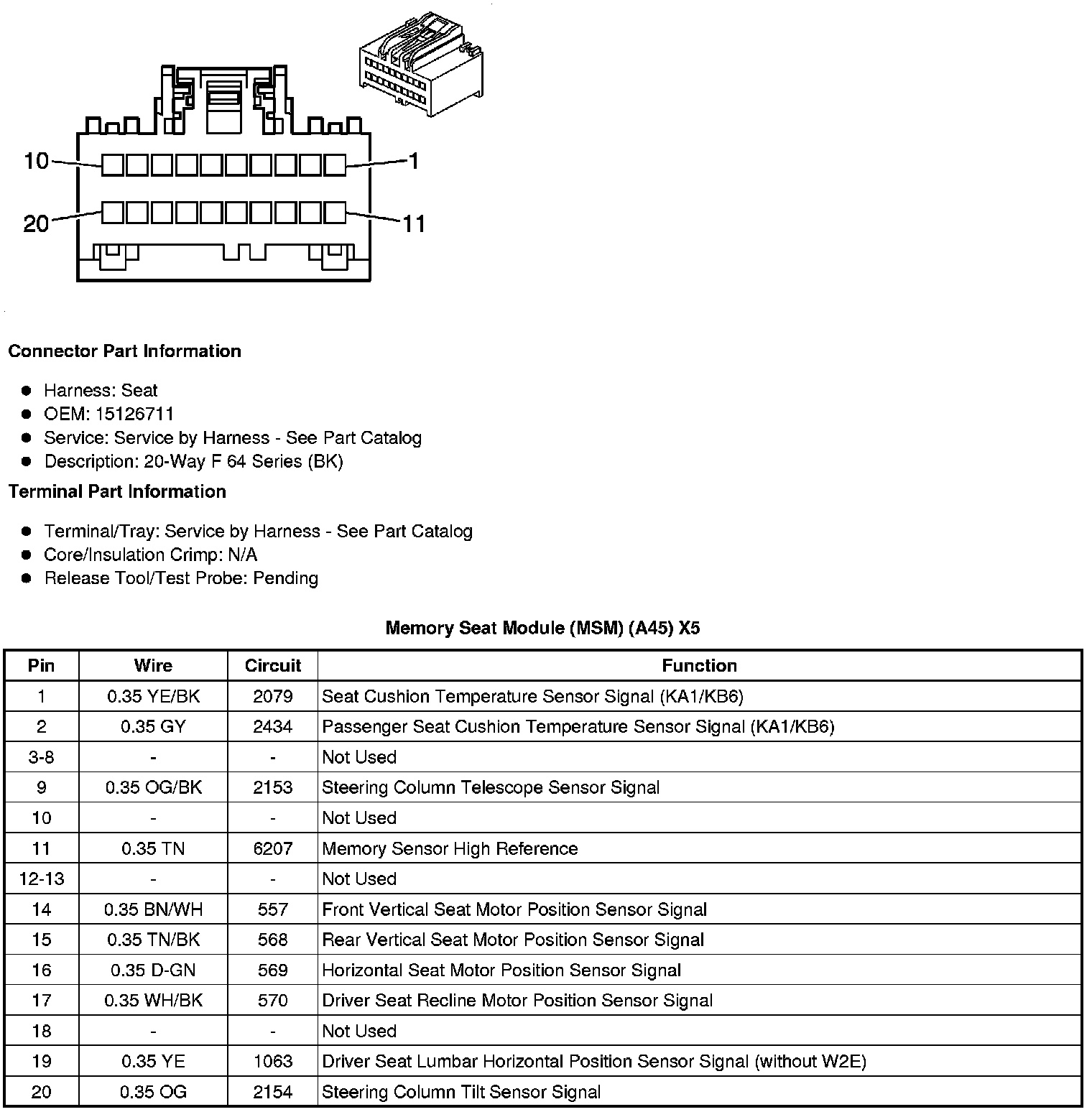

Memory Seat Module (MSM) (A45) X5

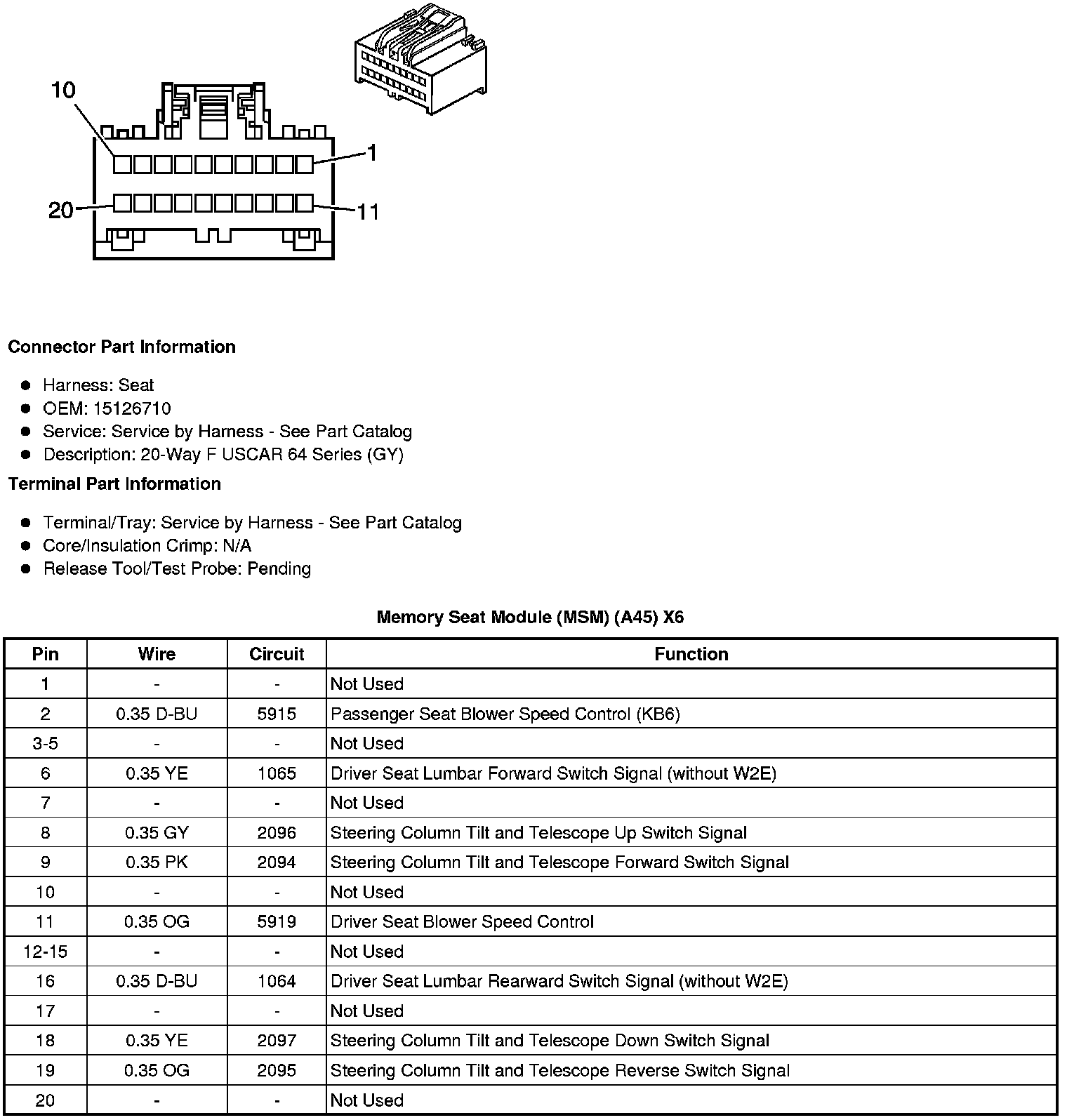

Memory Seat Module (MSM) (A45) X6

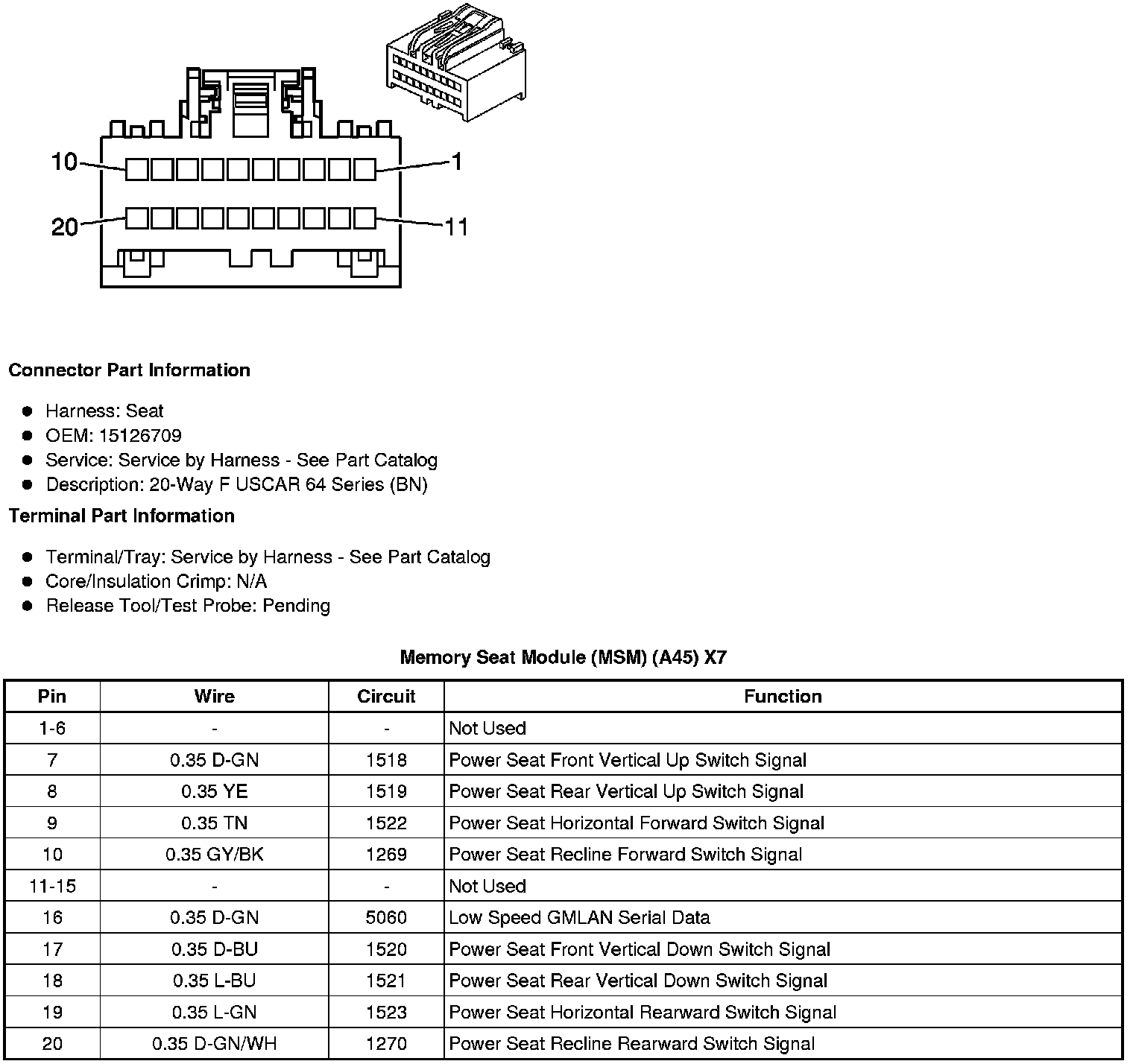

Memory Seat Module (MSM) (A45) X7
