Temperature Sensor/Switch, Transfer Case

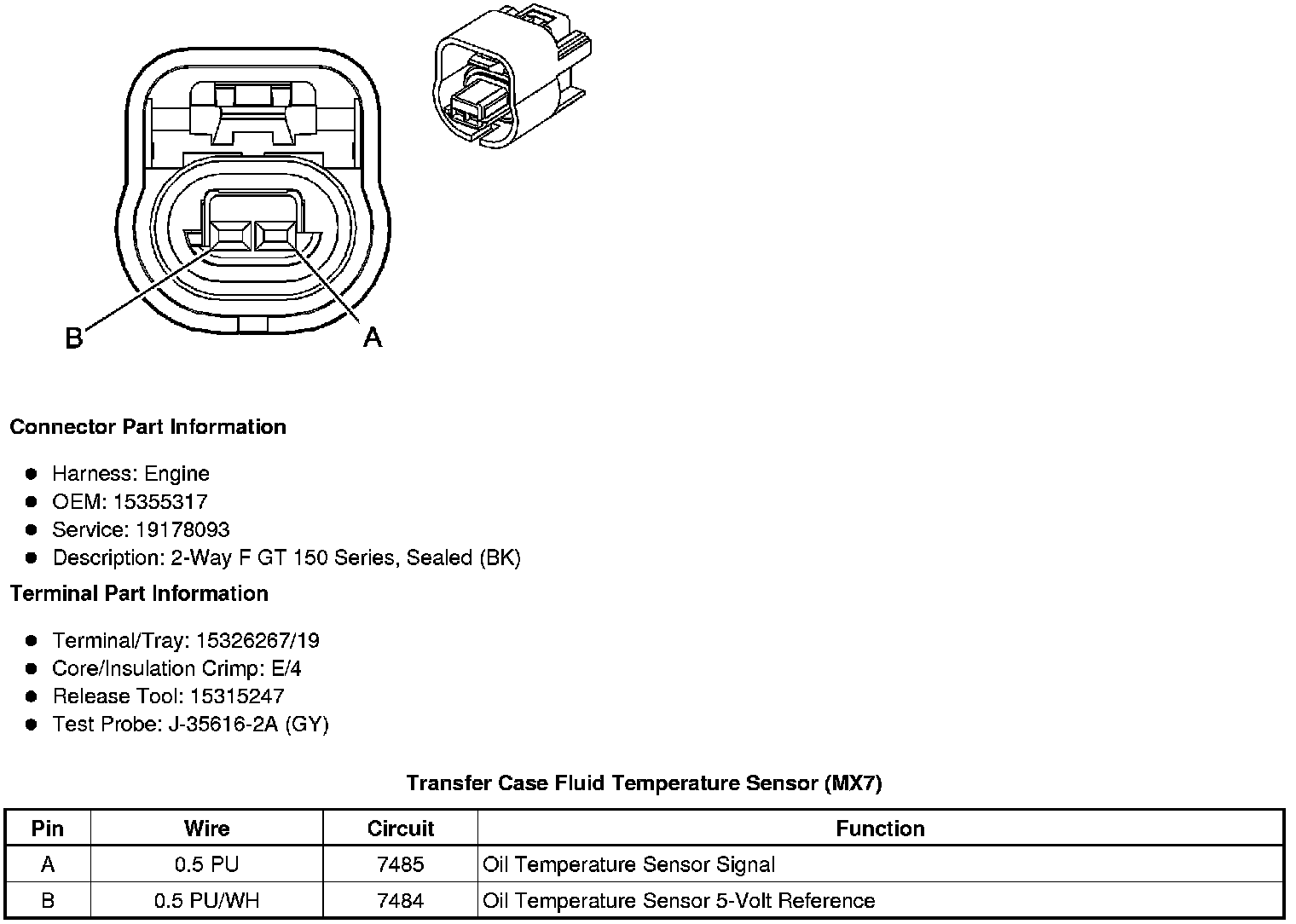

Component Connector End Views

Transfer Case Fluid Temperature Sensor (MX7)
