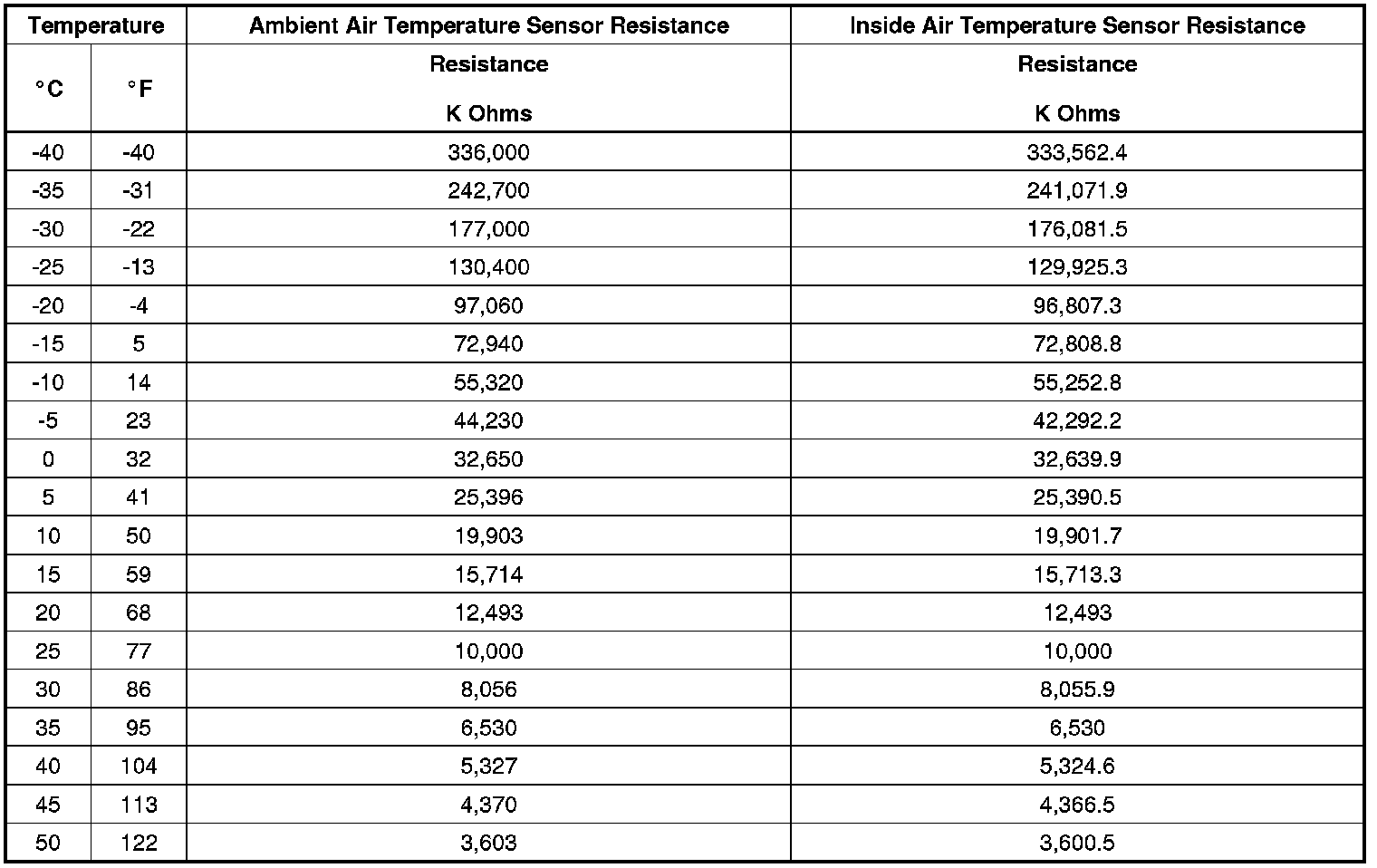

Sensor Resistance Table (Inside and Ambient Air Temp Sensor)
Sensor Resistance Table (Inside and Ambient Air Temp Sensor)
