Engine Controls Schematics

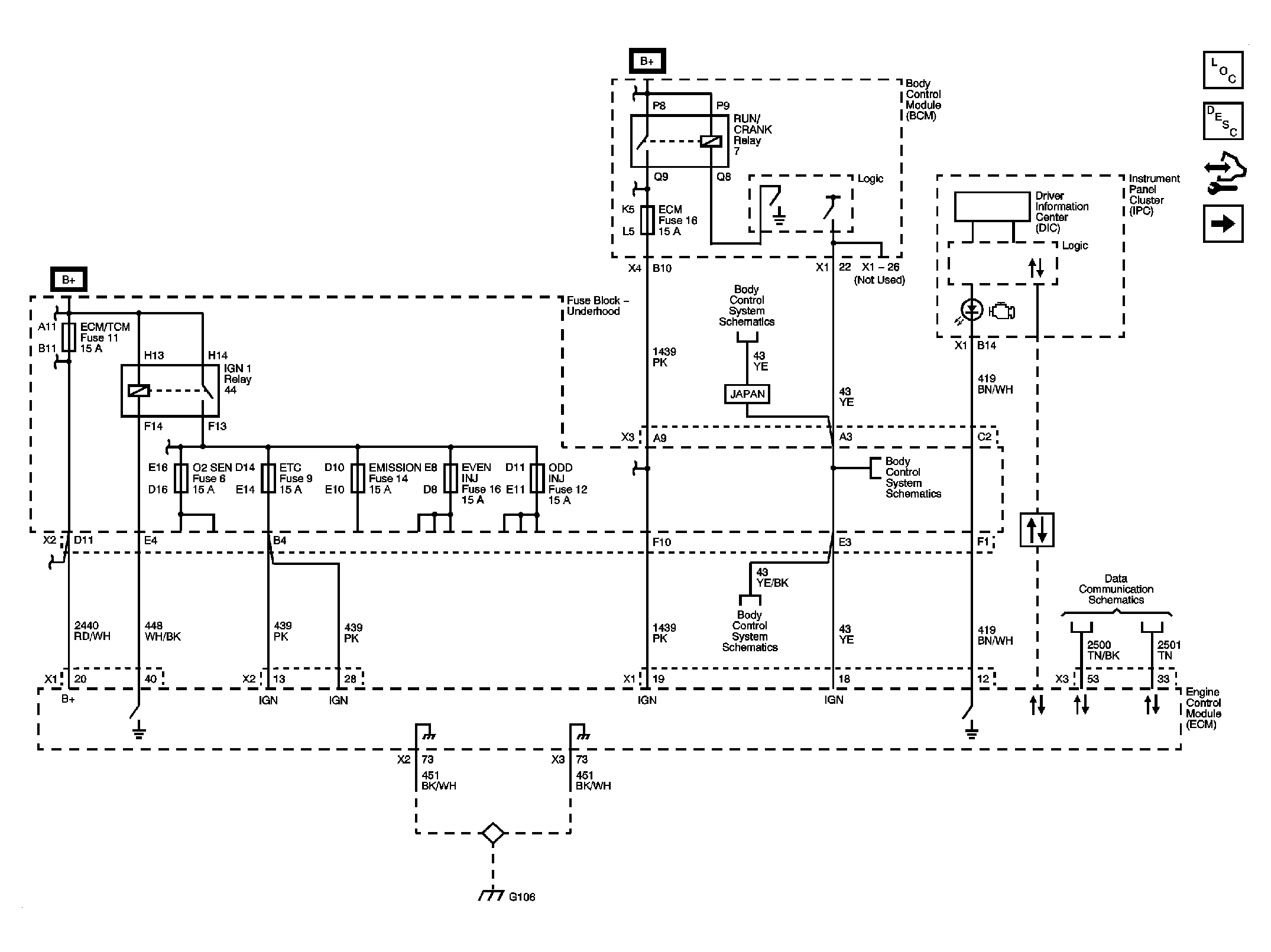

Fig 1: Module Power, Ground, Serial Data & MIL

Courtesy of GENERAL MOTORS CORP.

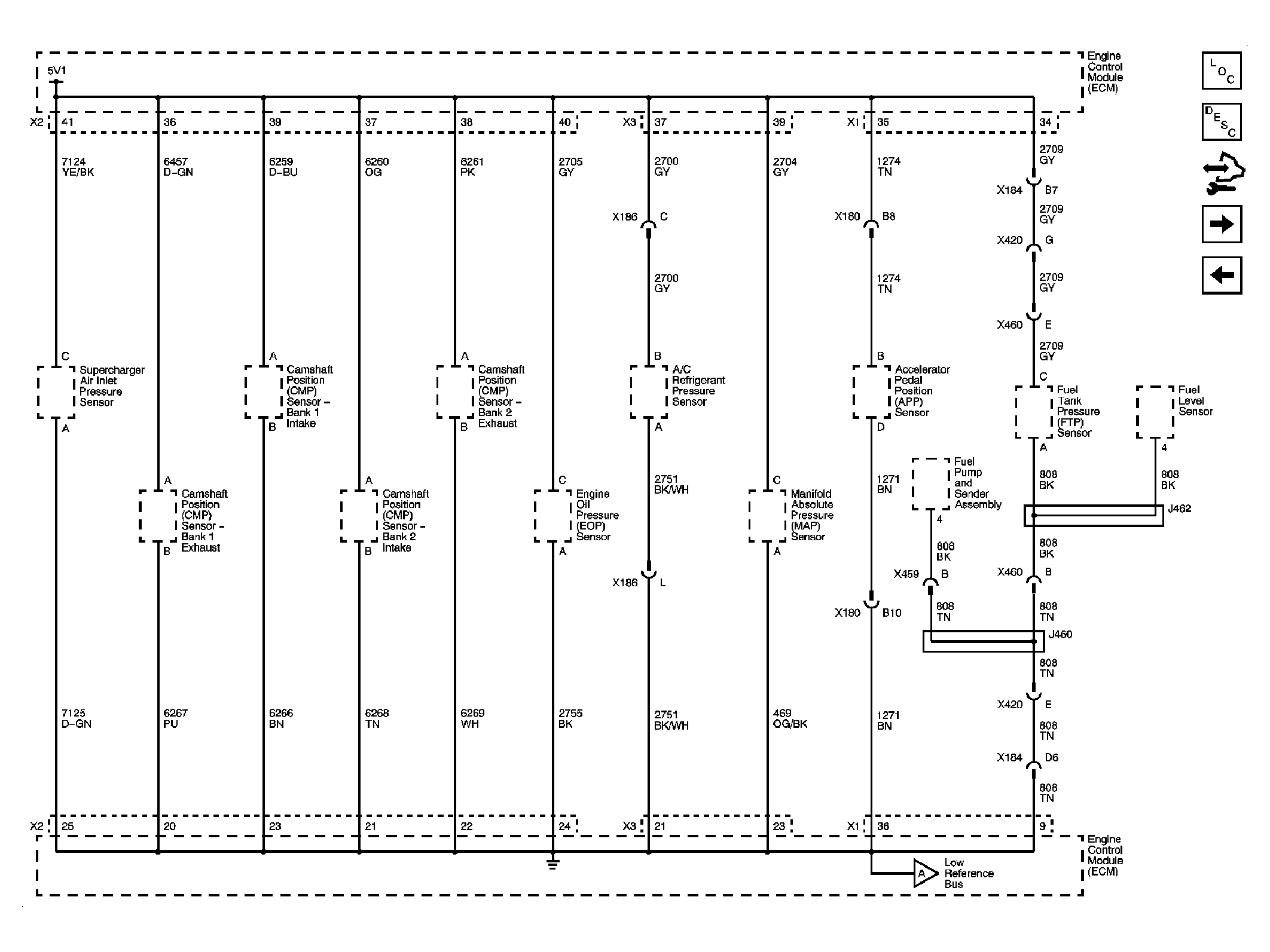

Fig 2: 5 Volt 1 & Low References

Courtesy of GENERAL MOTORS CORP.

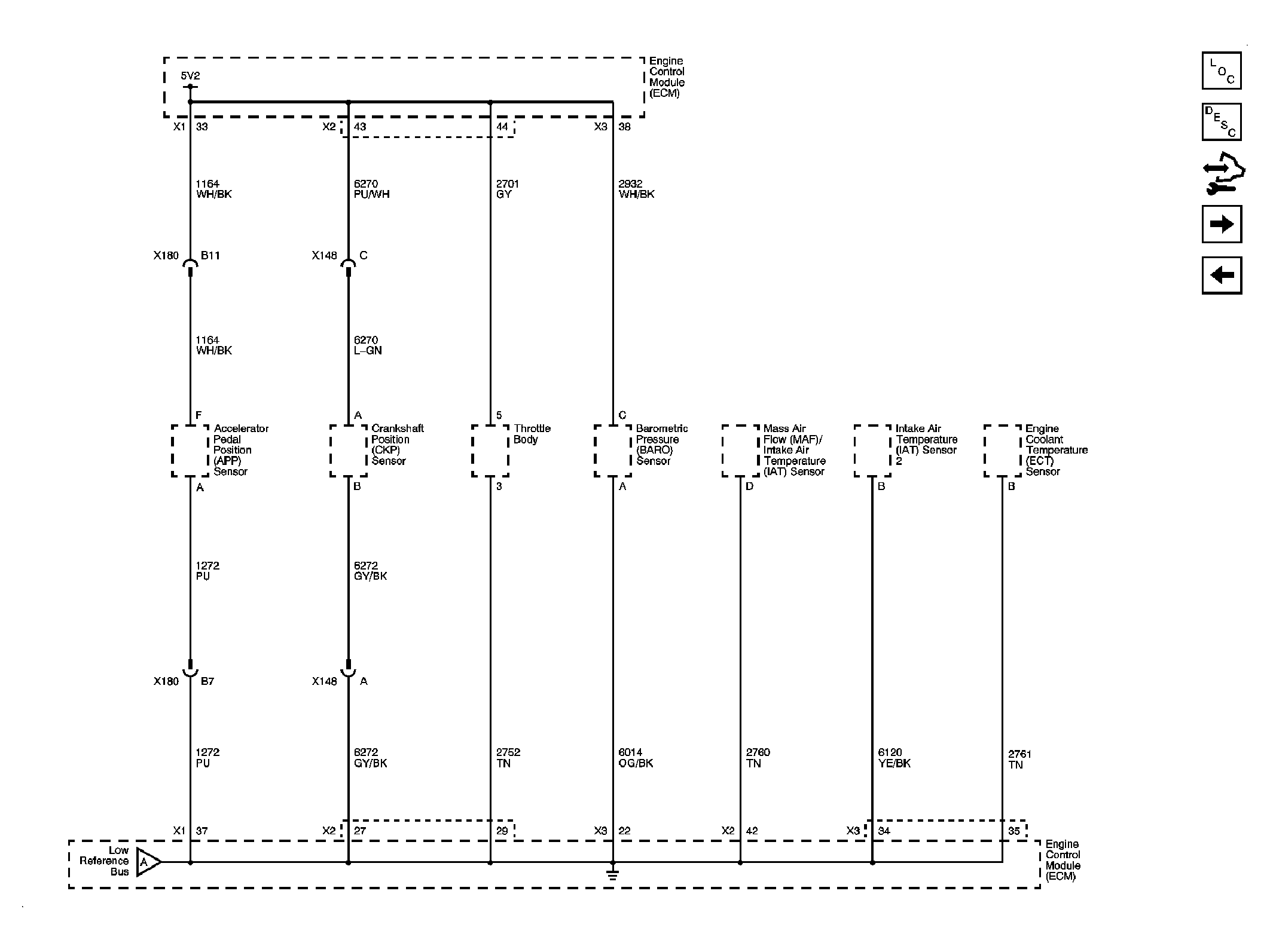

Fig 3: 5 Volt 2 & Low References

Courtesy of GENERAL MOTORS CORP.

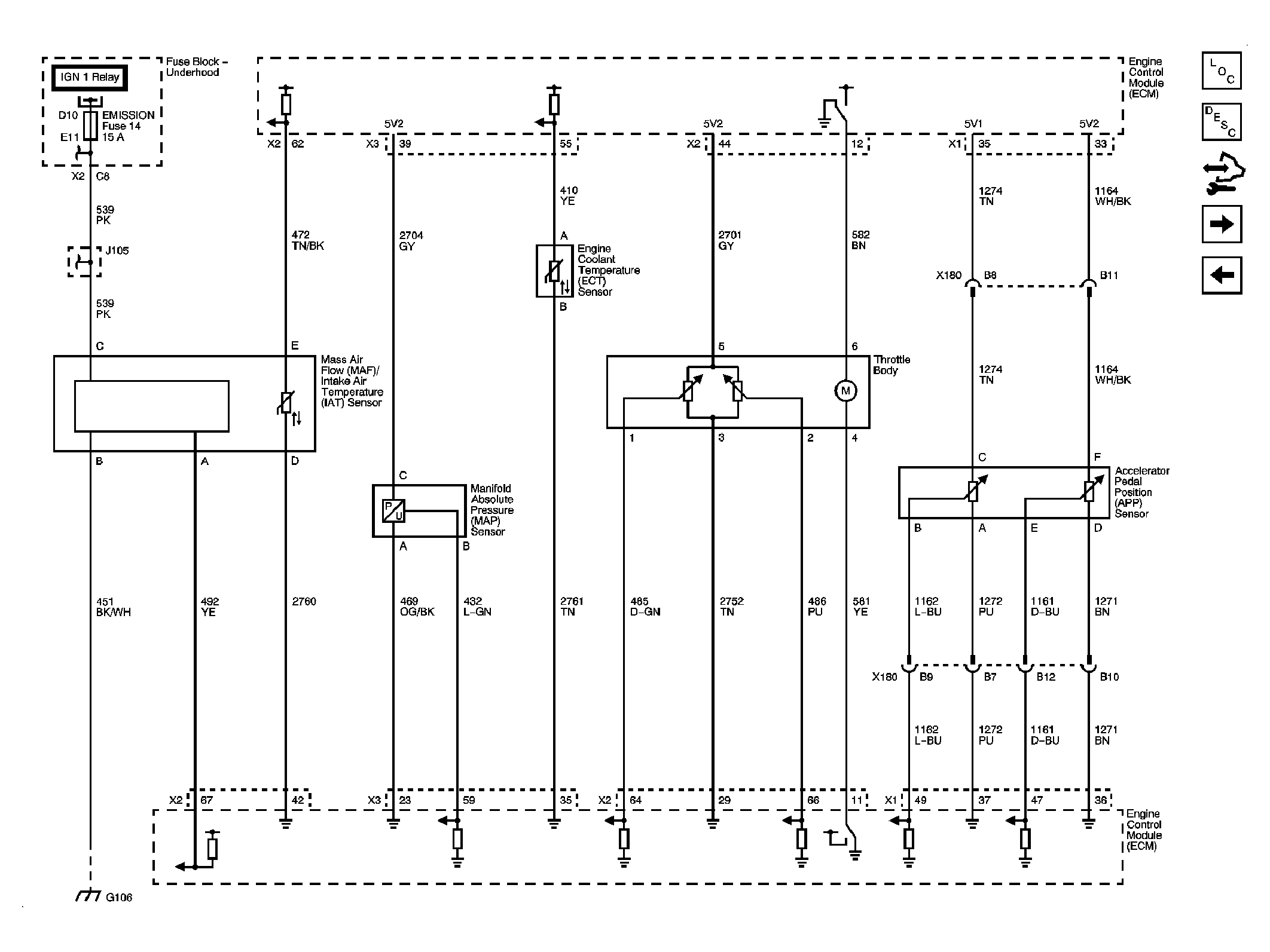

Fig 4: Engine Data Sensors - Pressure, Temperature & Throttle Controls

Courtesy of GENERAL MOTORS CORP.

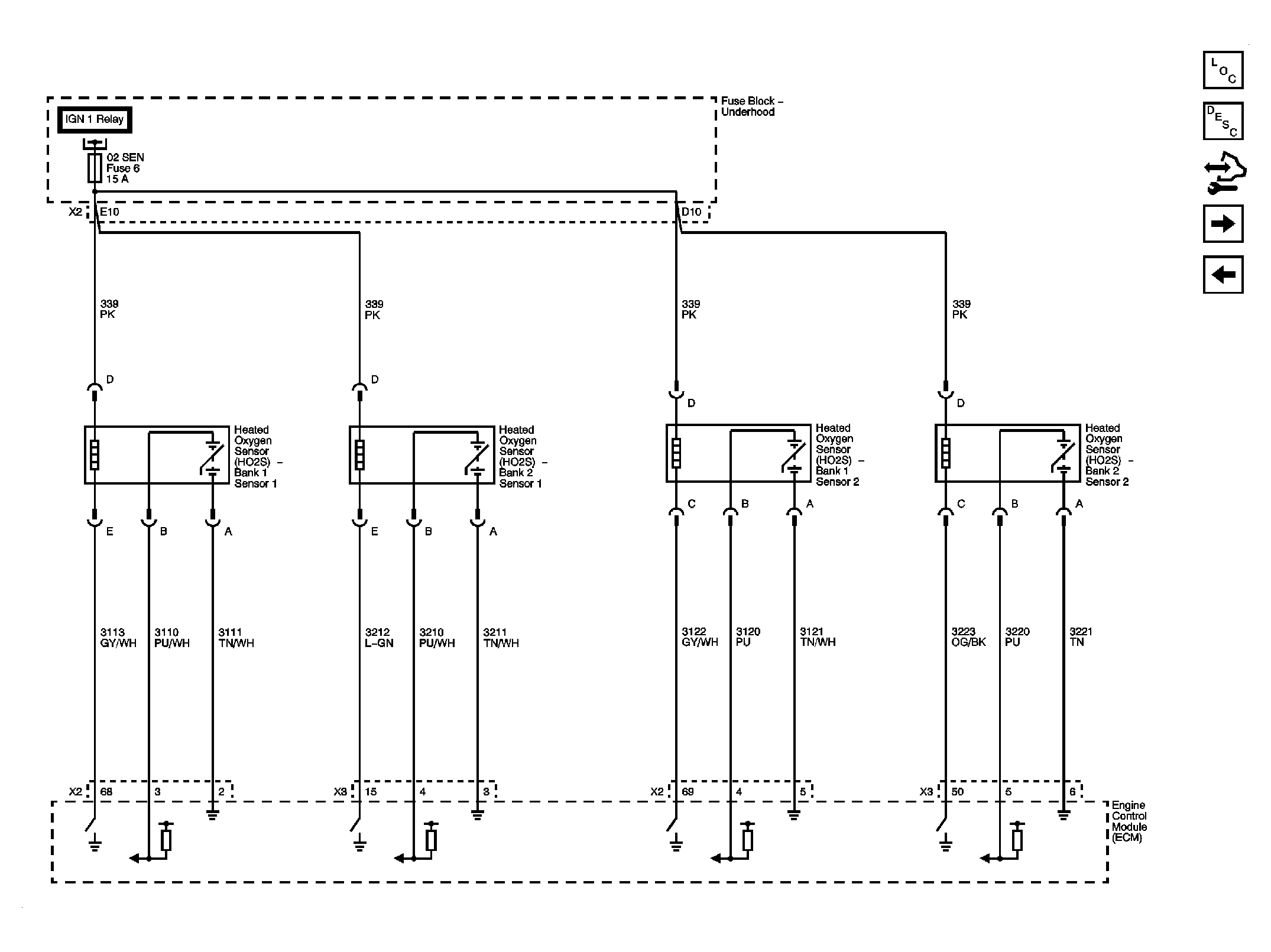

Fig 5: Engine Data Sensors - HO2S

Courtesy of GENERAL MOTORS CORP.

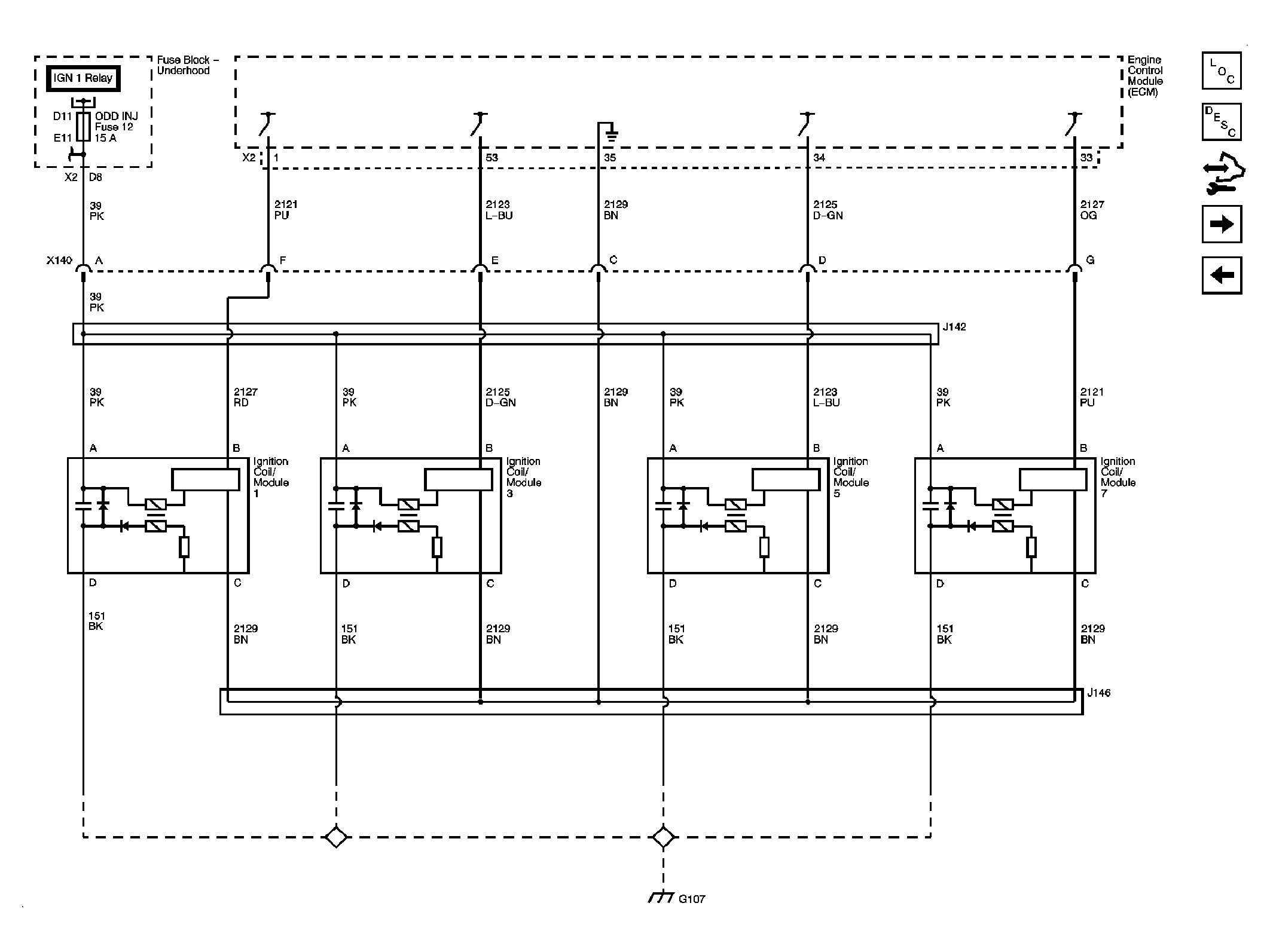

Fig 6: Ignition Controls - Ignition System Odd

Courtesy of GENERAL MOTORS CORP.

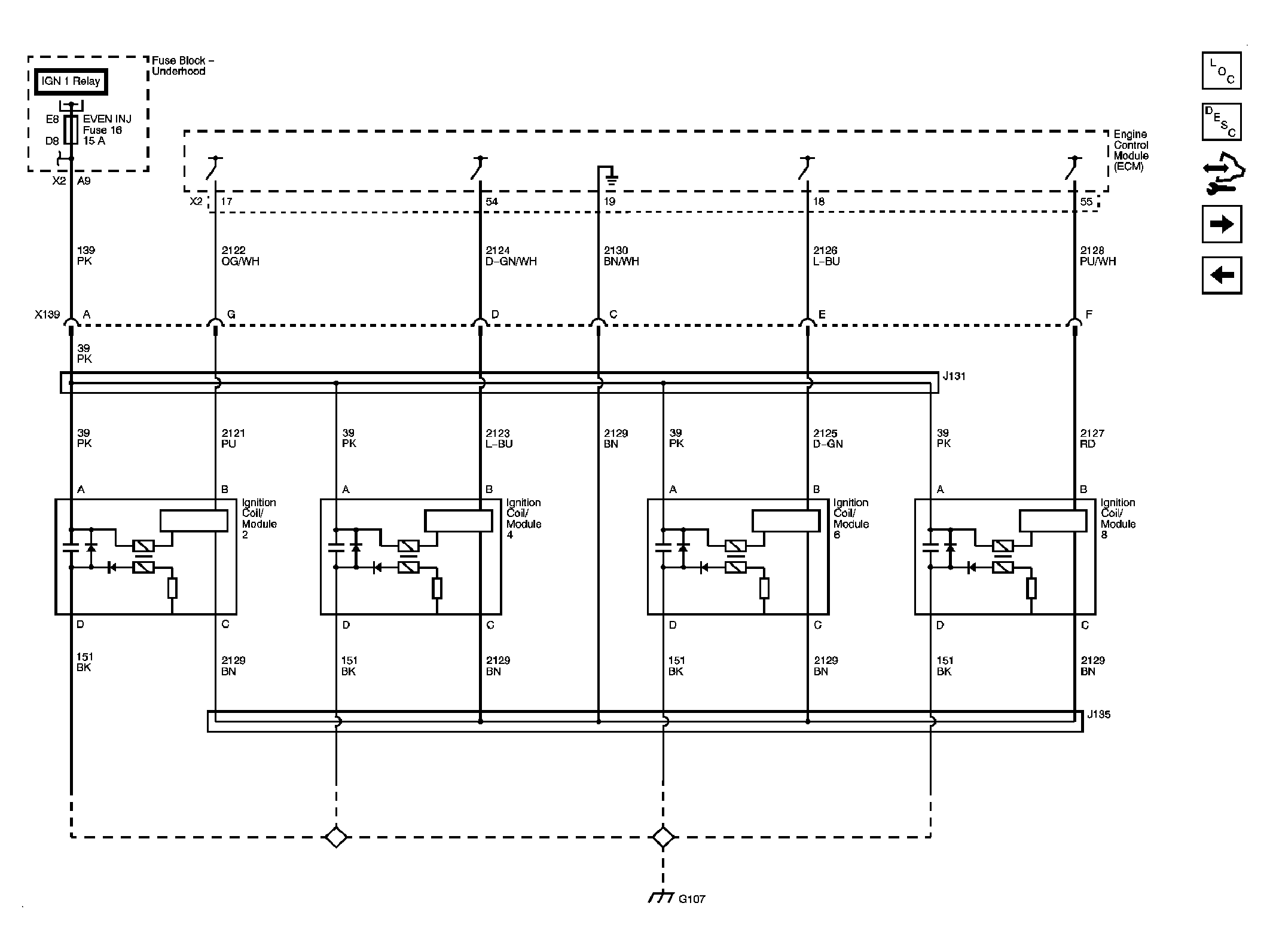

Fig 7: Ignition Controls - Ignition System Even

Courtesy of GENERAL MOTORS CORP.

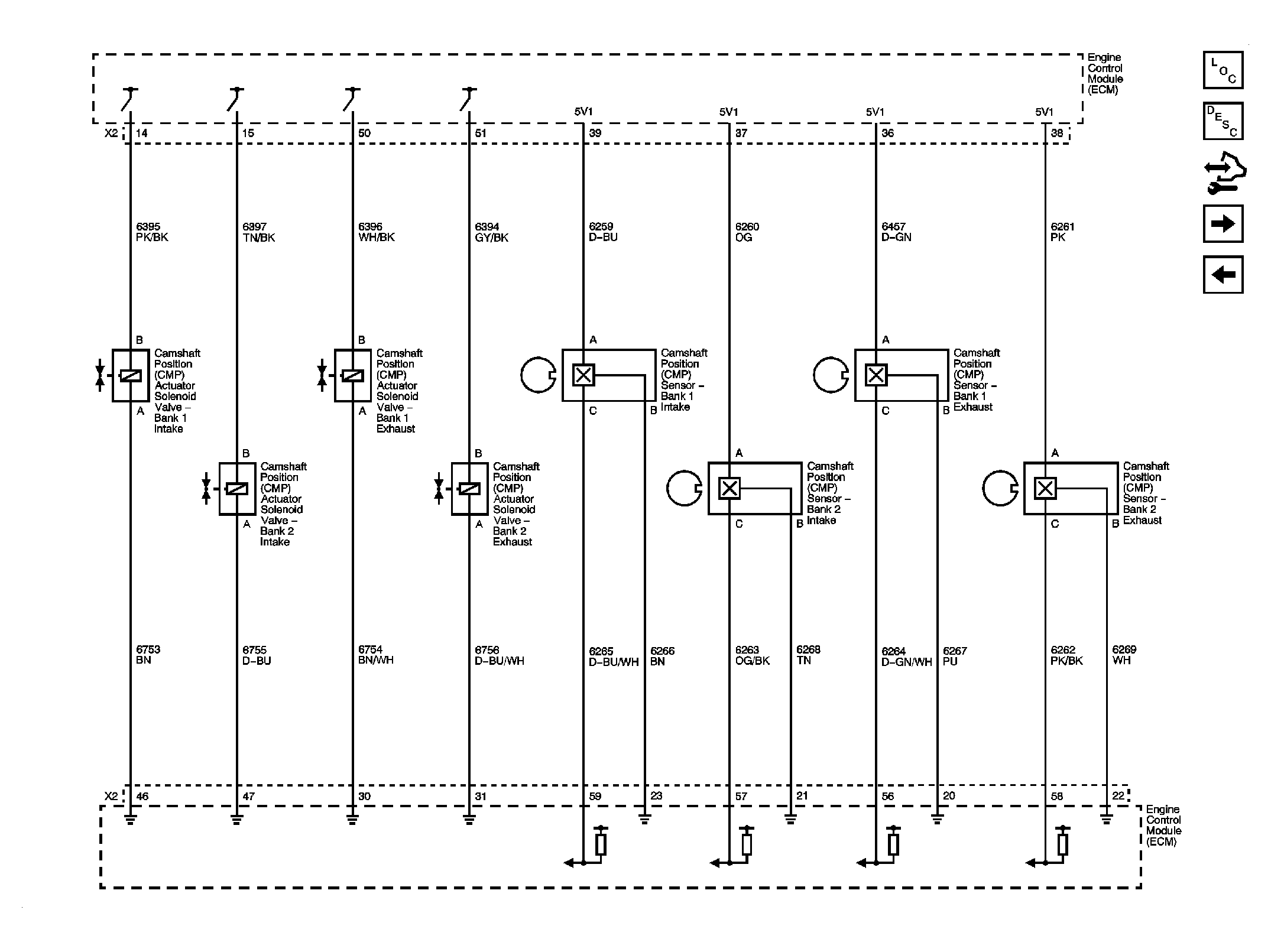

Fig 8: Ignition Controls - Camshaft Sensors/Actuators

Courtesy of GENERAL MOTORS CORP.

Fig 9: Ignition Controls - Crankshaft/Knock Sensors

Courtesy of GENERAL MOTORS CORP.

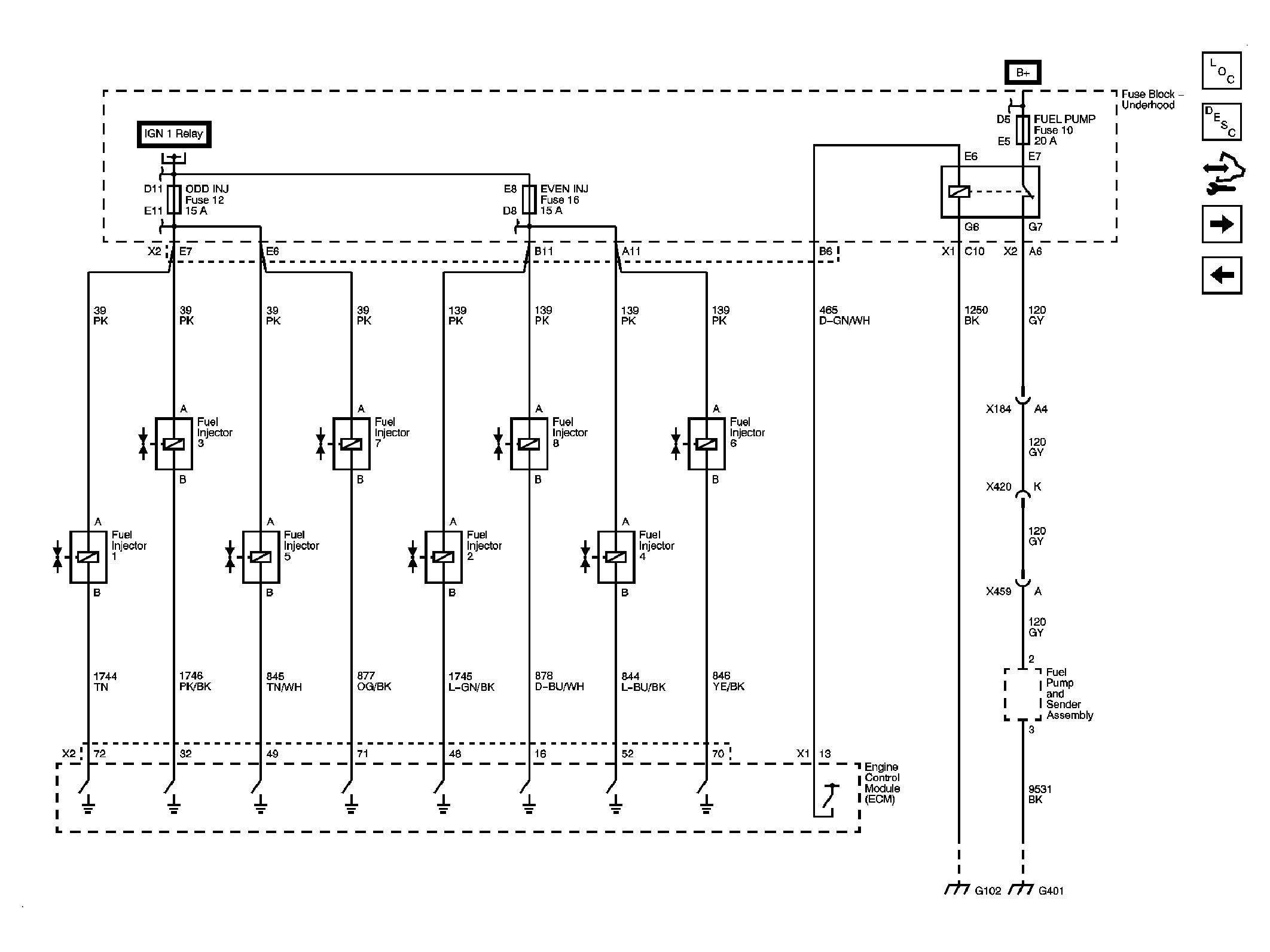

Fig 10: Fuel Controls - Fuel Injectors & Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

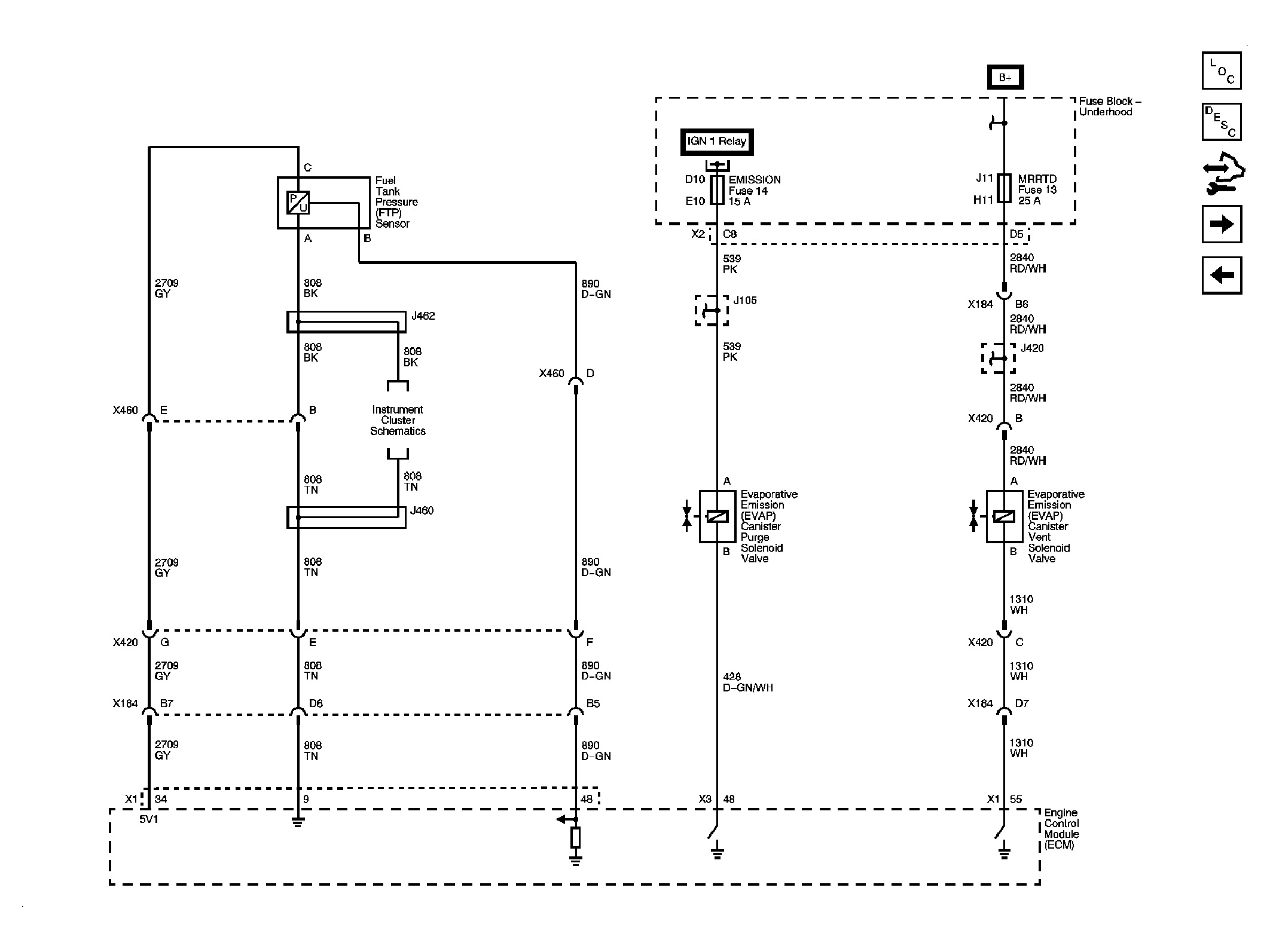

Fig 11: Fuel Controls - EVAP Controls & Manifold Tuning

Courtesy of GENERAL MOTORS CORP.

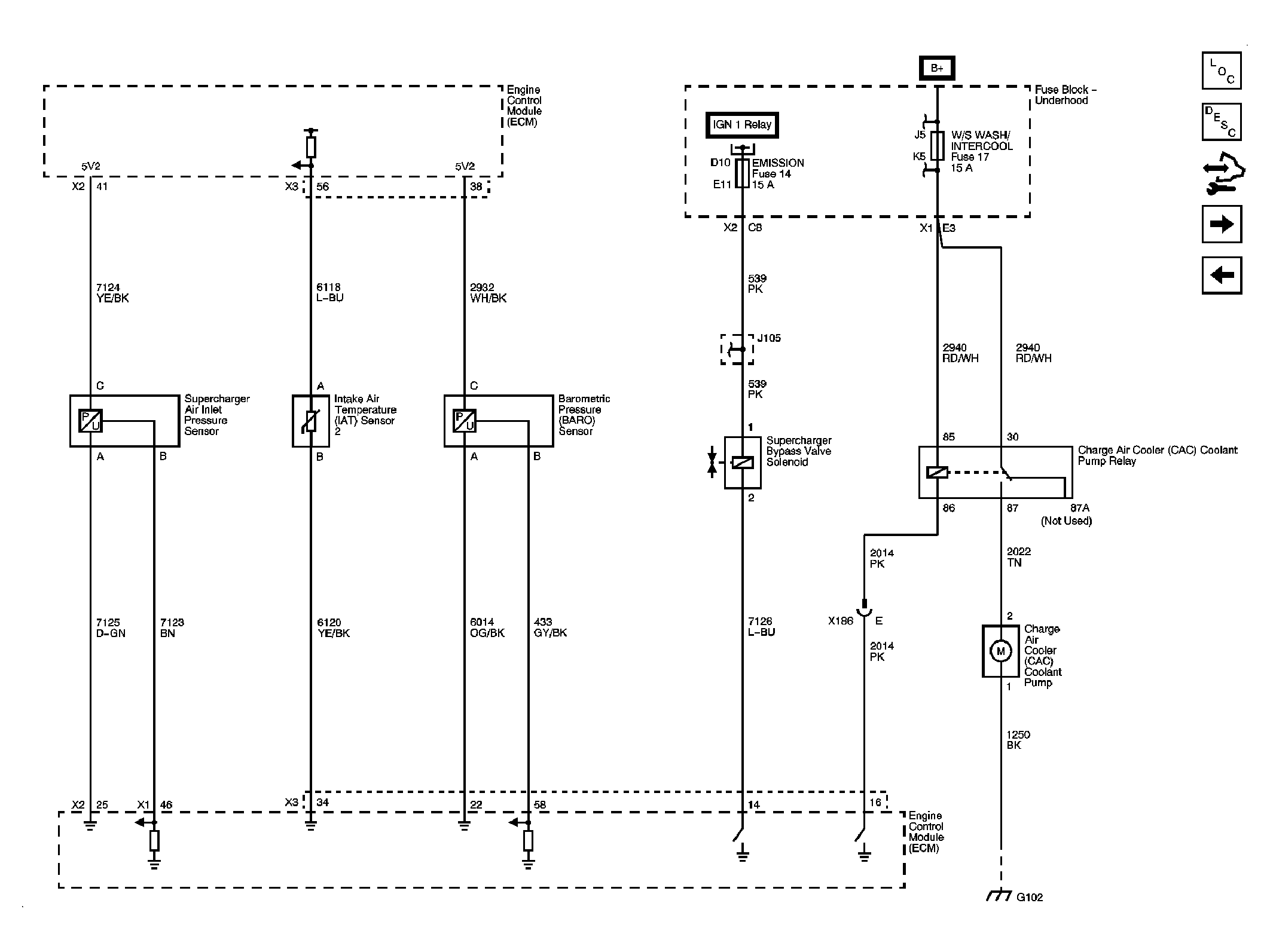

Fig 12: Supercharger Sensors, Bypass Valve & Coolant Pump

Courtesy of GENERAL MOTORS CORP.

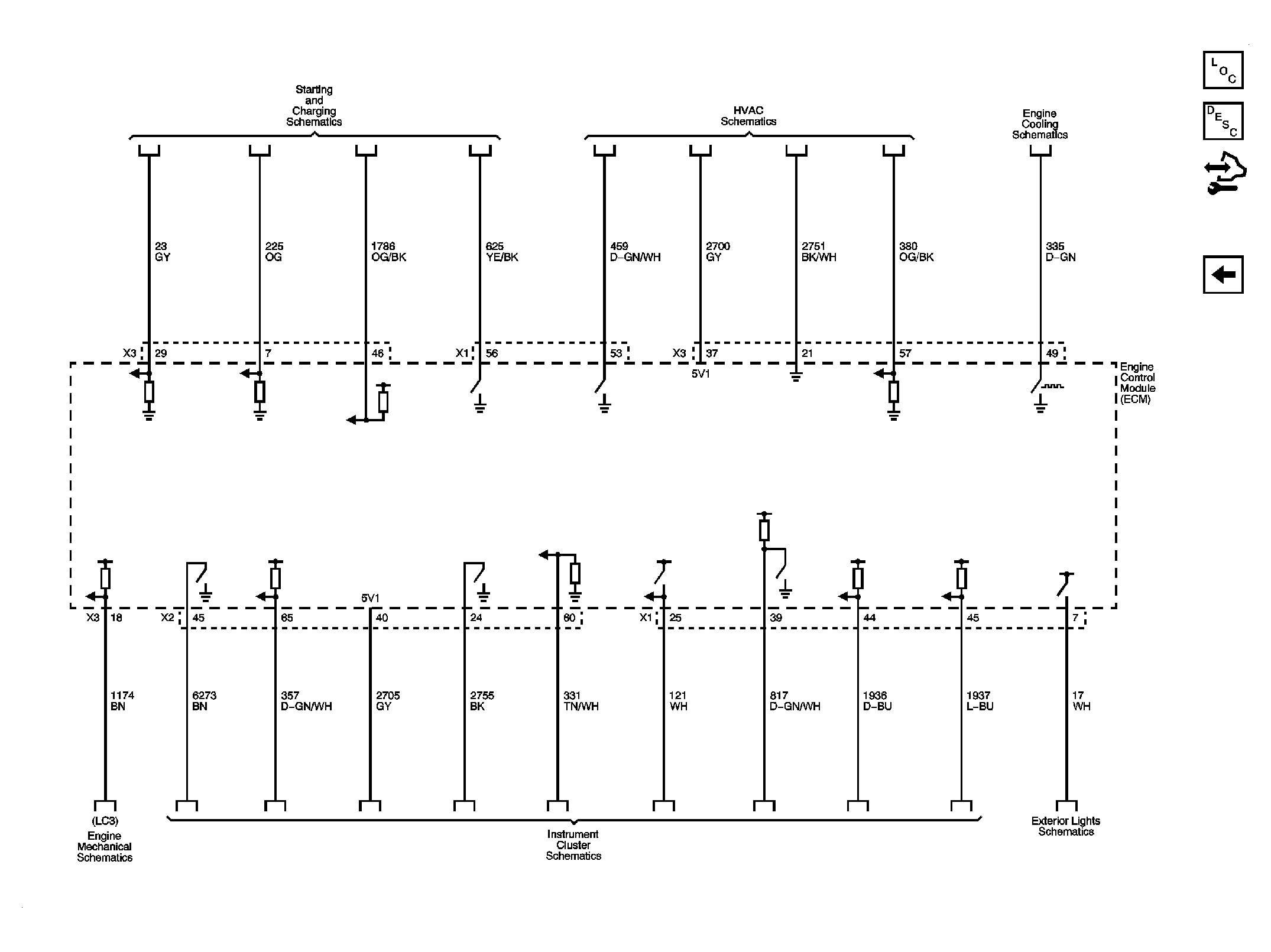

Fig 13: Monitored/Controlled Subsystem References

Courtesy of GENERAL MOTORS CORP.
