Installation Procedure

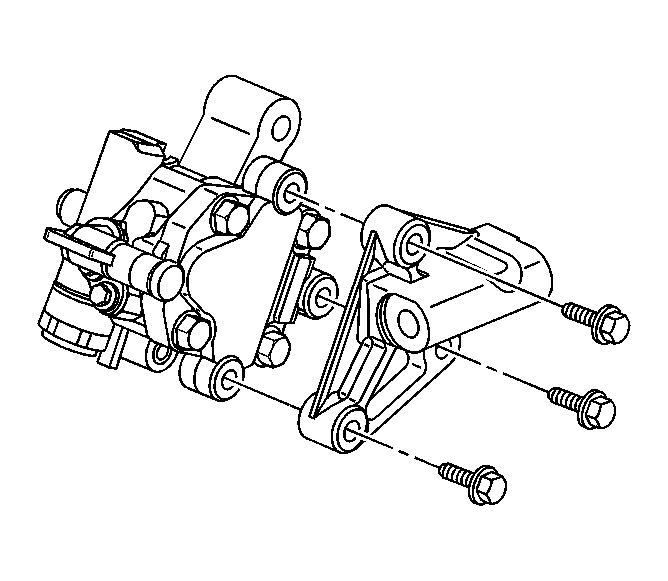

    Fig 1: View Of Power Steering Pump Bracket - LH2
    GM888278Courtesy of GENERAL MOTORS CORP.
  1. Align the power steering pump to the power steering pump bracket.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the power steering pump bracket bolts and tighten to 25 N.m (18 lb ft).
  3. Install the power steering pump. Refer to Power Steering Pump Replacement (LY7)  or Power Steering Pump Replacement (LH2) .
