Antenna Control Module: Service and Repair

Television Antenna Module Replacement

Removal Procedure

1. Remove the left side sail panel. Refer to Sail Panel Replacement (Service and Repair).




2. Disconnect the electrical connectors.

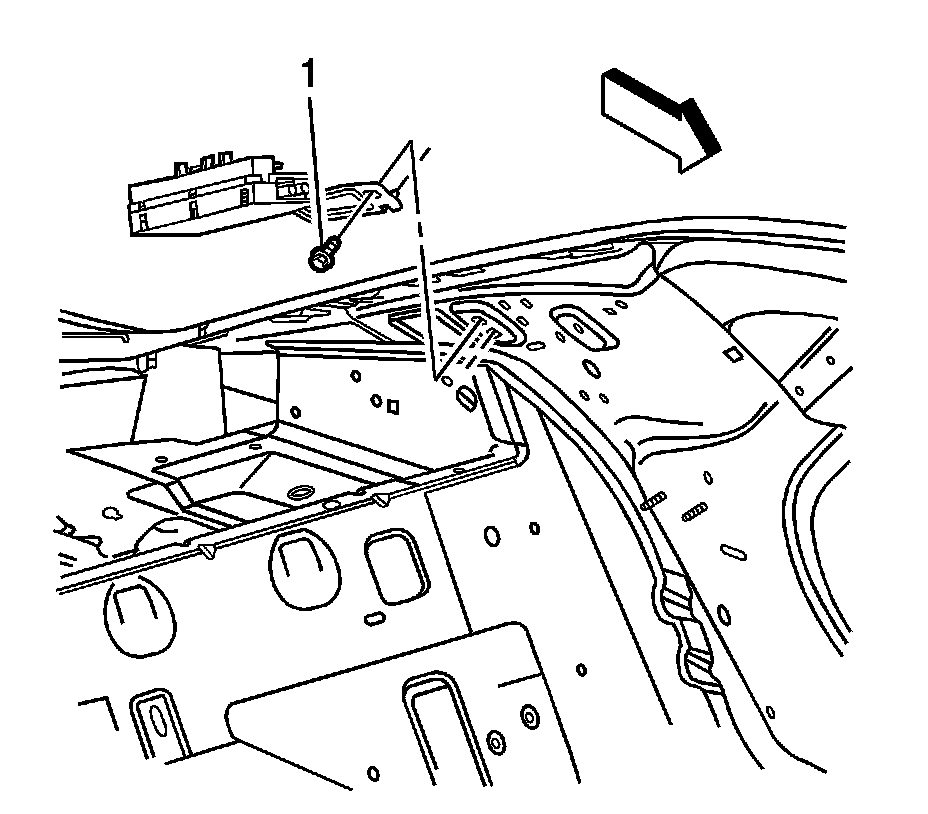

3. Remove the bolt (1) securing the antenna module to the vehicle.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the bolt (1) securing the antenna module to the vehicle and tighten to 9 Nm (80 lb in).
2. Install the left side sail panel. Refer to Sail Panel Replacement (Service and Repair).
