Ignition Coil: Diagrams




Component Connector End Views

Ignition Coil 1 (LC3 or LH2)






Ignition Coil 2 (LC3 or LH2)






Ignition Coil 3 (LC3 or LH2)






Ignition Coil 4 (LC3 or LH2)






Ignition Coil 5 (LC3 or LH2)

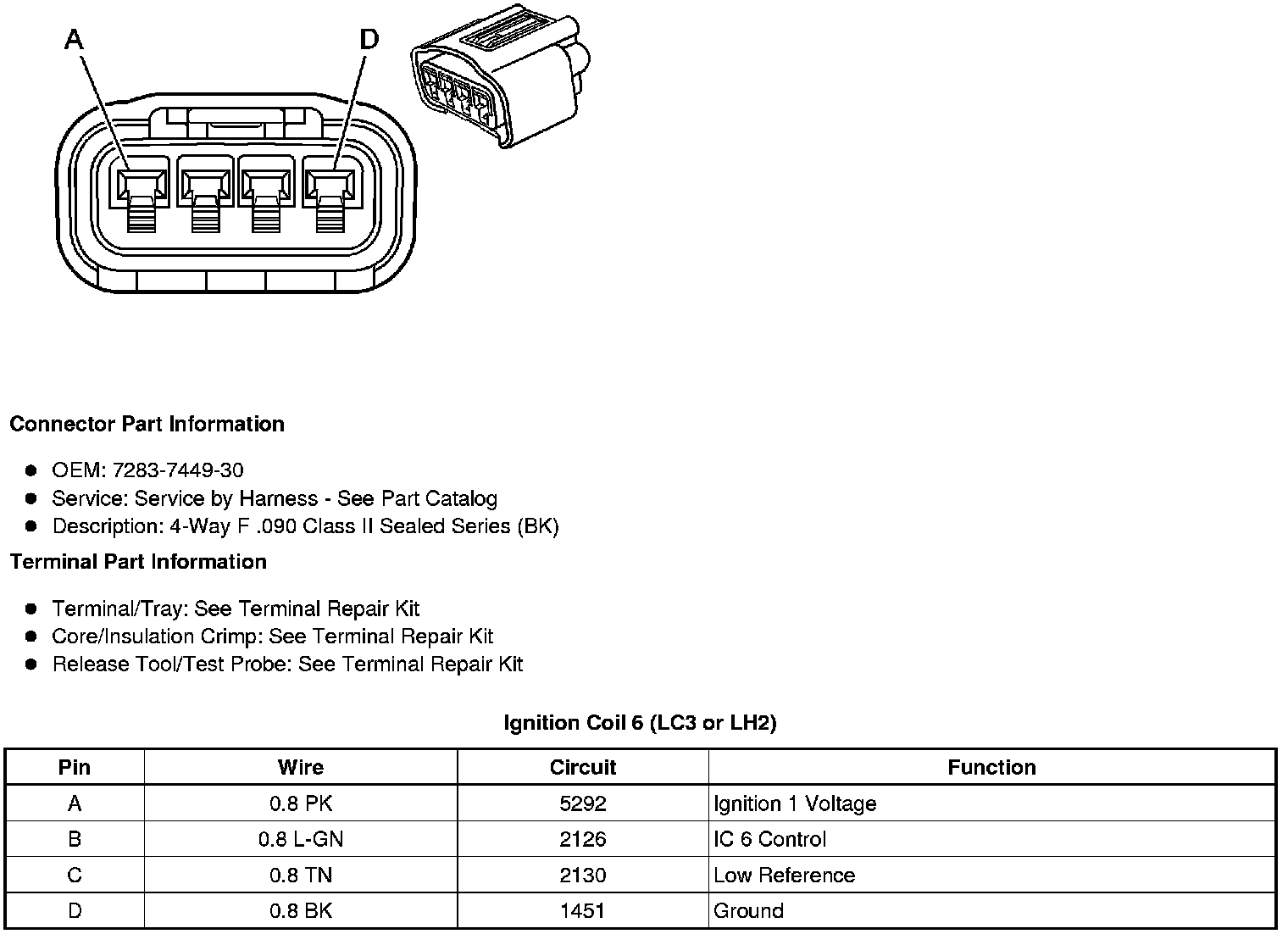

Ignition Coil 6 (LC3 or LH2)

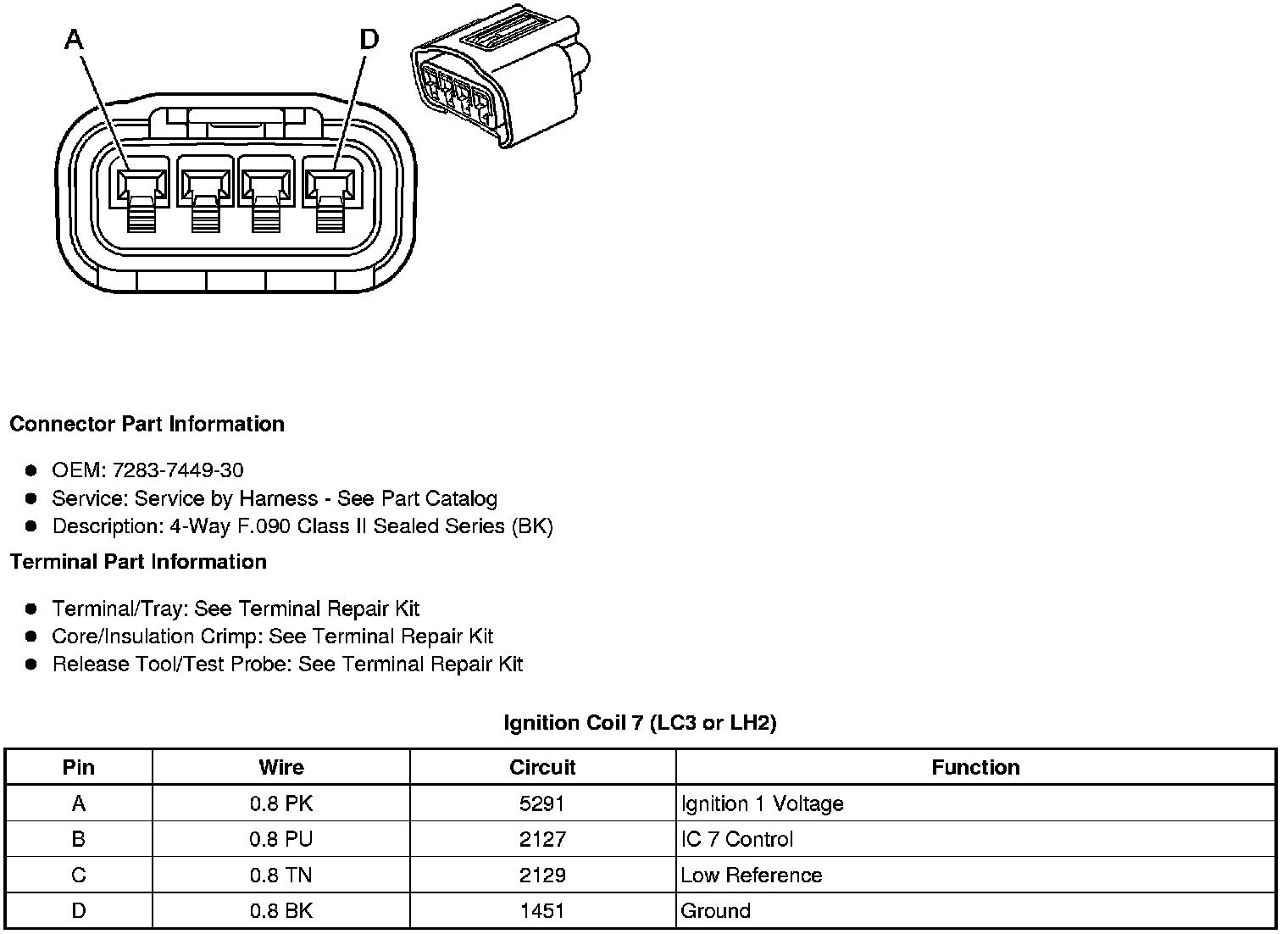

Ignition Coil 7 (LC3 or LH2)






Ignition Coil 8 (LC3 or LH2)
