Console Shift Lever Bezel Replacement

Console Shift Lever Bezel Replacement

Removal Procedure

1. Remove the console upper trim. Refer to Front Floor Upper Console Trim Plate Replacement (Service and Repair).

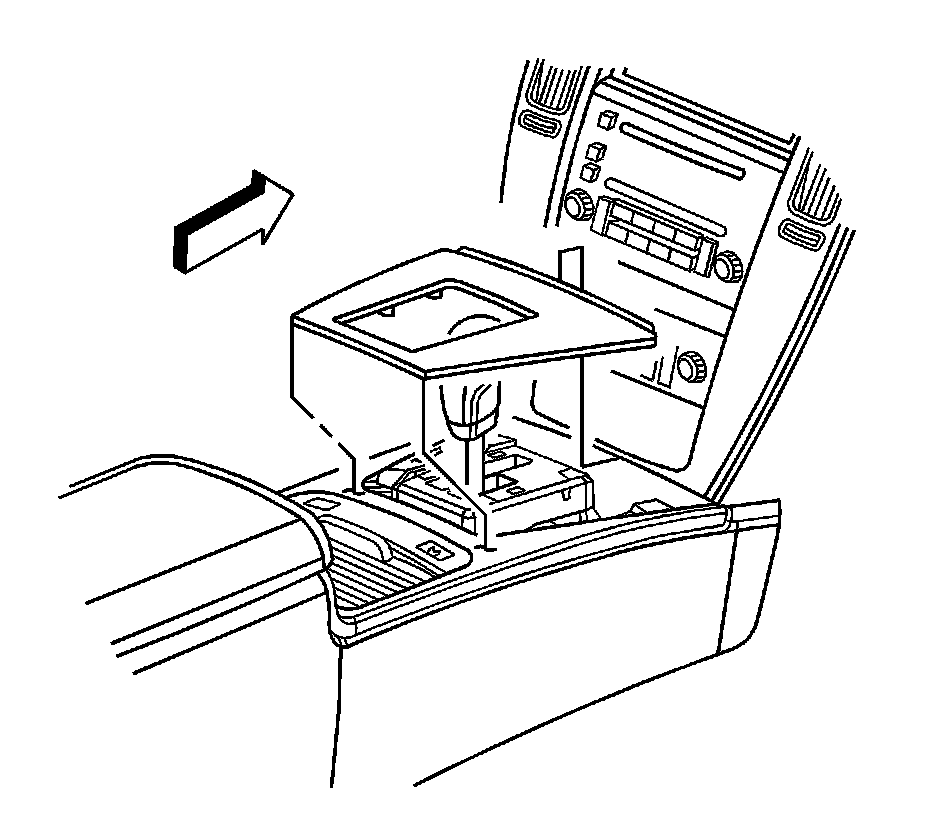

2. Remove the shifter bezel.

Installation Procedure




1. Install the shifter trim bezel.
2. Install the console upper trim. Refer to Front Floor Upper Console Trim Plate Replacement (Service and Repair).
