Central Control Module: Diagrams




Component Connector End Views

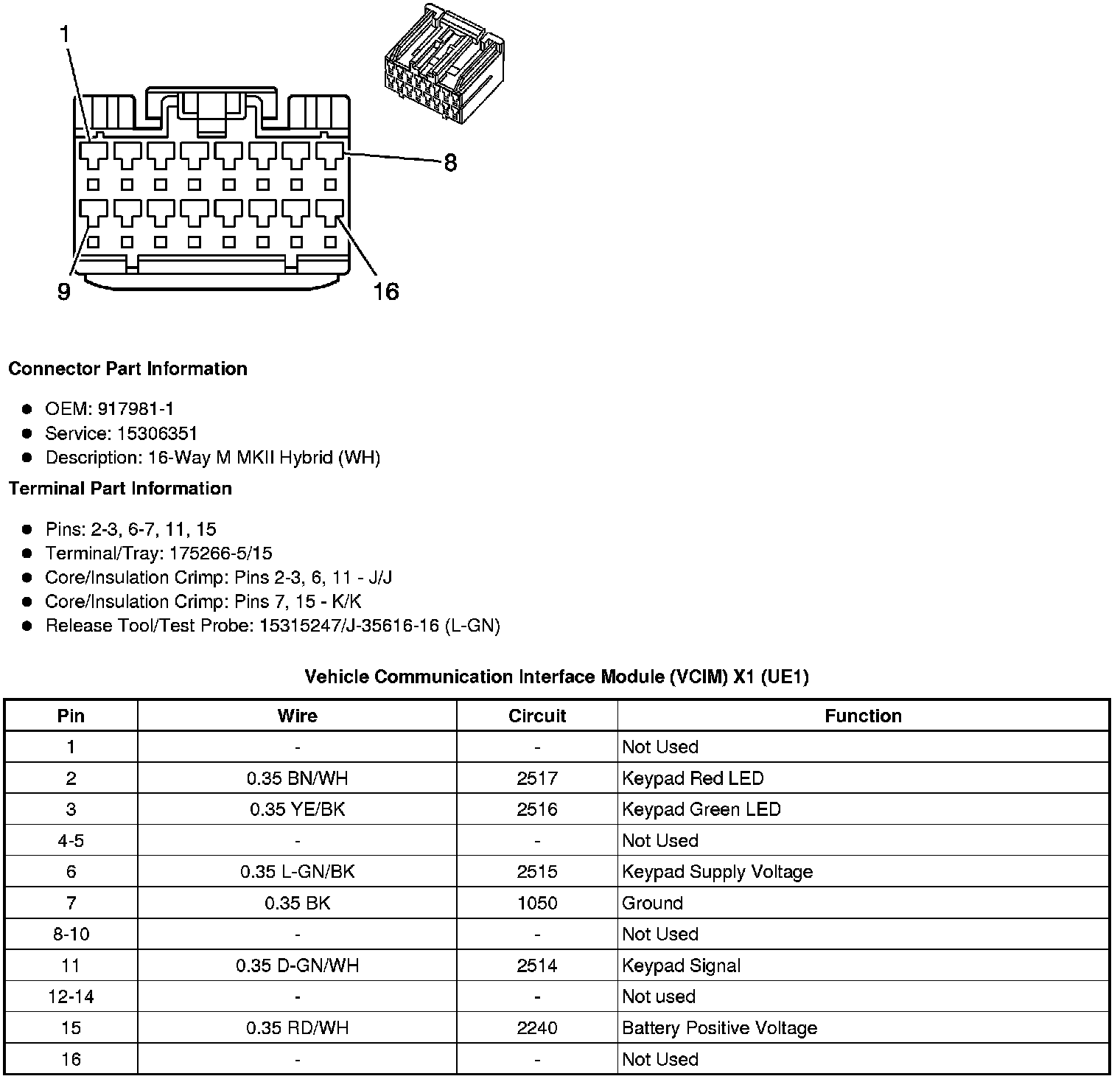

Vehicle Communication Interface Module (VCIM) X1 (UE1)

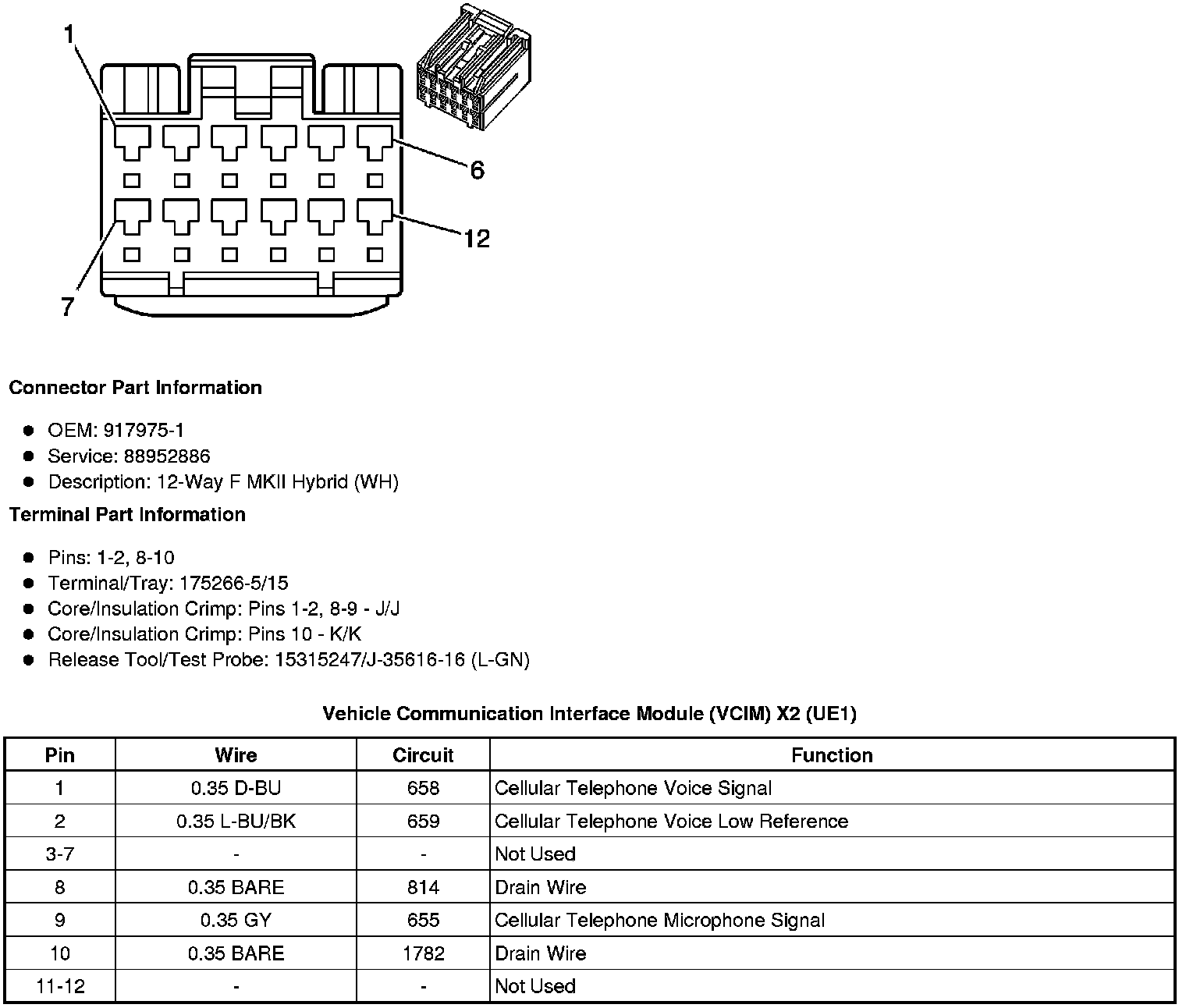

Vehicle Communication Interface Module (VCIM) X2 (UE1)

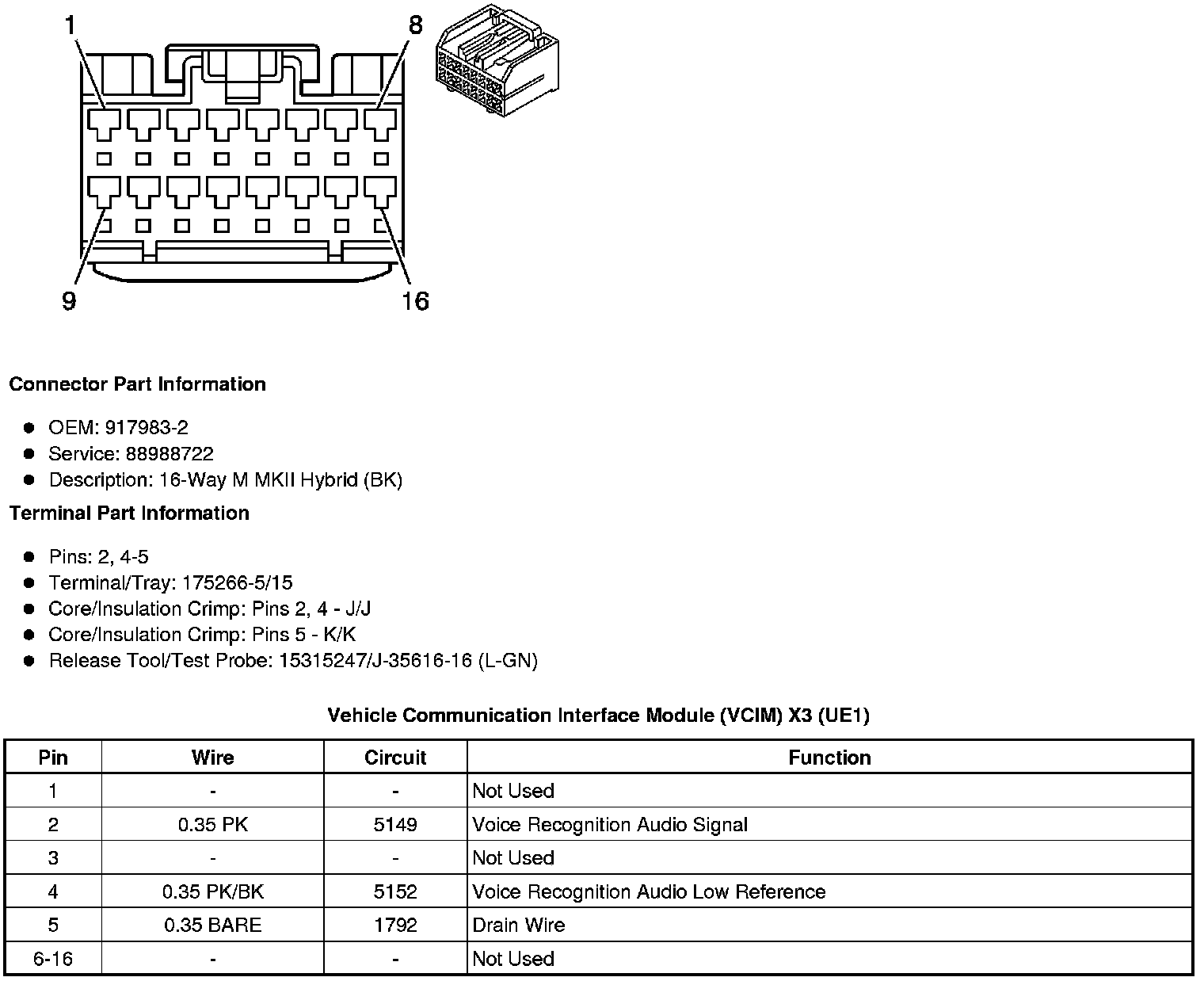

Vehicle Communication Interface Module (VCIM) X3 (UE1)

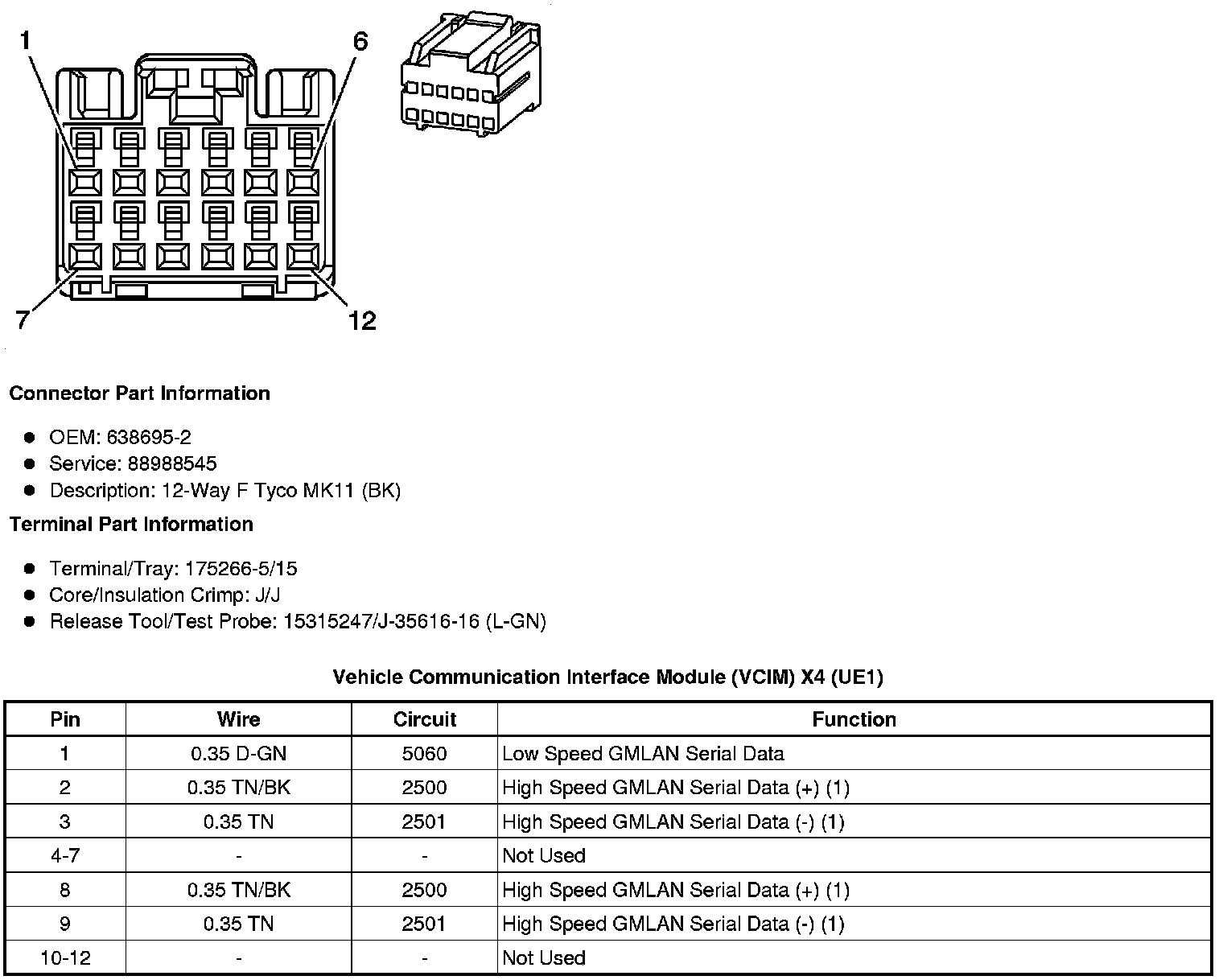

Vehicle Communication Interface Module (VCIM) X4 (UE1)

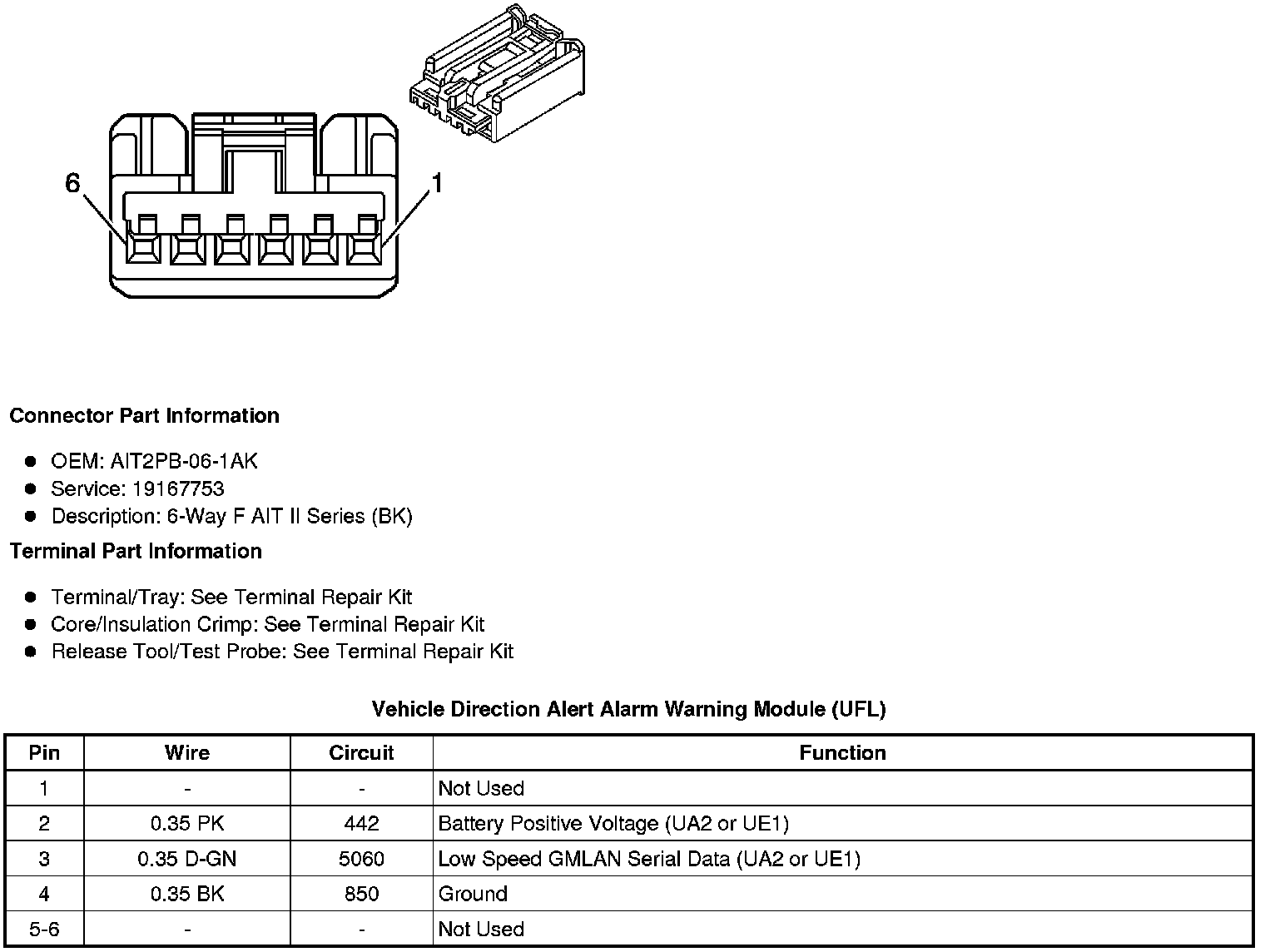

Vehicle Direction Alert Alarm Warning Module (UFL)
