Harness Routing Views

Harness Routing Views

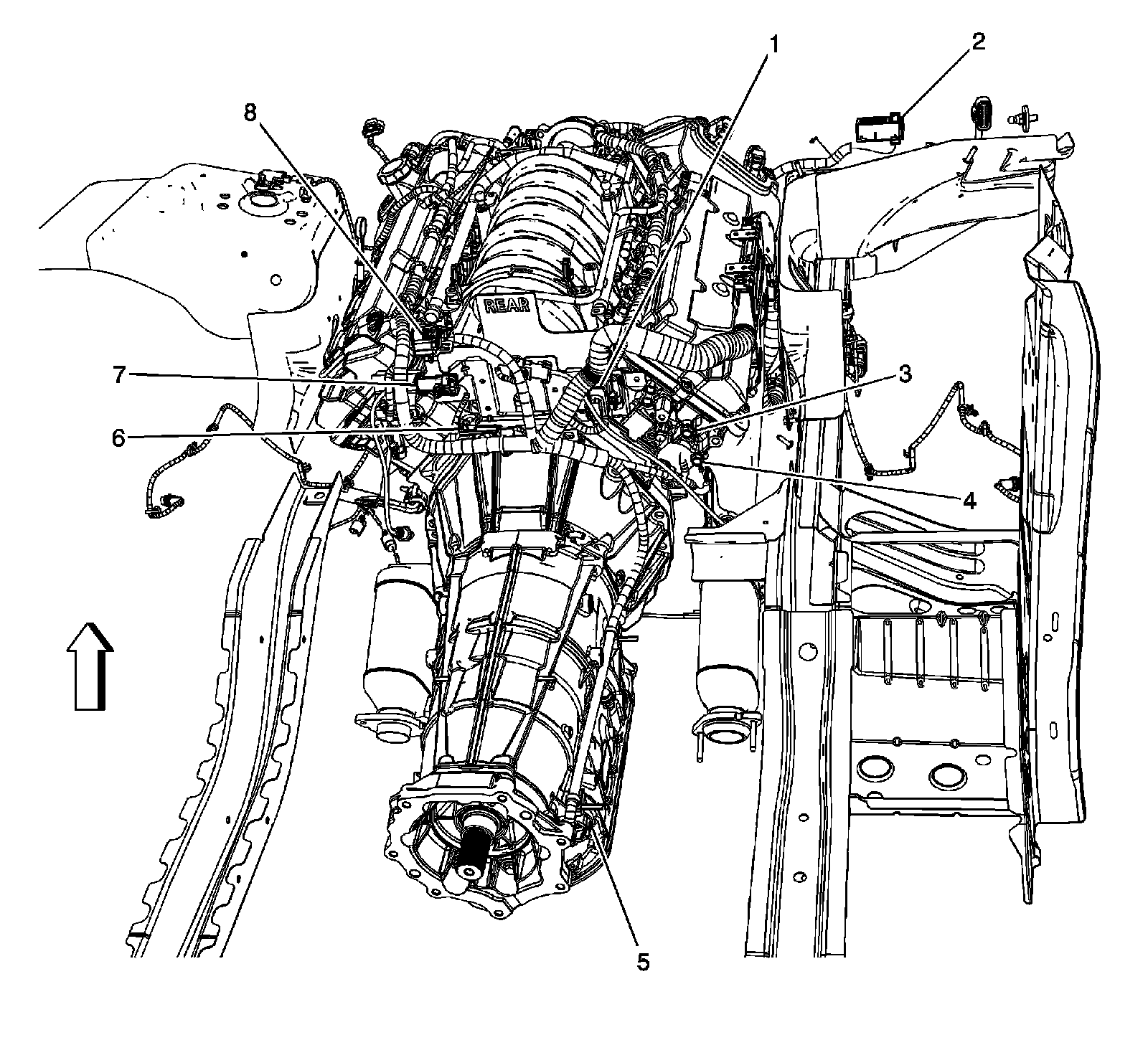

Rear of Engine Compartment (LH2)




1 - X104
2 - Fuse Block - Underhood X3
3 - G100
4 - G107
5 - X175
6 - X107
7 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
8 - X102
