Left Rear Fuse Block




Electrical Center Identification Views

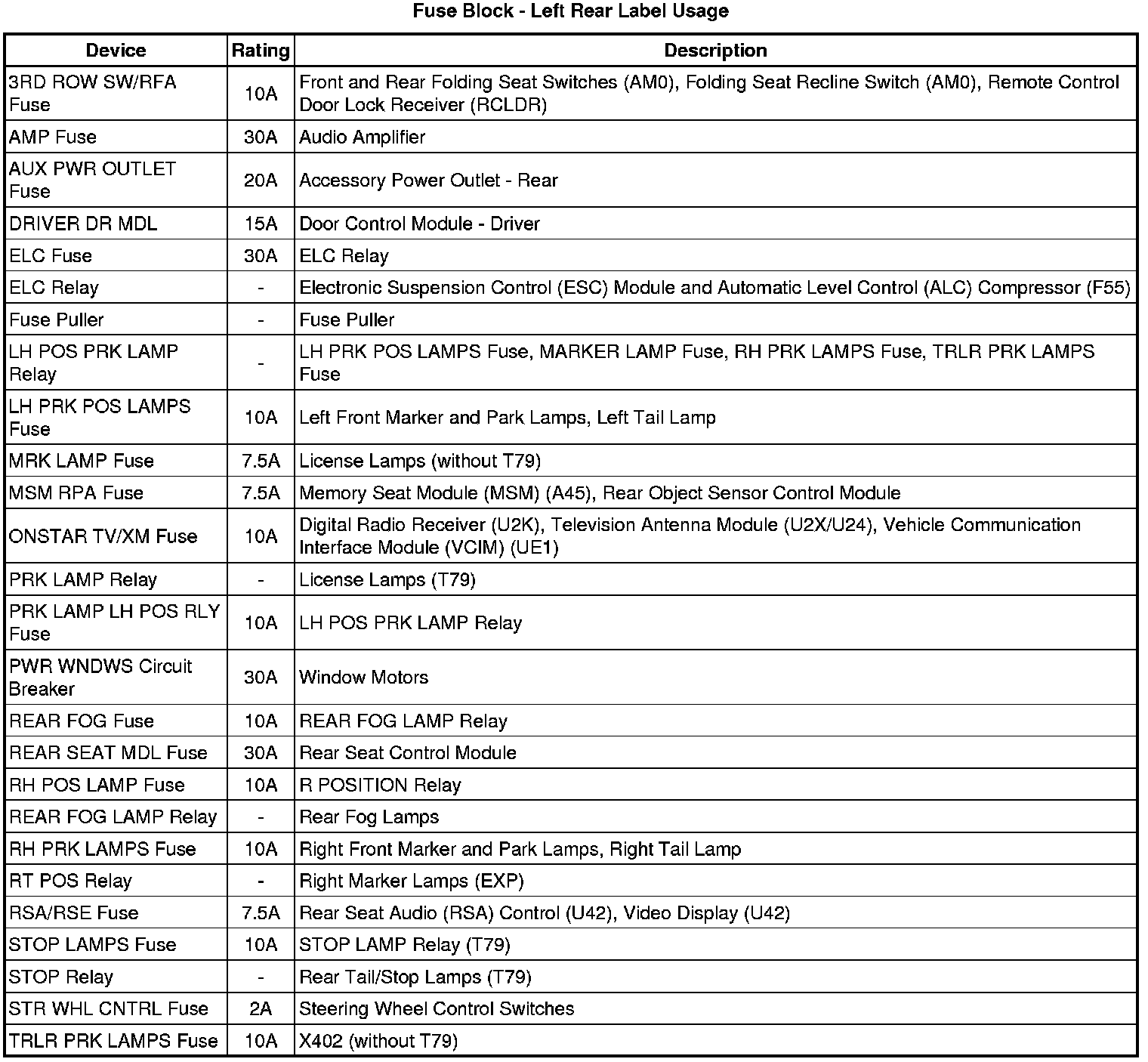

Fuse Block - Left Rear Label









Fuse Block - Left Rear Top View

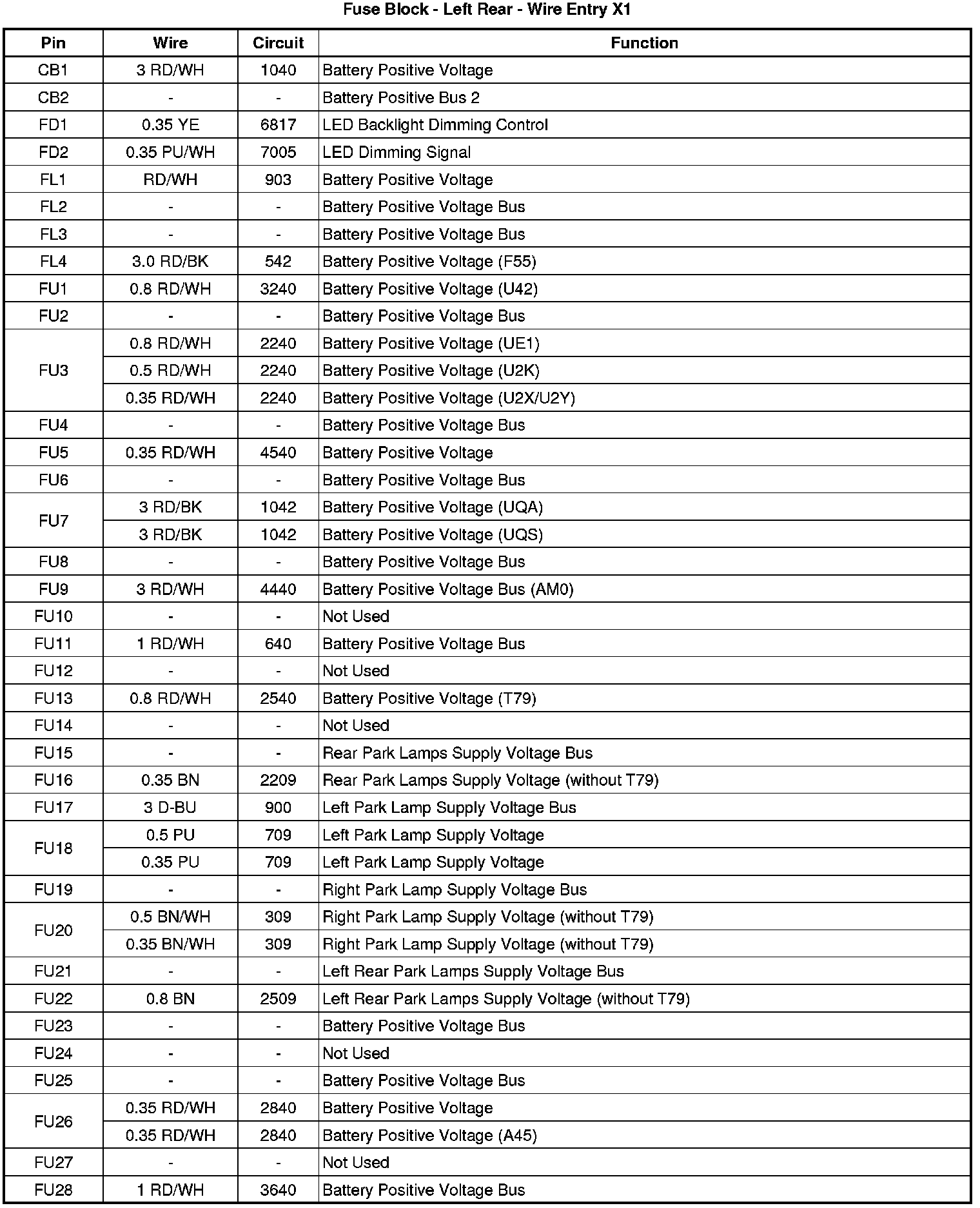

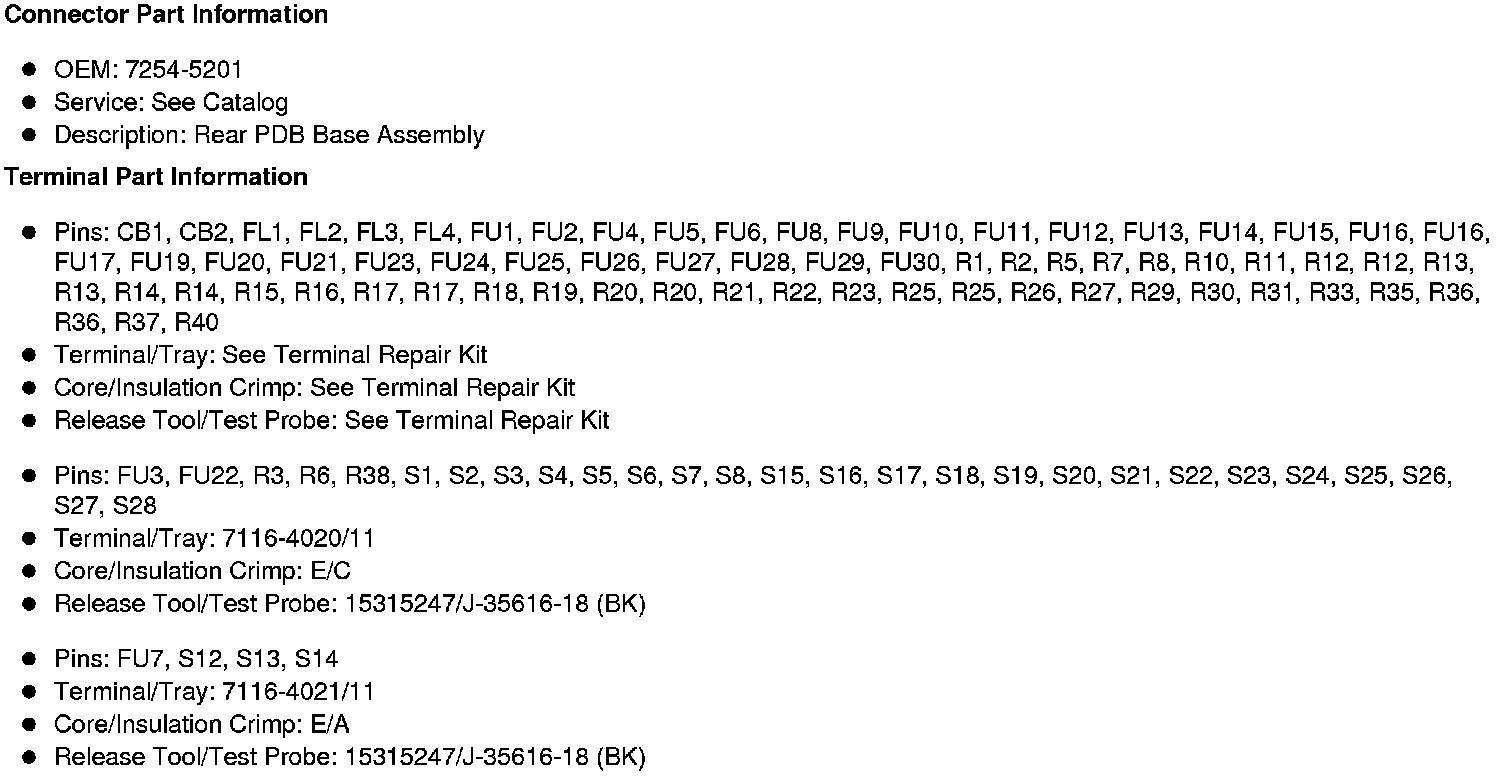

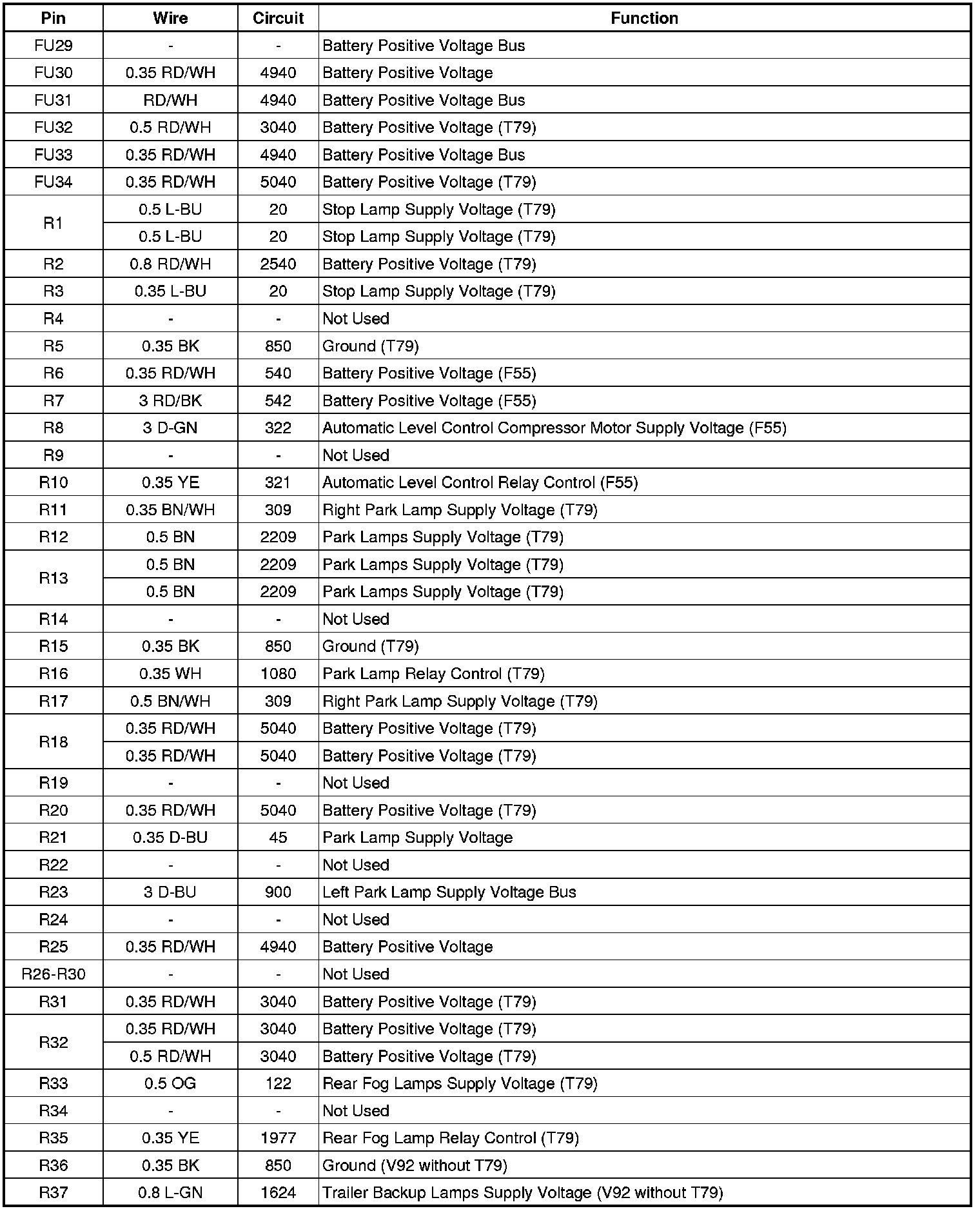

Fuse Block - Left Rear - Wire Entry X1

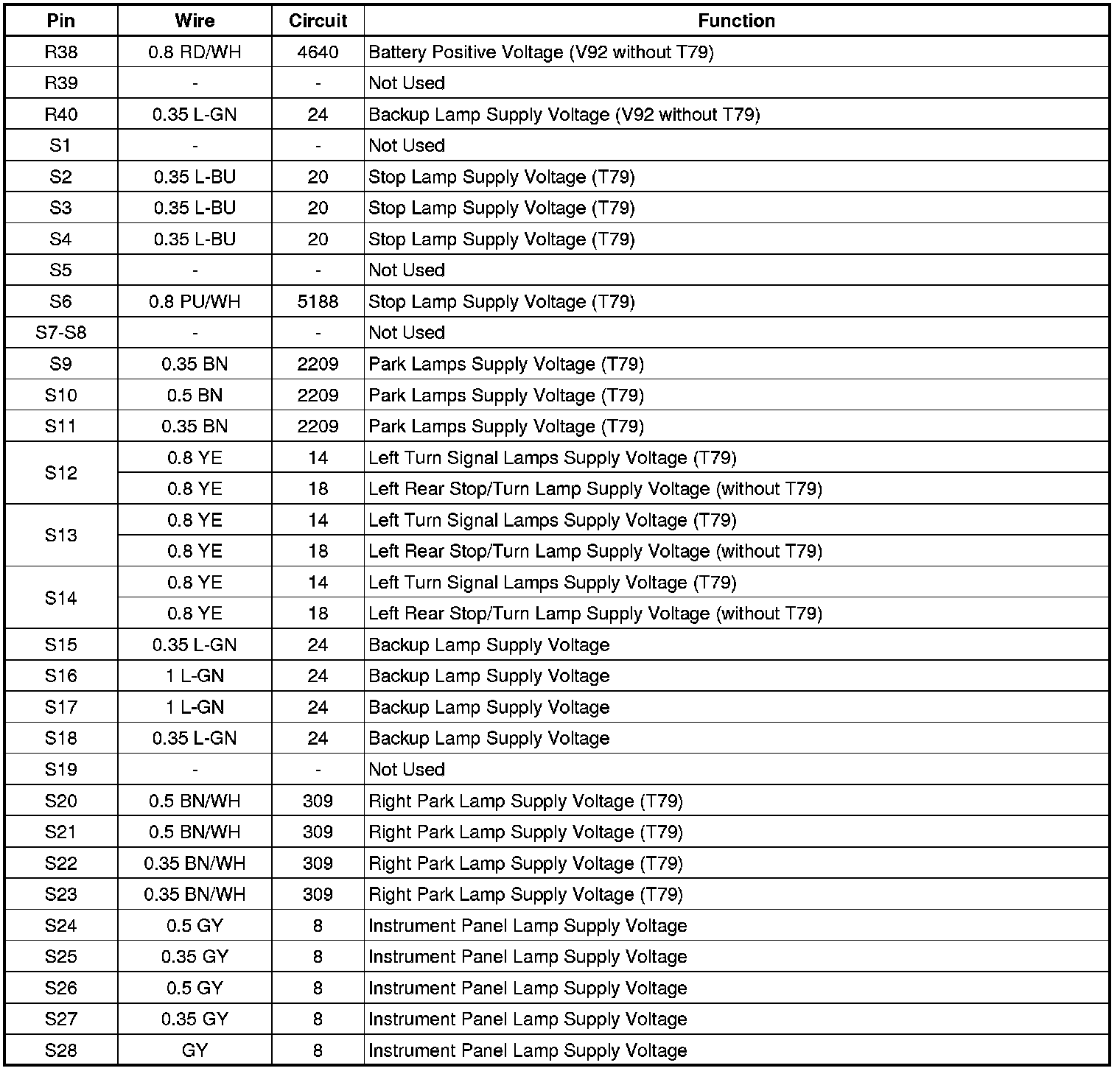

Fuse Block - Left Rear X2
