Instrument Panel/Center Console Component Views




Instrument Panel/Center Console Component Views

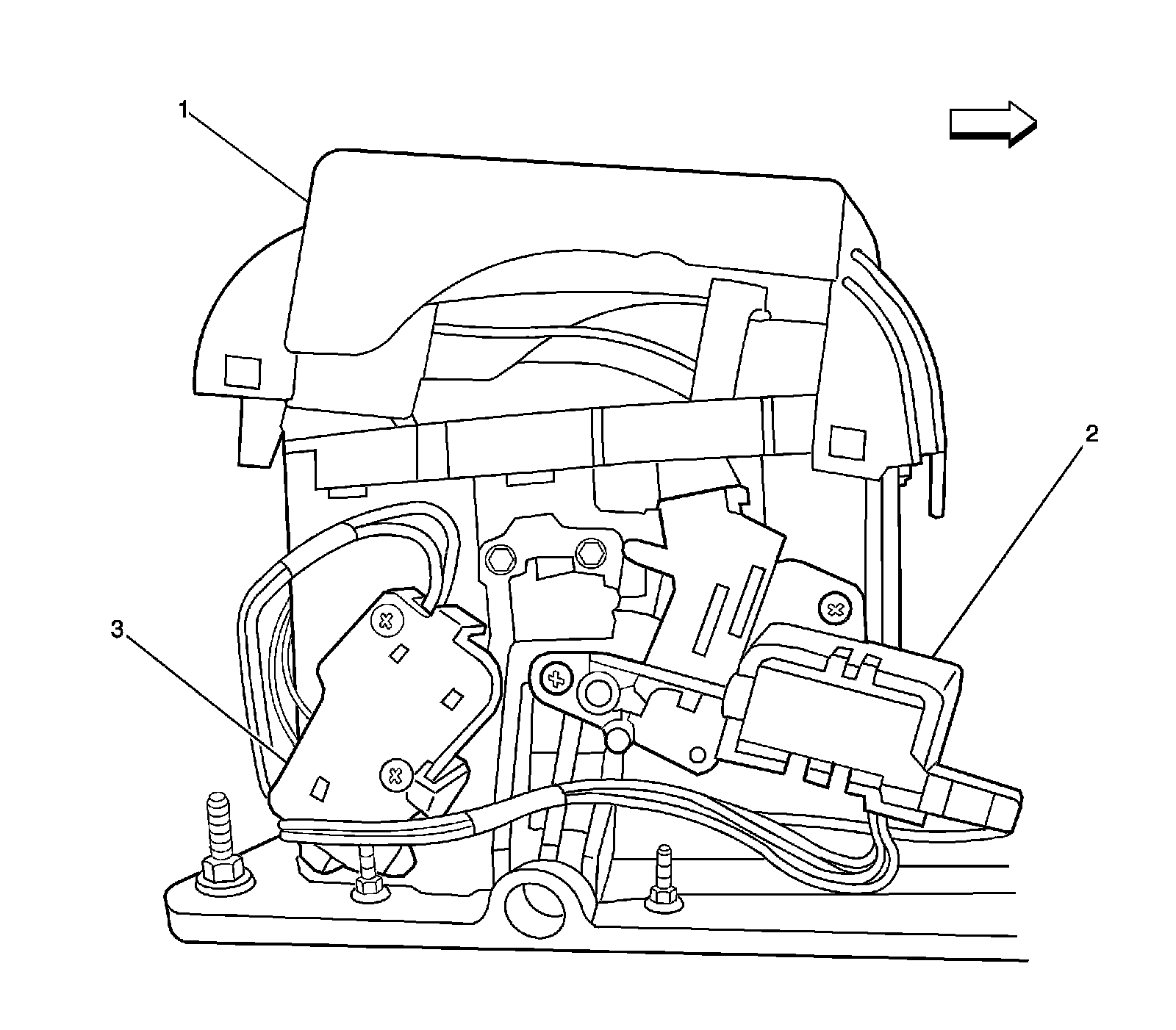

Shift Lever Components




1 - Automatic Transmission Shift Lever
2 - Automatic Transmission Shift Lock Control Solenoid
3 - Automatic Transmission Manual Shift Switch
