Power Moding Schematics

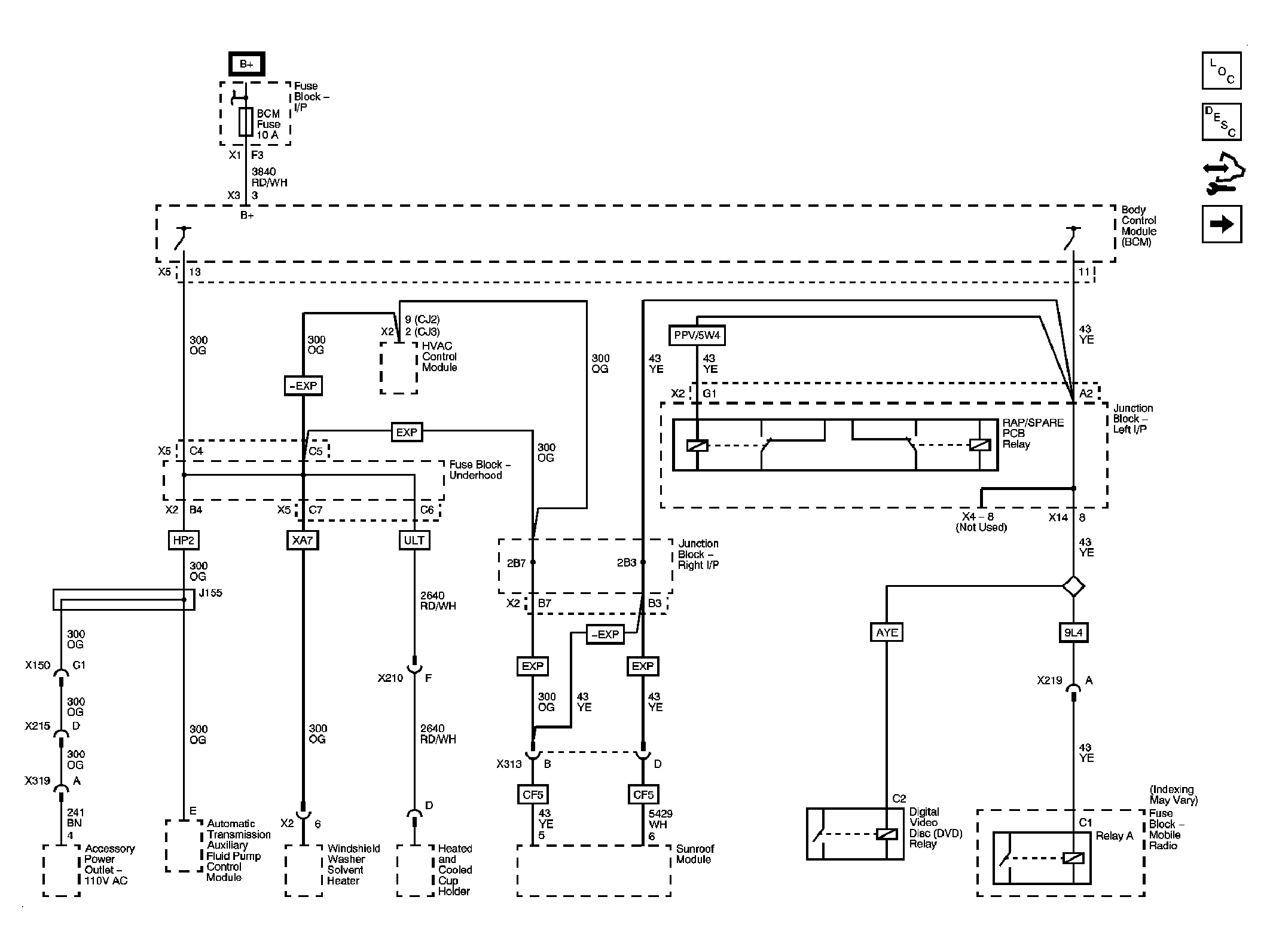

Fig 1: Ignition 3 and Accessory Voltage
GM2075728Courtesy of GENERAL MOTORS CORP.
Fig 2: Ignition 2/3 Voltage
GM2155214Courtesy of GENERAL MOTORS CORP.

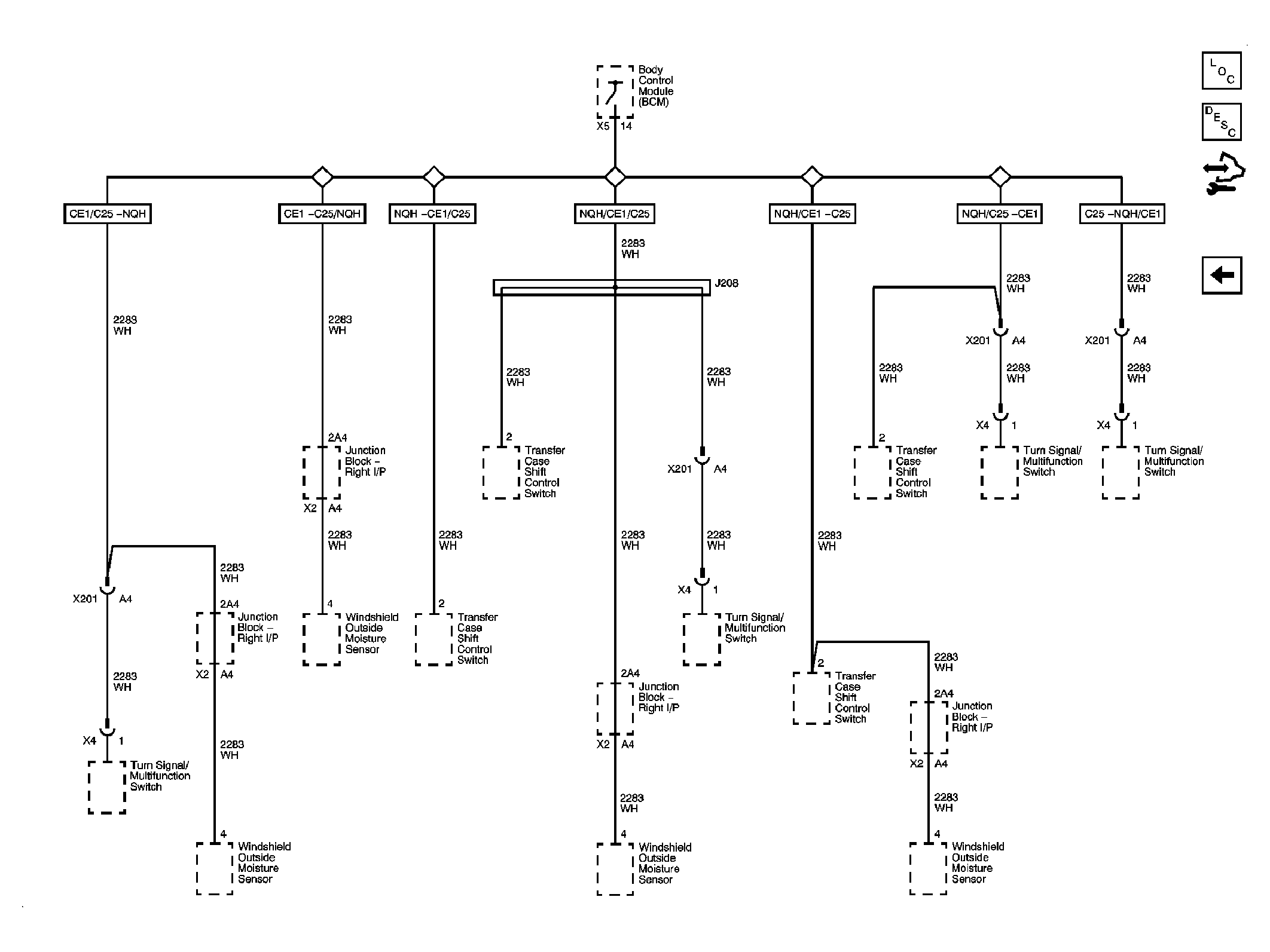

Fig 3: Ignition 1 Voltage
GM2075730Courtesy of GENERAL MOTORS CORP.
