Ground Distribution Schematics

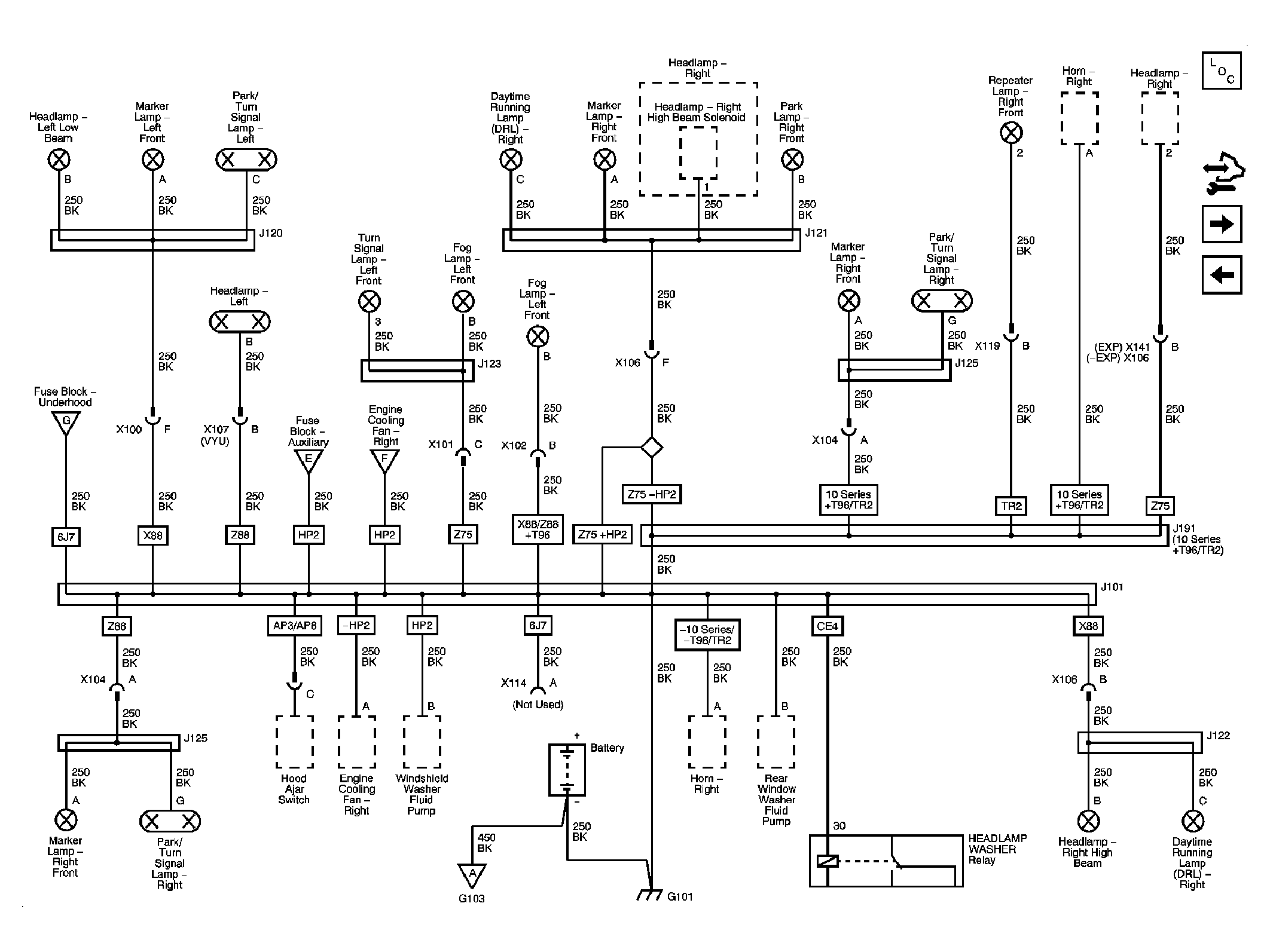

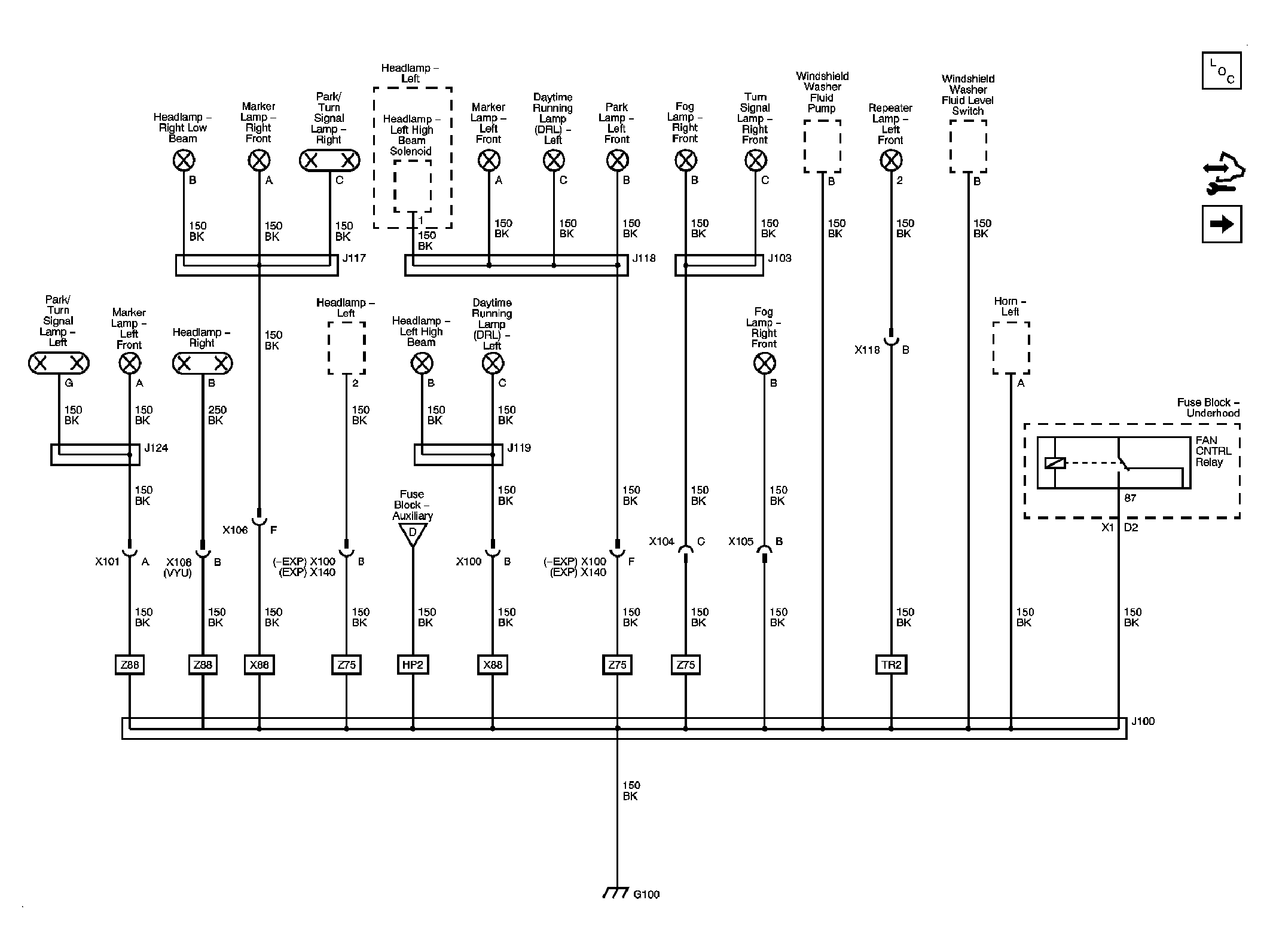

Fig 1: G100

Courtesy of GENERAL MOTORS CORP.

Fig 2: G101

Courtesy of GENERAL MOTORS CORP.

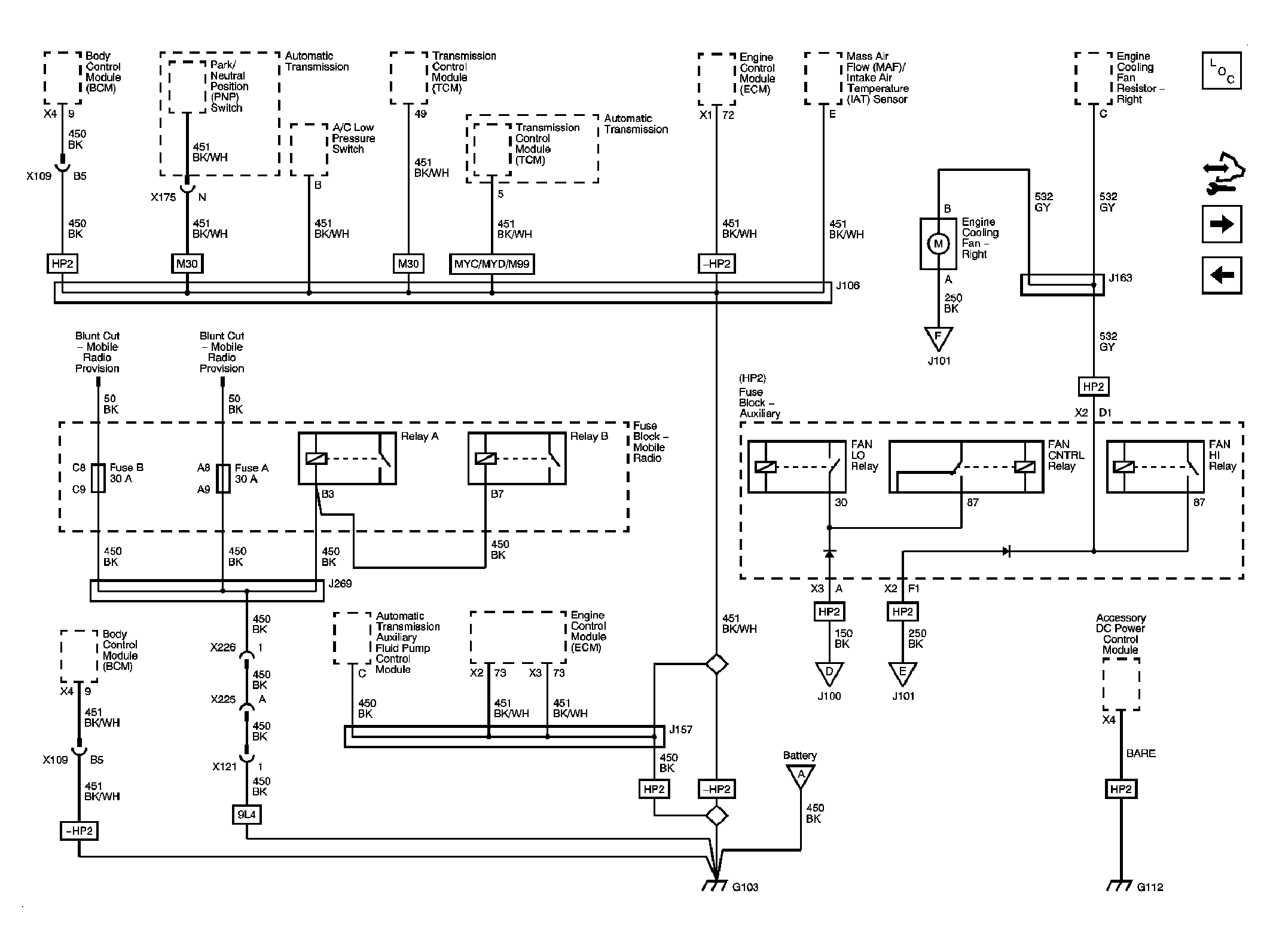

Fig 3: G102, G104 and G108

Courtesy of GENERAL MOTORS CORP.

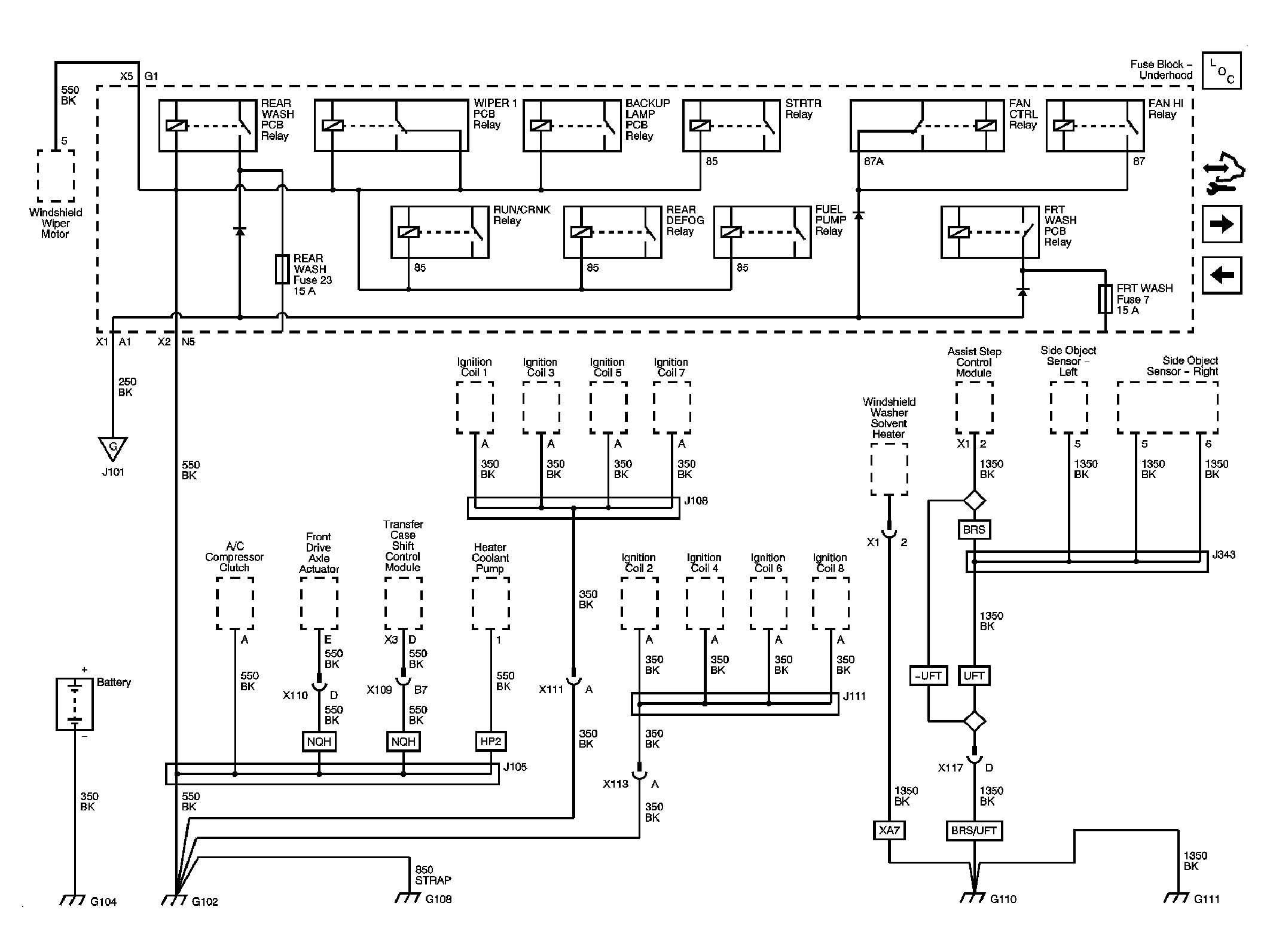

Fig 4: G103, G110, and G111

Courtesy of GENERAL MOTORS CORP.

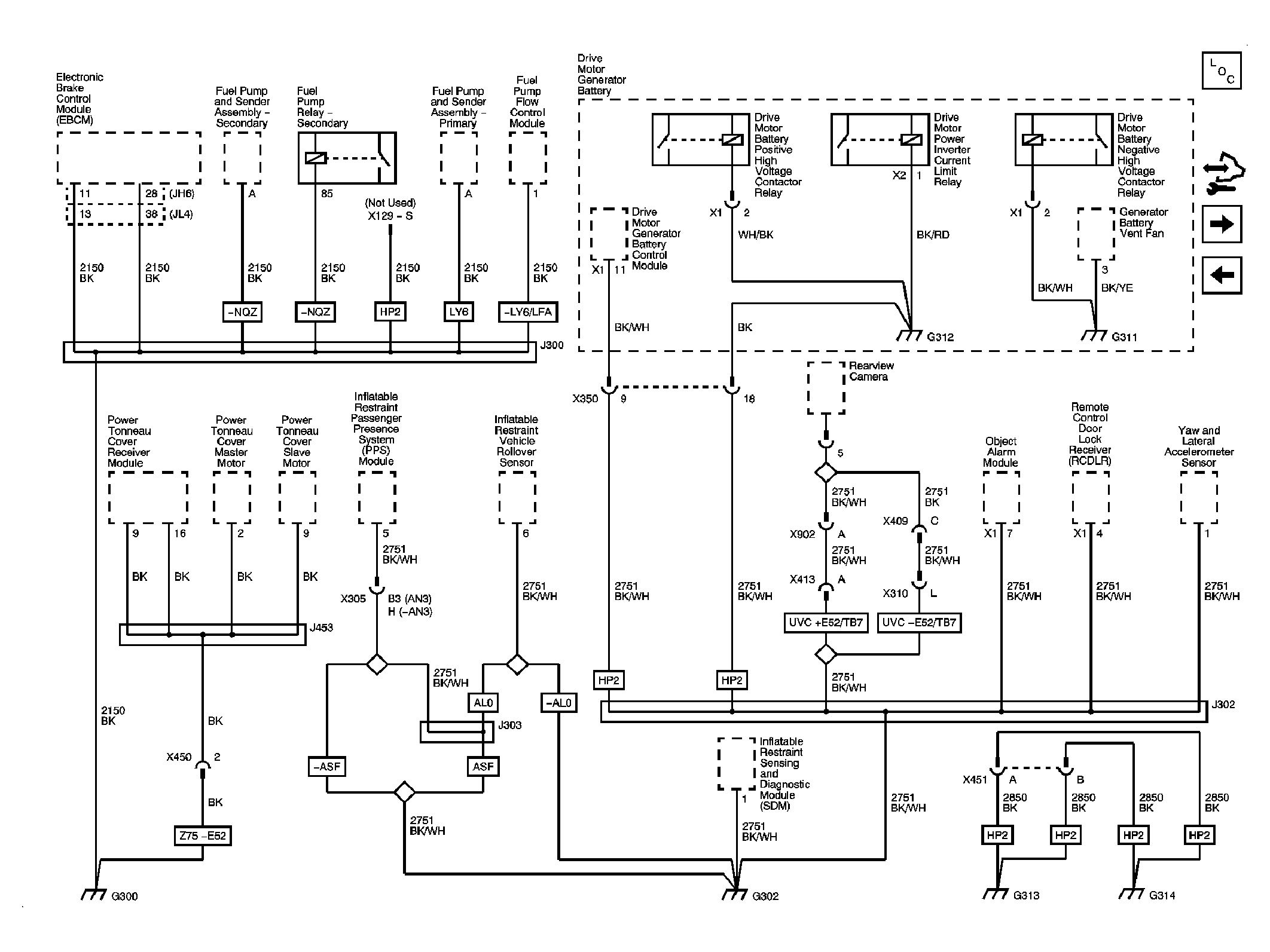

Fig 5: G200 - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 6: G200 - 2 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 7: G201

Courtesy of GENERAL MOTORS CORP.

Fig 8: G300, G302, G311, G312, G313 (HP2) and G314 (HP2)

Courtesy of GENERAL MOTORS CORP.

Fig 9: G301

Courtesy of GENERAL MOTORS CORP.

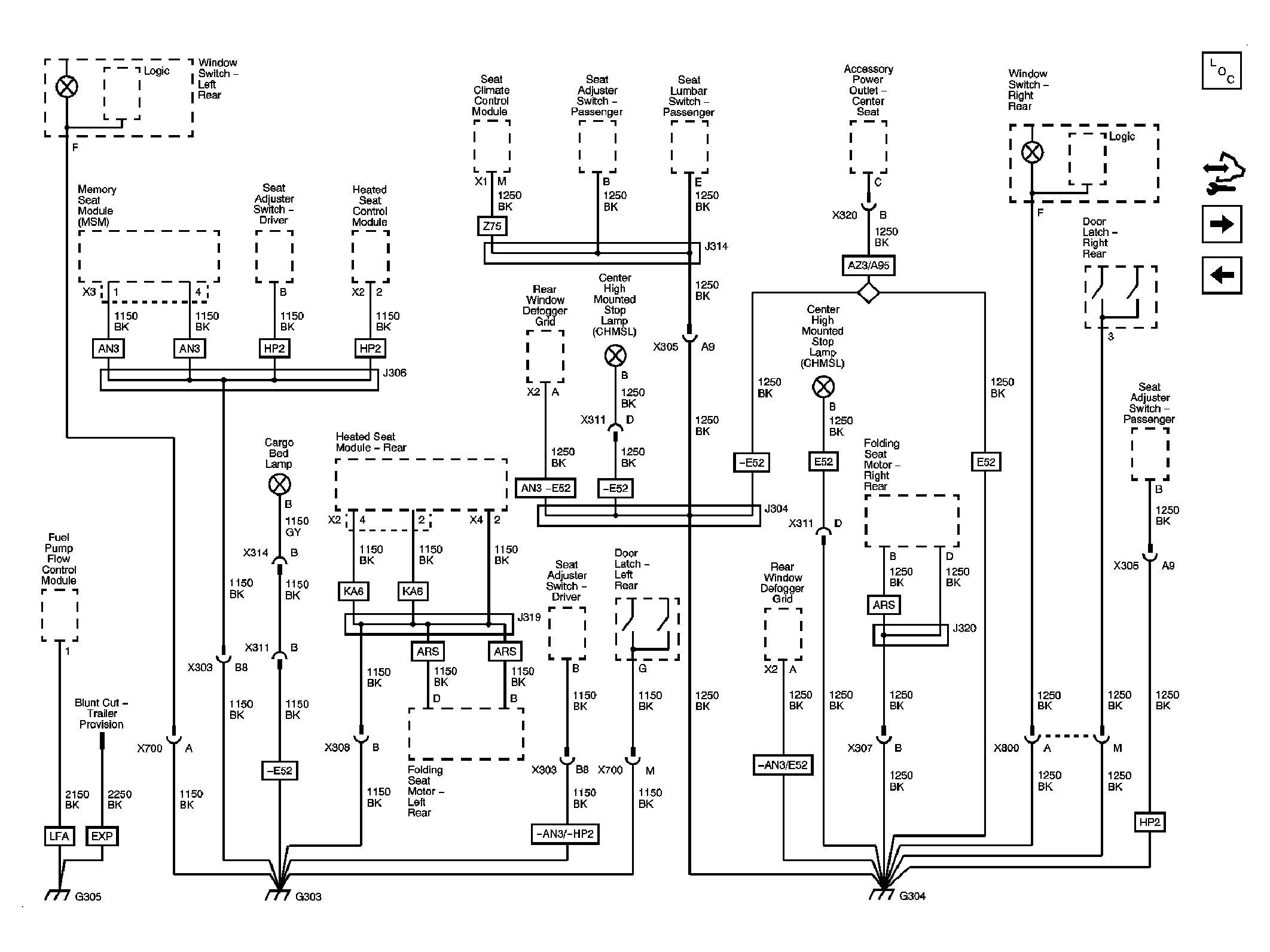

Fig 10: G303, G304, and G305

Courtesy of GENERAL MOTORS CORP.

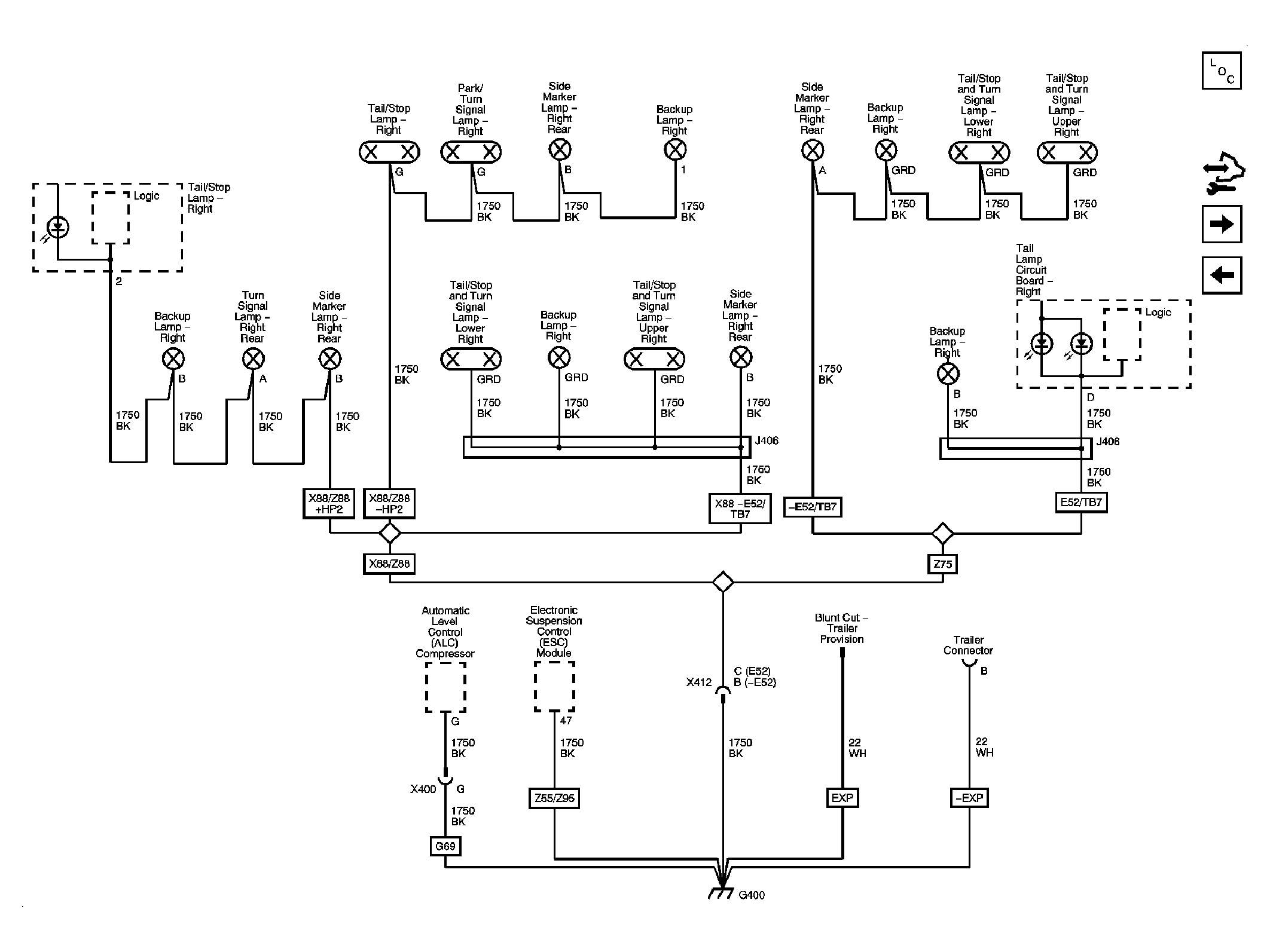

Fig 11: G400

Courtesy of GENERAL MOTORS CORP.

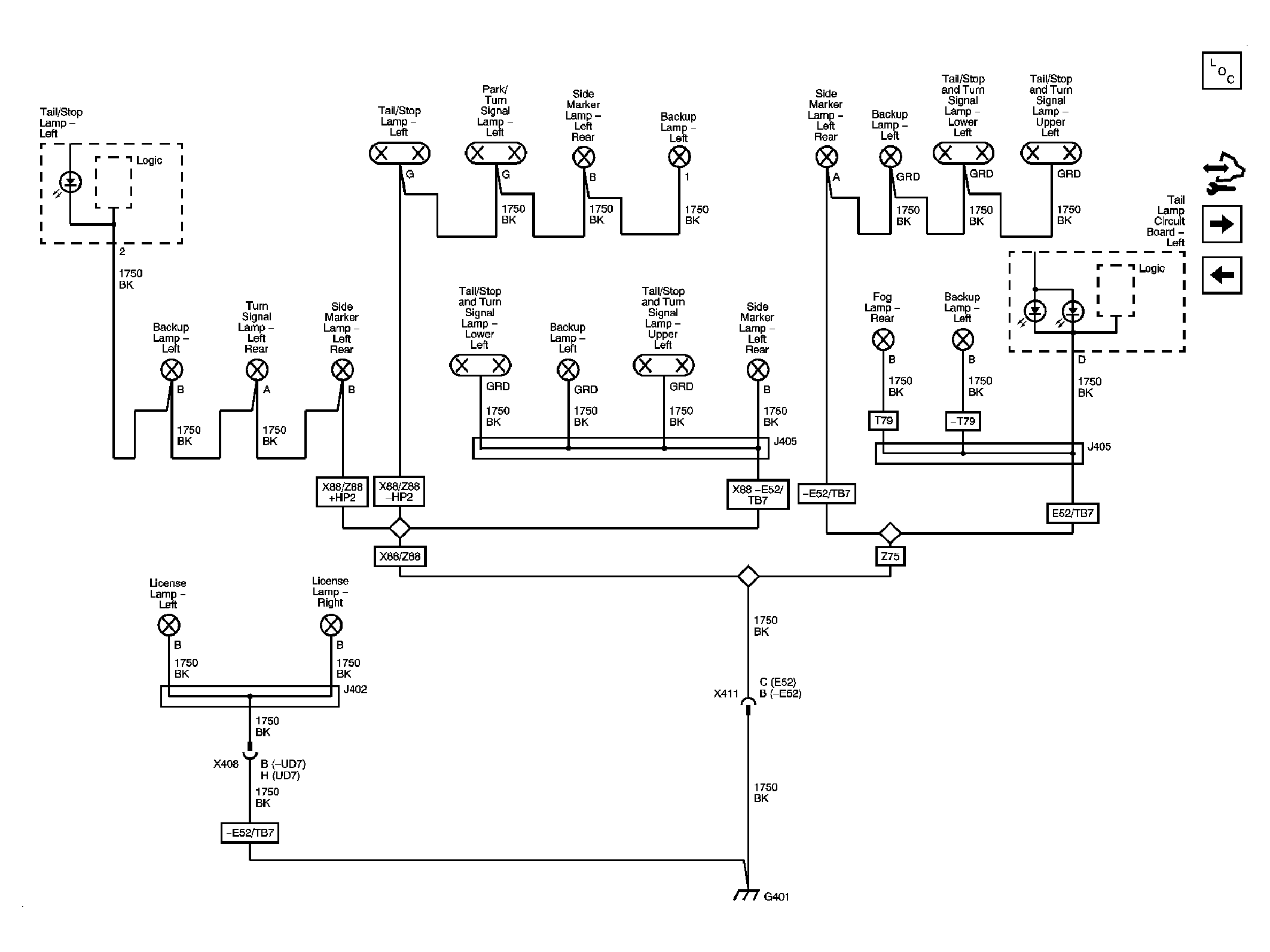

Fig 12: G401

Courtesy of GENERAL MOTORS CORP.

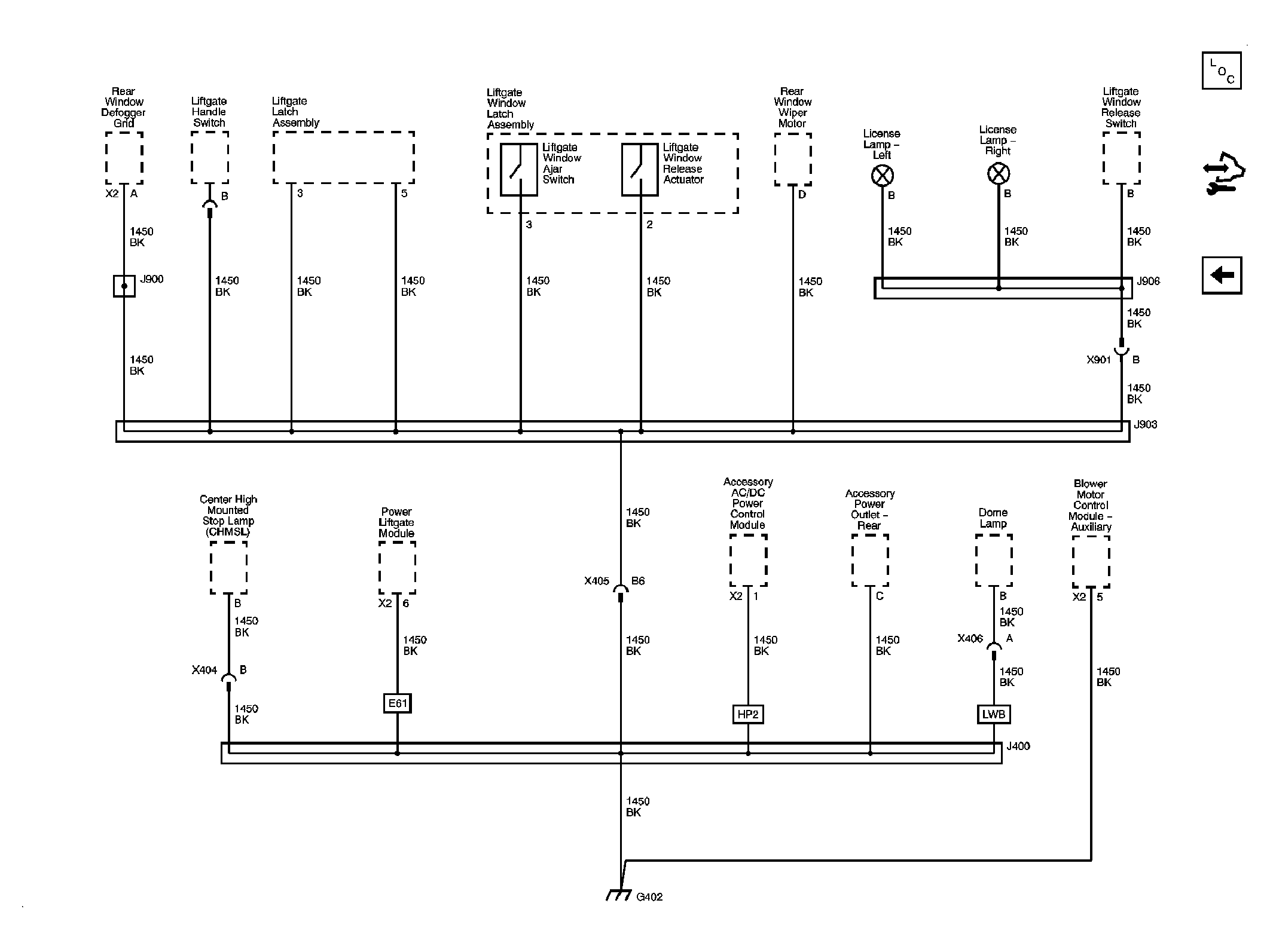

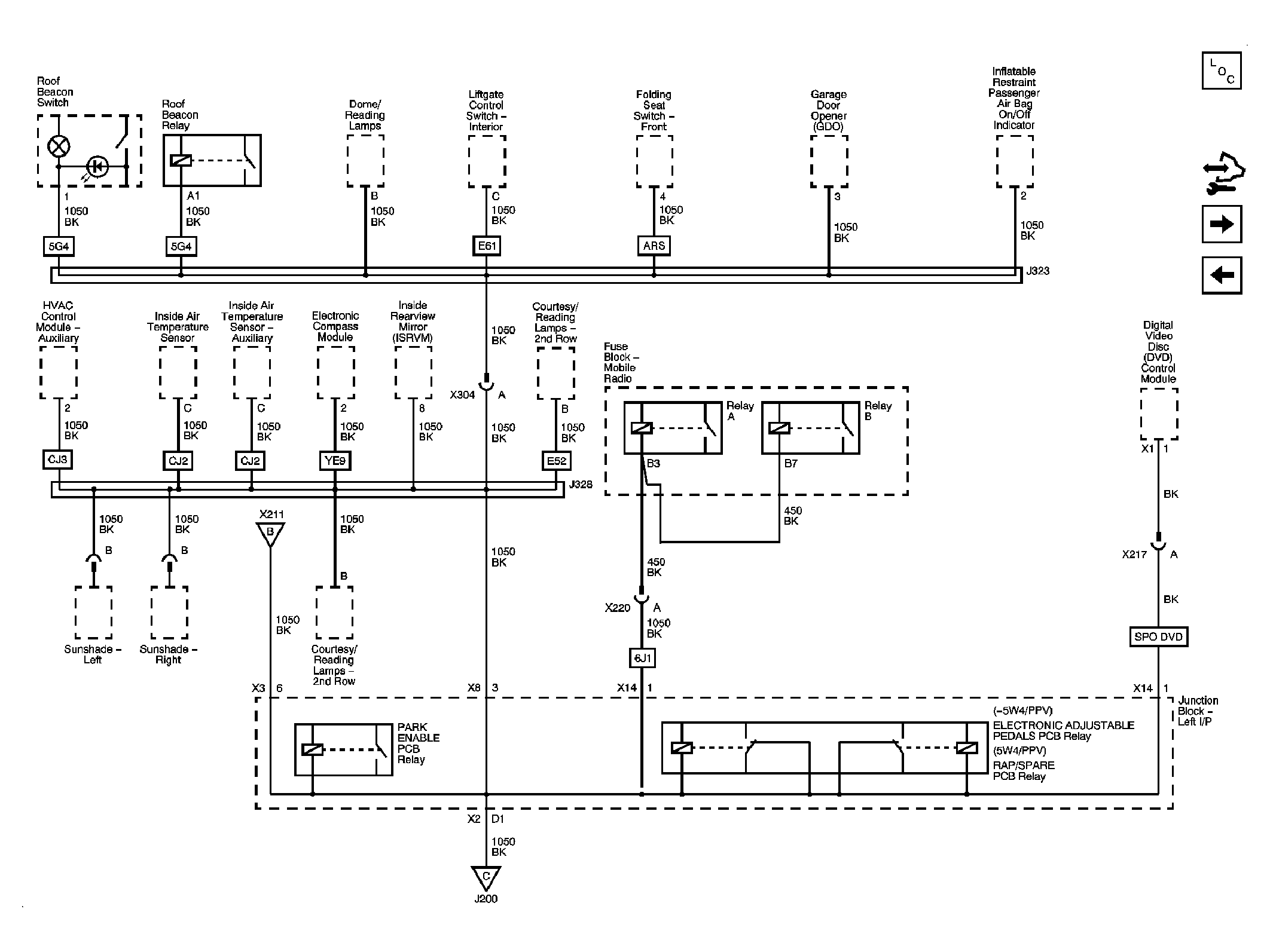

Fig 13: G402 - E52

Courtesy of GENERAL MOTORS CORP.
