Underhood Fuse Block Pin Usage
Electrical Center Identification Views

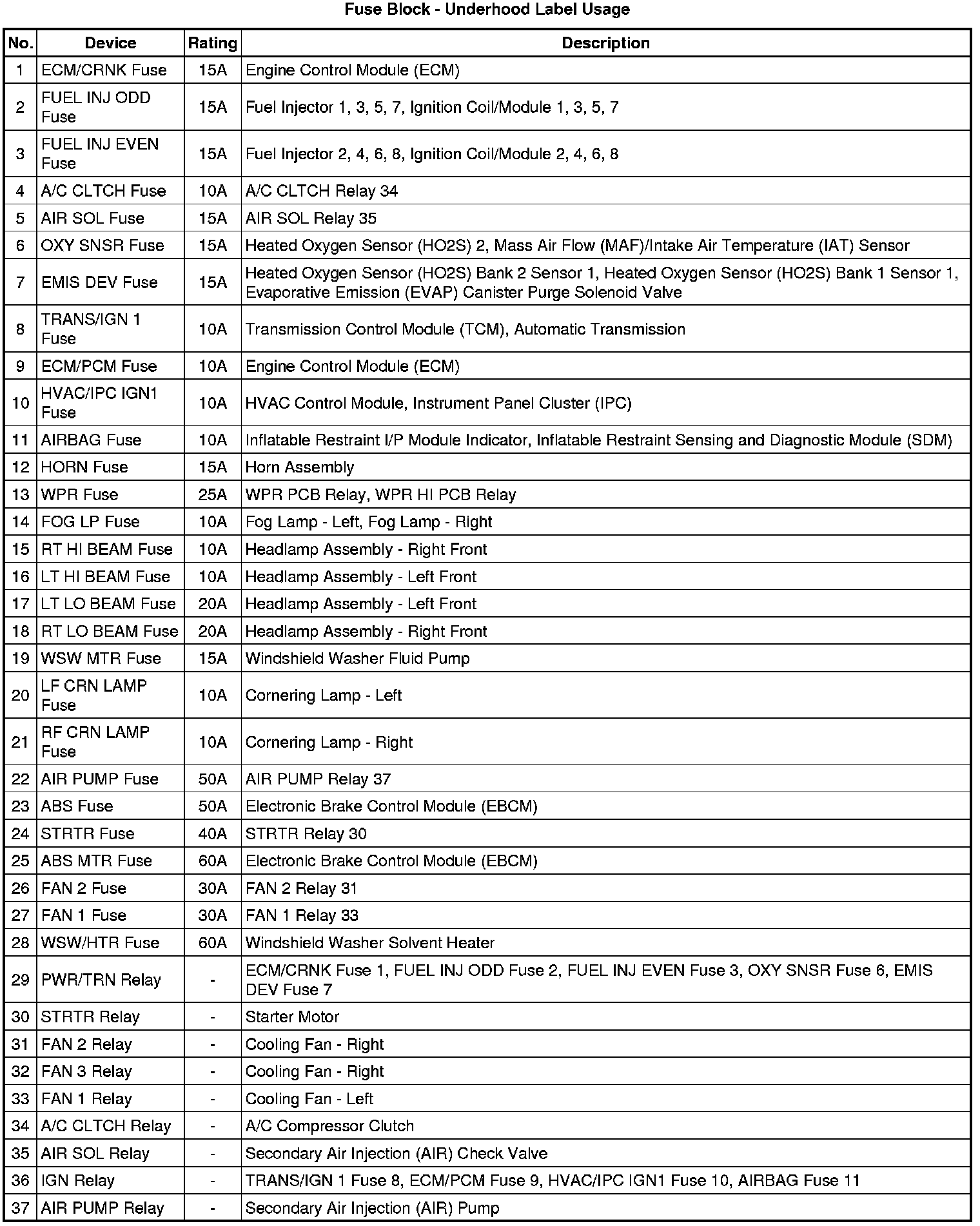

Fuse Block - Underhood Label
Fuse Block - Underhood Top View
Fuse Block - Underhood Bottom View

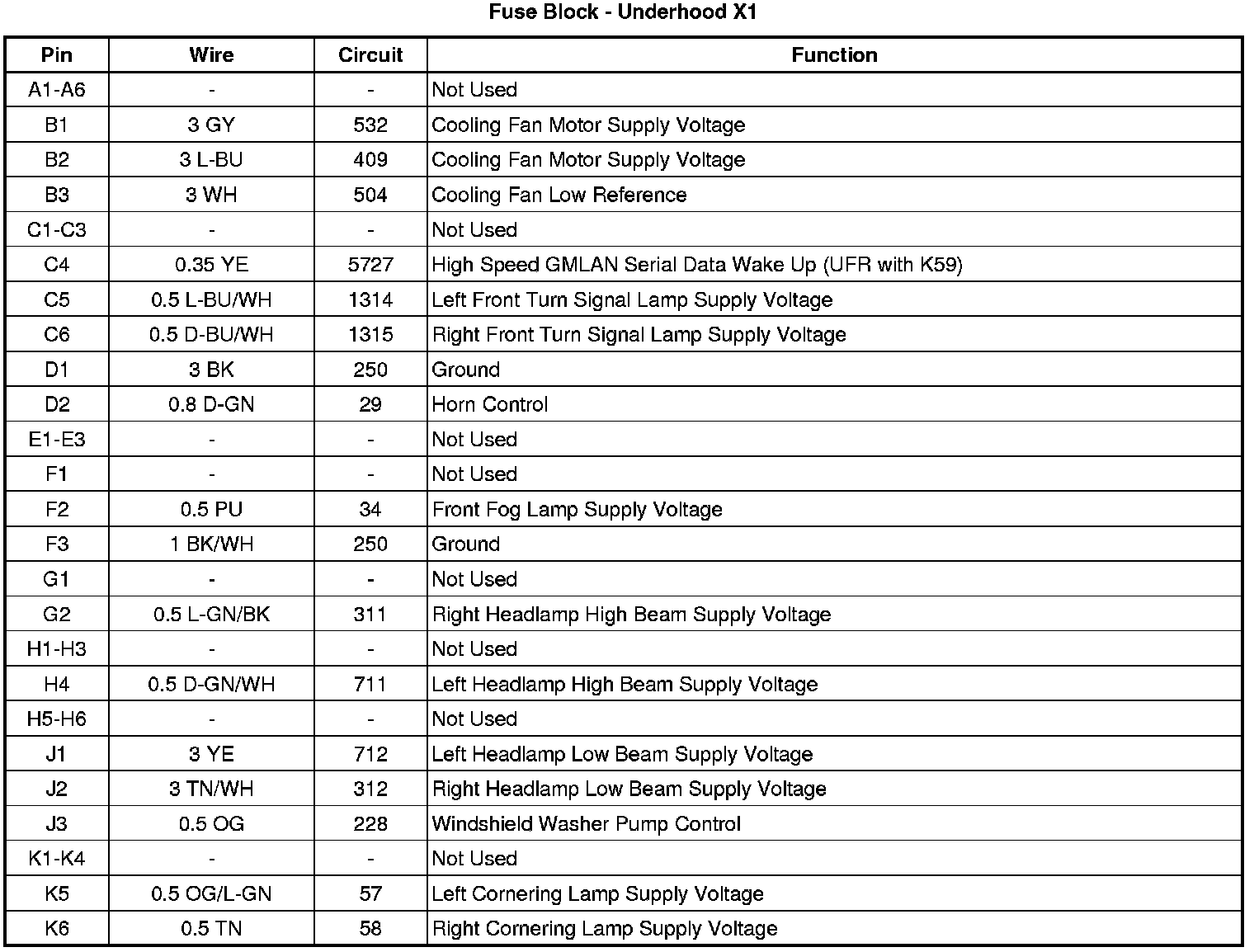

Fuse Block - Underhood X1

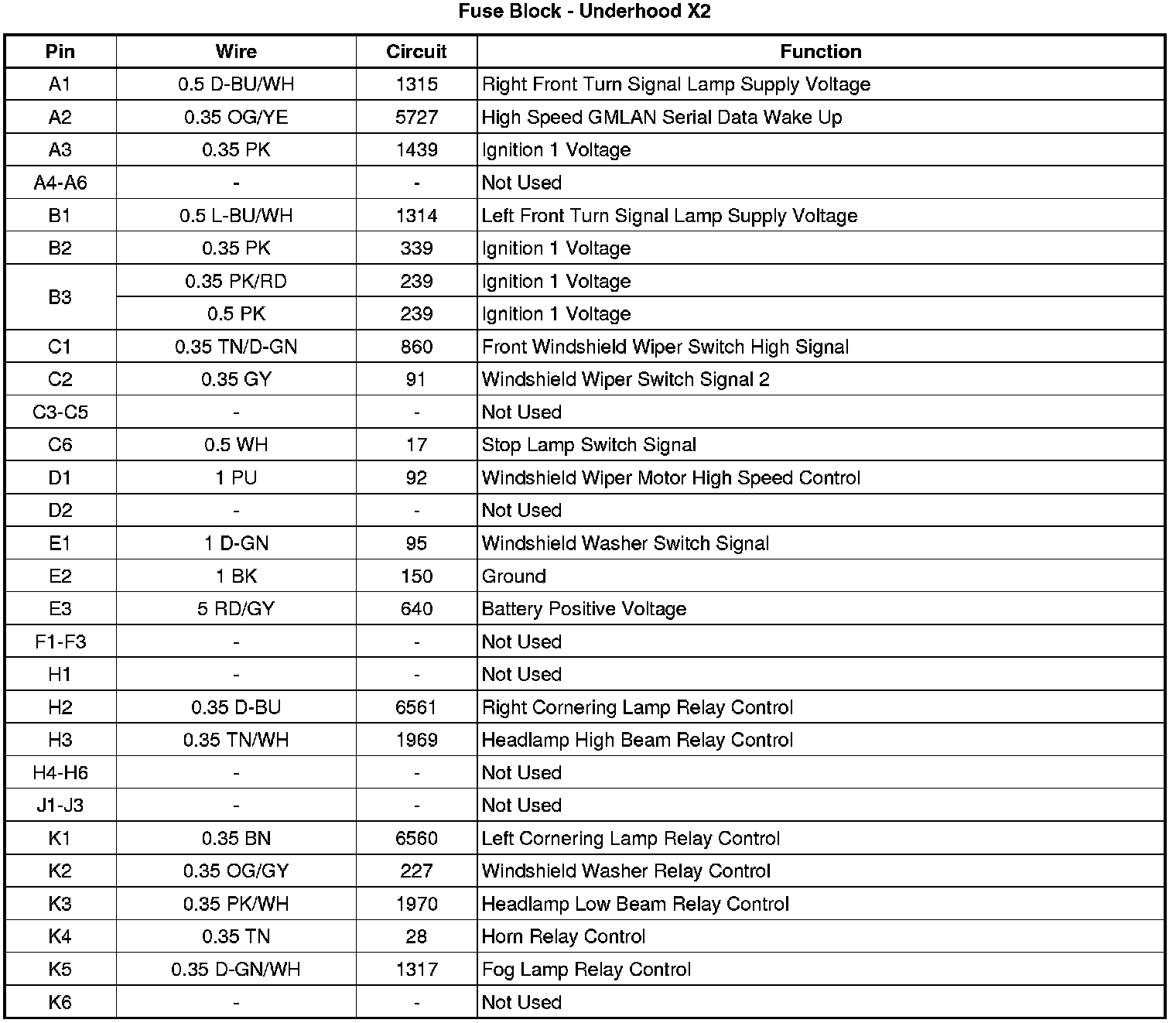

Fuse Block - Underhood X2

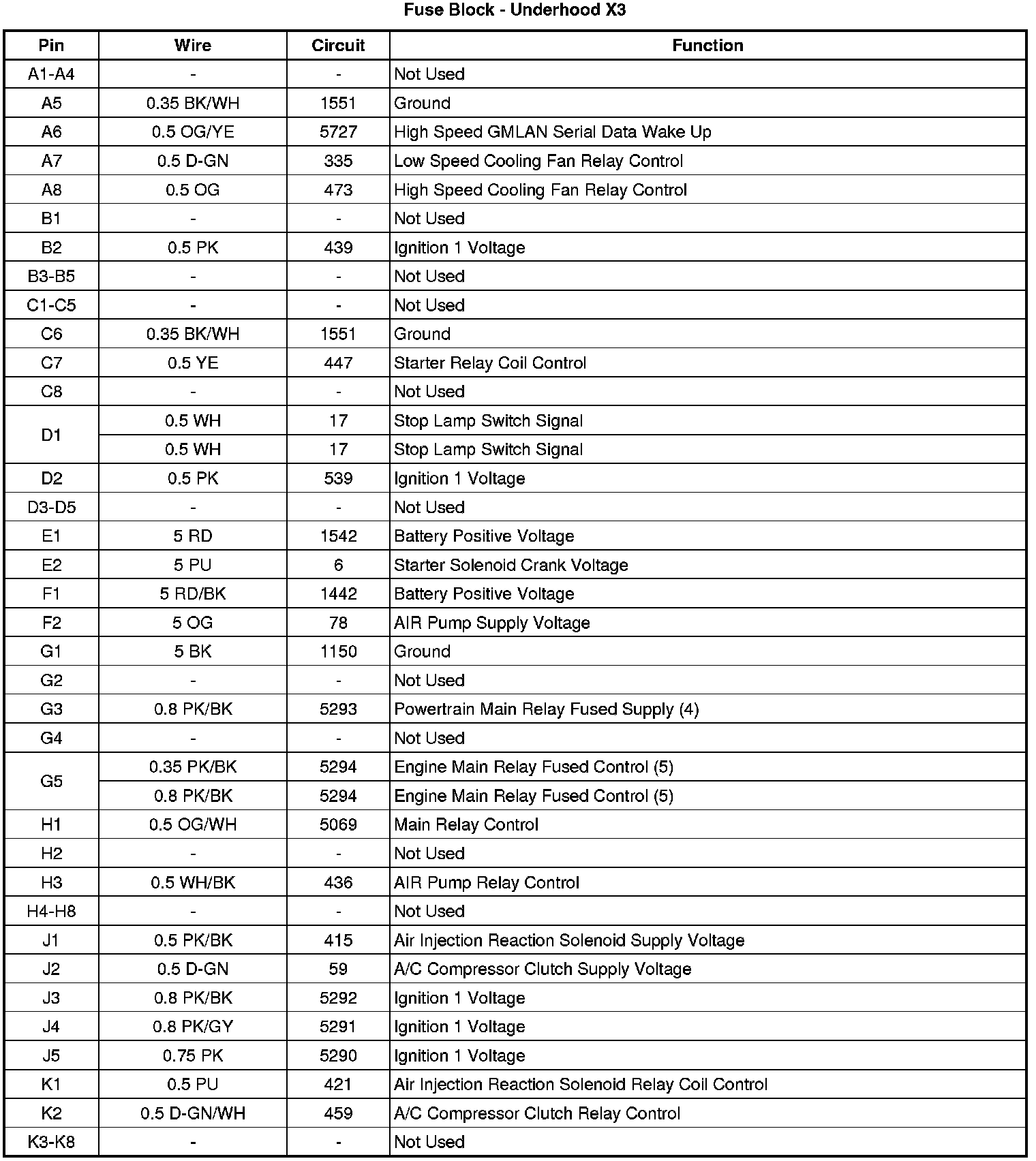

Fuse Block - Underhood X3
Fuse Block - Underhood X4 (To Starter/Generator)
Fuse Block - Underhood X4 (To Battery)
