Suspension Control Module




Component Connector End Views

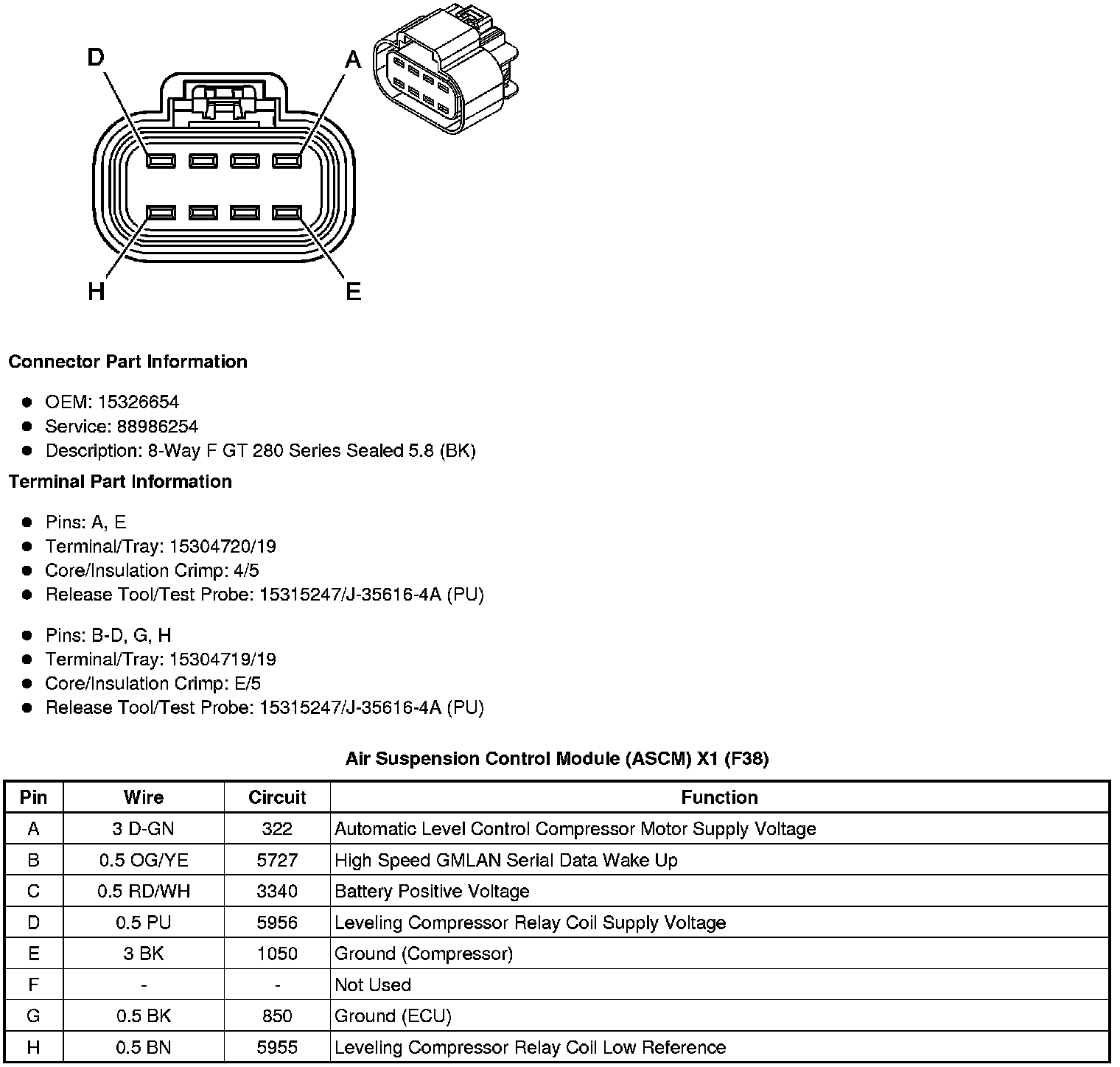

Air Suspension Control Module (ASCM) X1 (F38)

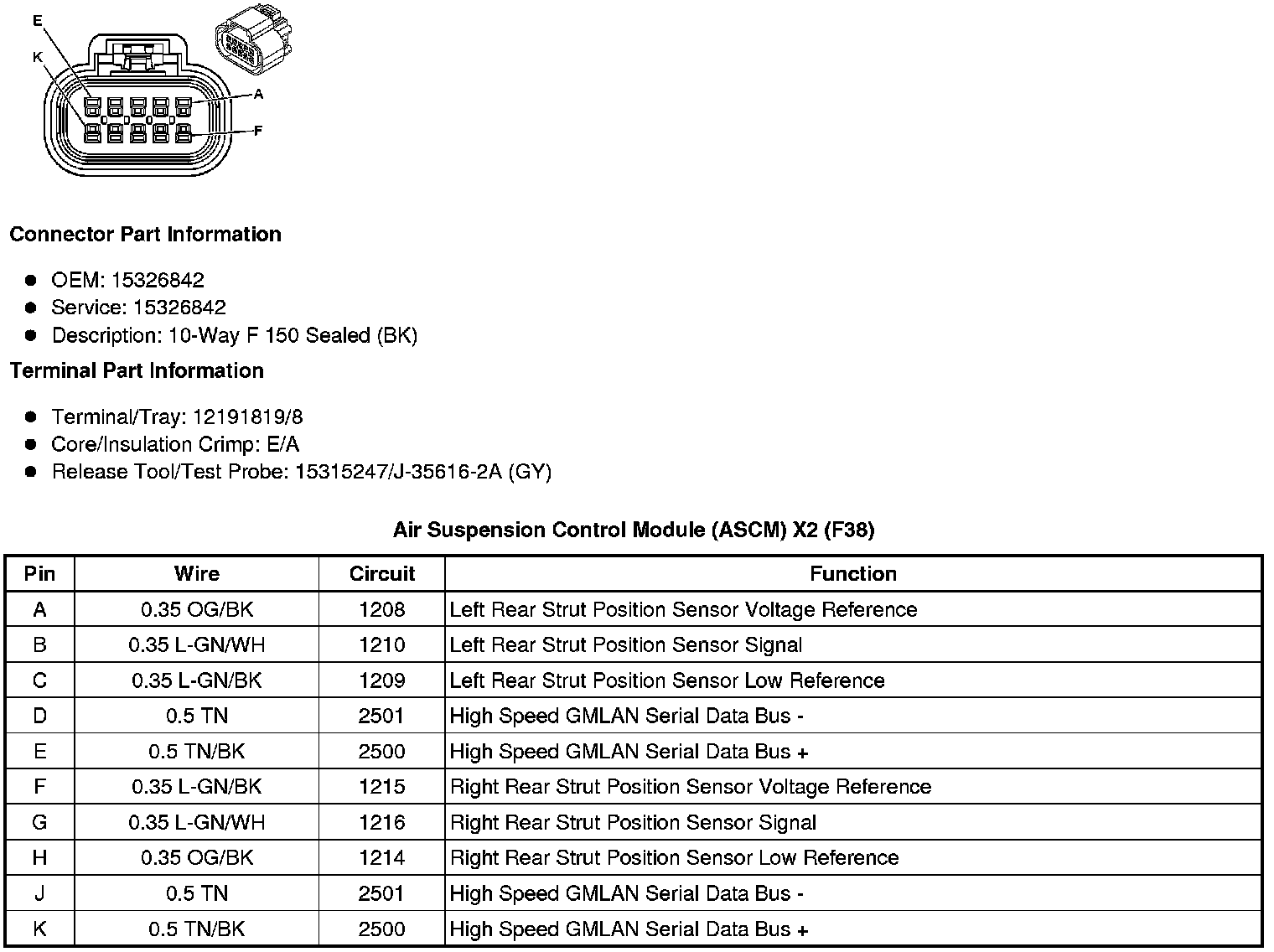

Air Suspension Control Module (ASCM) X2 (F38)

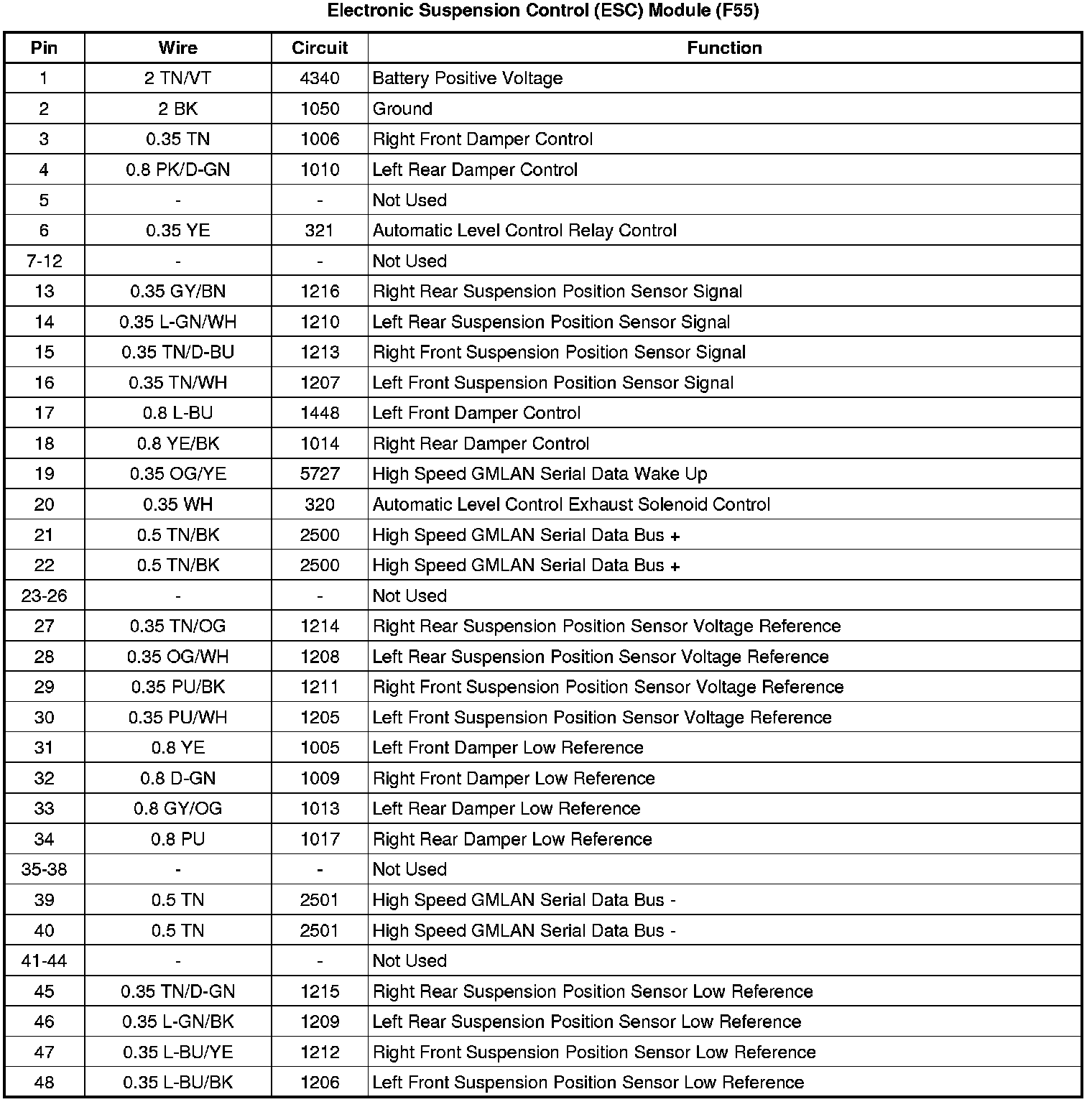

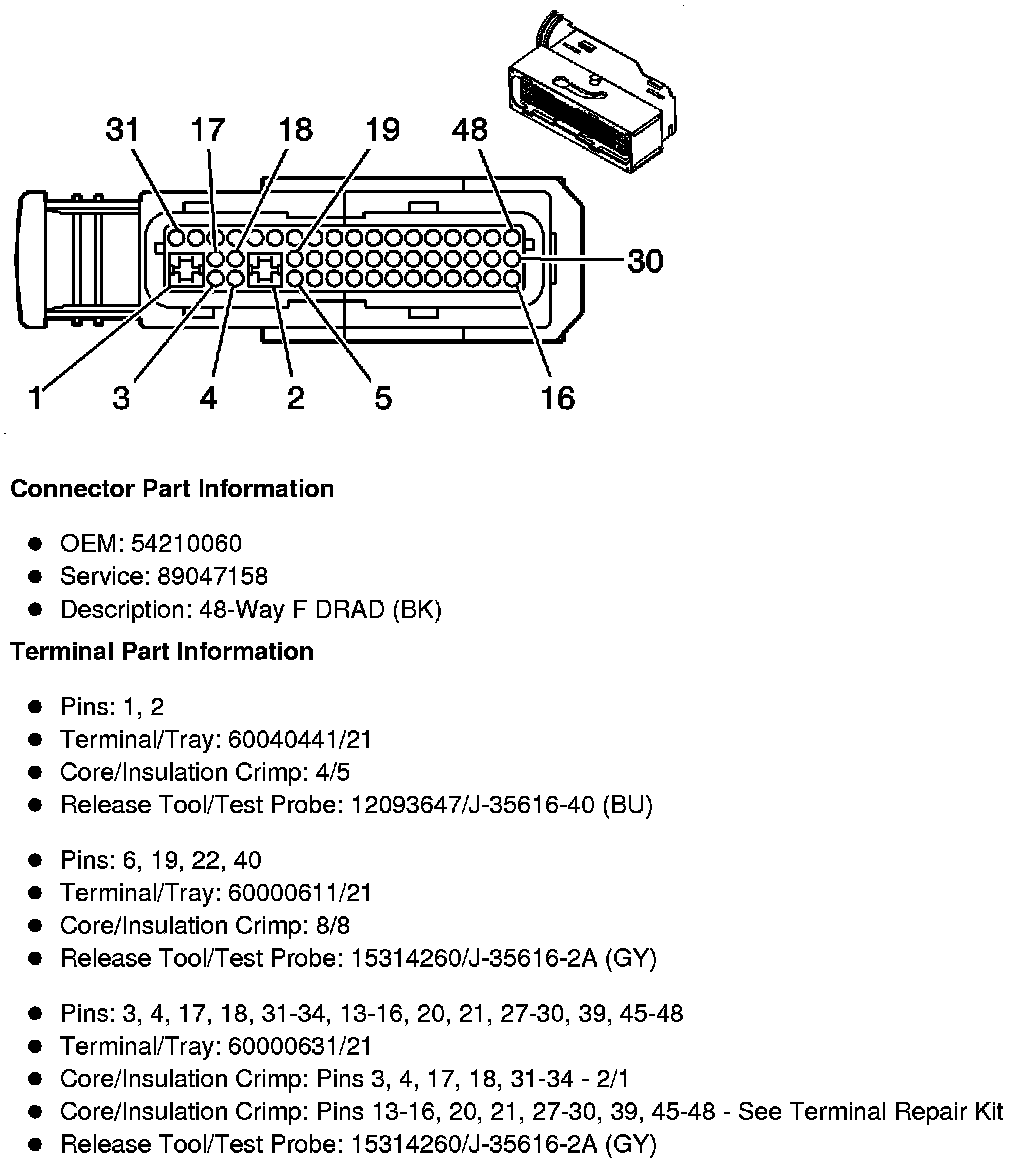

Electronic Suspension Control (ESC) Module (F55)
