Seat Temperature Element




Component Connector End Views

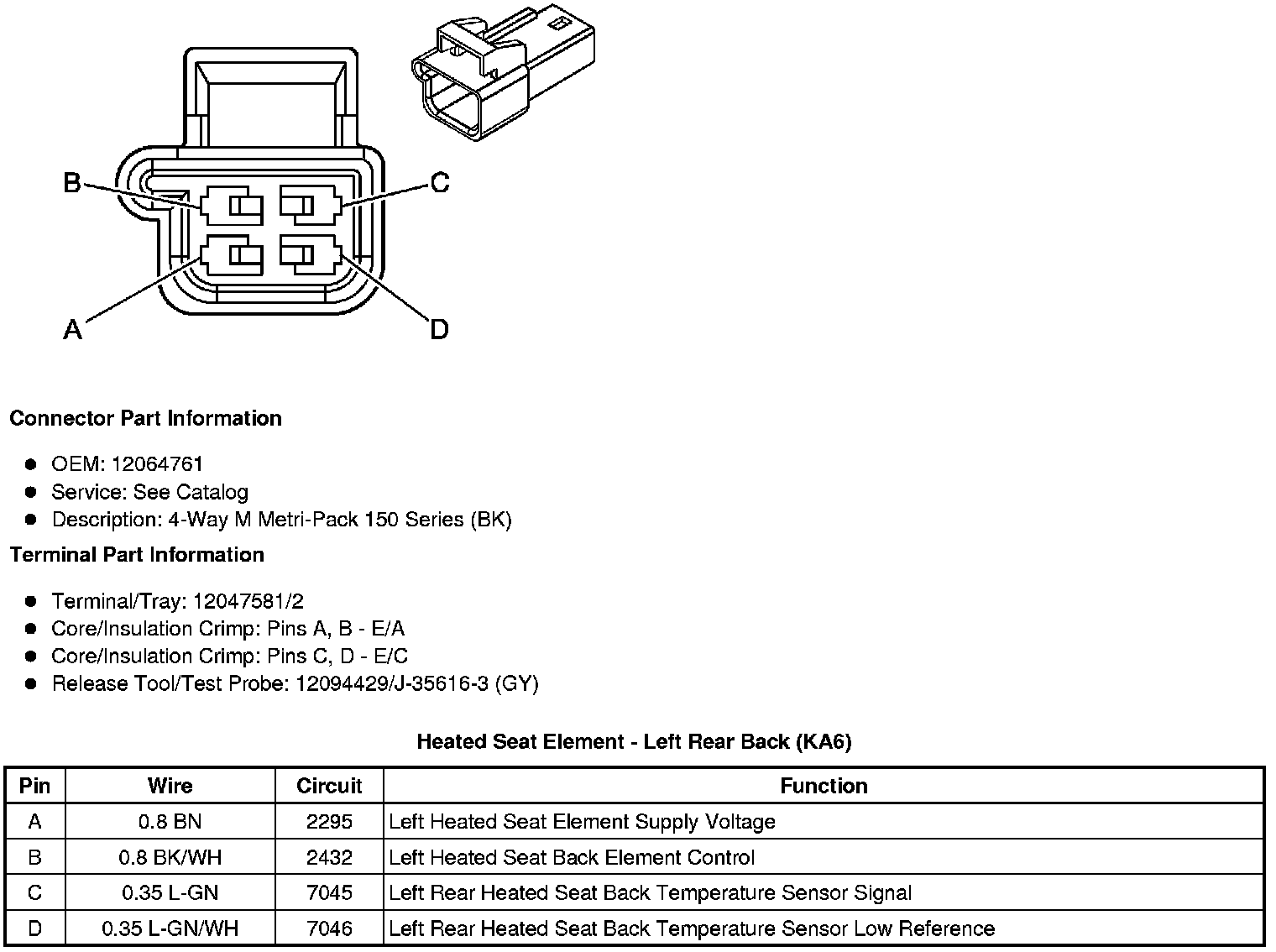

Heated Seat Element - Left Rear Back (KA6)

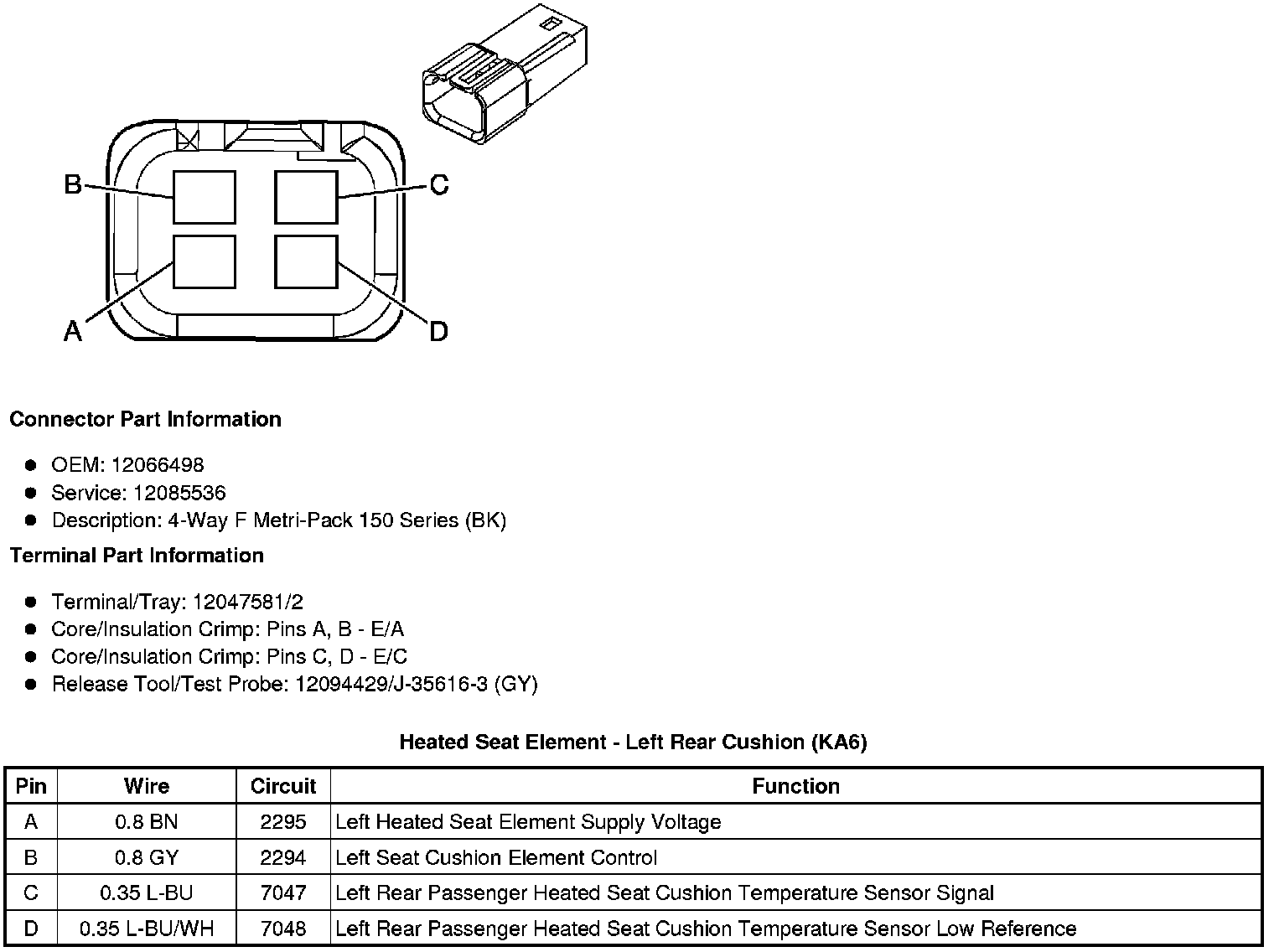

Heated Seat Element - Left Rear Cushion (KA6)

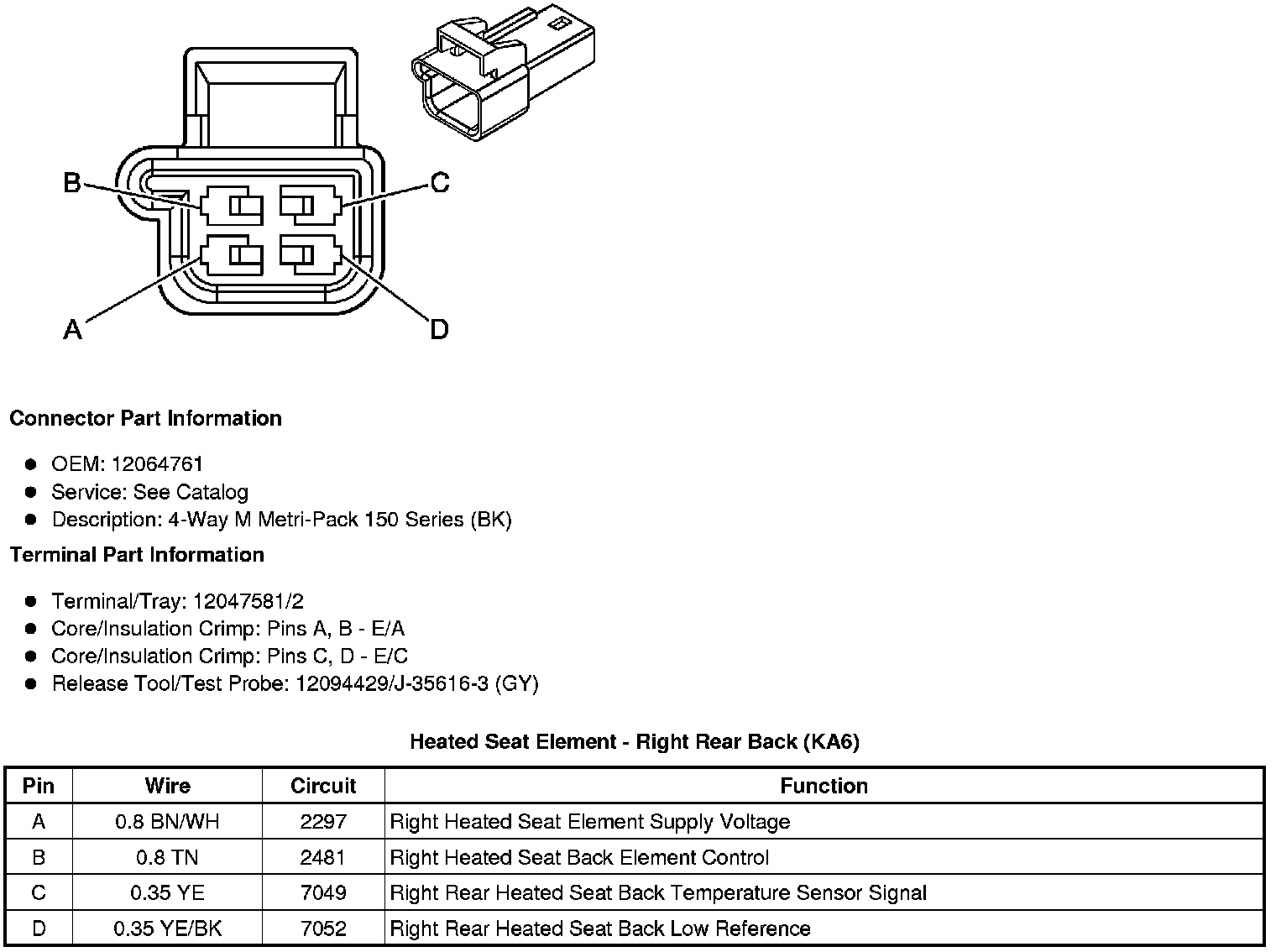

Heated Seat Element - Right Rear Back (KA6)

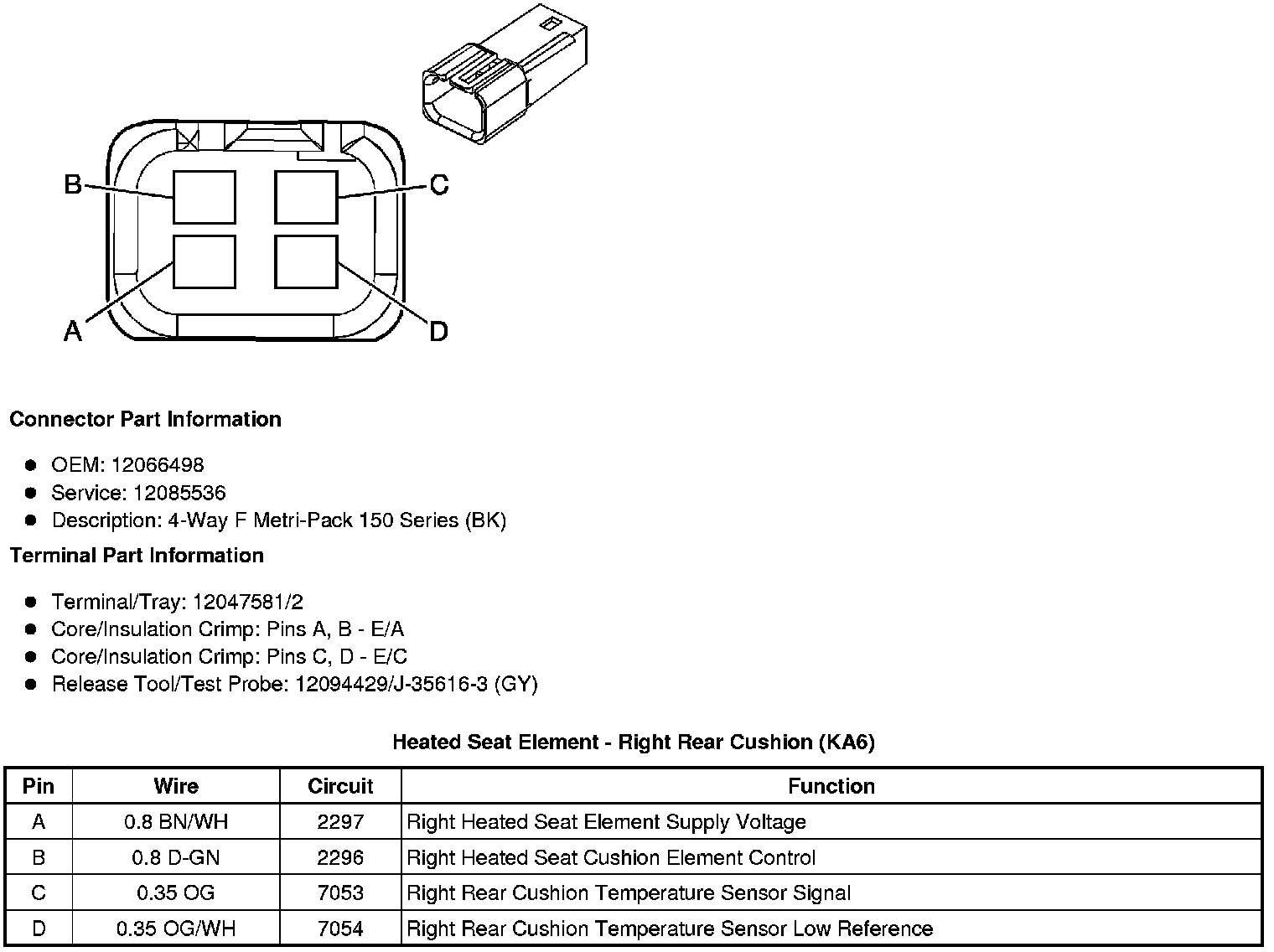

Heated Seat Element - Right Rear Cushion (KA6)
